Without Scan Tool

SYSTEM CHECK MODE (DTC CHECK)

HINT: Illustrations may differ from the actual vehicle depending on the device settings and options.

a. Start the diagnostic mode.
b. Read the system check result.

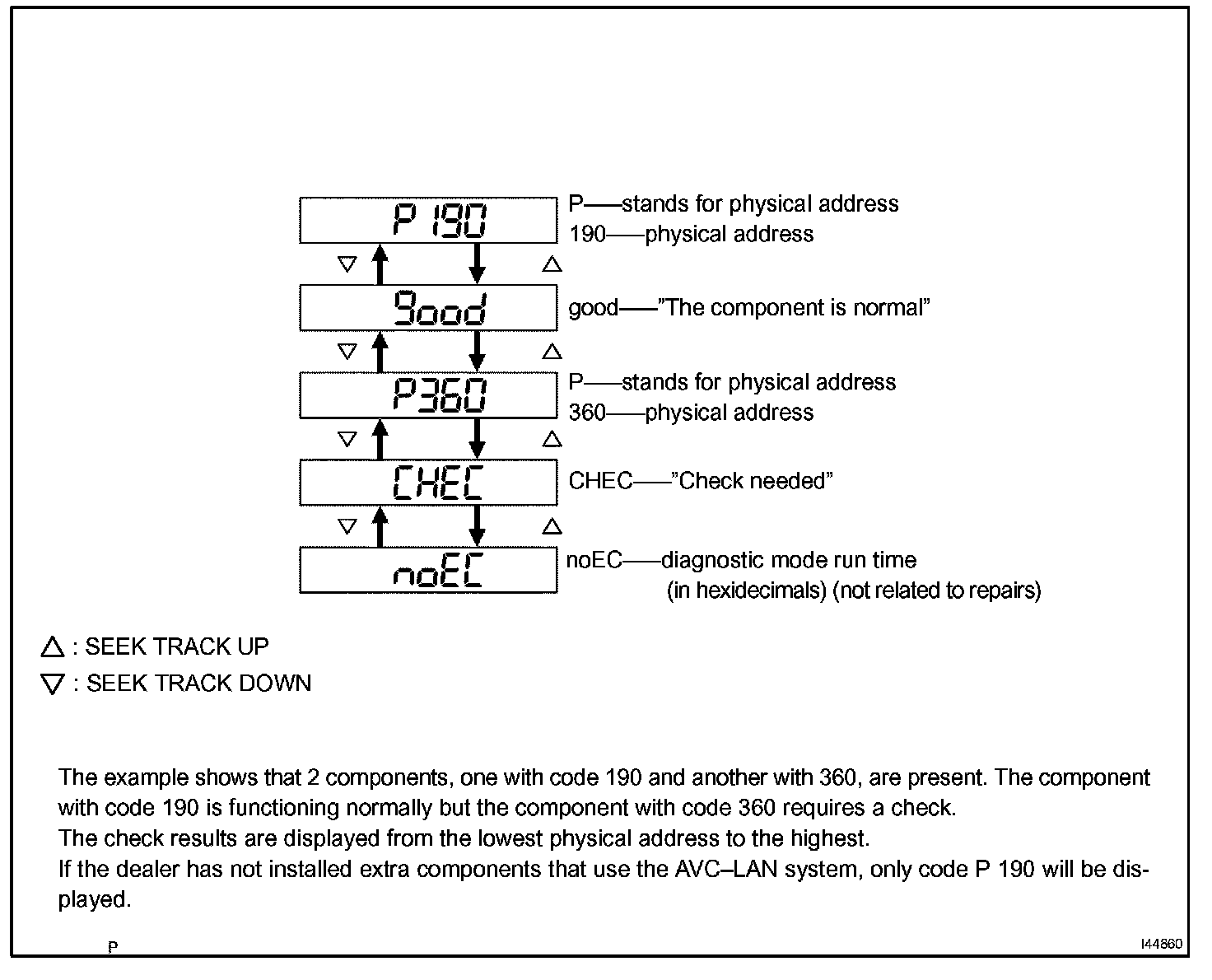

1. Press the "SEEK TRACK" switch to see the check result of each component.
2. The component device code (physical address) is displayed first, and then the check result follows.






HINT: If all check results are "good", the system determines that no DTC exists.

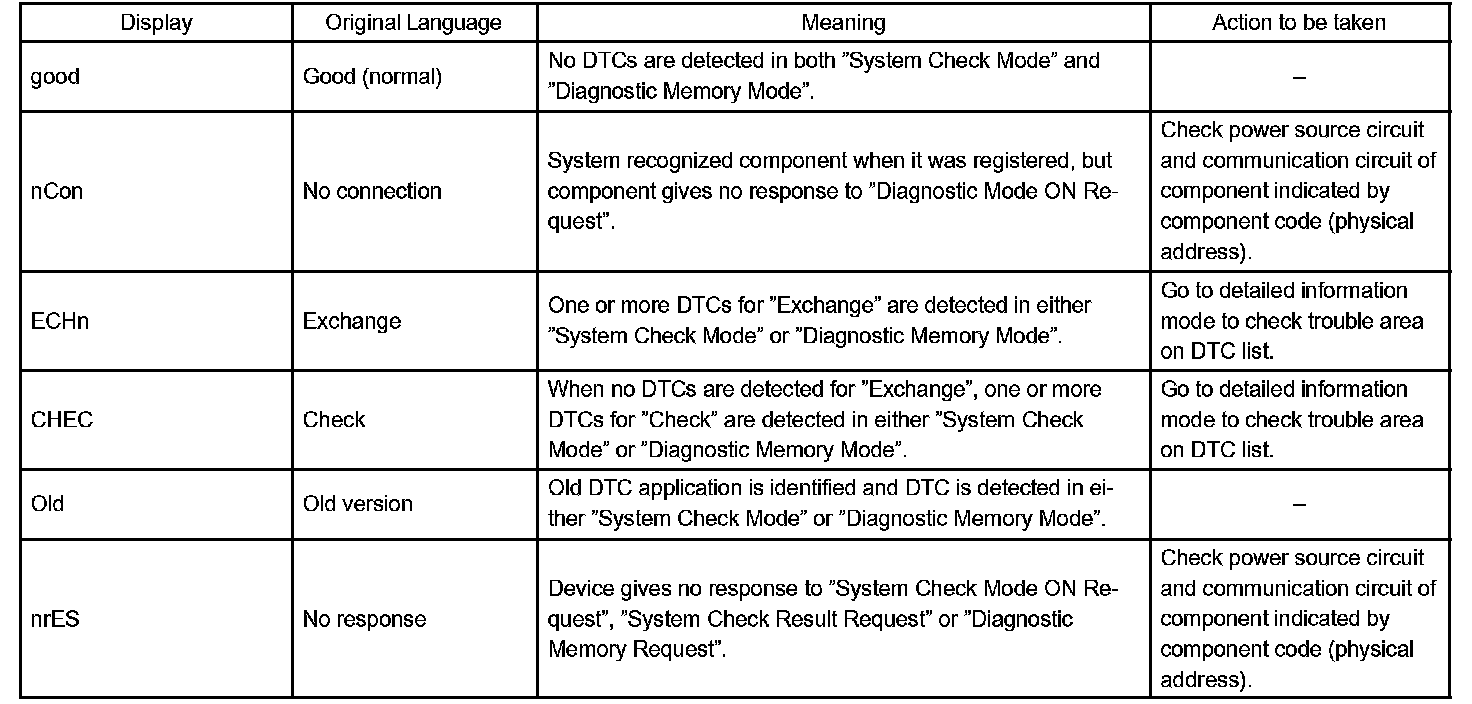

3. Check result display







4. To perform the service check again, press the preset switch "1".

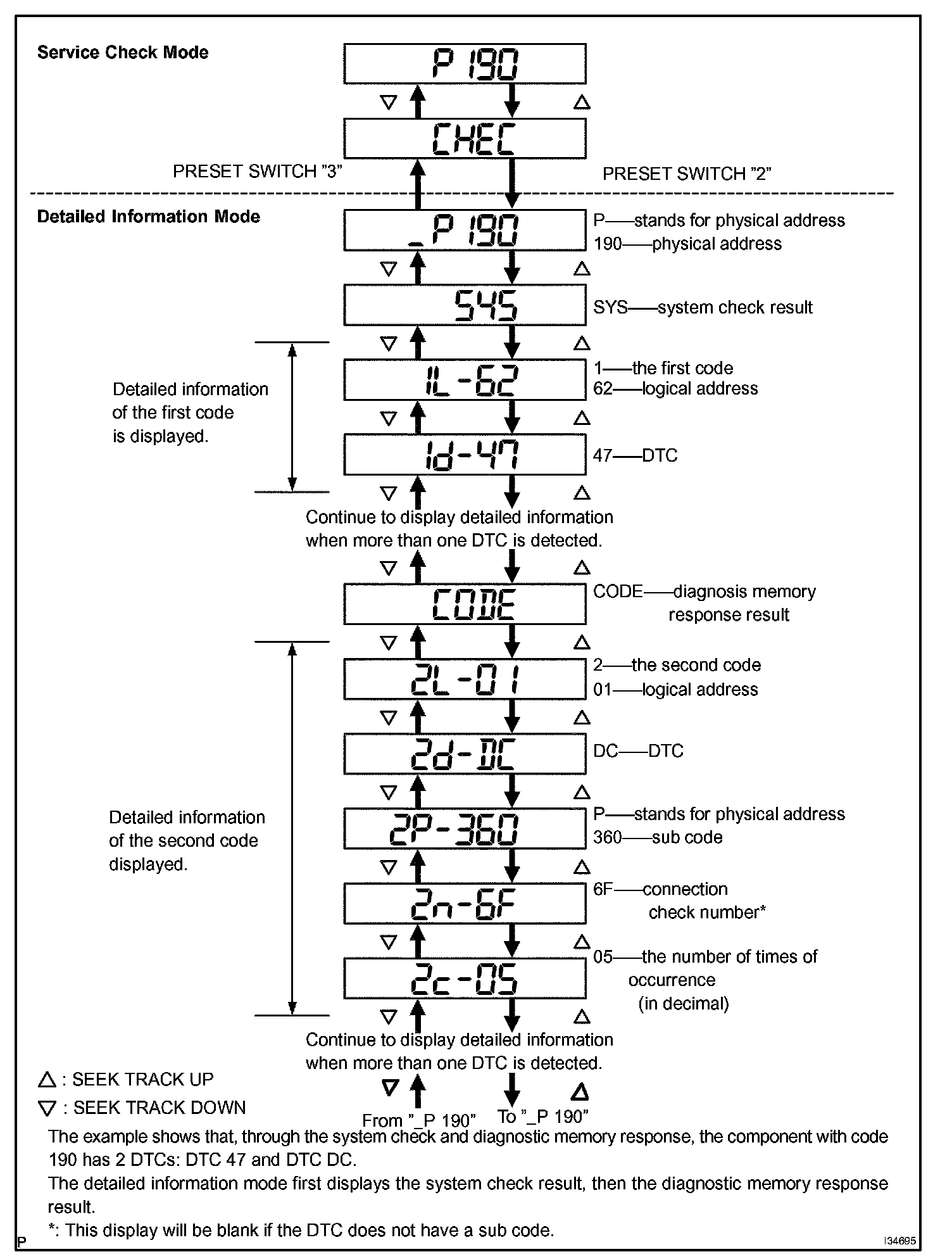

c. Detailed information mode (when displaying the DTC for a trouble component)

1. With "CHEC" or "ECHn" being displayed, press the preset switch "2" to go to the detailed information mode.
2. Press the "SEEK TRACK" switch to display the "System Check Result (SYS)" and "Diagnostic Memory Response (CODE)".

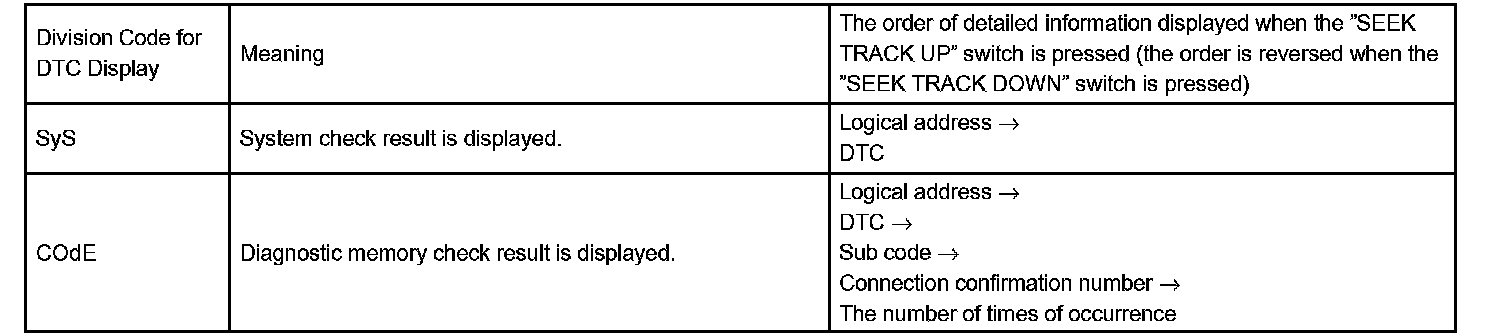

3. Displayed items in detailed information mode
4. Check the trouble area on the DTC list.
5. To return to the service check mode, press the preset switch "3".
