Diagnostic Start-Up/Finish

DIAGNOSTIC START-UP/FINISH

1. CHECK DIAGNOSTIC CODE




a. Starting diagnostic mode (all elements come on during the switch check mode.

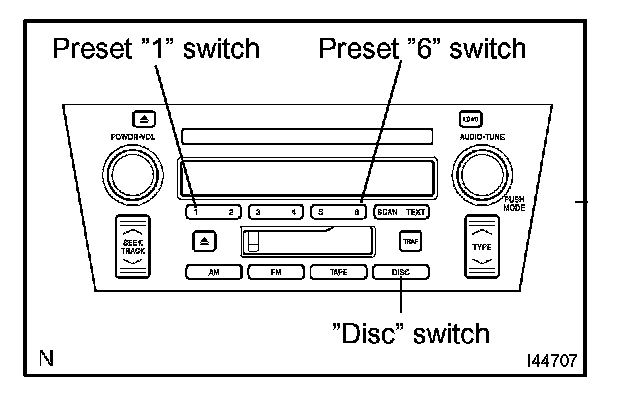

1. Turn off the audio system and turn the ignition switch to ACC. While pressing the preset switches "1" and "6" at the same time, press the "DISC" switch 3 times.

HINT:
- When the system enters the diagnostic mode, a beep sound is emitted 3 times and all the elements turn on during the switch check mode.
- It takes about 40 seconds to complete the check.
- Turn all the elements in the LCD on.
- When pressing switch, confirm that a beep sound is emitted.

b. Service check screen

1. Press the "SEEK TRACK UP" switch to enter the "Service Check Screen".

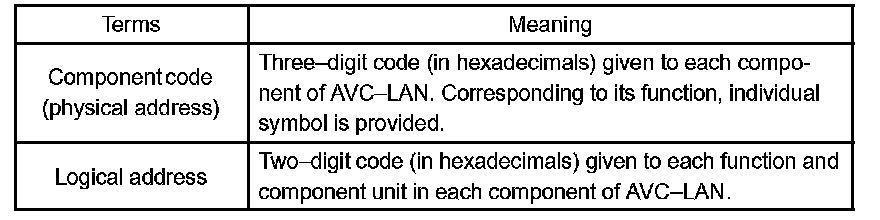

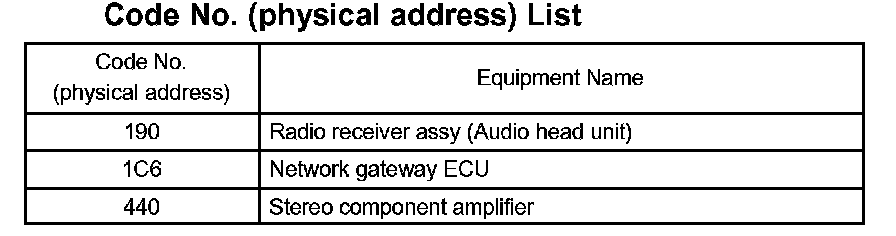

2. In the service check mode, the system check and the diagnostic memory check are performed, and the check results are displayed in numerical order of the component codes (physical address).







c. Finishing diagnostic mode

1. Press the "DISC" switch for 2 seconds or more, or turn the ignition switch OFF.
