Volume Cannot Be Adjusted By Using Steering Pad Switch (Sound Is Heard, Volume Can Be Adjusted By Radio Receiver)

VOLUME CANNOT BE ADJUSTED BY USING STEERING PAD SWITCH (SOUND IS HEARD, VOLUME CAN BE ADJUSTED BY RADIO RECEIVER)

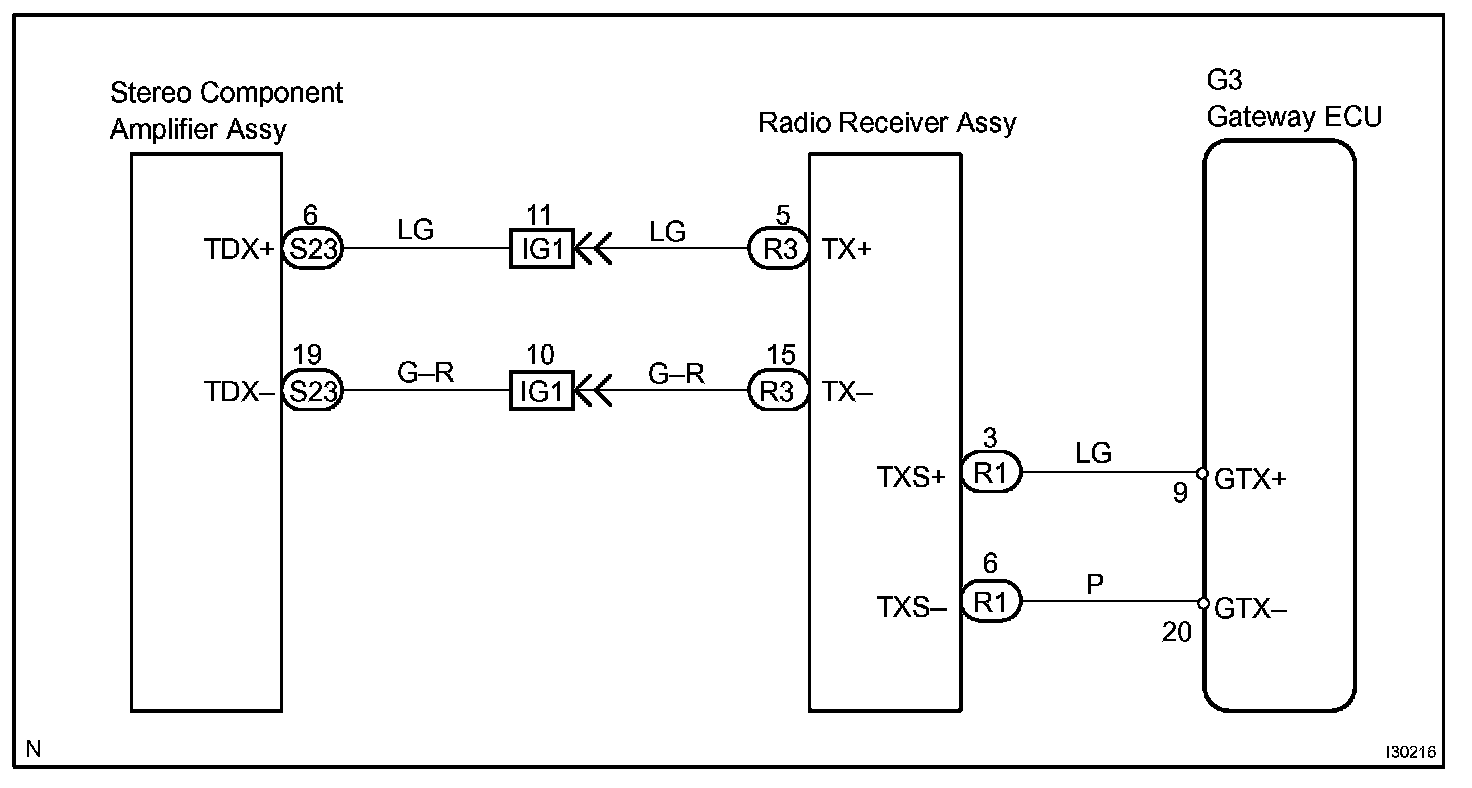

Wiring Diagram:

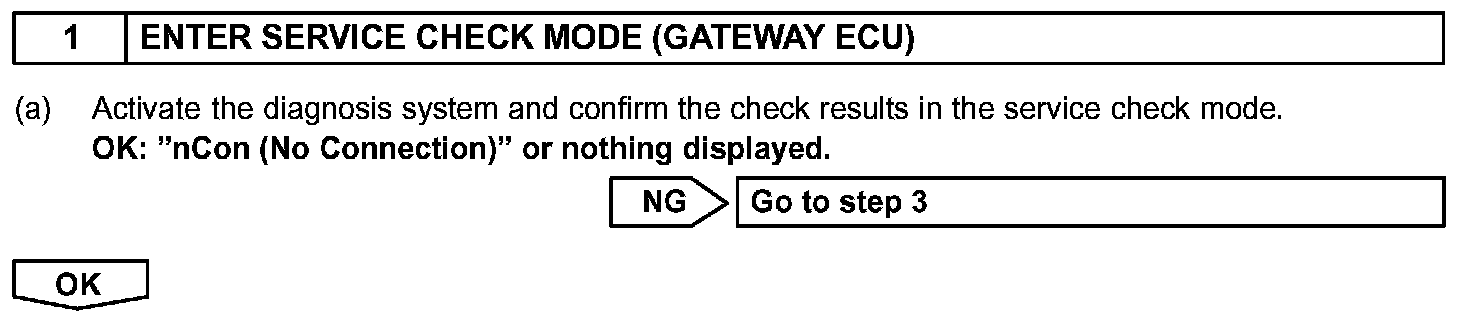

Step 1:

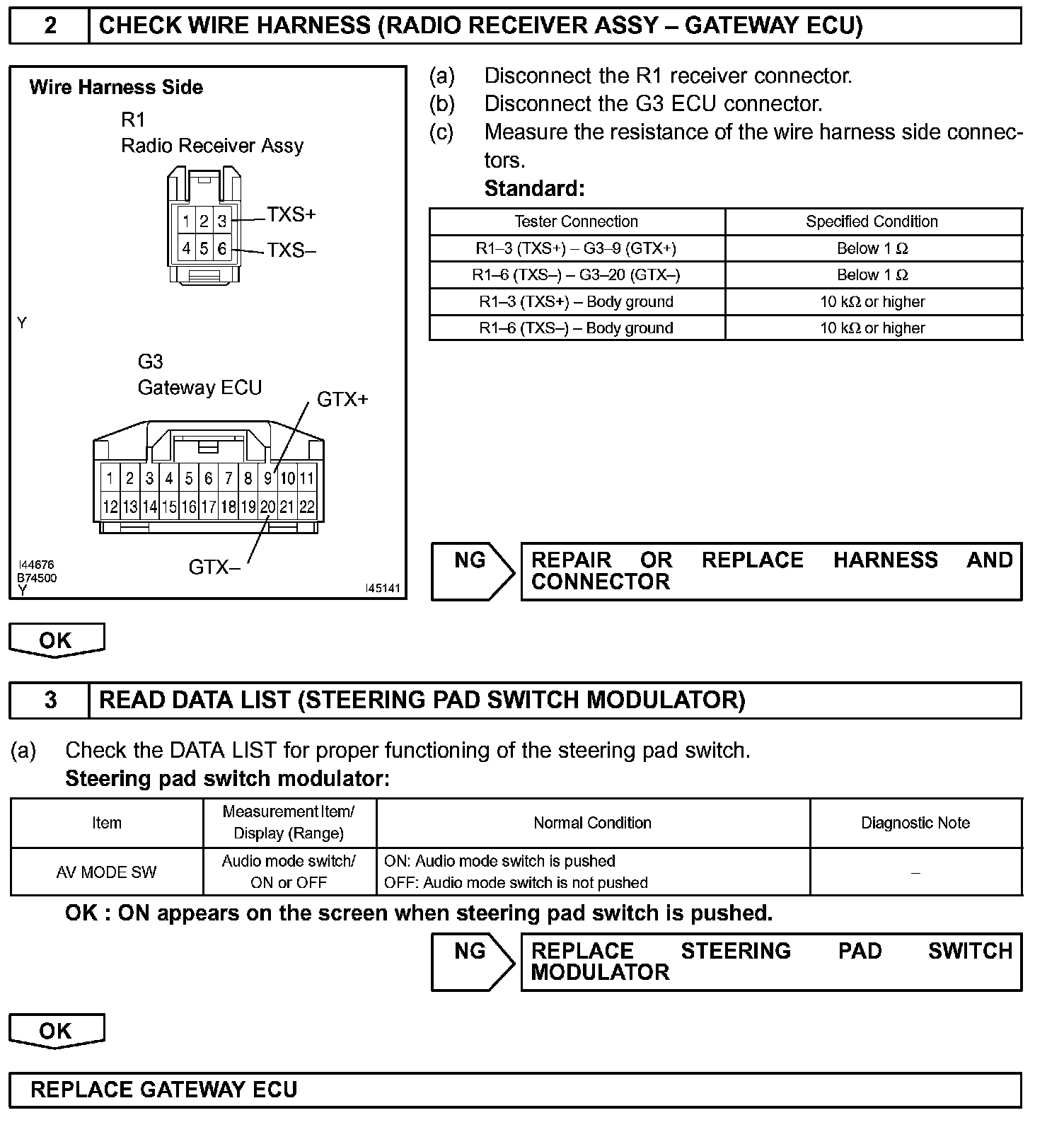

Step 2 - 3:




INSPECTION PROCEDURE
