Speaker Circuit

SPEAKER CIRCUIT

CIRCUIT DESCRIPTION

The stereo component amplifier sends sound signals to the speakers.

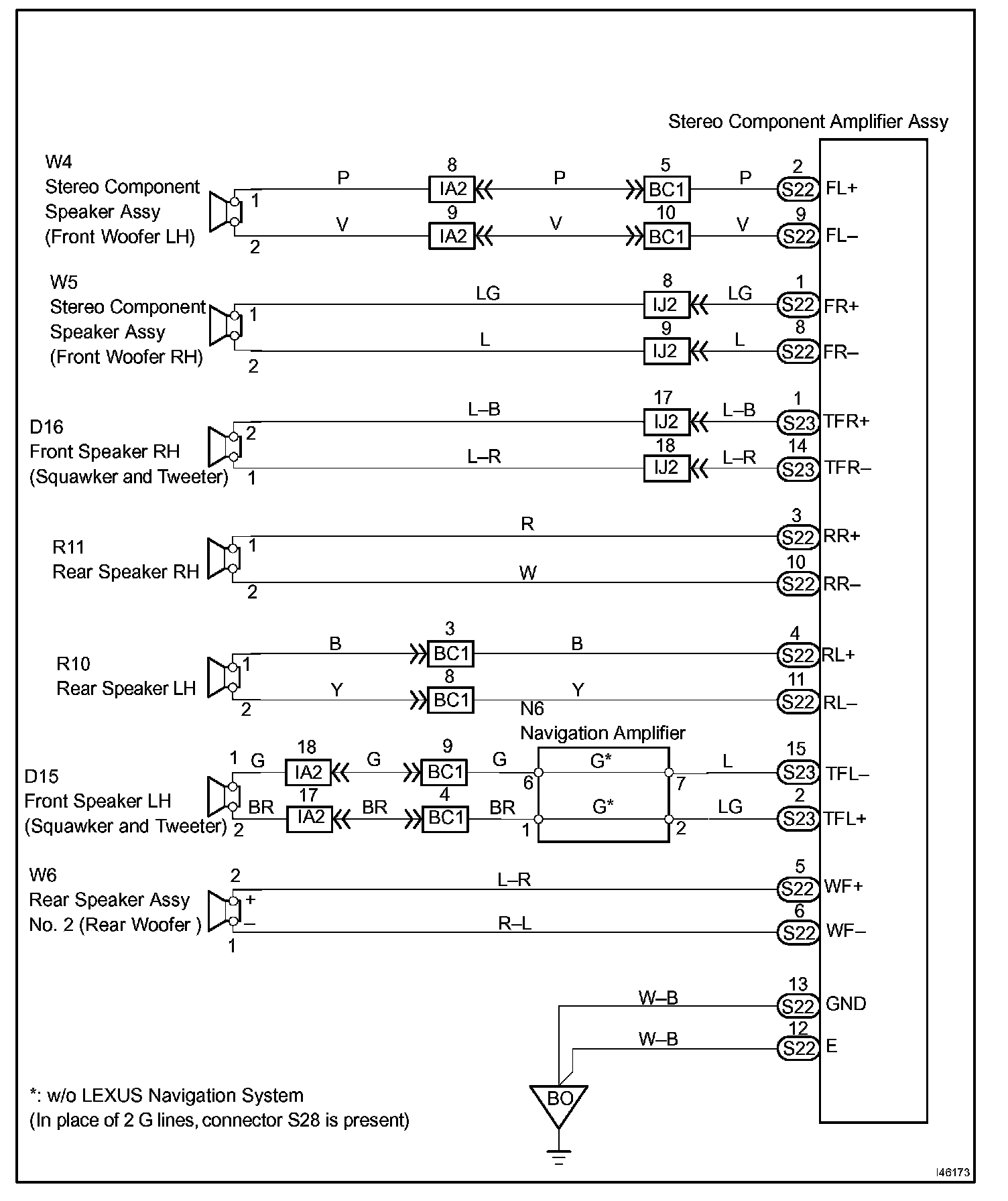

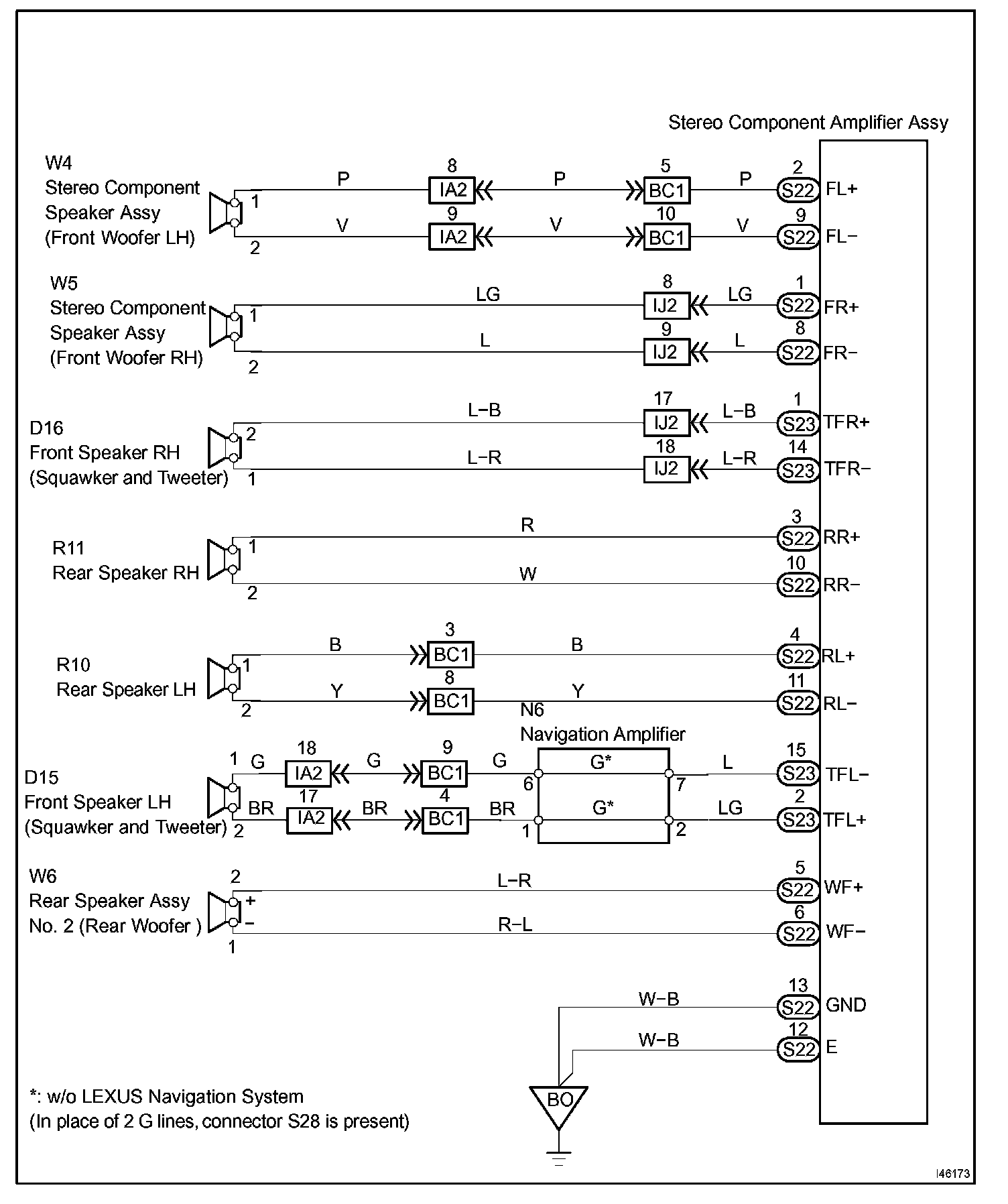

Wiring Diagram:

Step 1:

Step 2 - 3:

Step 4 - 5:

Step 6 - 7:

Step 8 - 9:

Step 10 - 11:

Step 12 - 13:

Step 14 - 15:

Step 16 - 17:

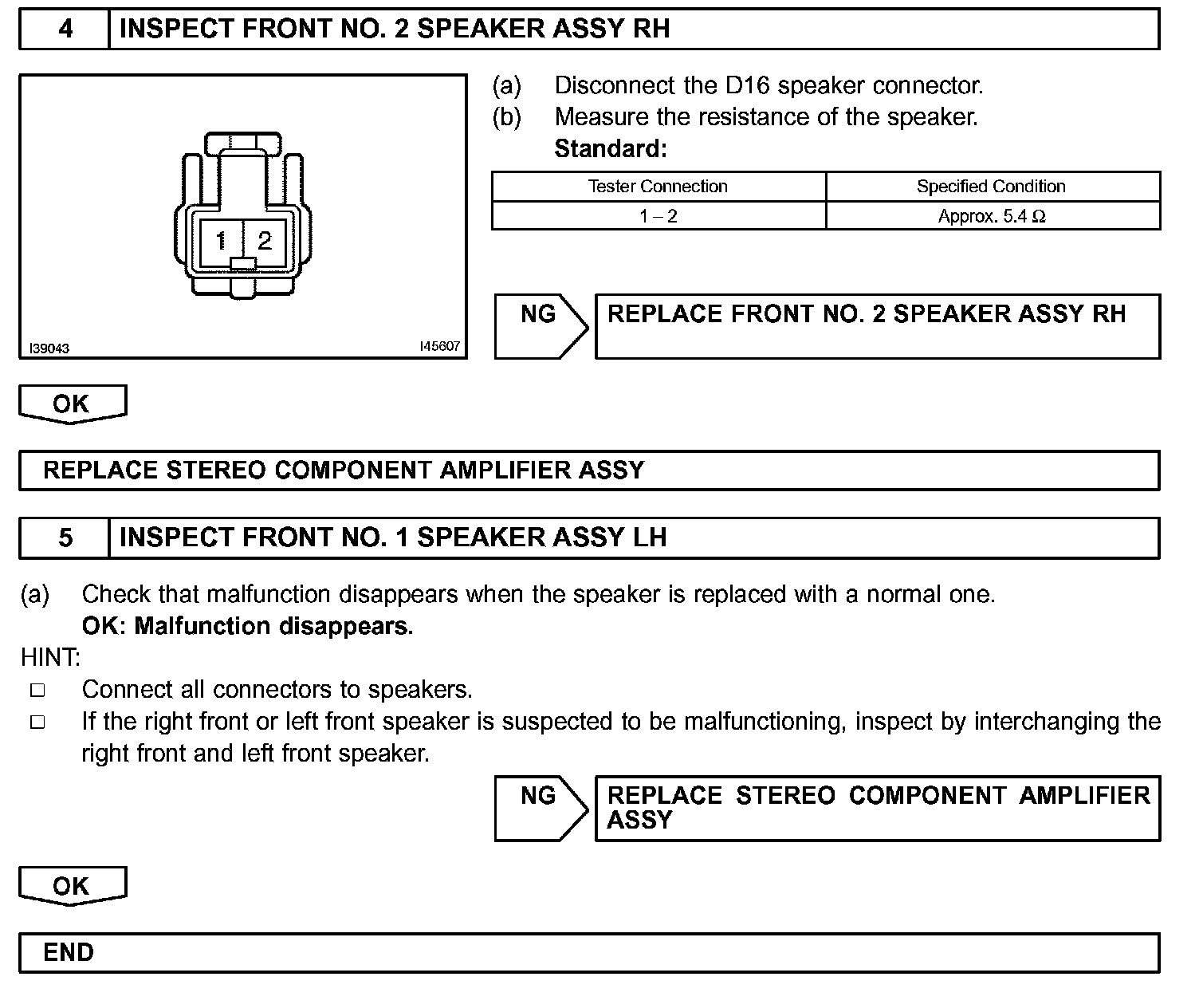

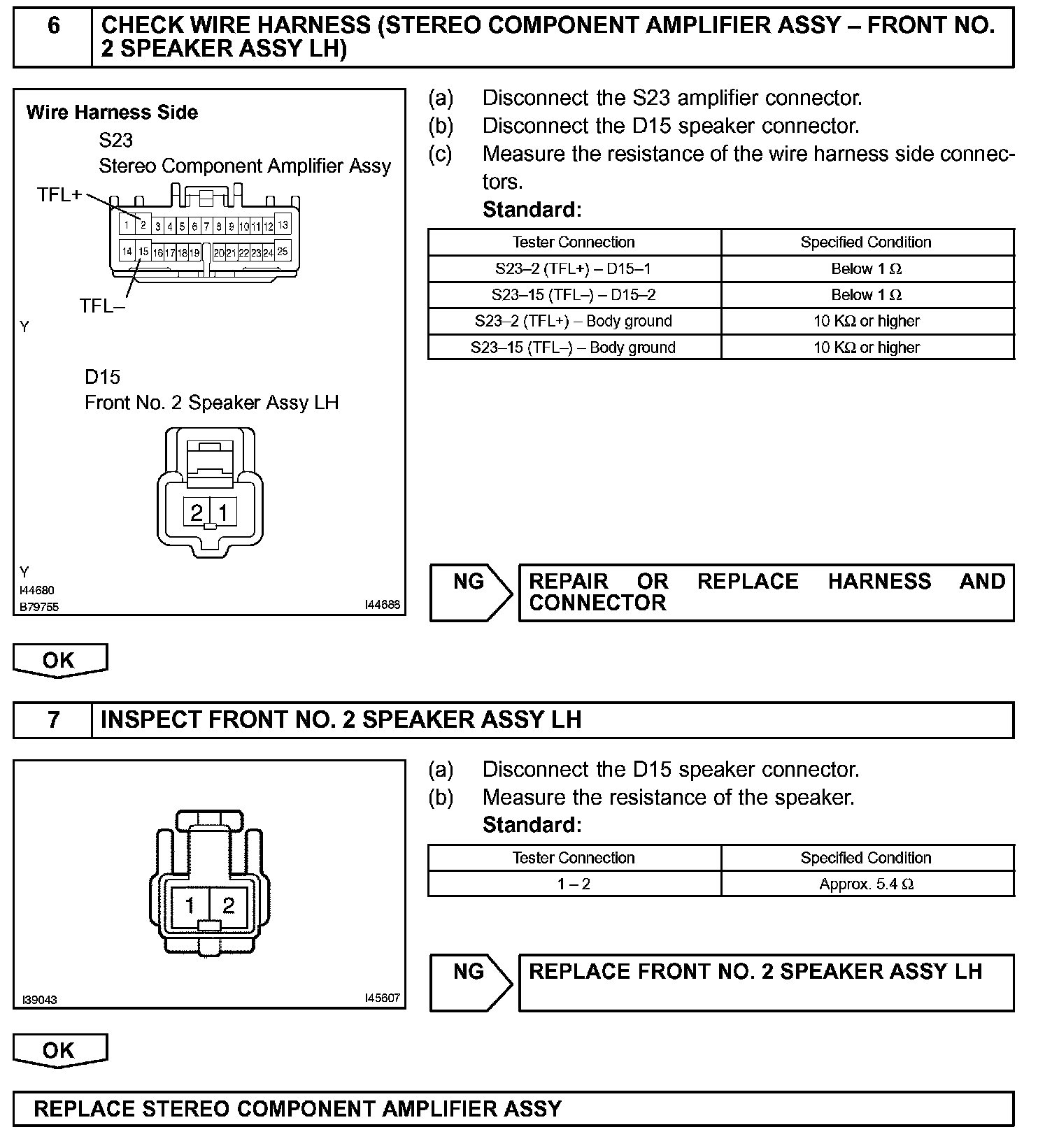

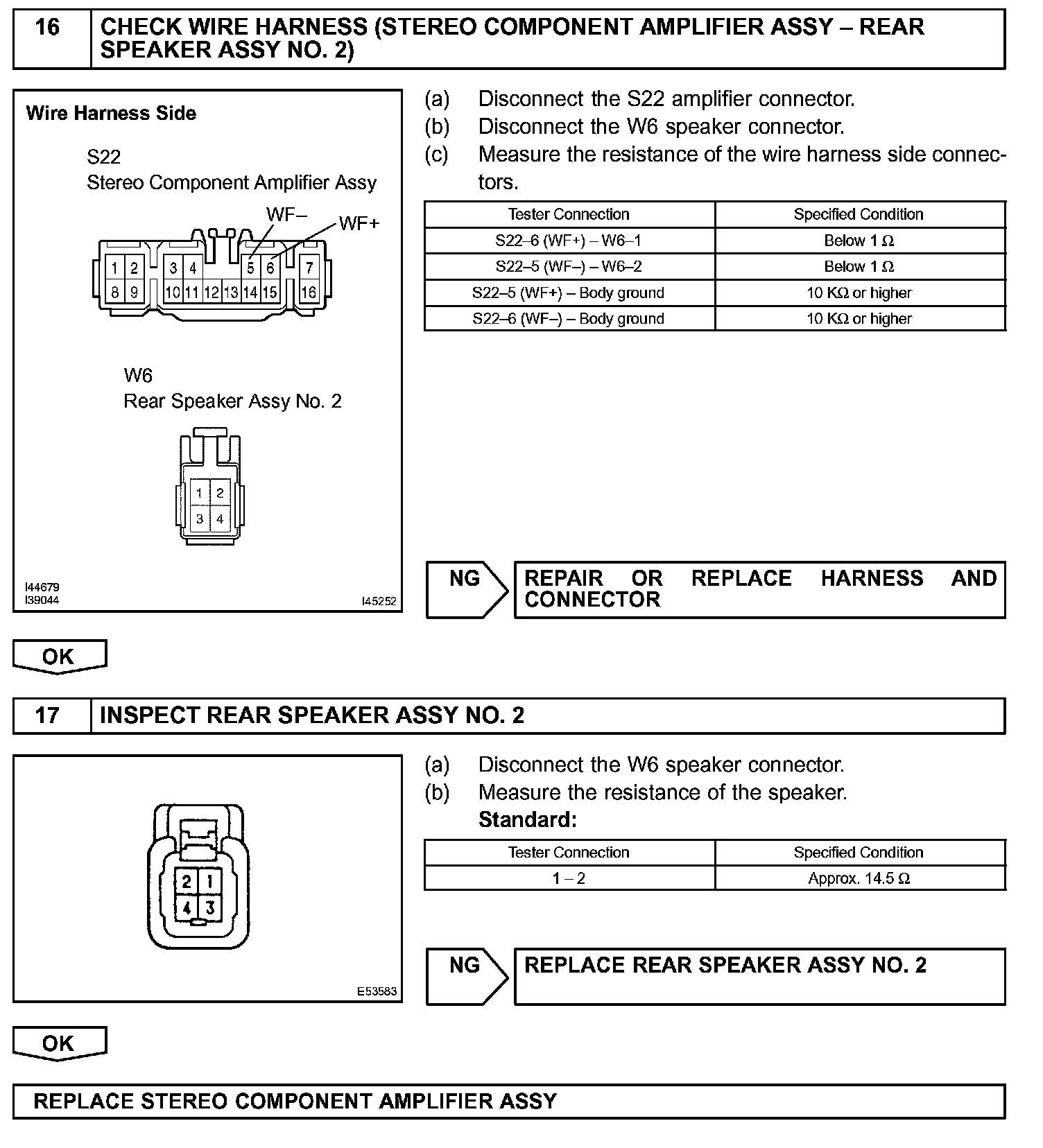

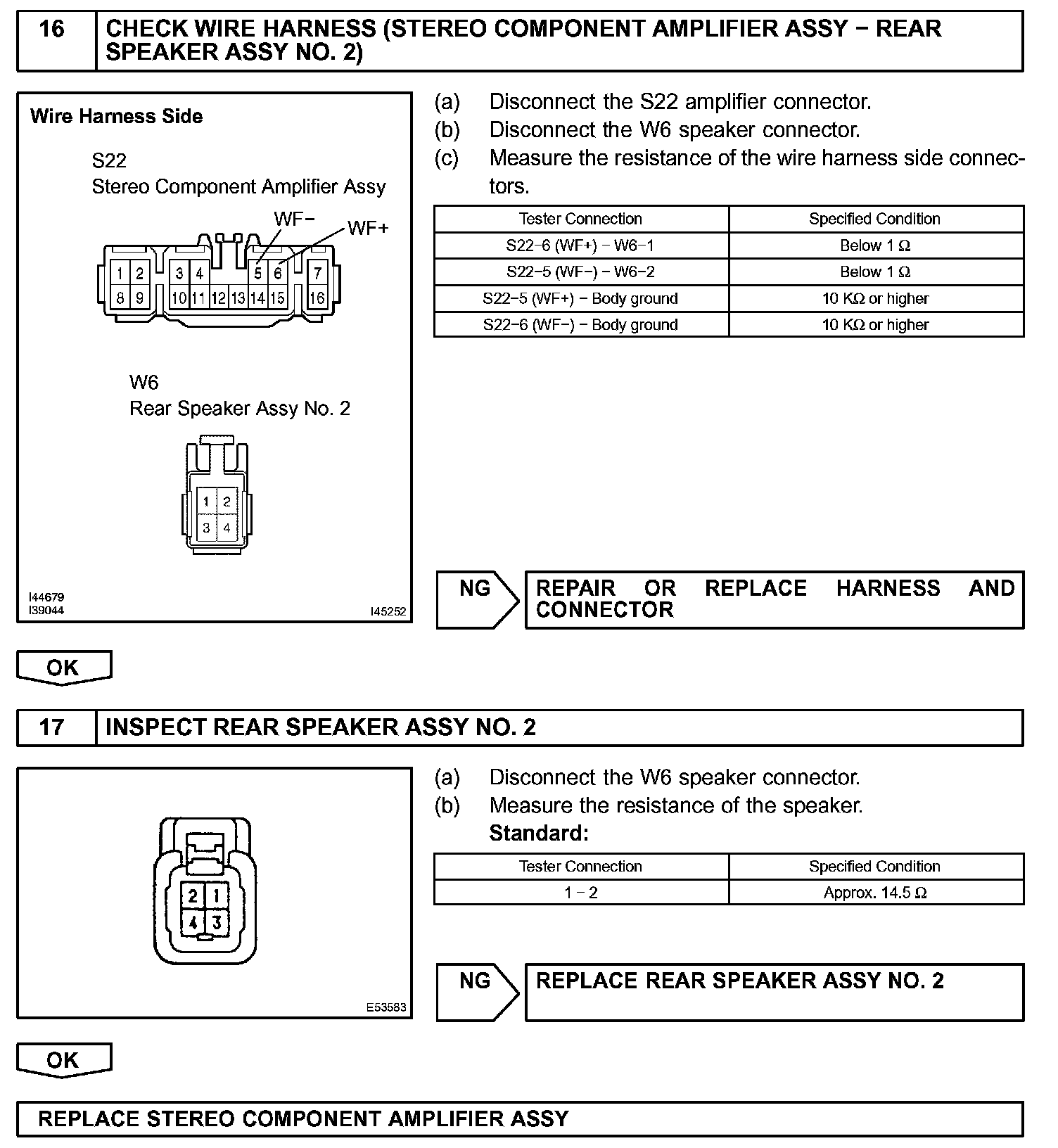

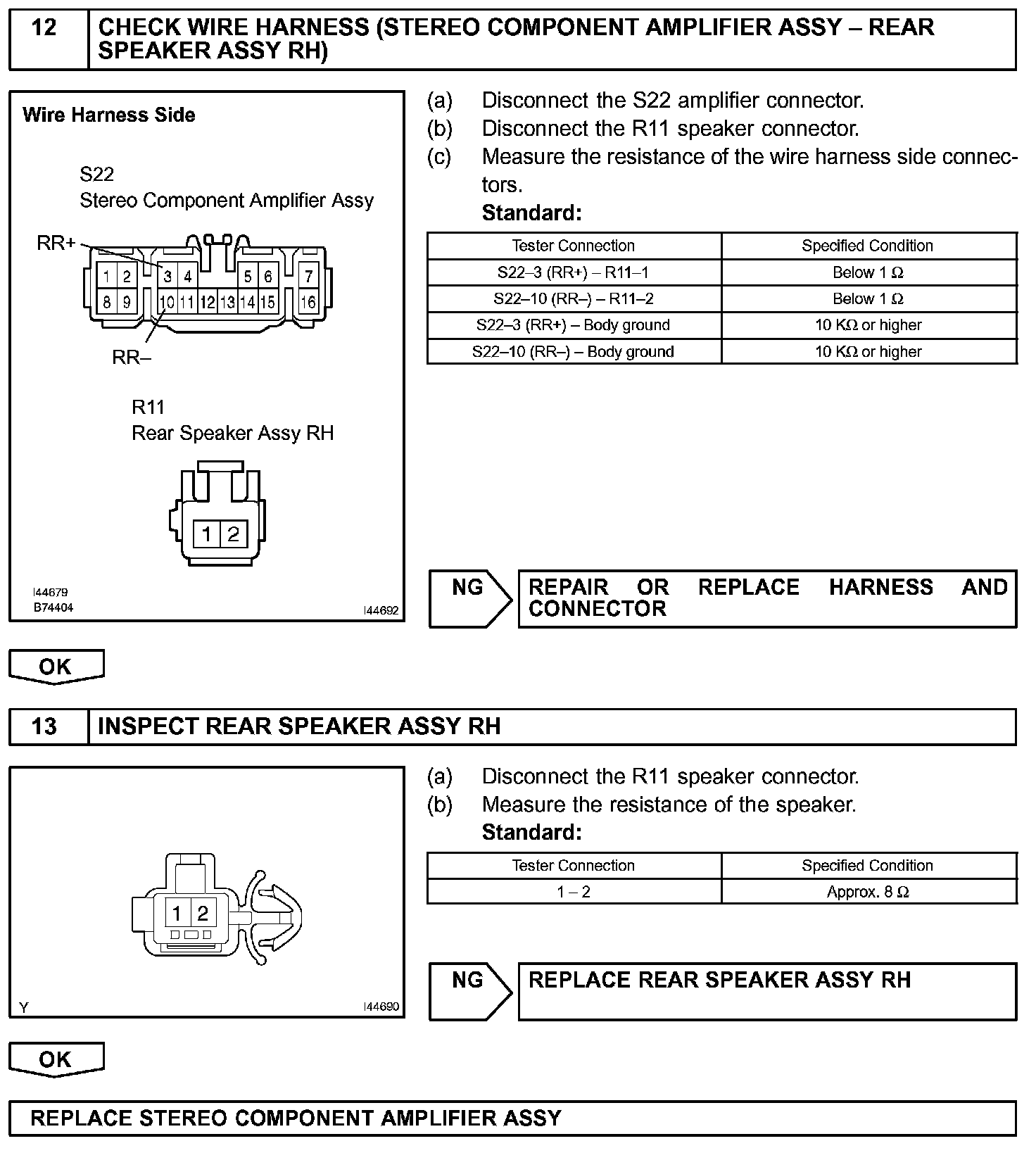

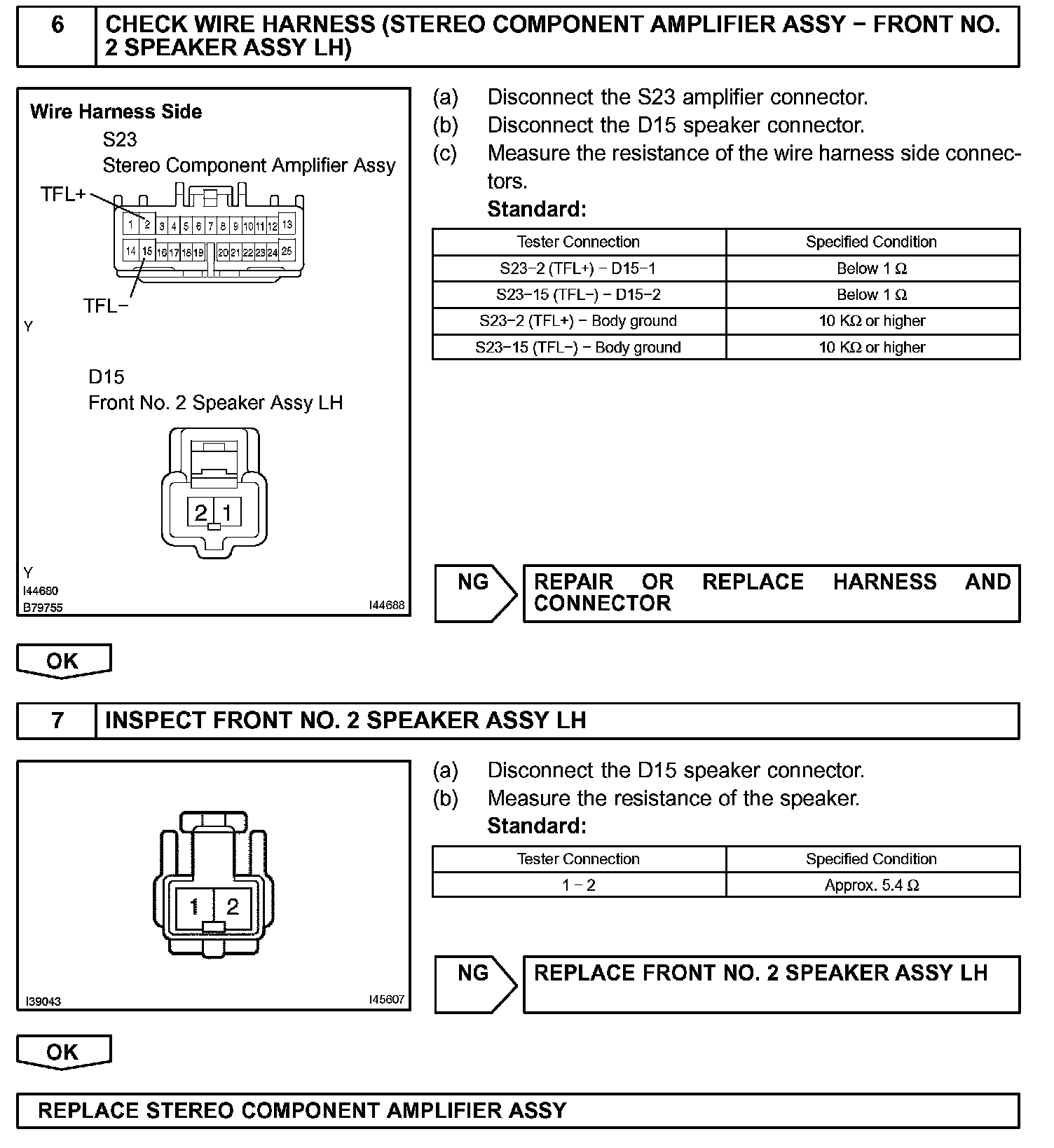

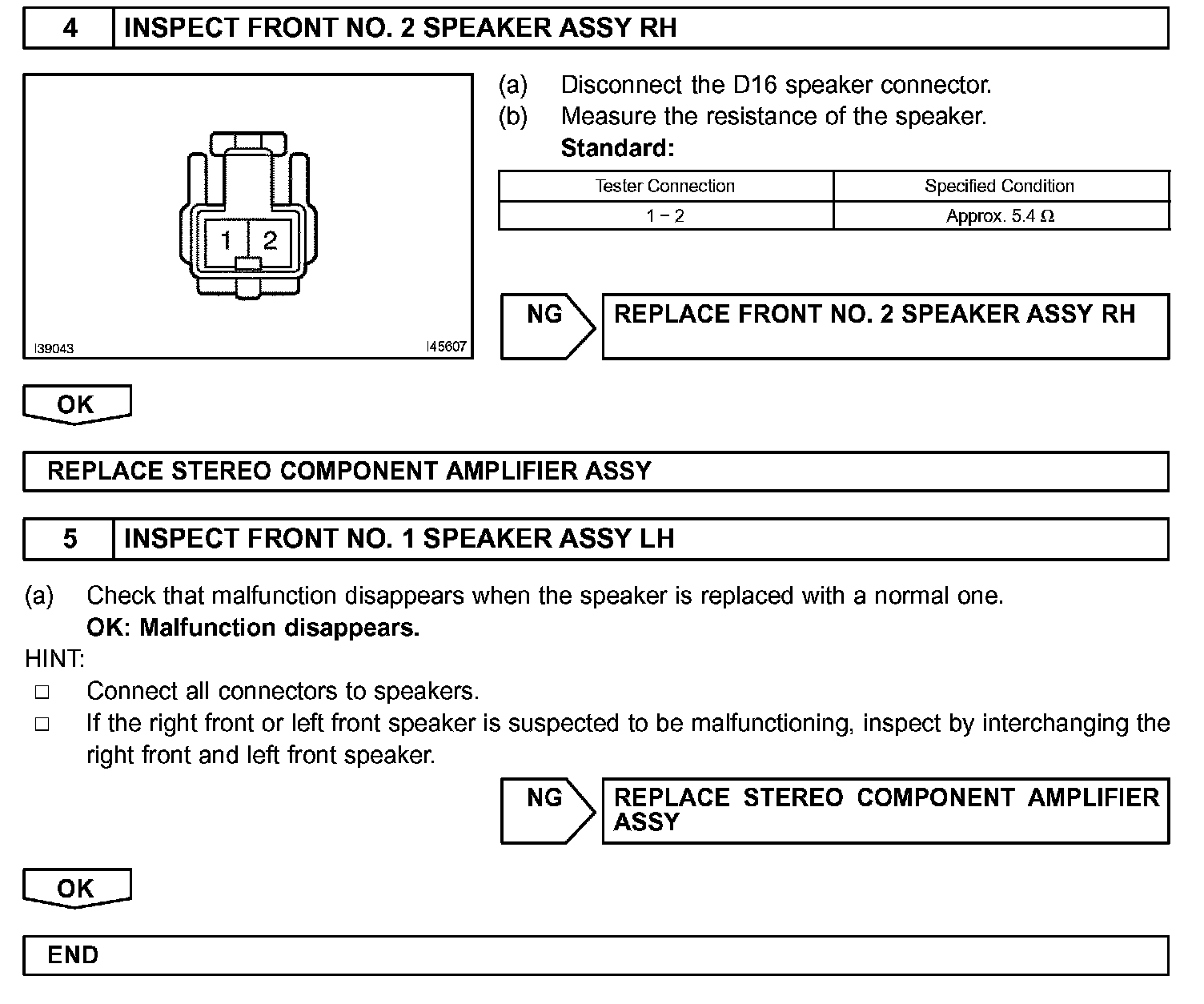

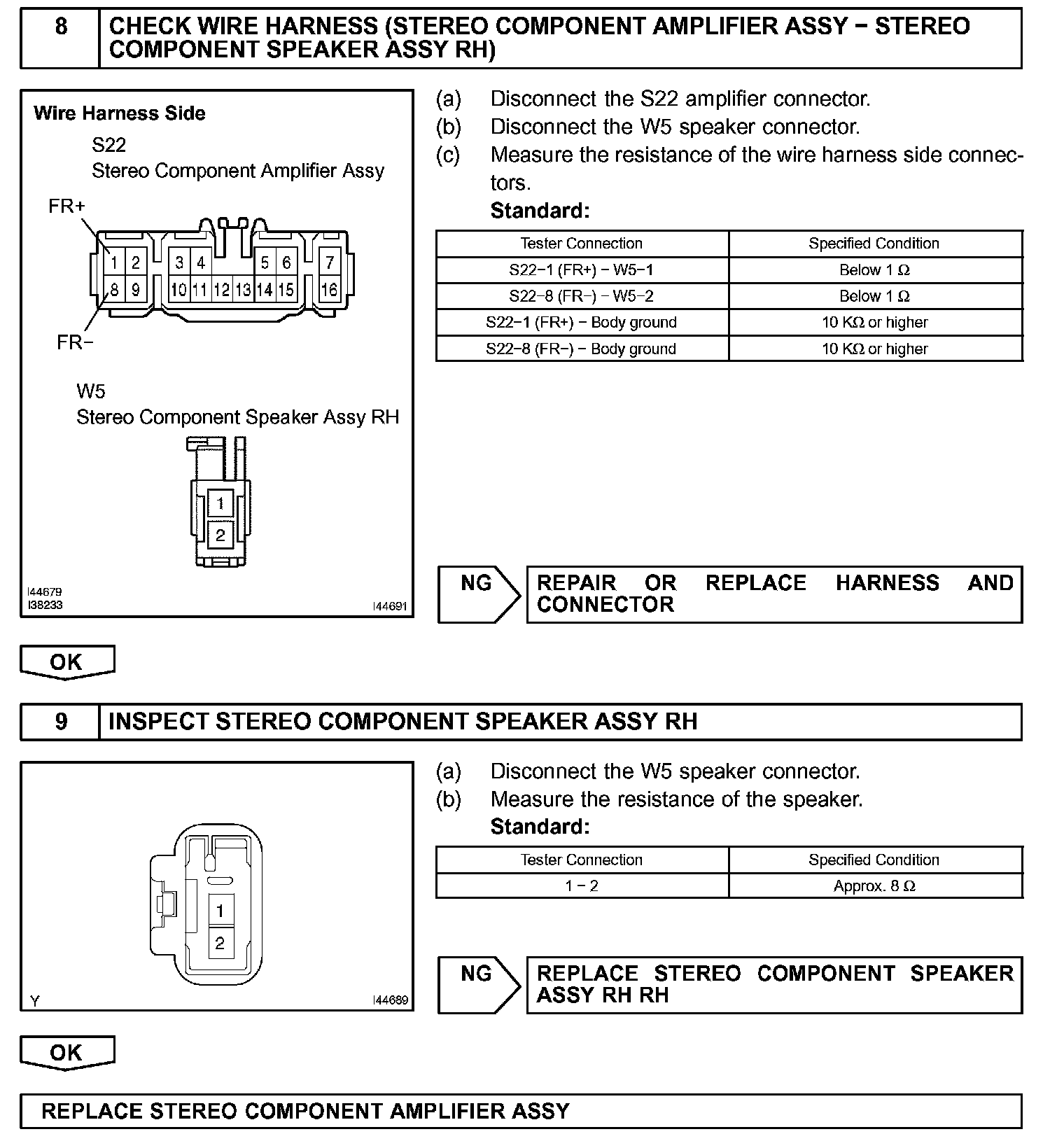

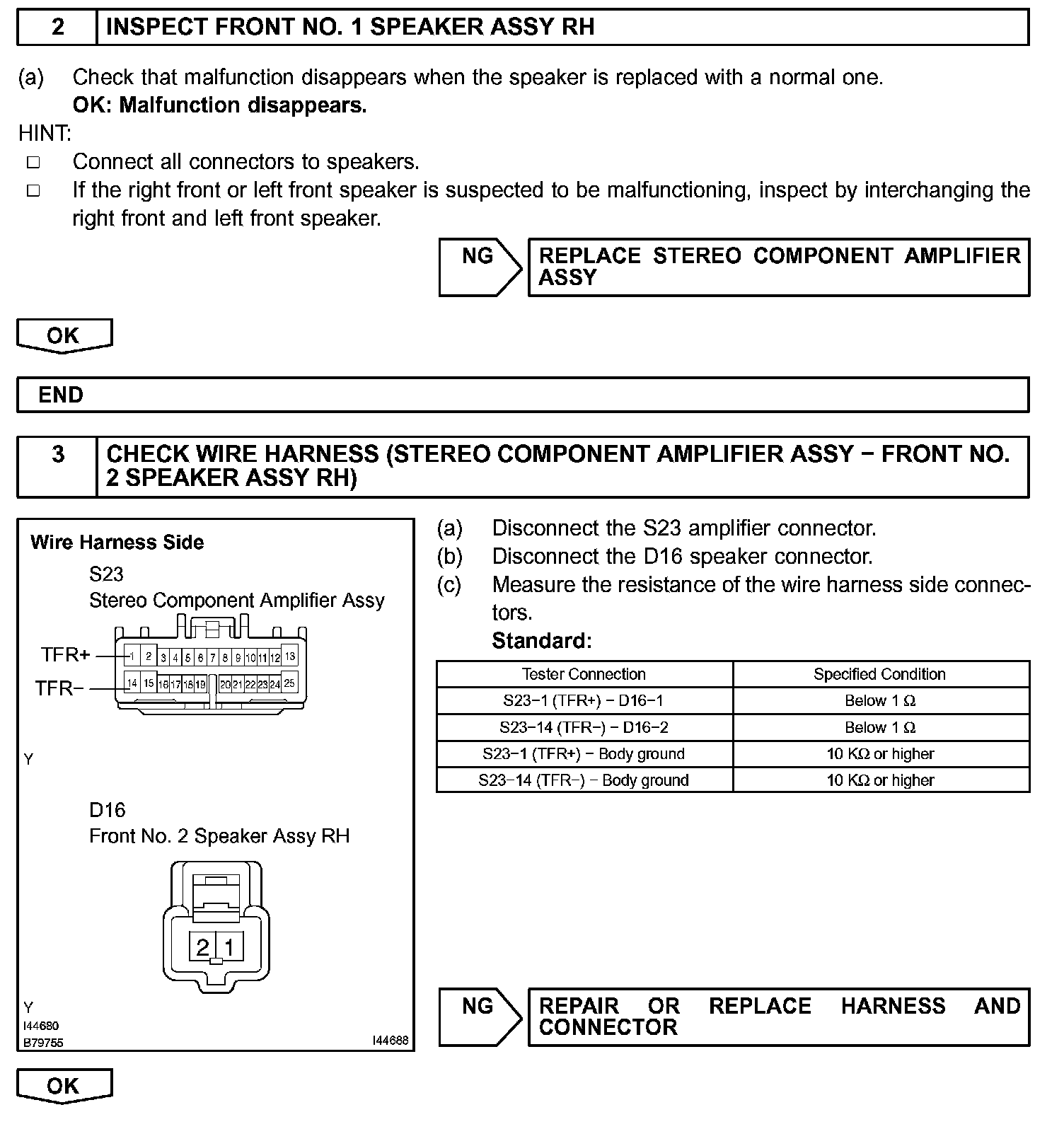

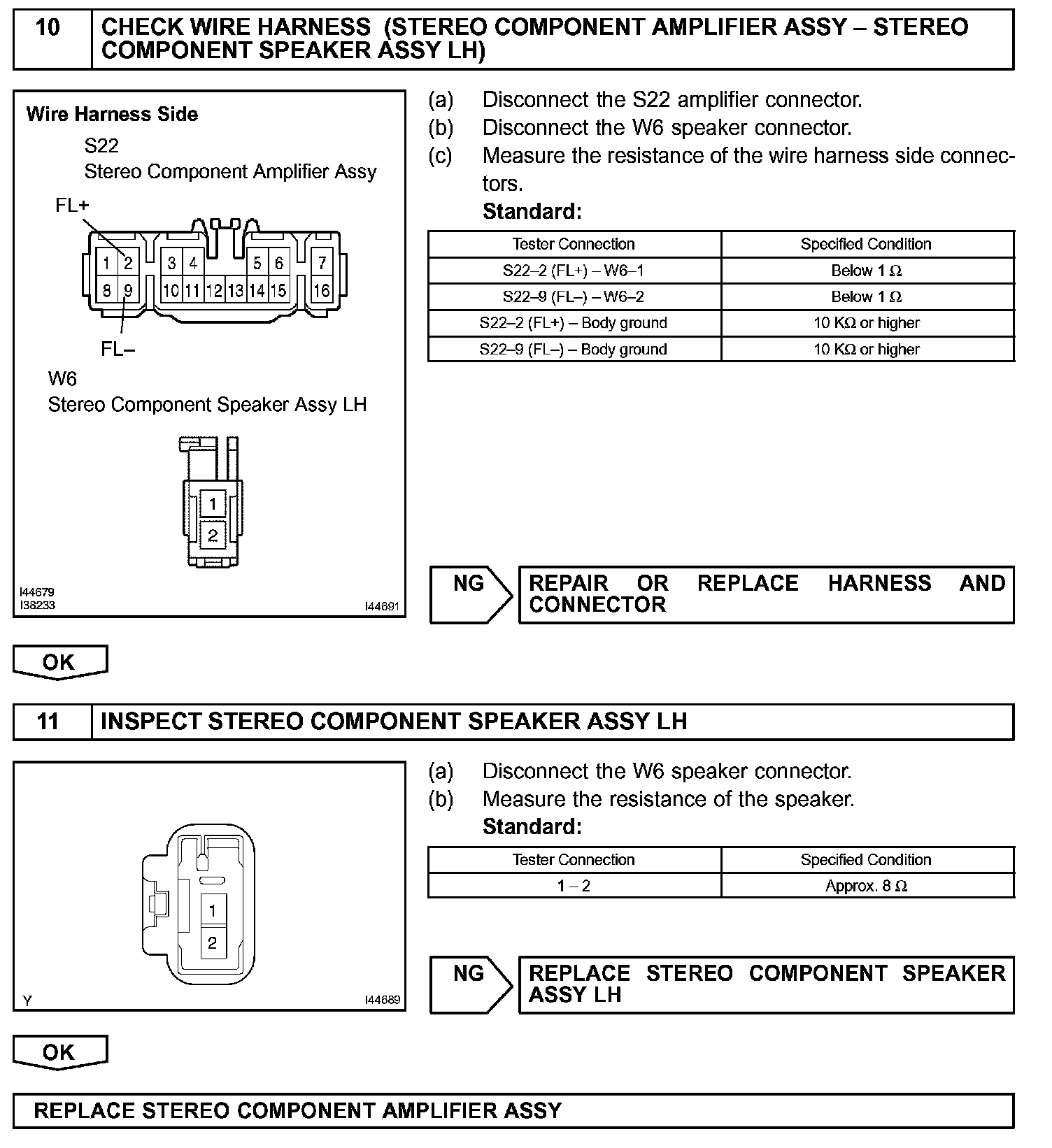

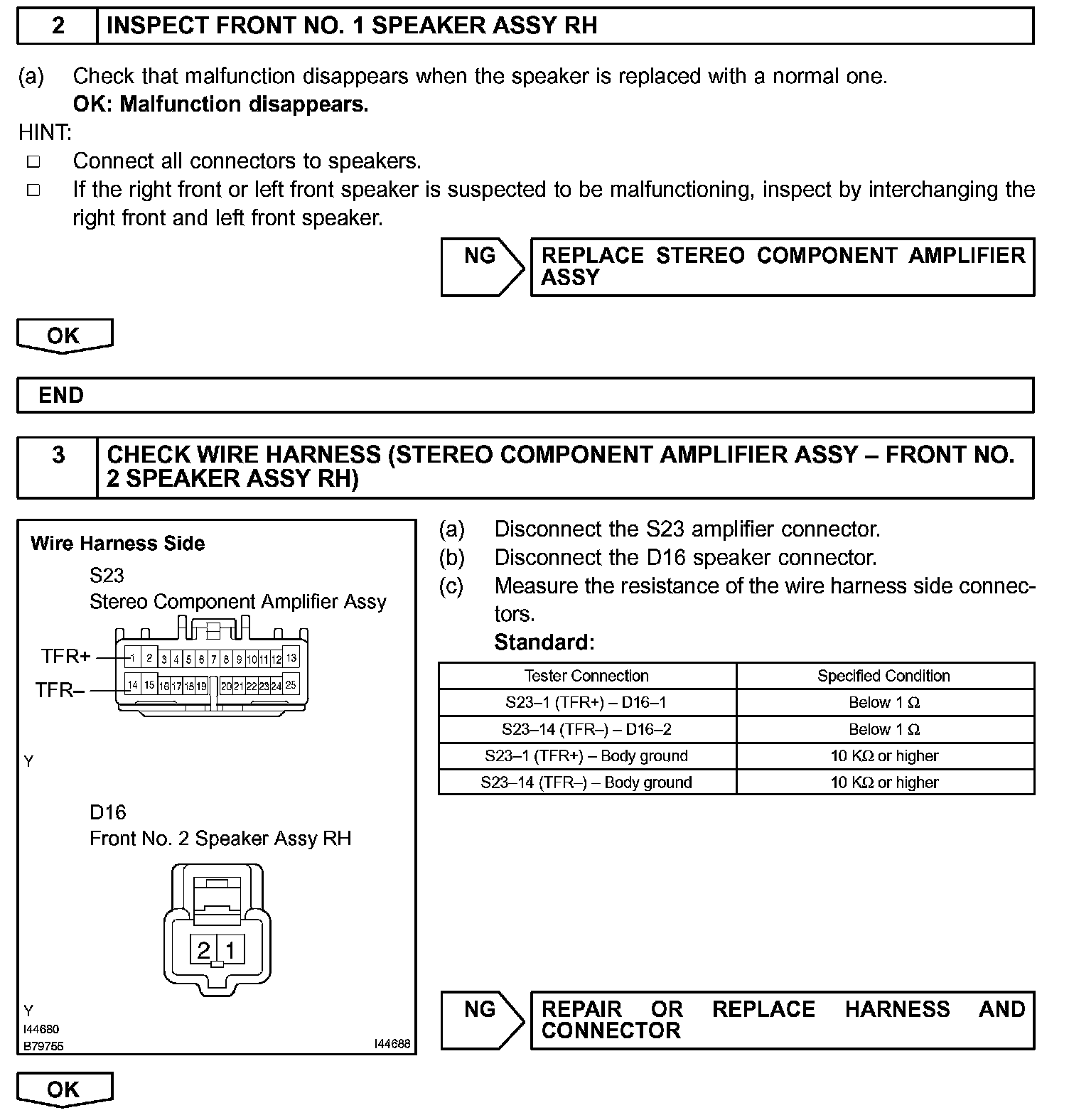

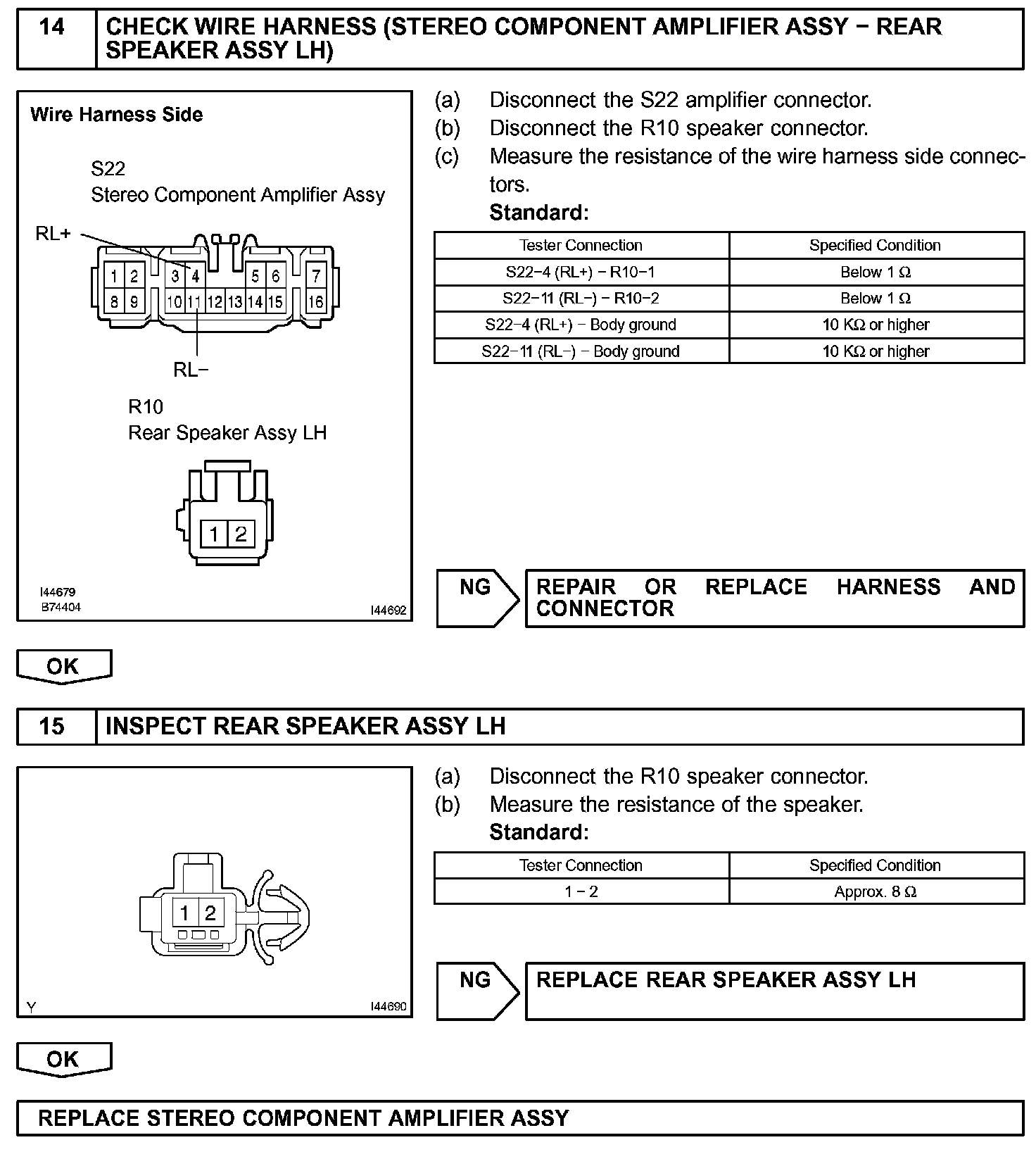

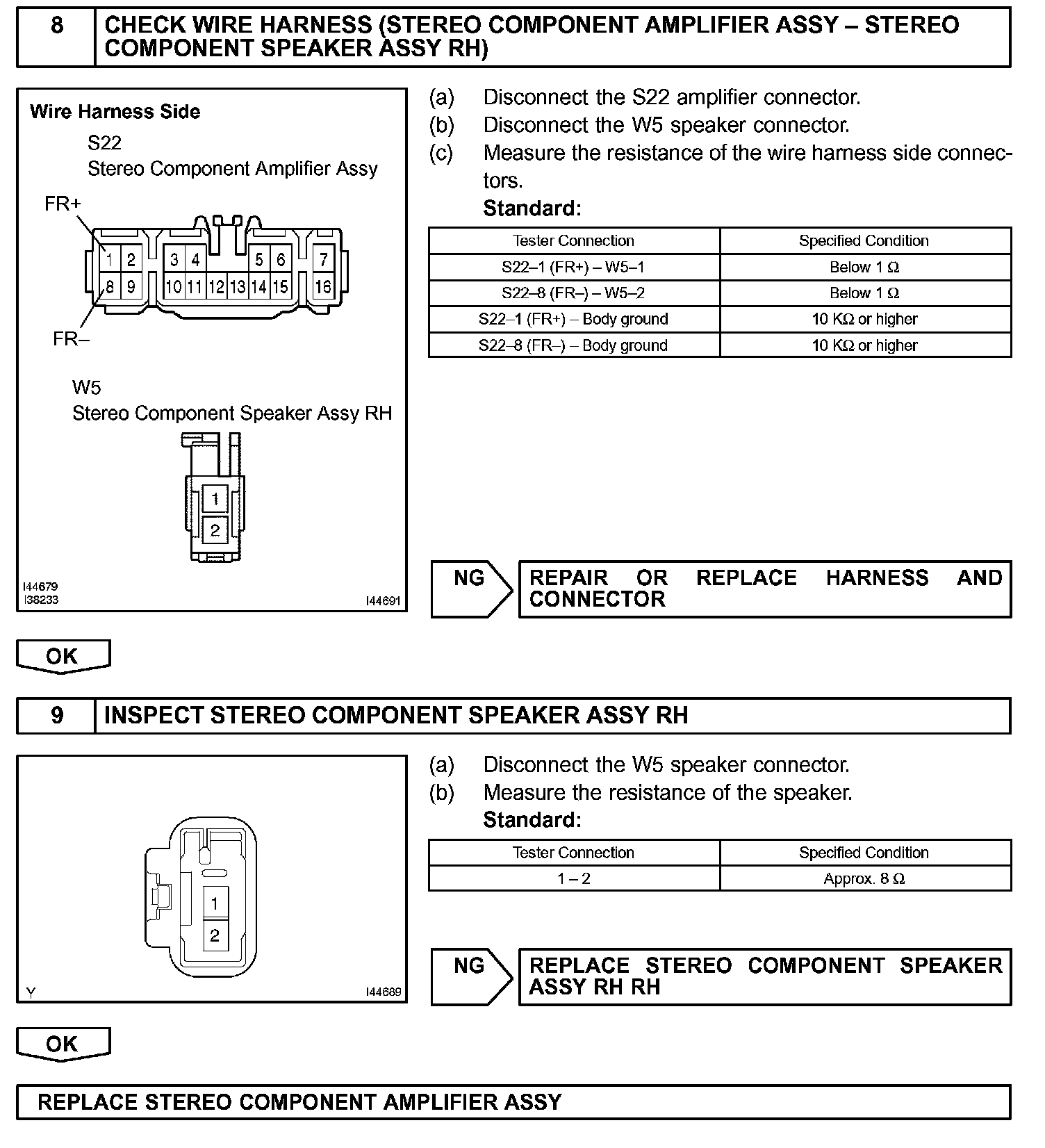

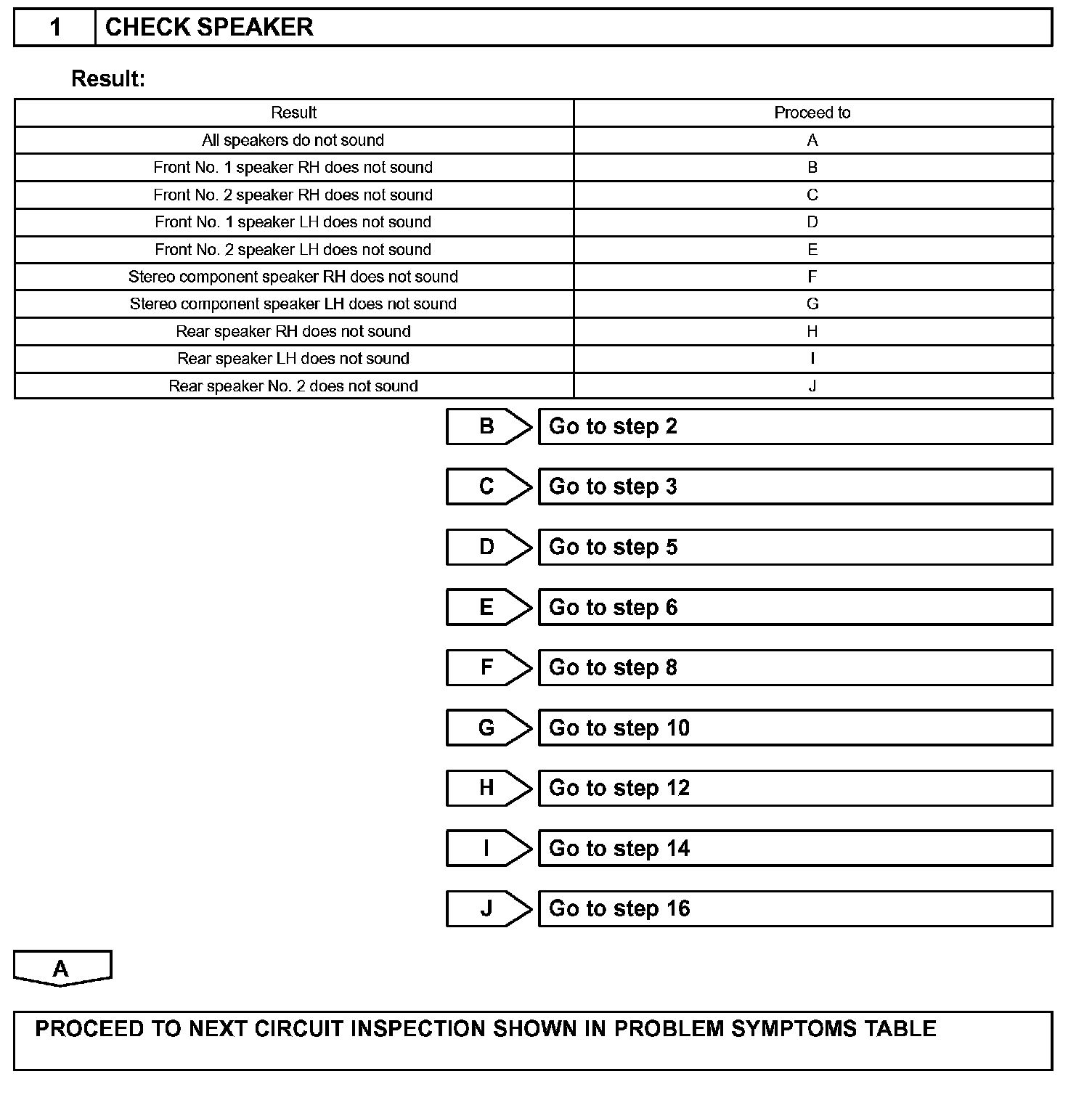

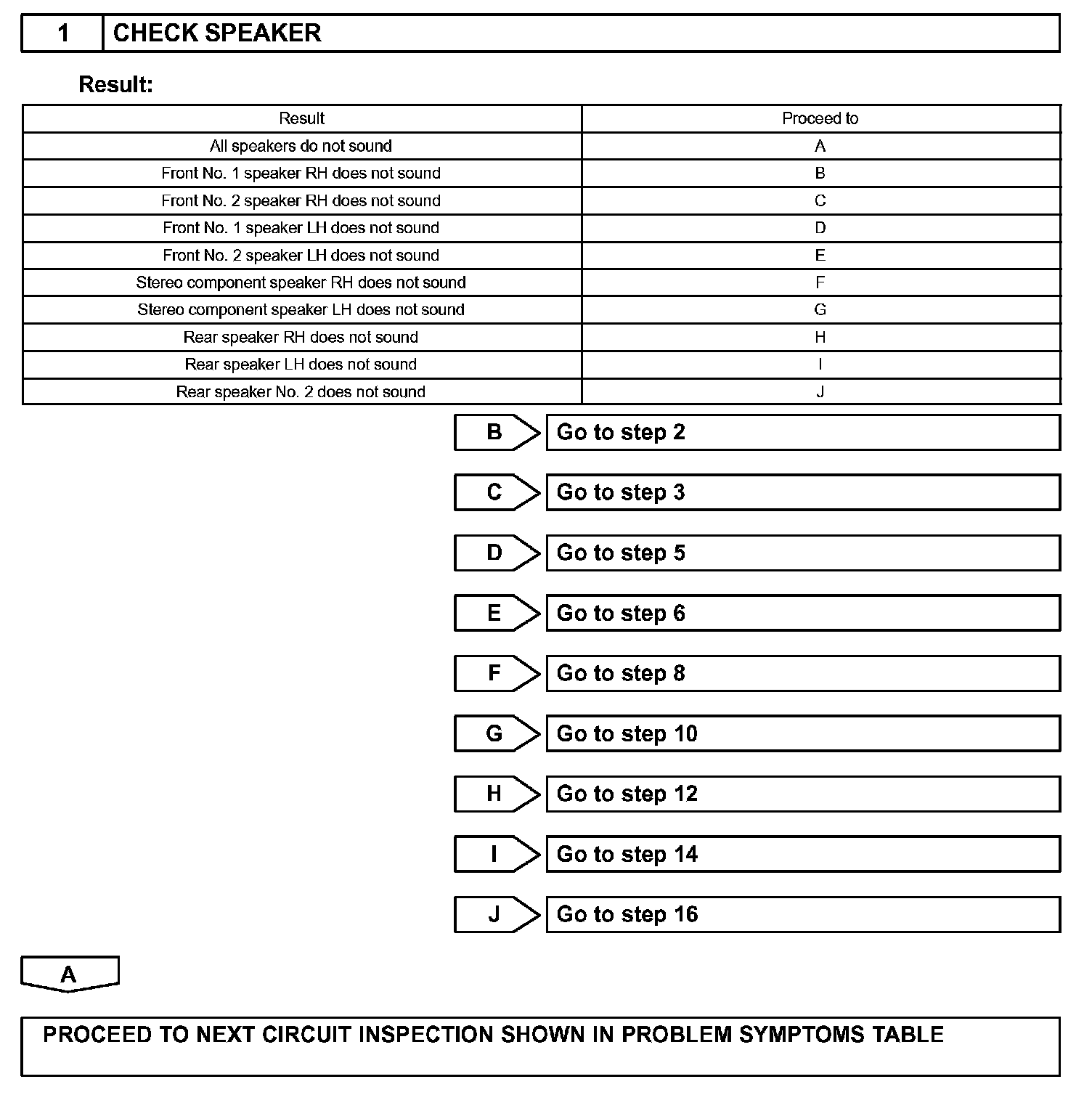

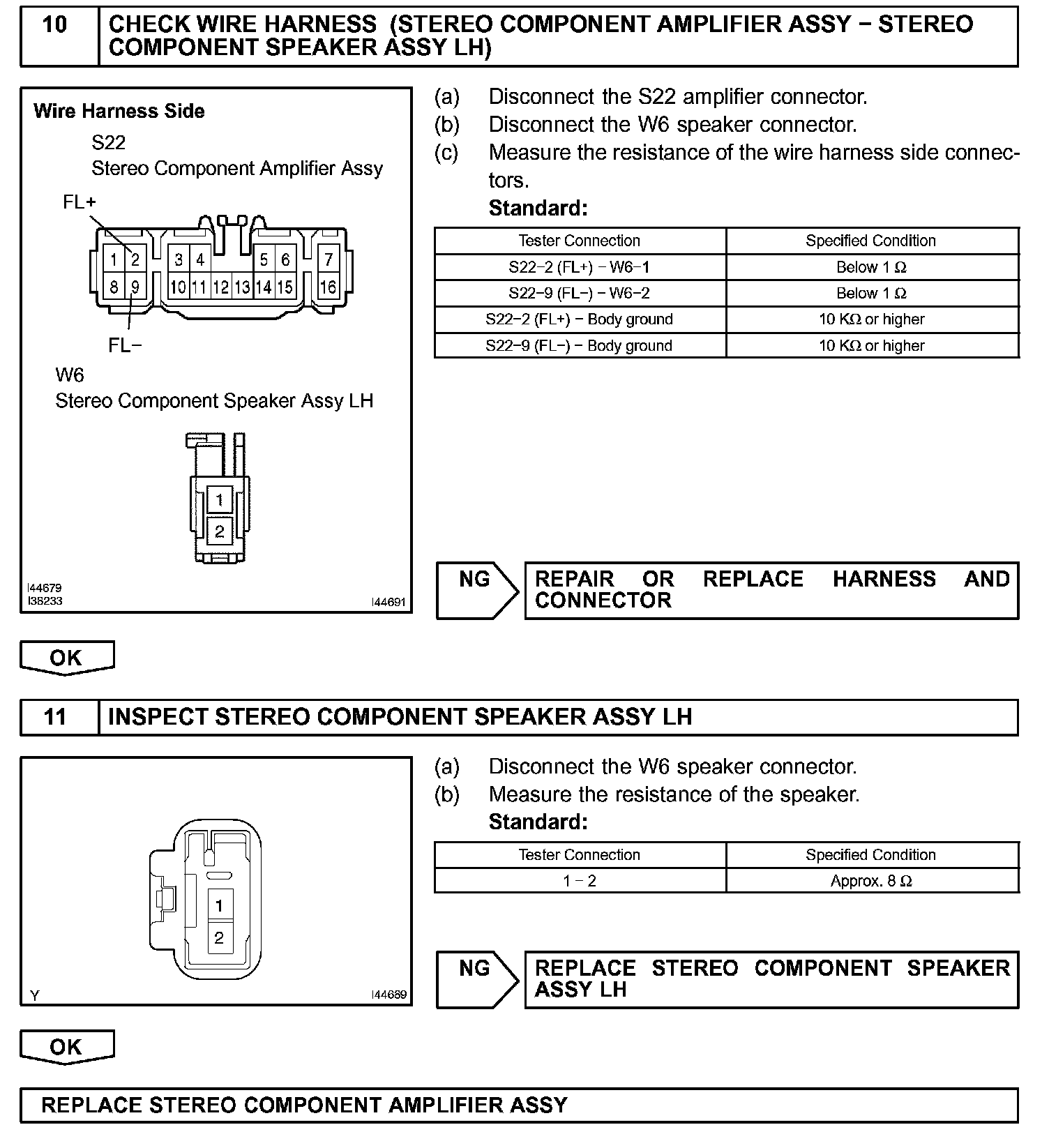

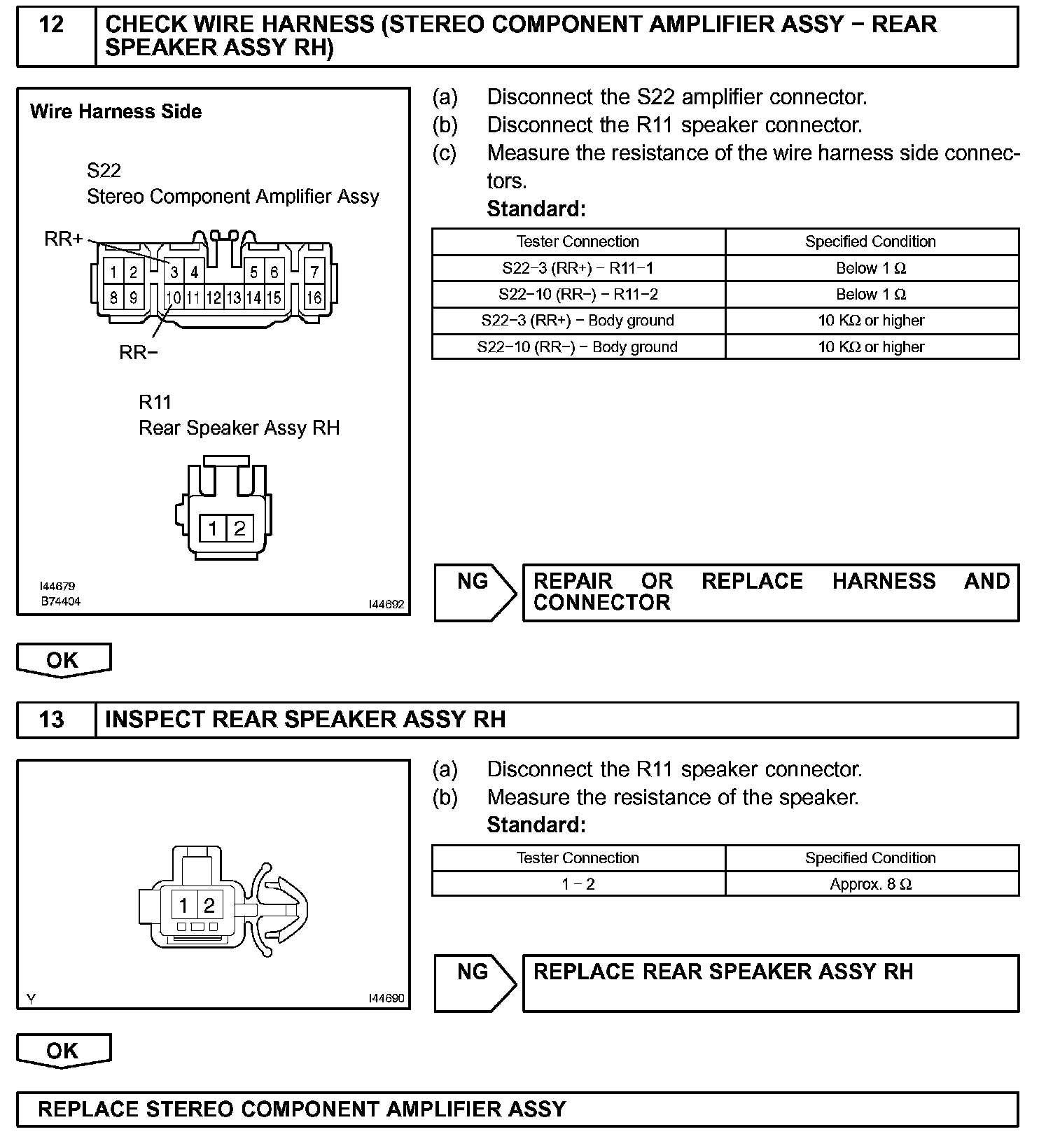

INSPECTION PROCEDURE
