Power Source Circuit (Radio Receiver Assy)

POWER SOURCE CIRCUIT (RADIO RECEIVER ASSY)

CIRCUIT DESCRIPTION

This circuit provides power to the radio receiver.

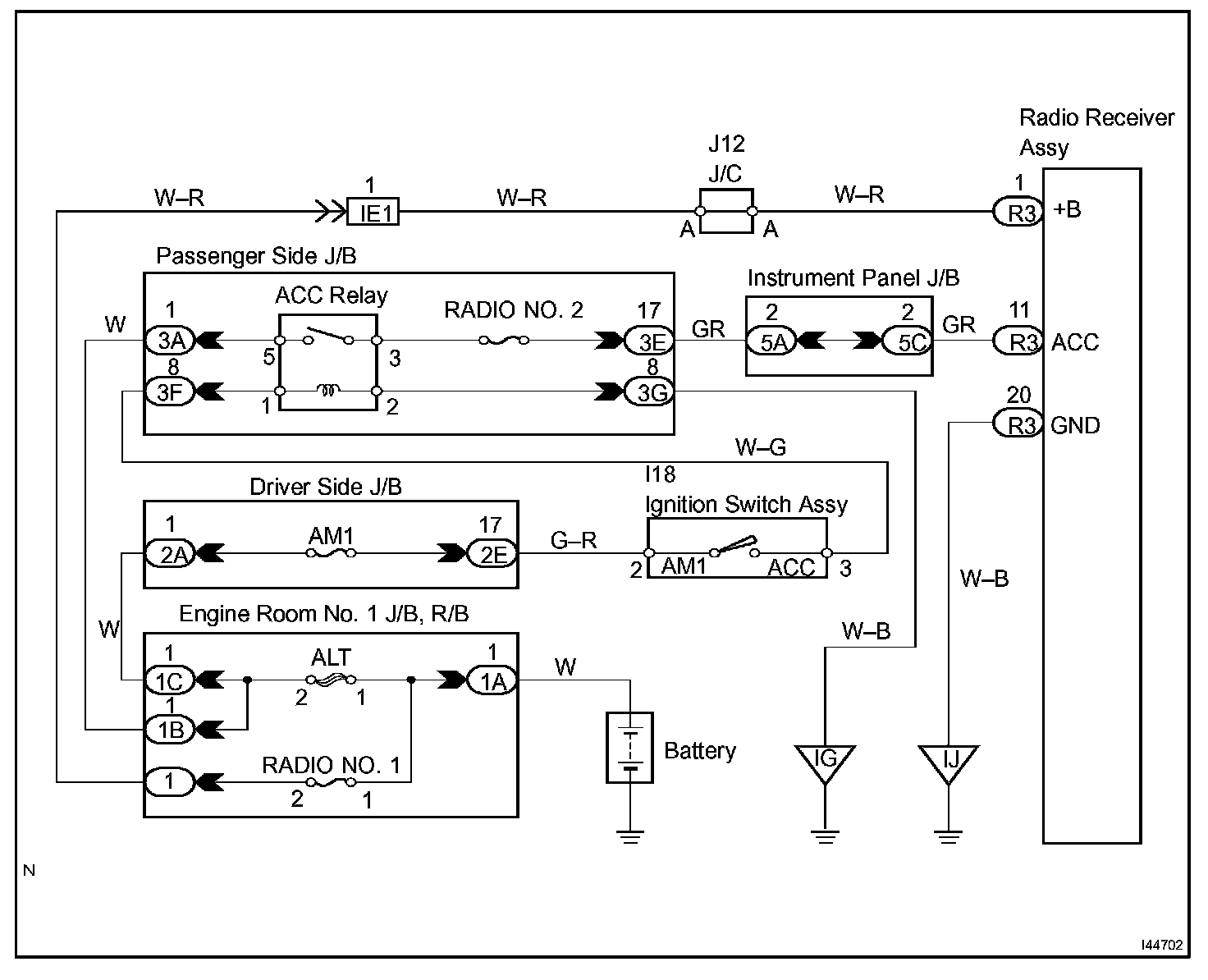

Wiring Diagram:

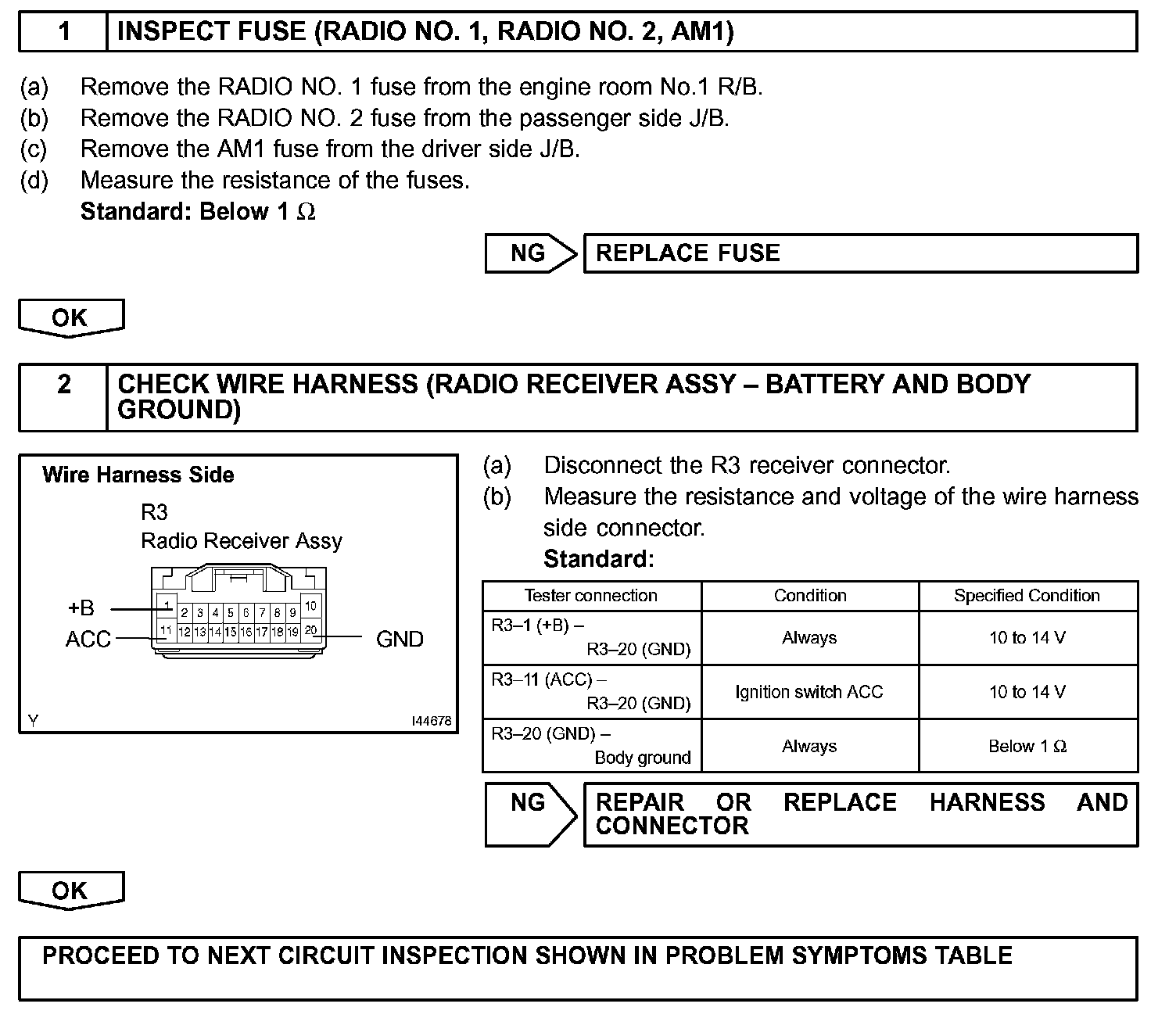

Step 1 - 2:




INSPECTION PROCEDURE
