Pinout Values and Diagnostic Parameters

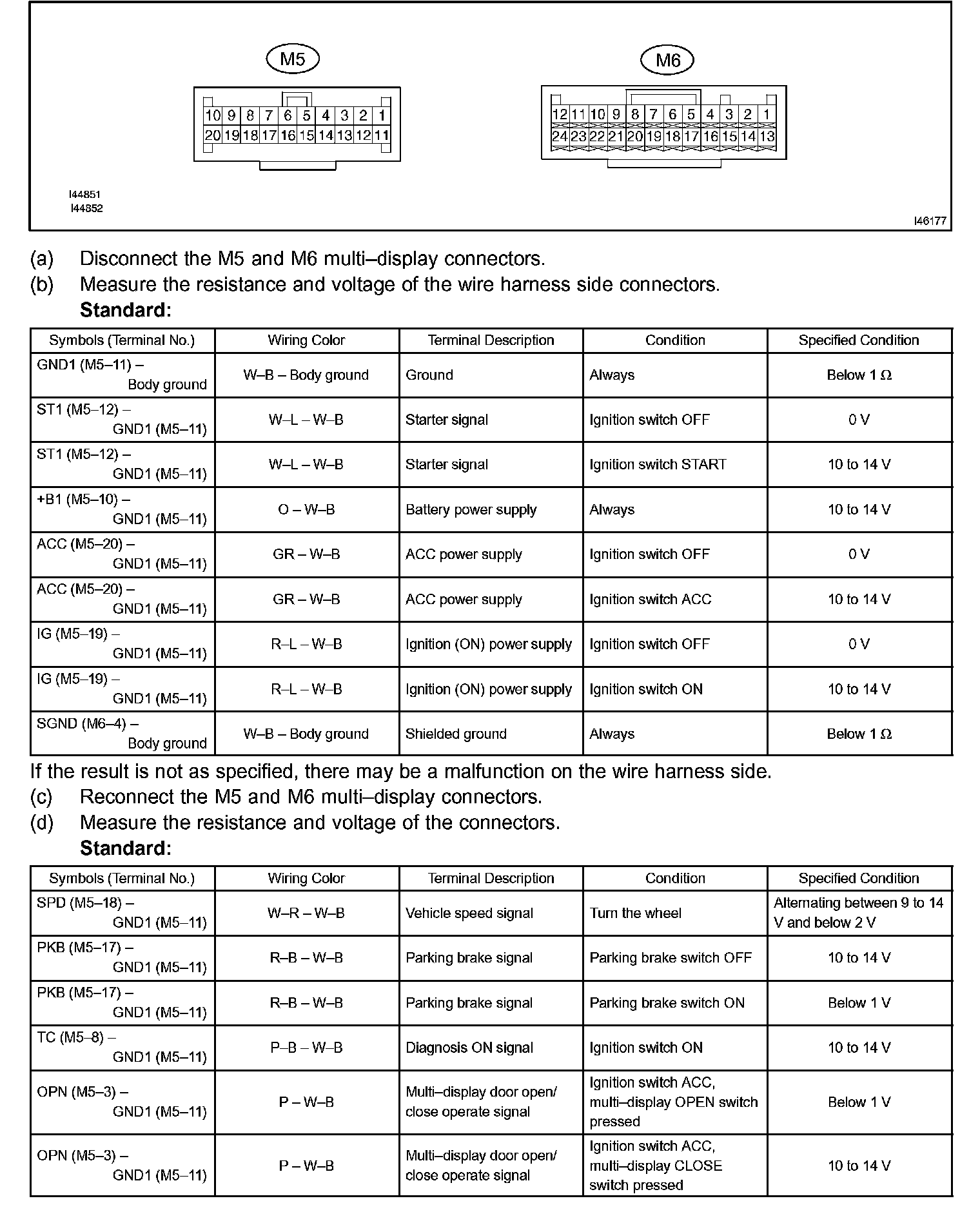

Terminals Of Control Module/Pinouts - Check Multi-Display Assy Part 1:

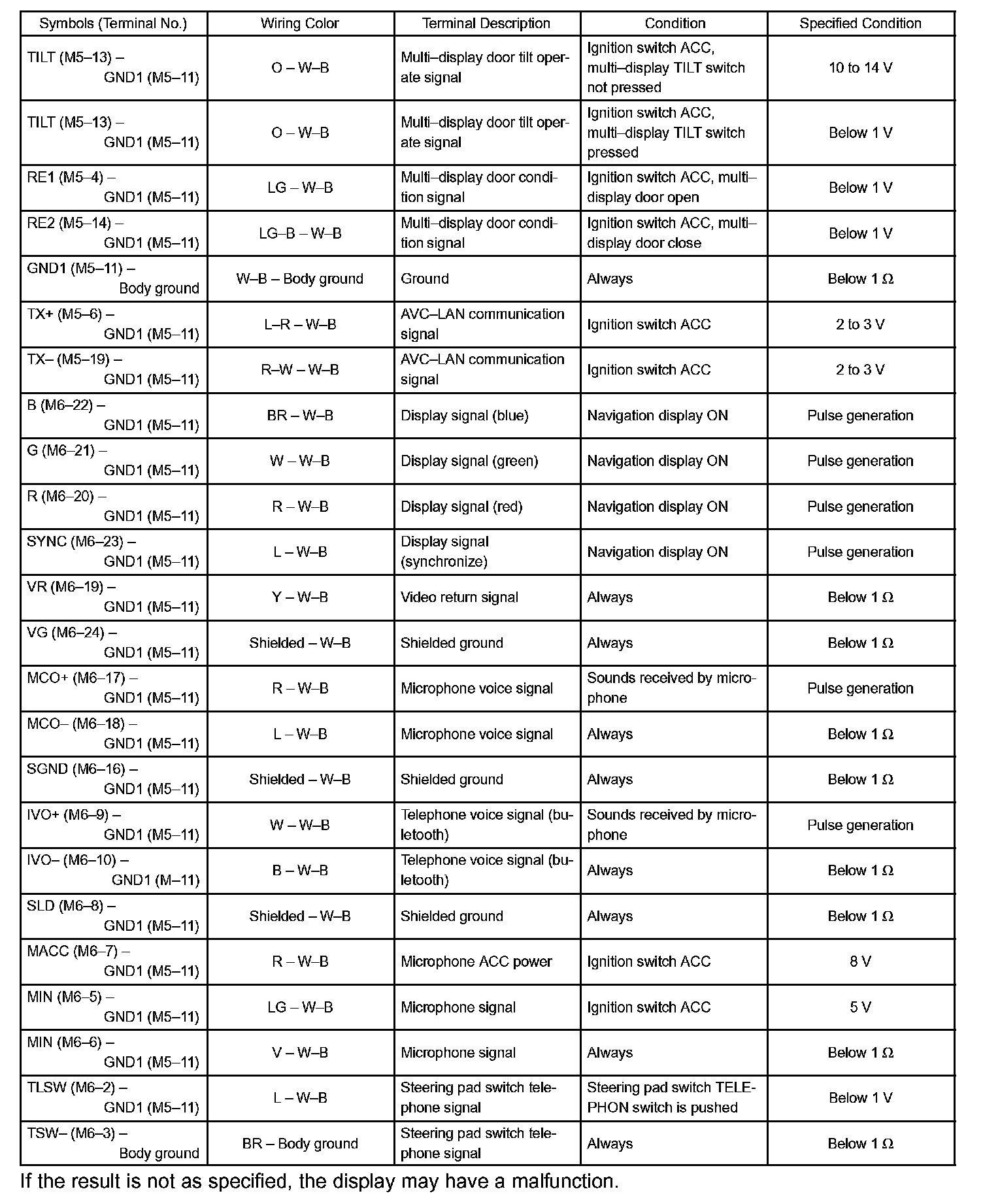

Terminals Of Control Module/Pinouts - Check Multi-Display Assy Part 2:

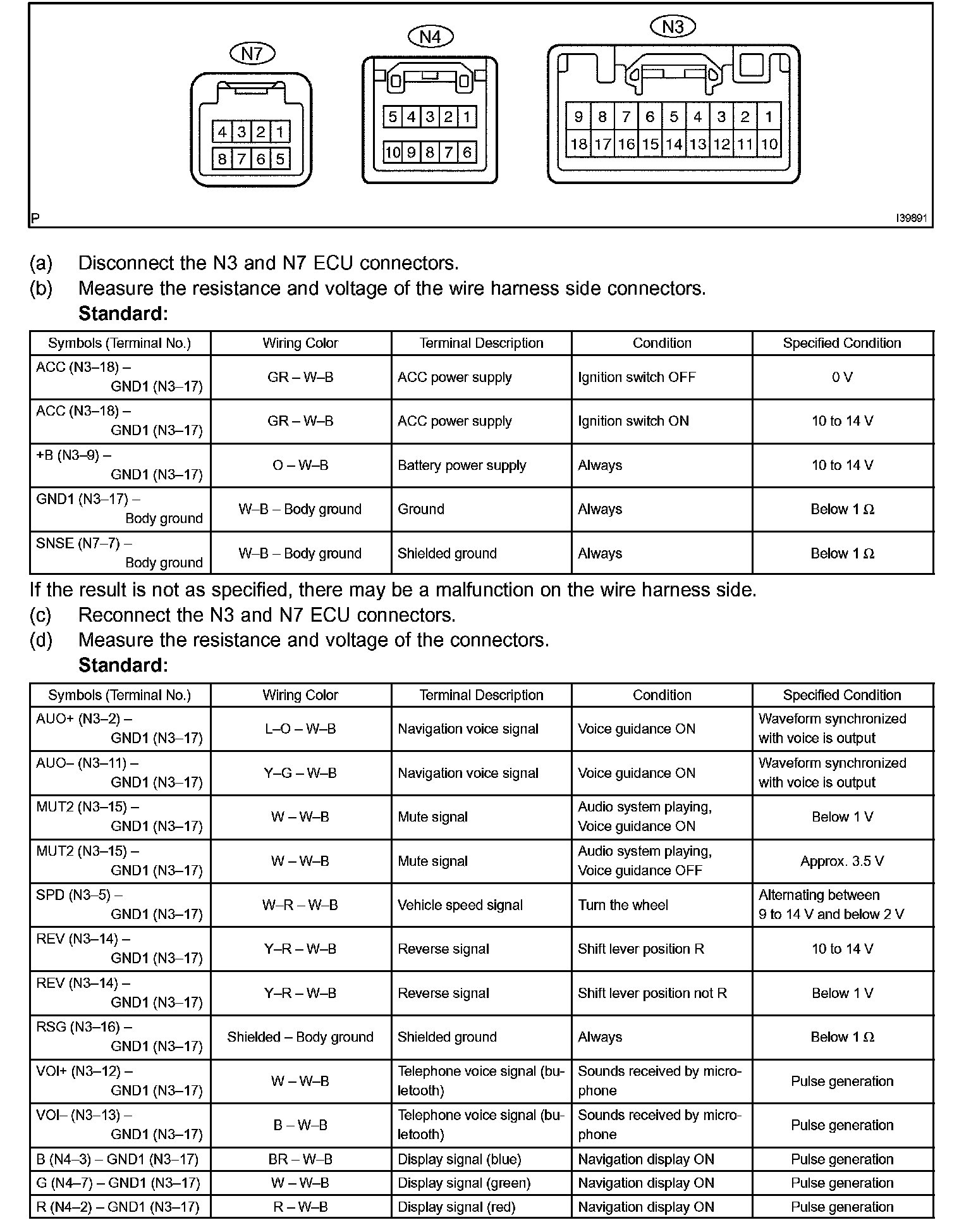

Terminals Of Control Module/Pinouts - Check Navigation ECU Part 1:

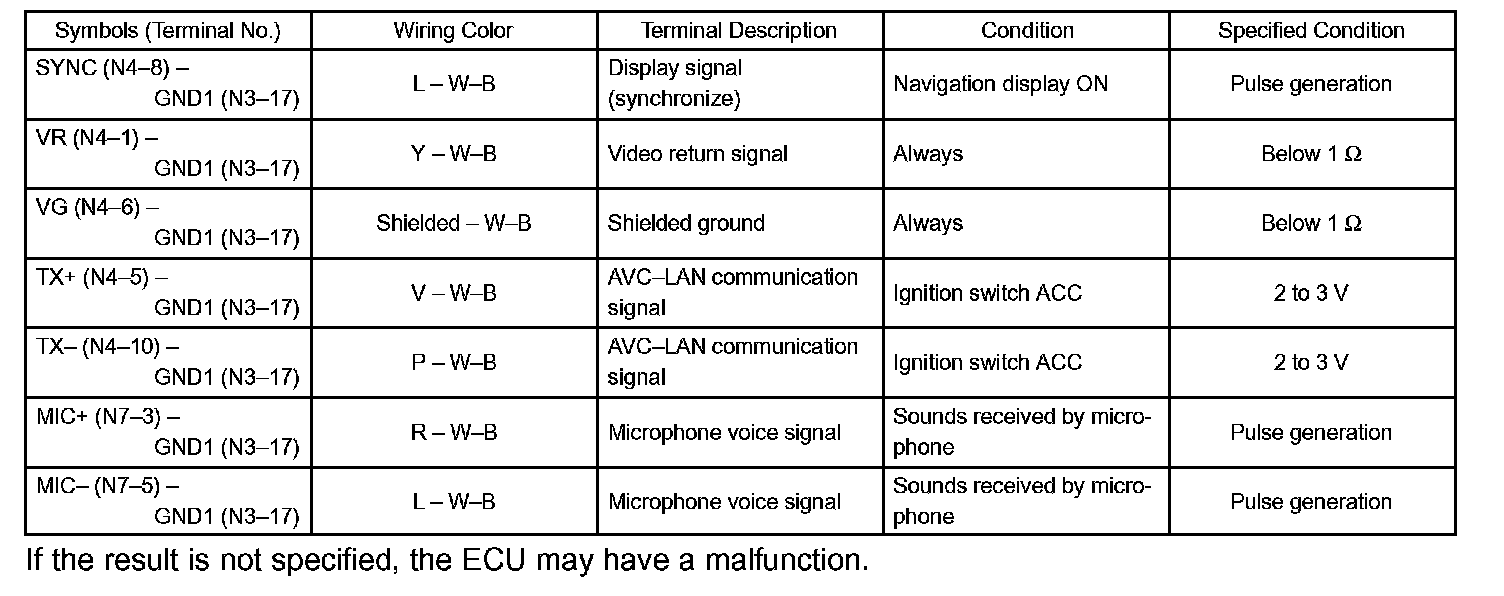

Terminals Of Control Module/Pinouts - Check Navigation ECU Part 2:

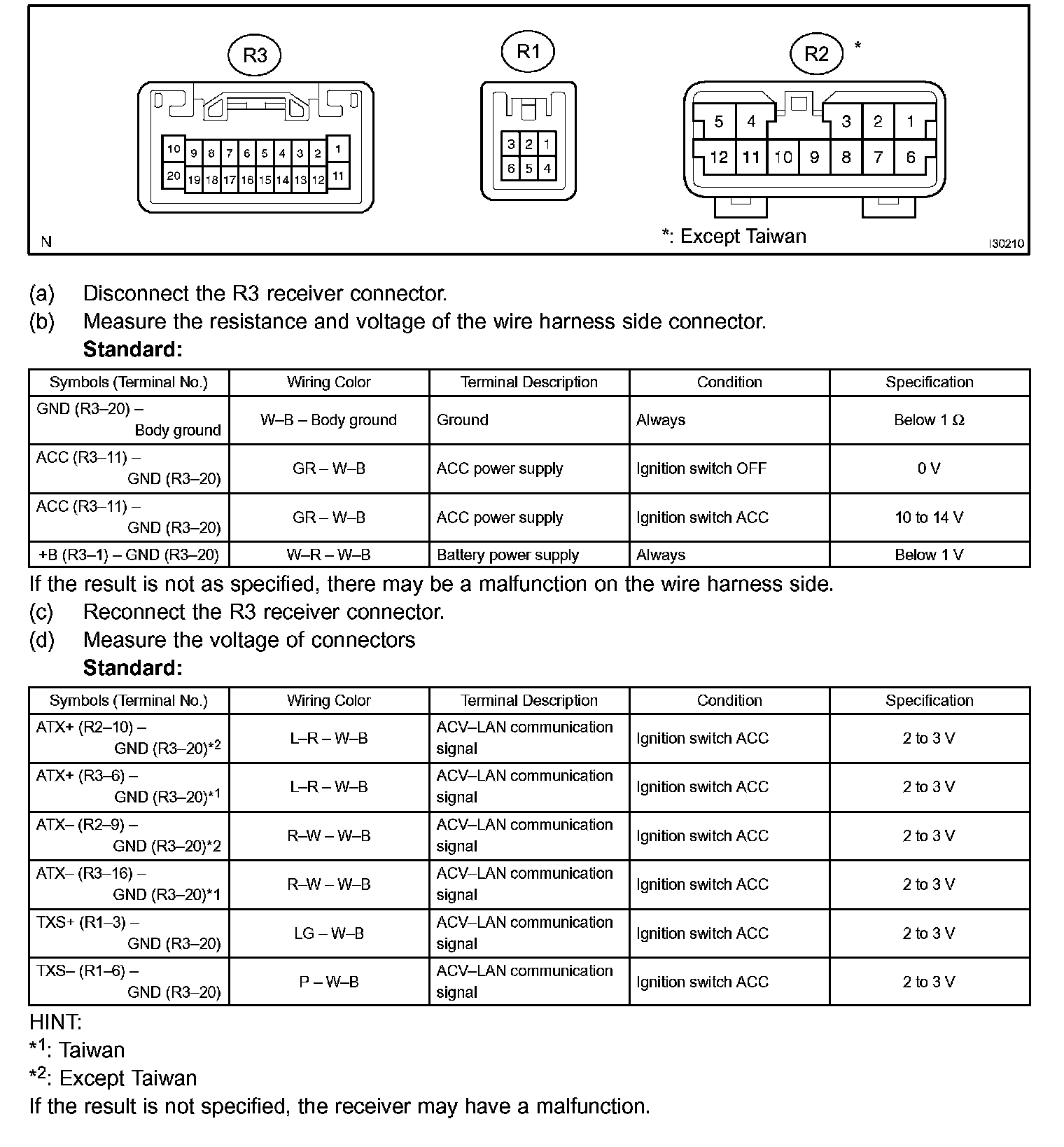

Terminals Of Control Module/Pinouts - Check Radio Receiver Assy:

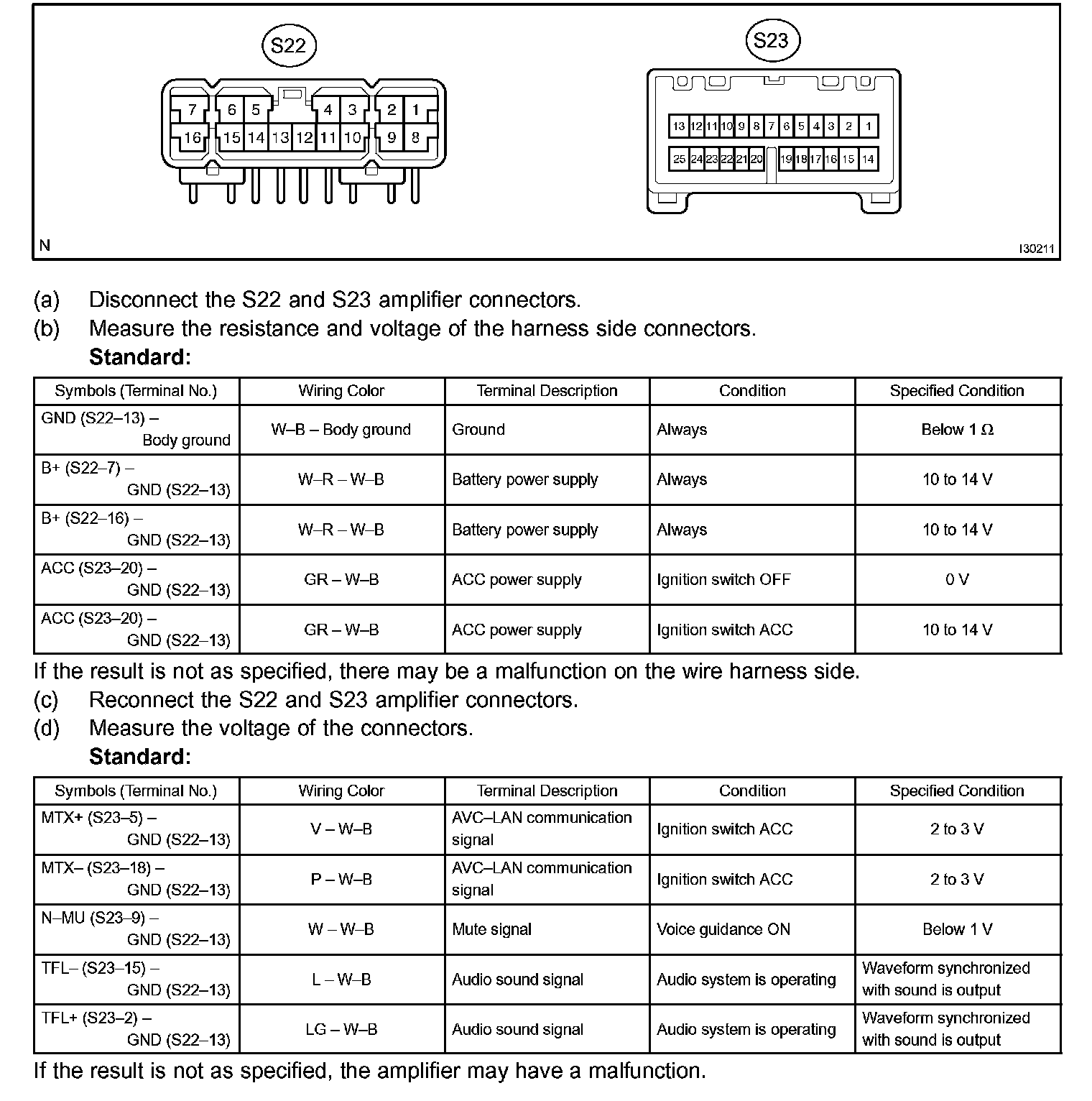

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier Assy:

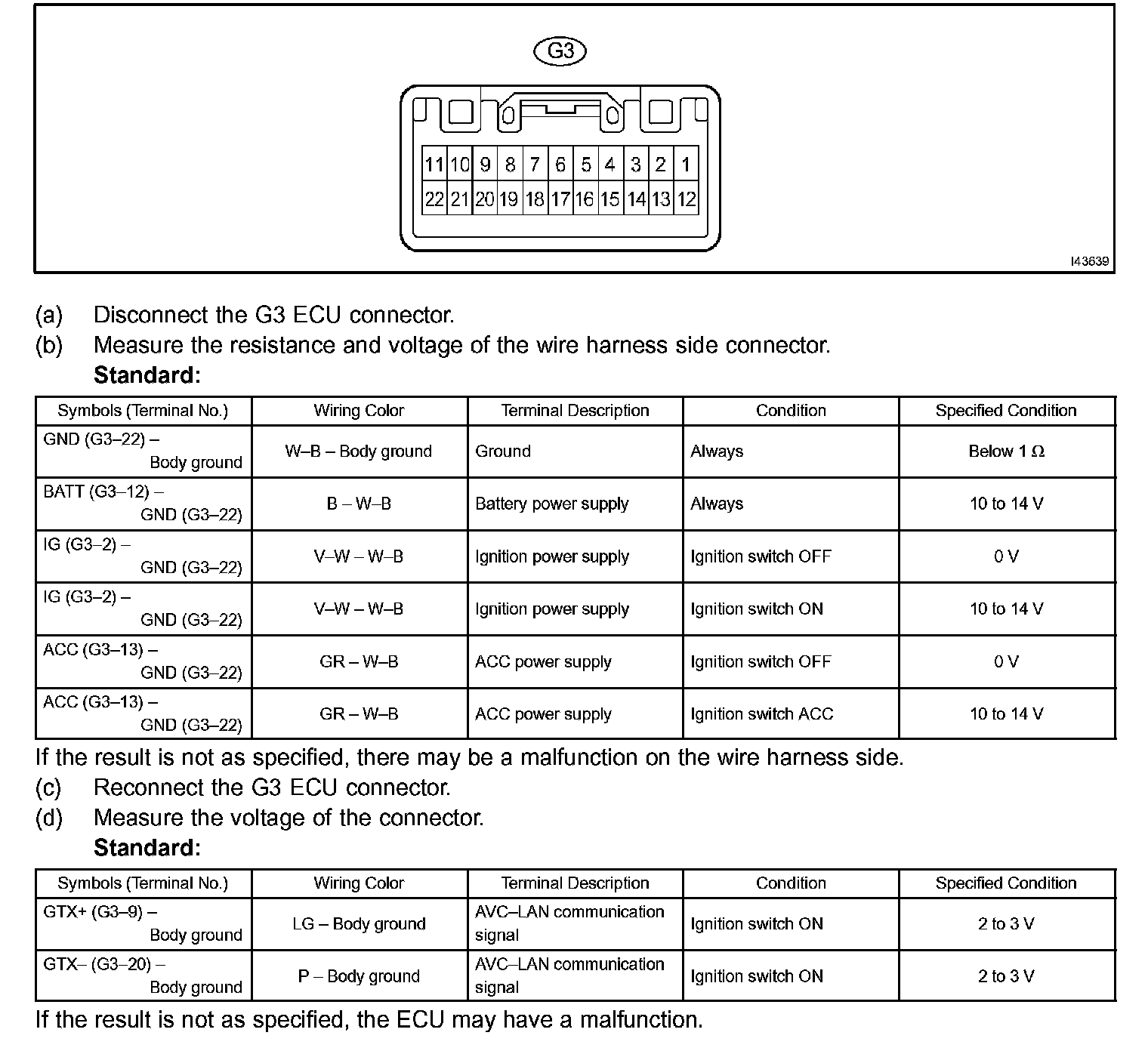

Terminals Of Control Module/Pinouts - Check Gateway ECU:

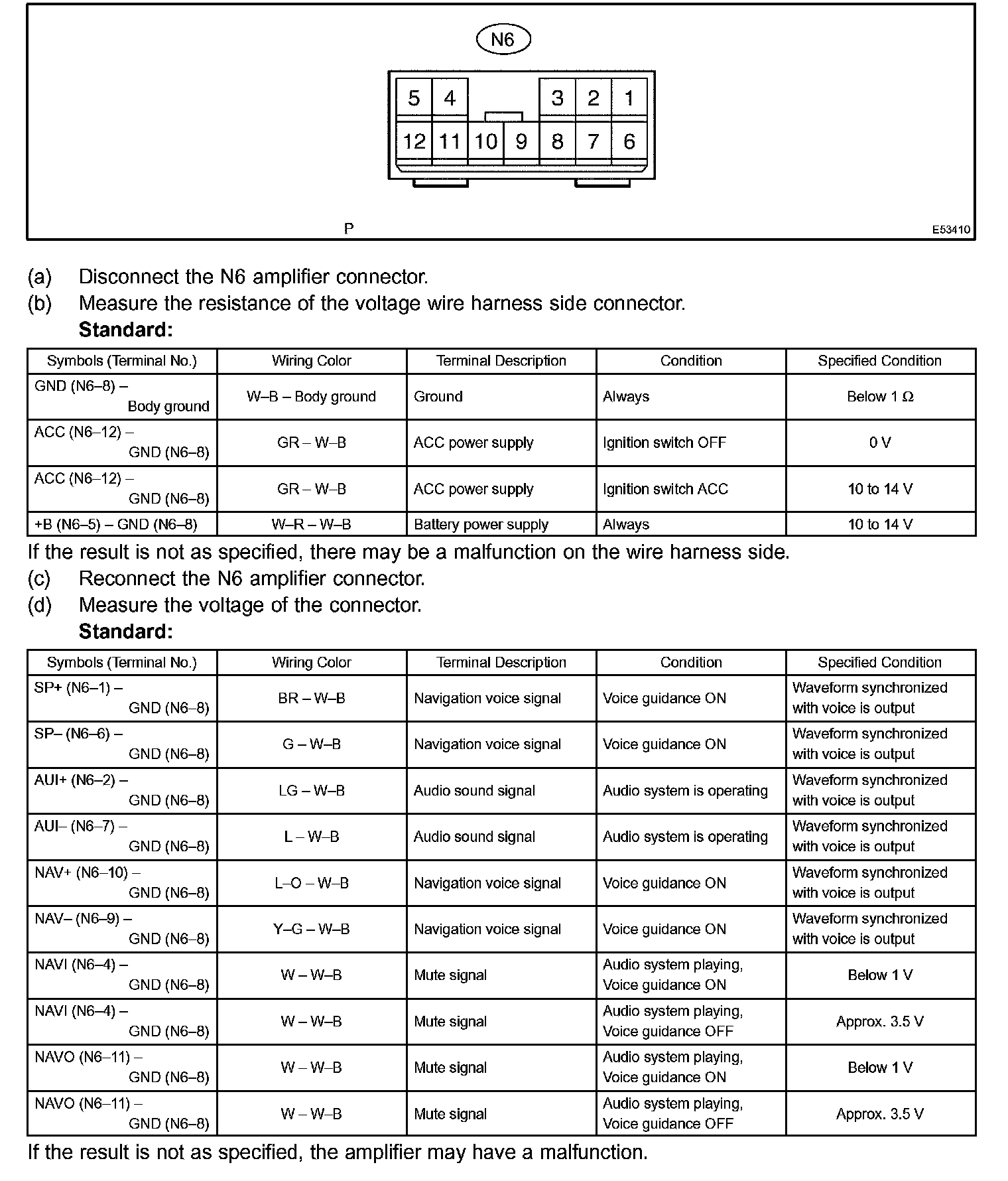

Terminals Of Control Module/Pinouts - Check Navigation Amplifier:
