Home >> Lexus >> 2005 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Component Tests and General Diagnostics >> Voice Guidance Does Not Function

Voice Guidance Does Not Function

VOICE GUIDANCE DOES NOT FUNCTION

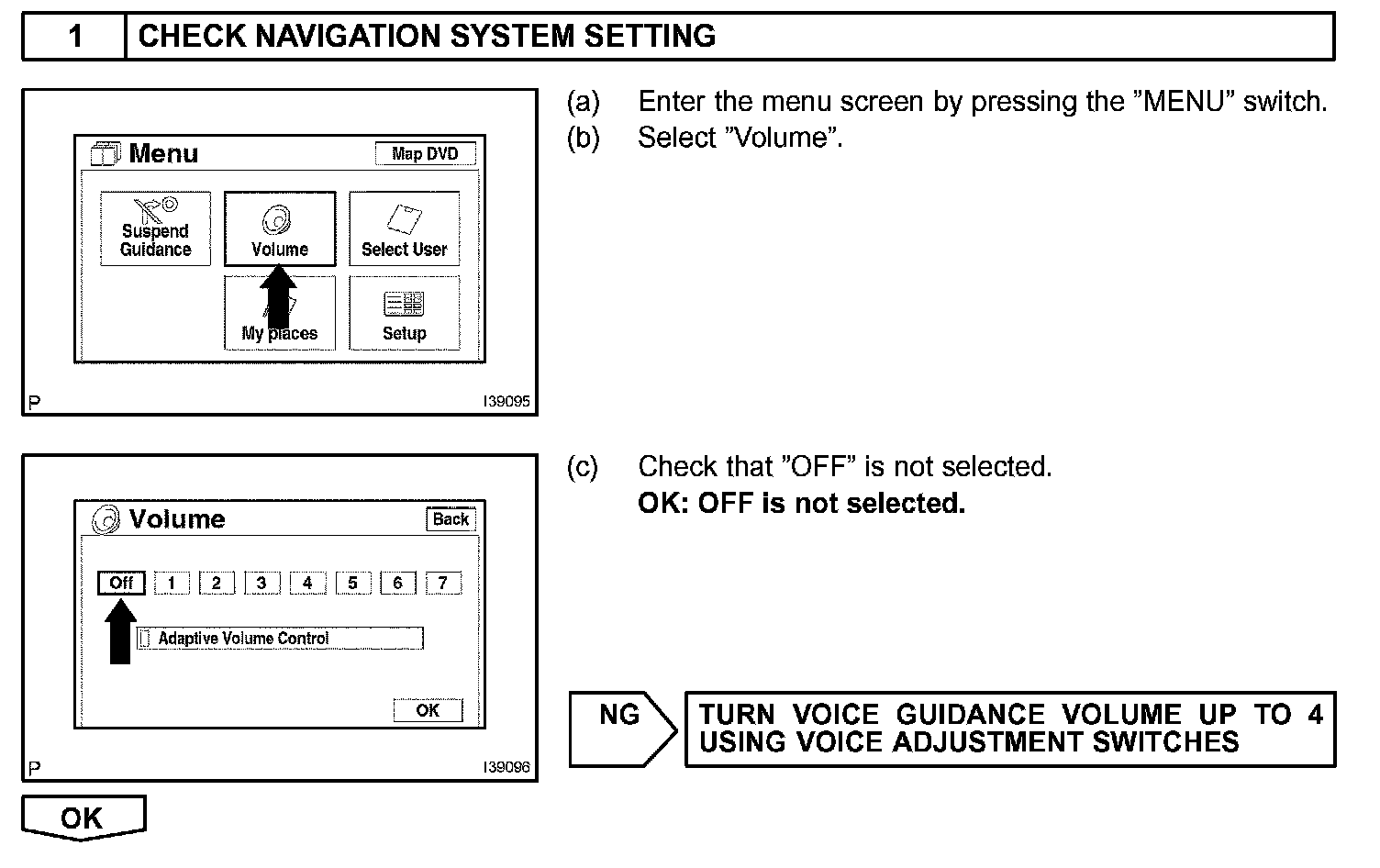

Step 1:

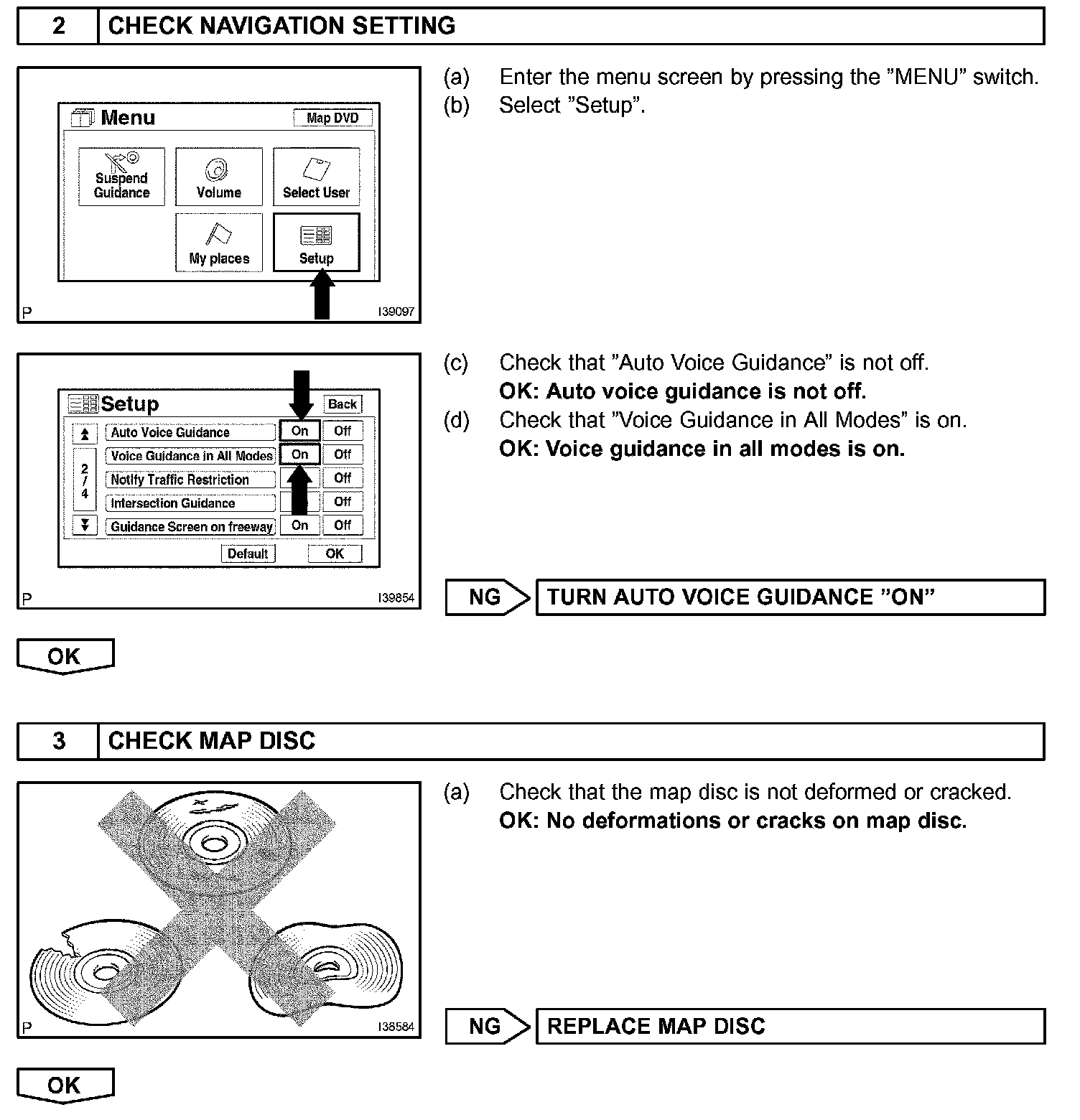

Step 2 - 3:

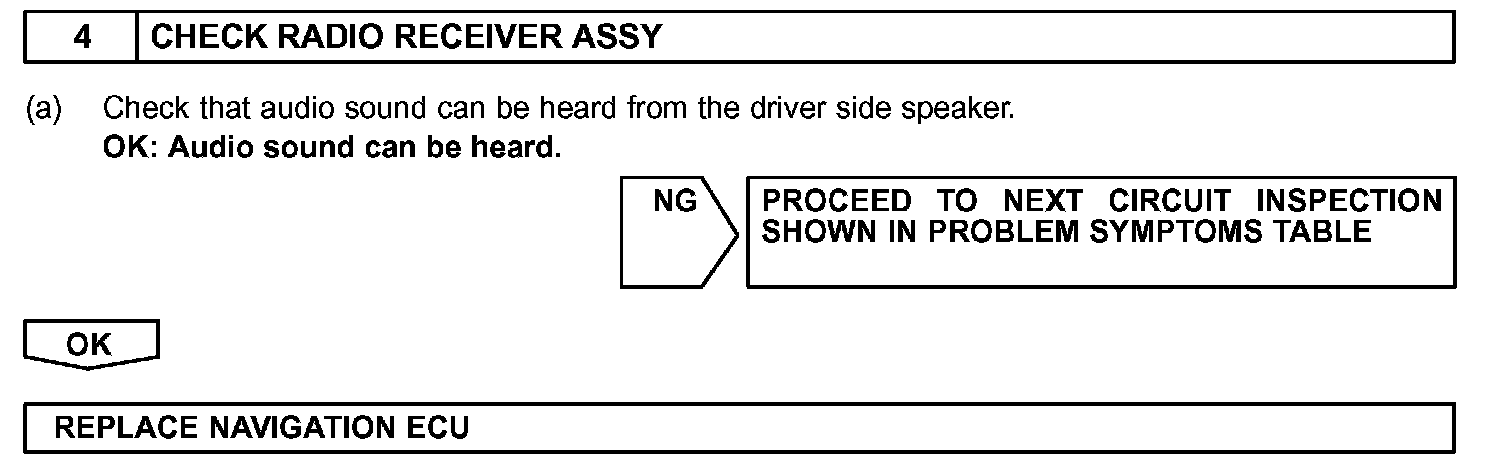

Step 4:

INSPECTION PROCEDURE
