Speed Signal Circuit (Navigation ECU-Combination Meter Assy)

SPEED SIGNAL CIRCUIT (NAVIGATION ECU - COMBINATION METER ASSY)

CIRCUIT DESCRIPTION

The navigation ECU receives the vehicle speed signal and GPS antenna information, and then adjusts the vehicle position on the display.

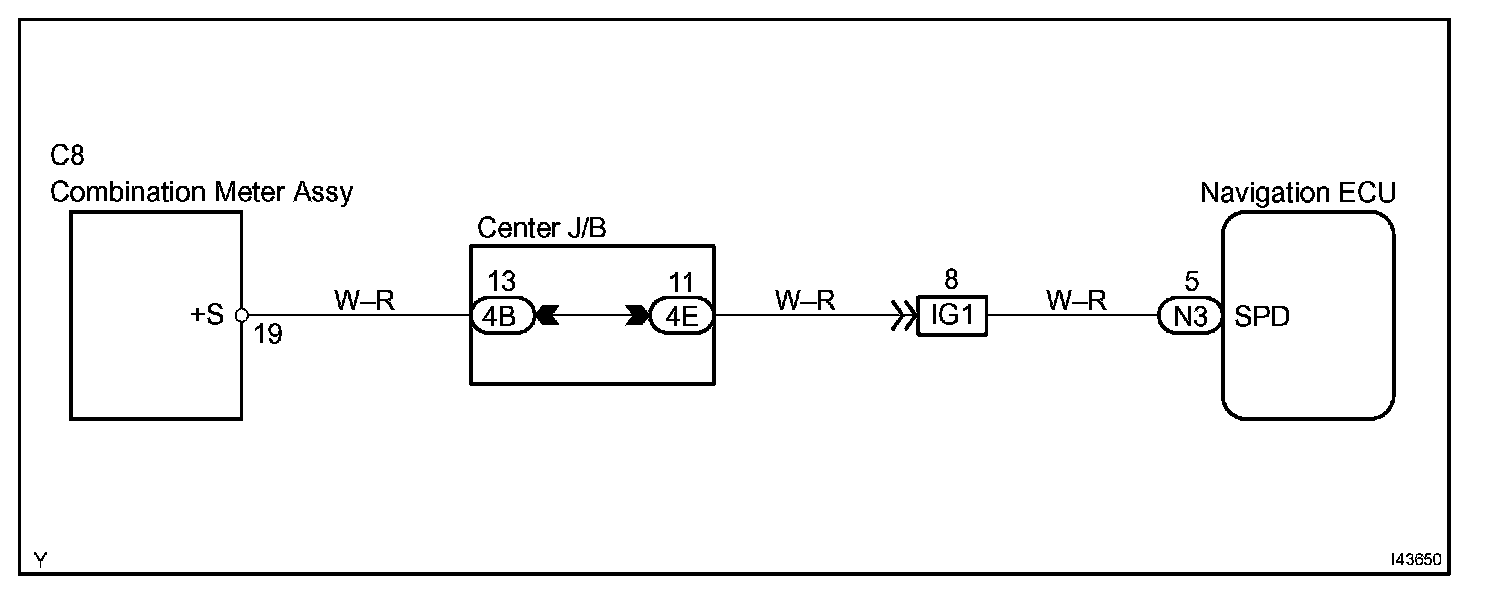

Wiring Diagram:

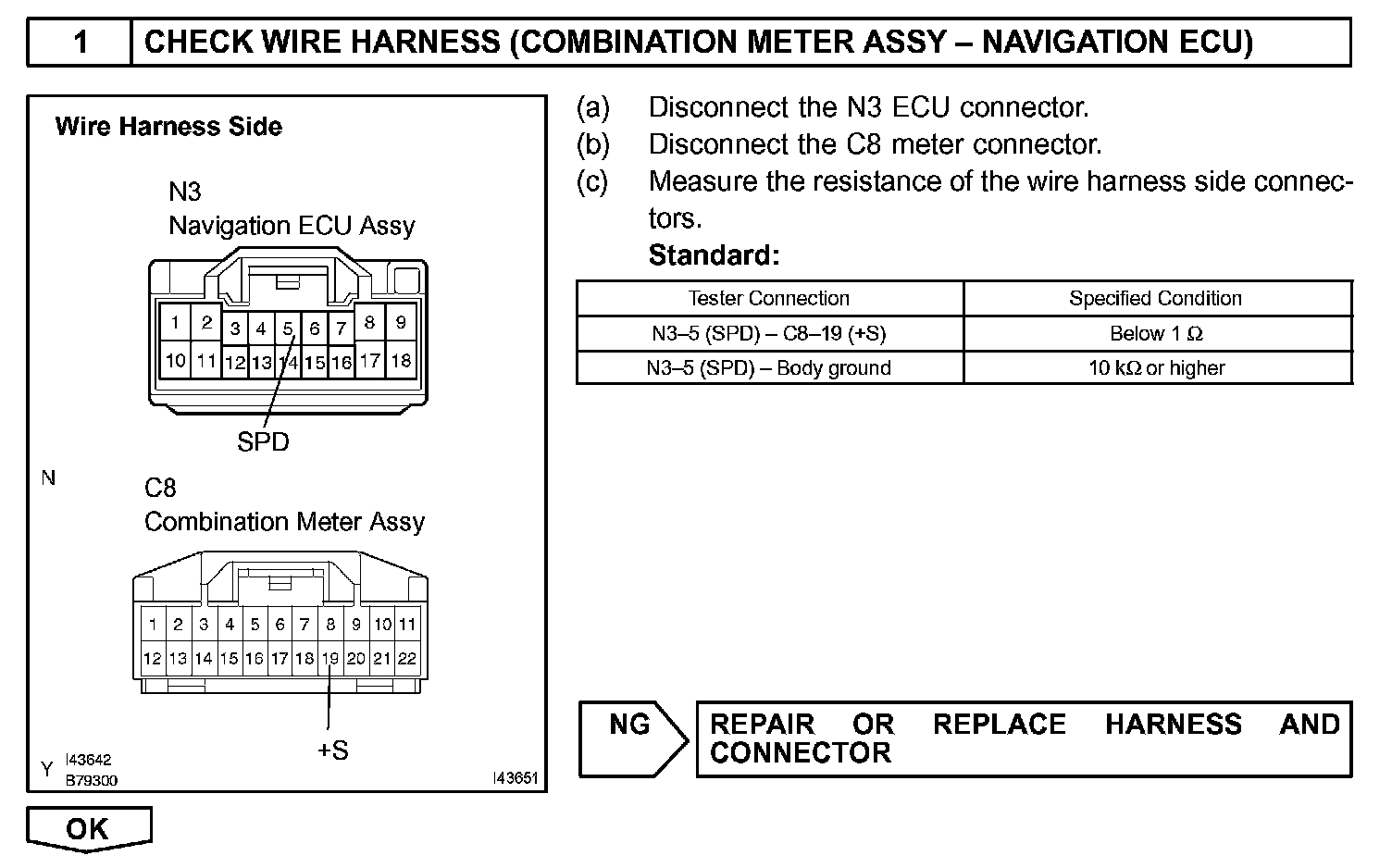

Step 1:

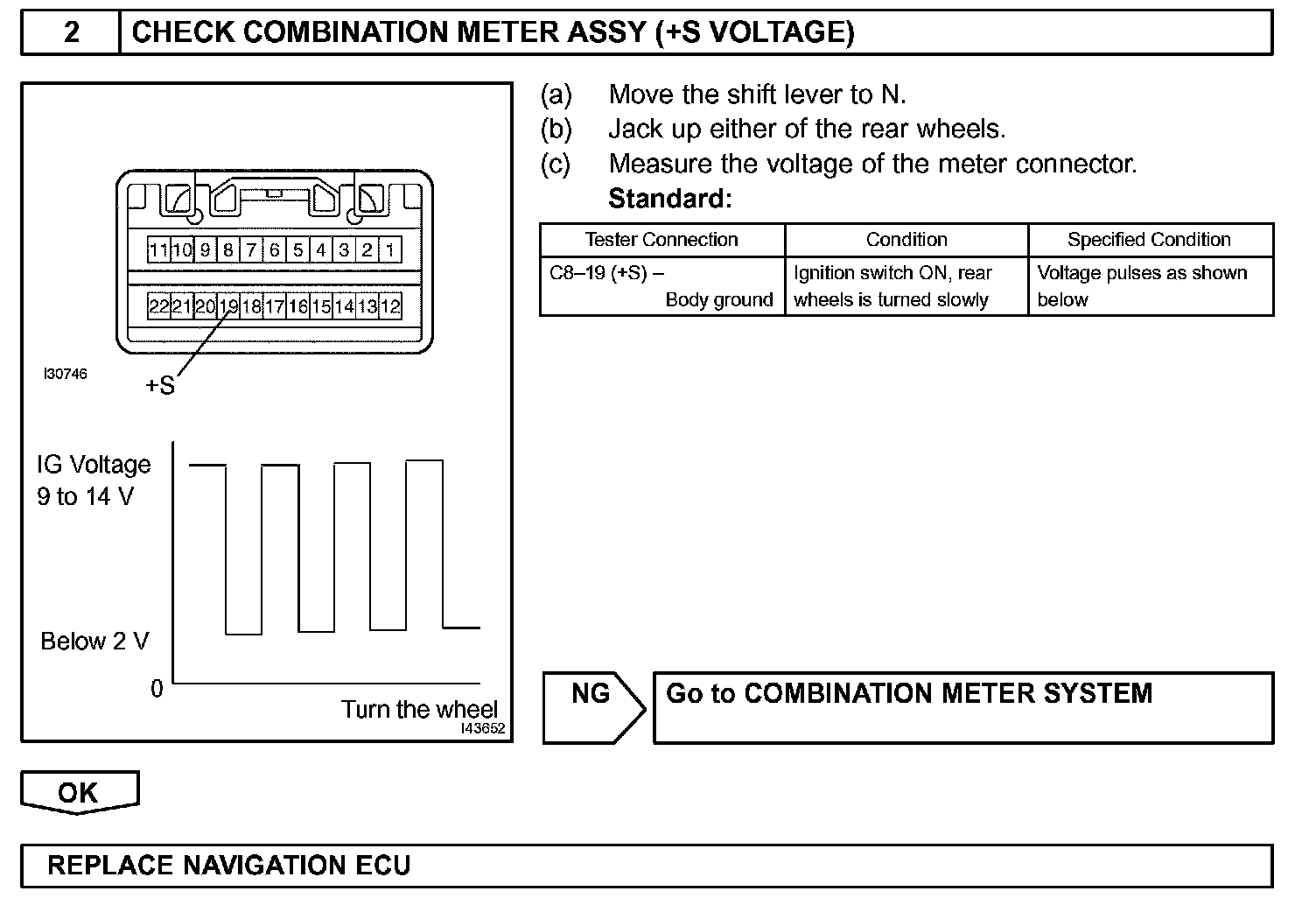

Step 2:




INSPECTION PROCEDURE
