Speaker Circuit (Navigation Voice)

SPEAKER CIRCUIT (NAVIGATION VOICE)

CIRCUIT DESCRIPTION

This circuit is used when the voice guidance in the navigation system is on.

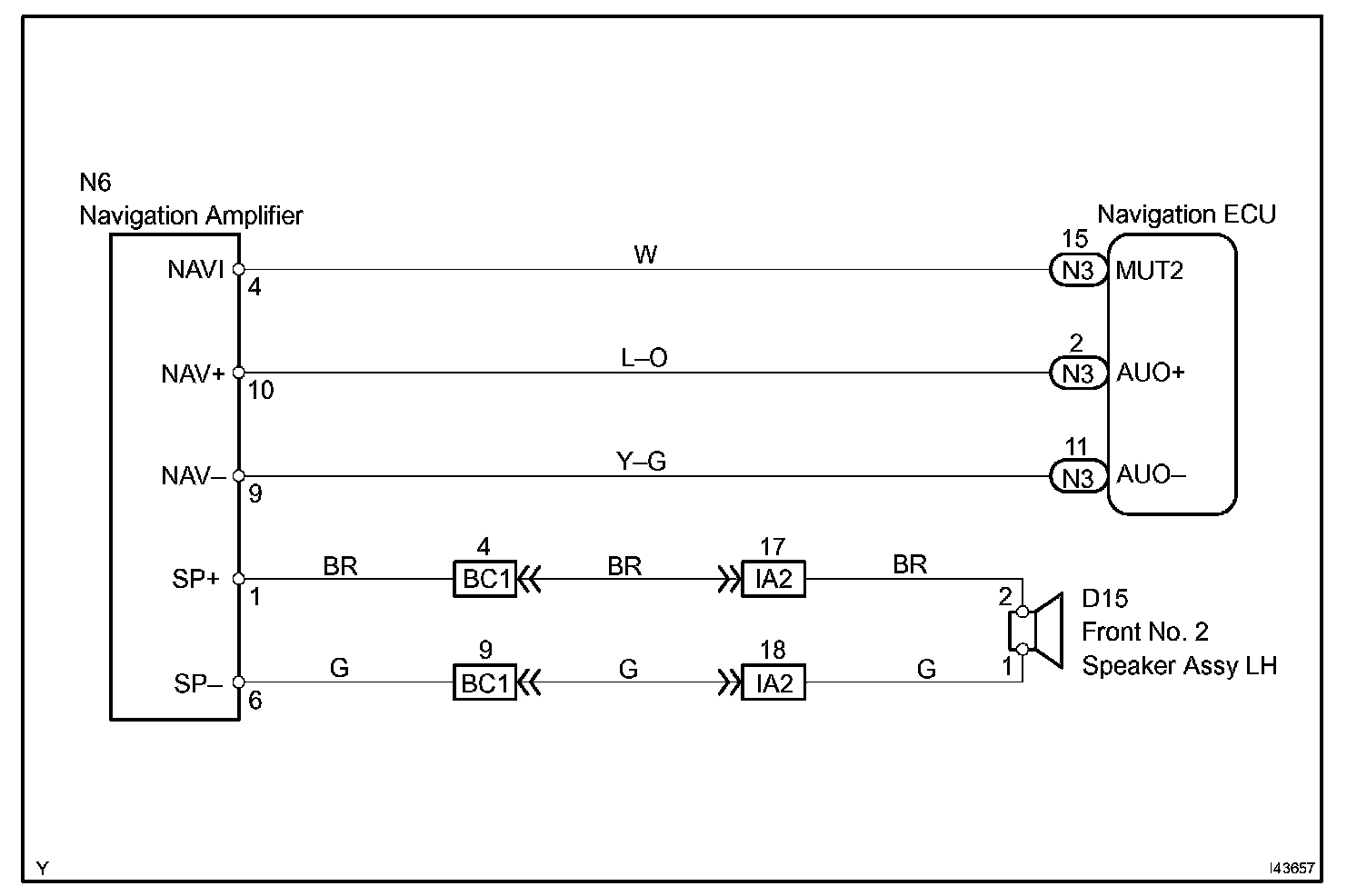

Wiring Diagram:

Step 1:

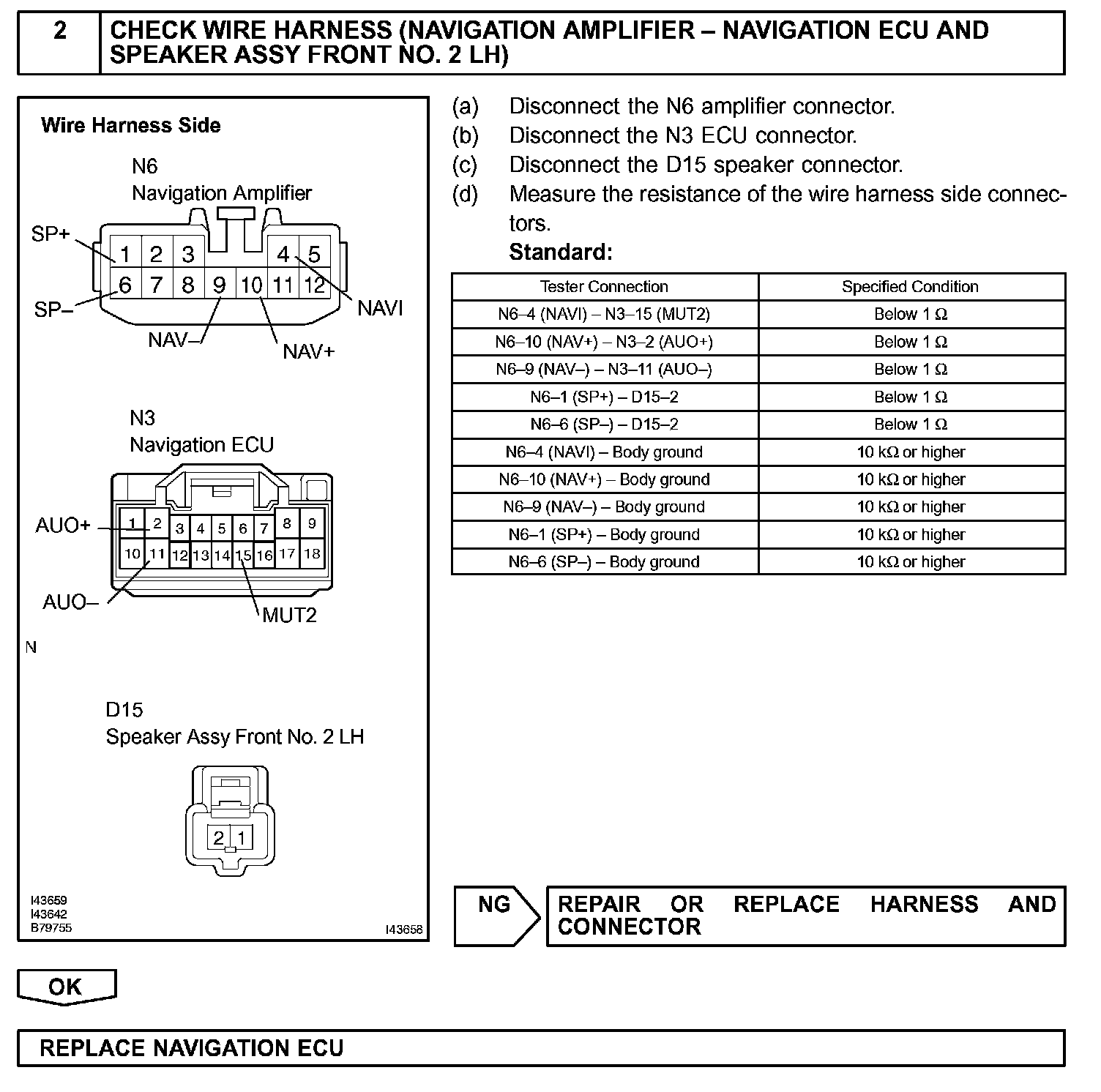

Step 2:

INSPECTION PROCEDURE
