Route Cannot Be Calculated
Route Cannot Be Calculated
ROUTE CANNOT BE CALCULATED

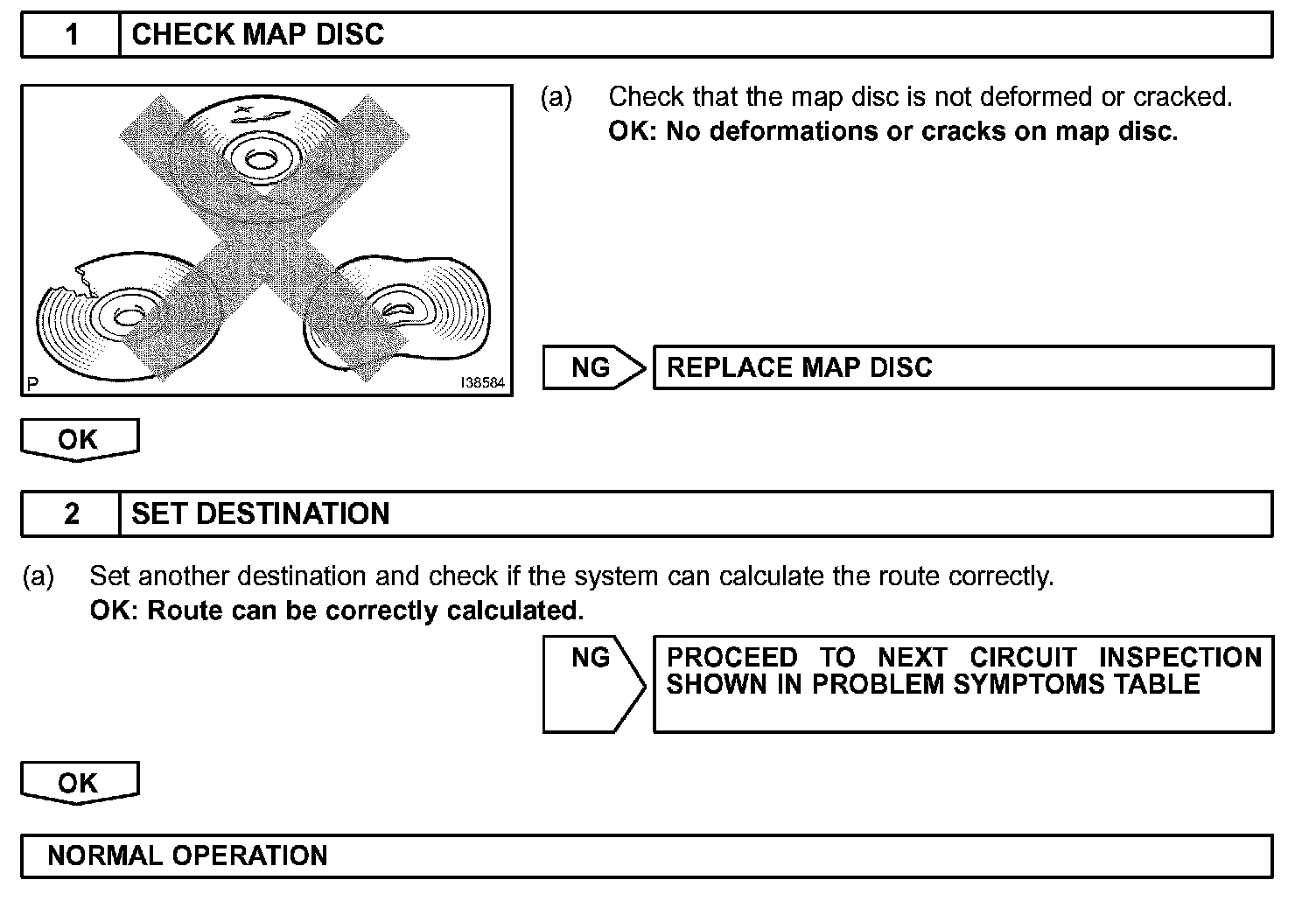

Step 1 - 2:
INSPECTION PROCEDURE
