Parking brake switch circuit

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The multi-display receives signals from the parking brake switch.

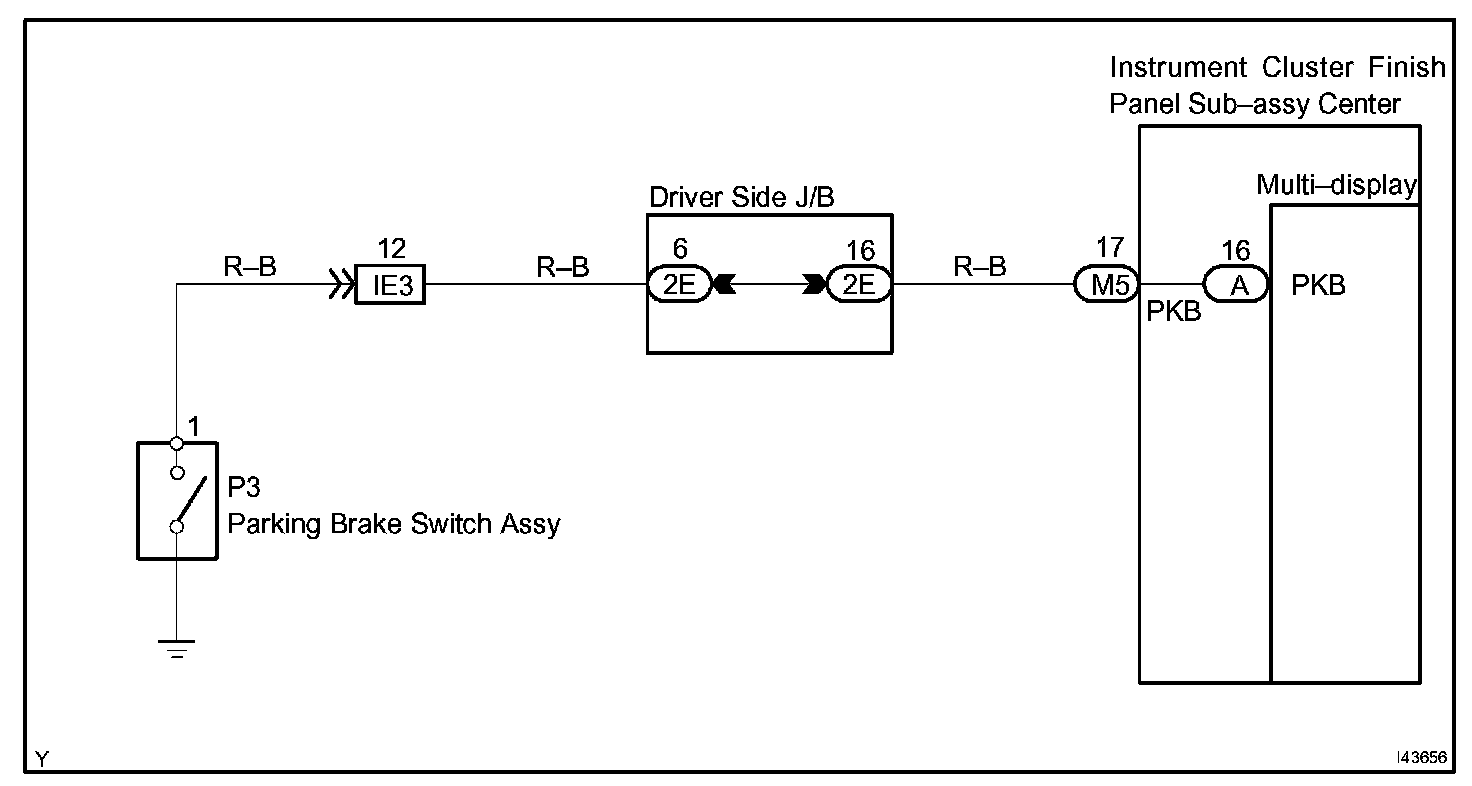

Wiring Diagram:

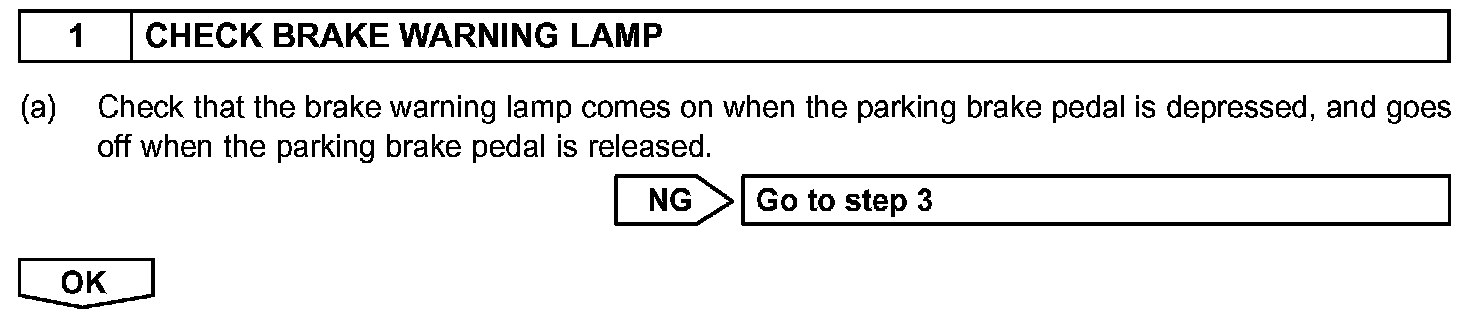

Step 1:

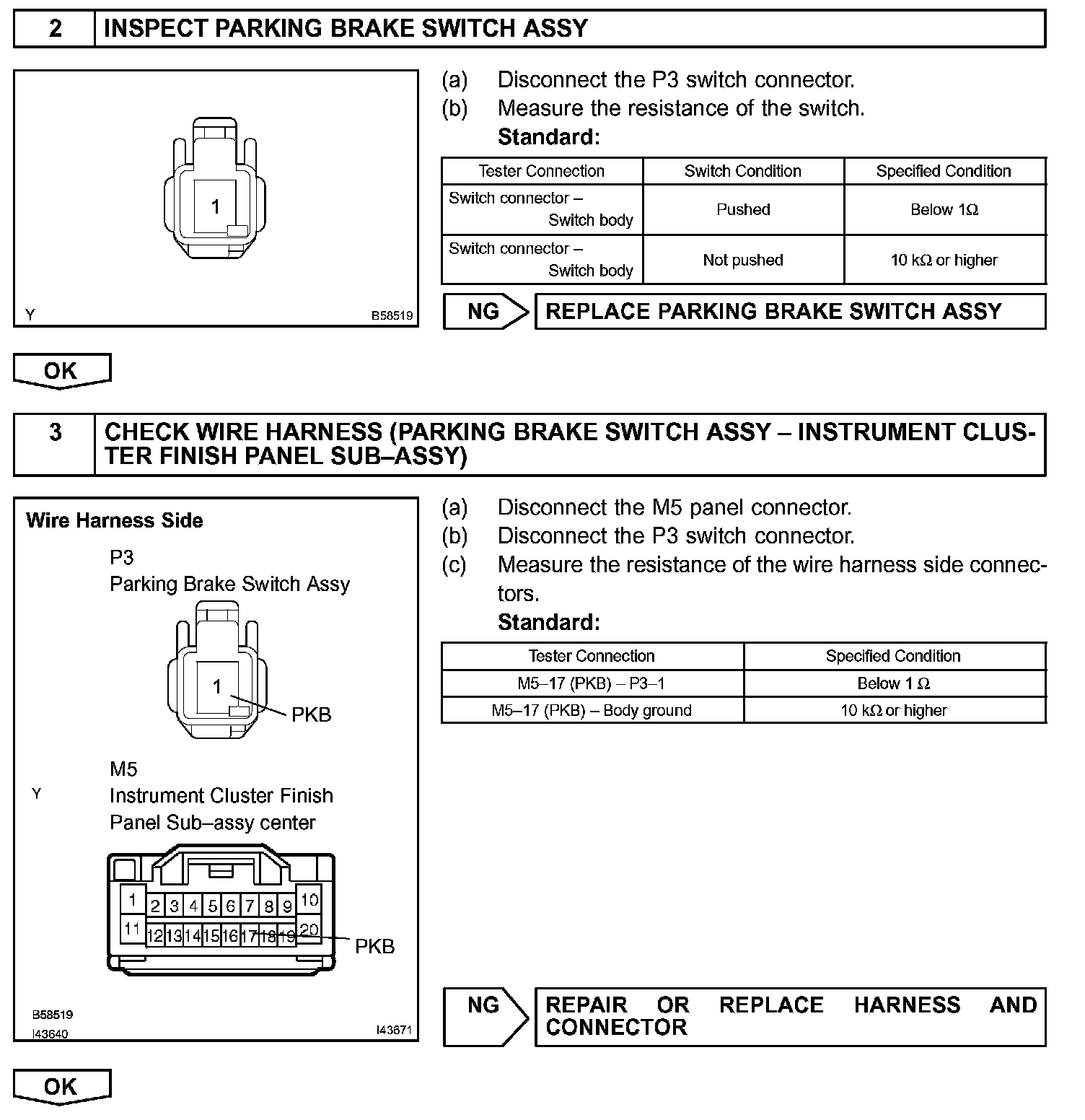

Step 2 - 3:

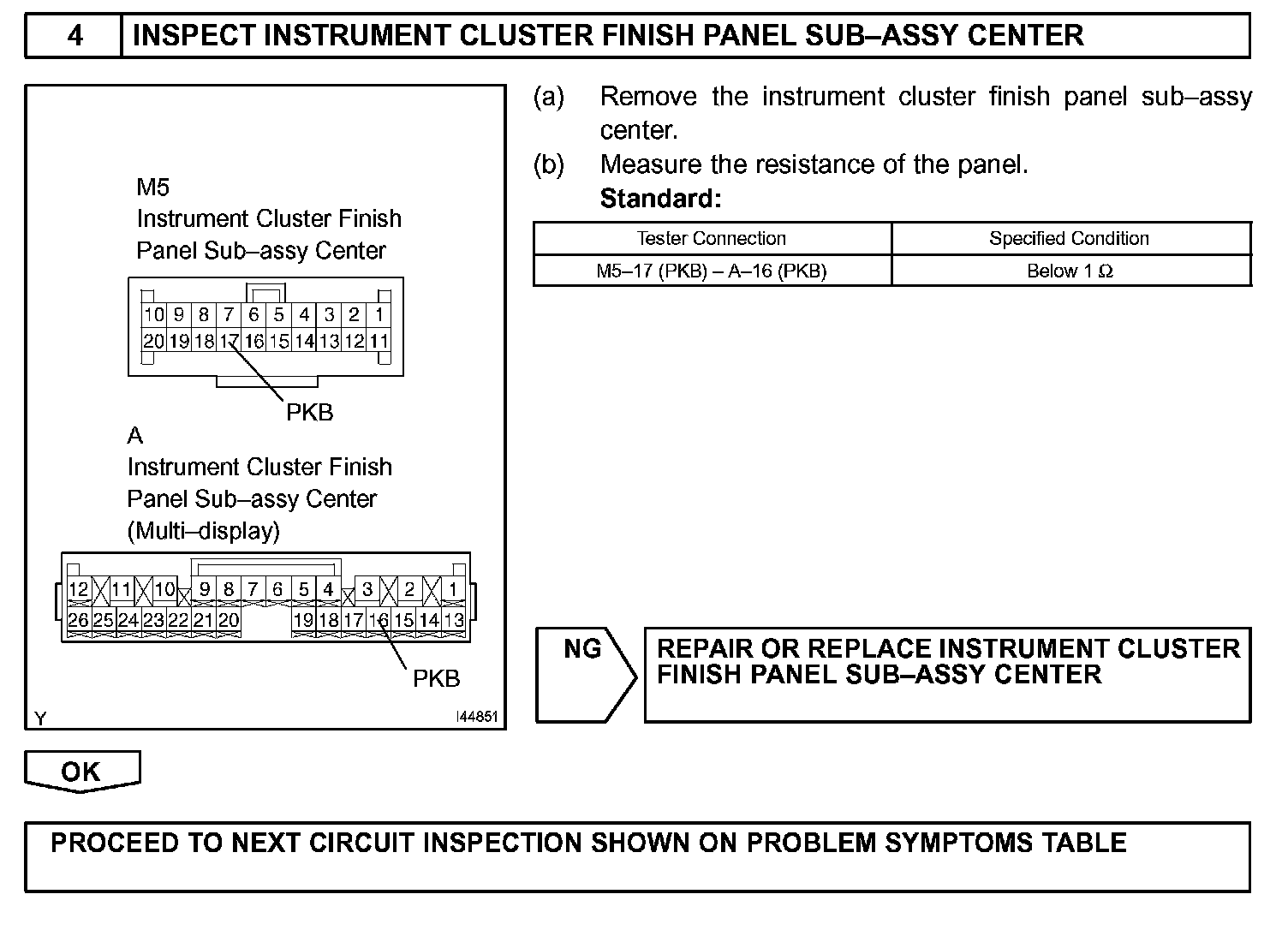

Step 4:

INSPECTION PROCEDURE
