Panel Switch Circuit

PANEL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The display panel can be opened, closed or tilted by pressing the panel switch on A/C control assy.

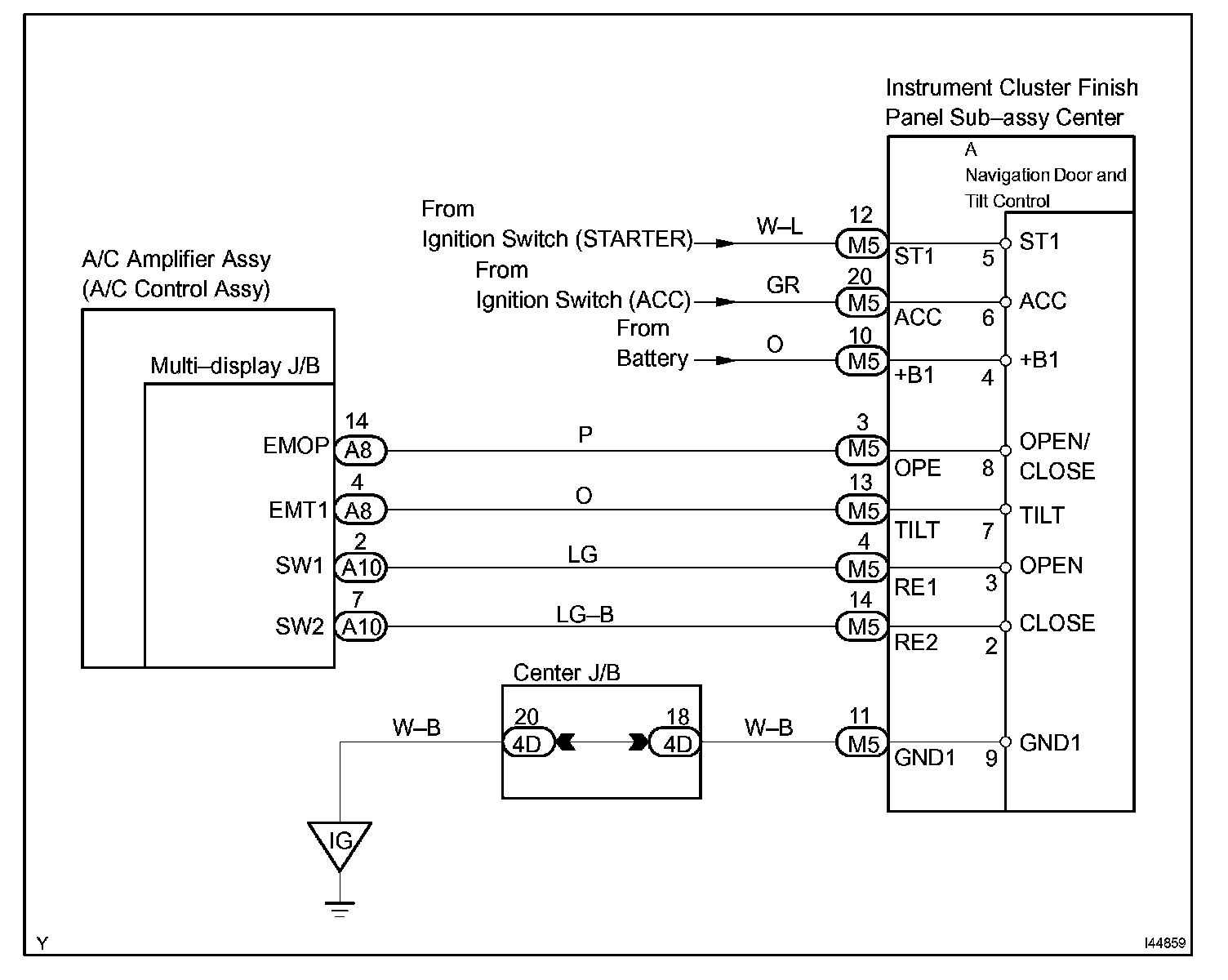

Wiring Diagram:

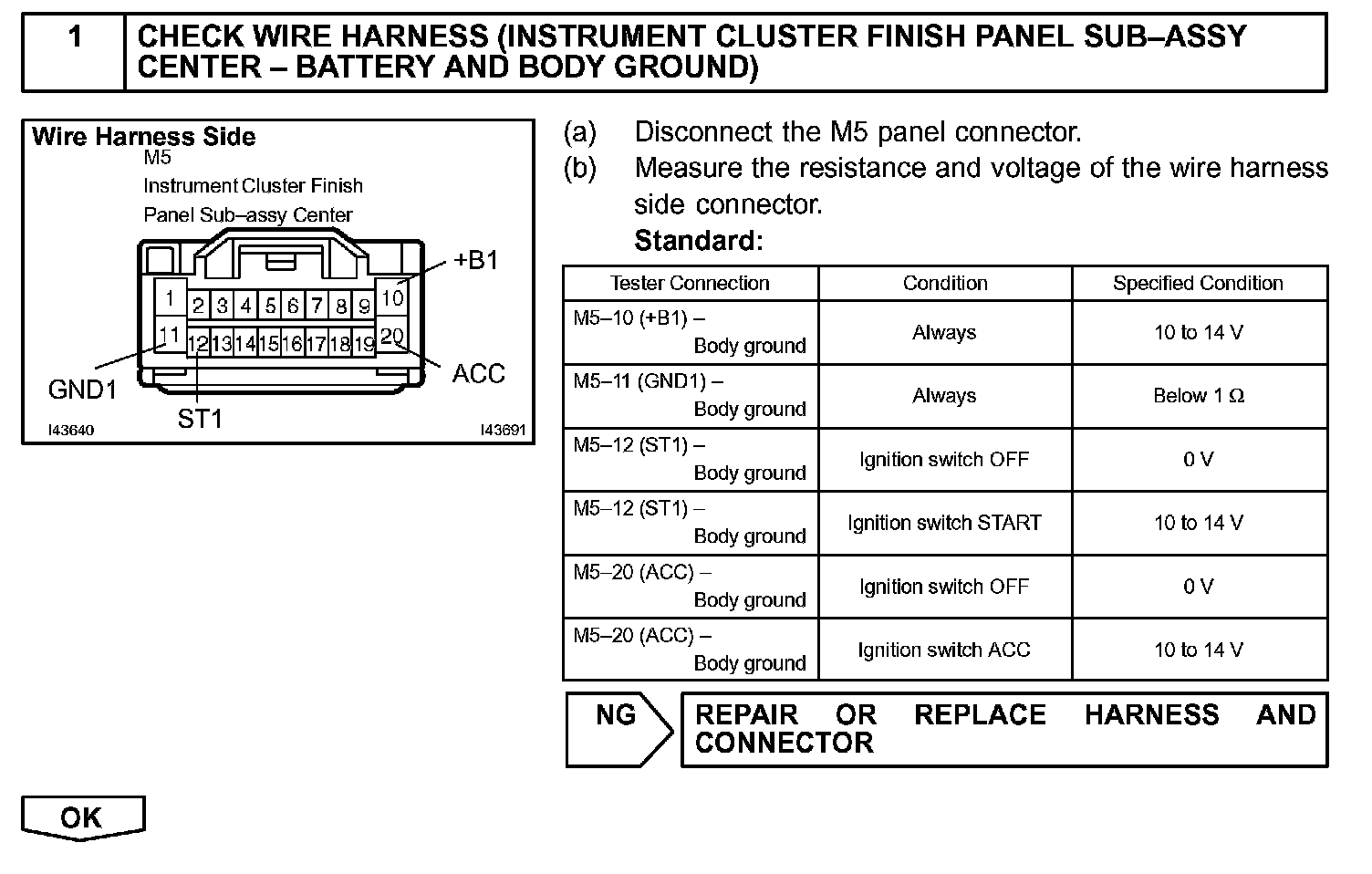

Step 1:

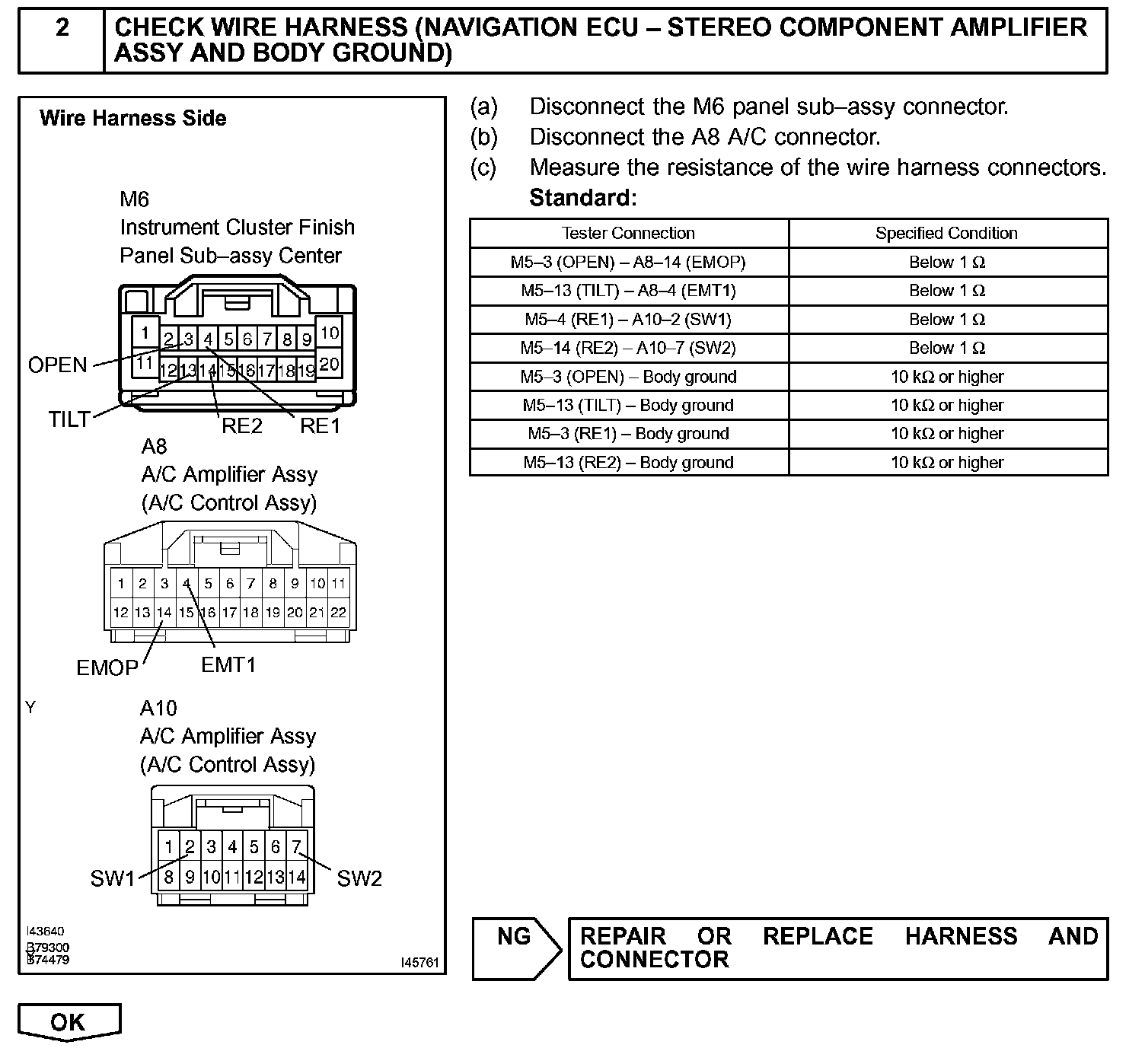

Step 2:

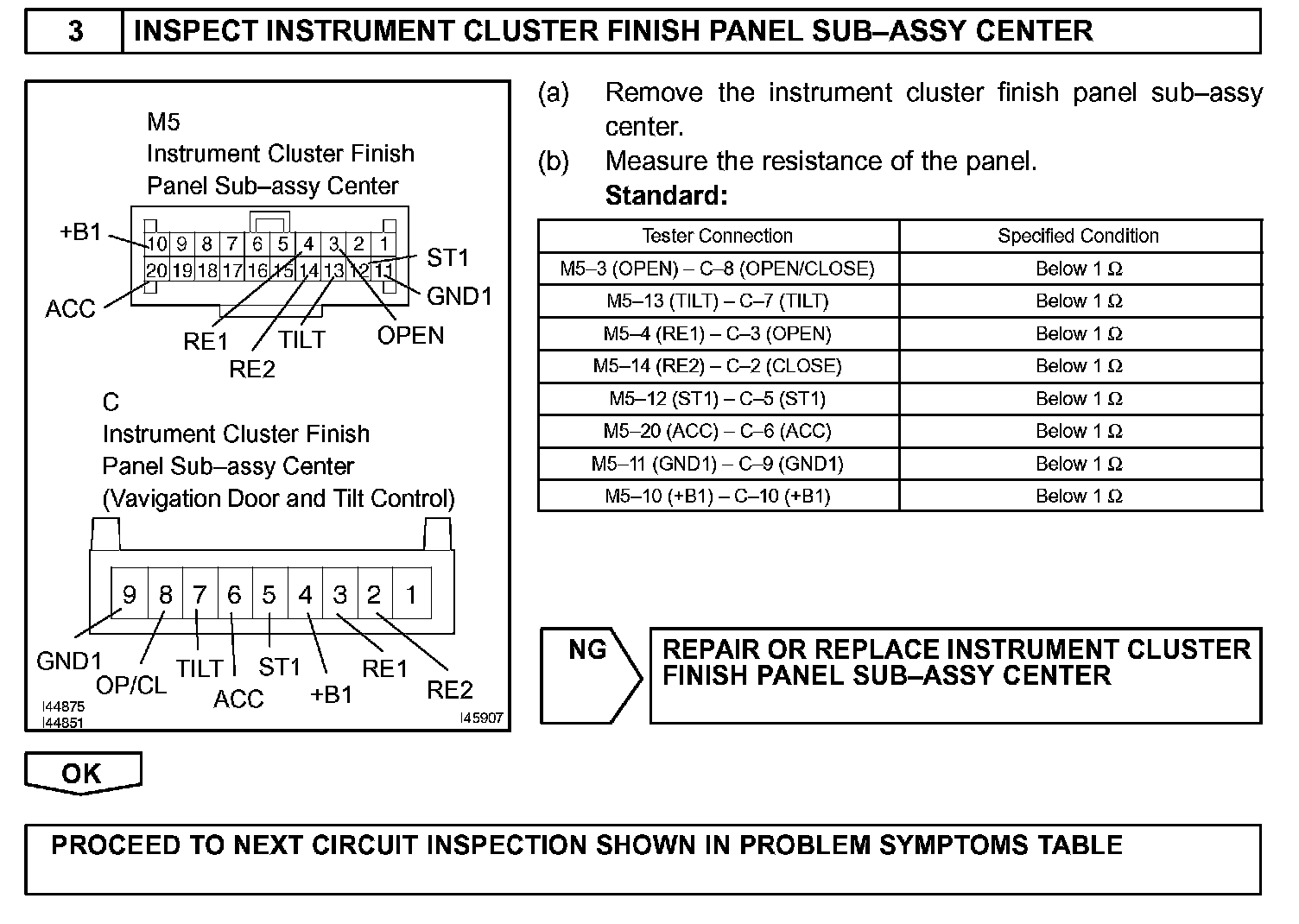

Step 3:

INSPECTION PROCEDURE
