Mute Signal Circuit (Stereo Component Amplifier Assy-Navigation ECU)

MUTE SIGNAL CIRCUIT (STEREO COMPONENT AMPLIFIER ASSY - NAVIGATION ECU)

CIRCUIT DESCRIPTION
Mute signals are sent via the navigation amplifier to the stereo component amplifier to mute noises that occur when muting the sound source.If the navigation system is available, the mute signal also mutes CD audio, etc.when the navigation system's voice guidance is on.

If the circuit is open: 1.noise will occur when the sound source is changed, and 2.if the navigation system
is available, CD audio, etc.will not mute while the voice guidance is on.

If the circuit is shorted: 1.even if the amplifier is functioning properly, no sounds or only barely audible sounds
will be output.

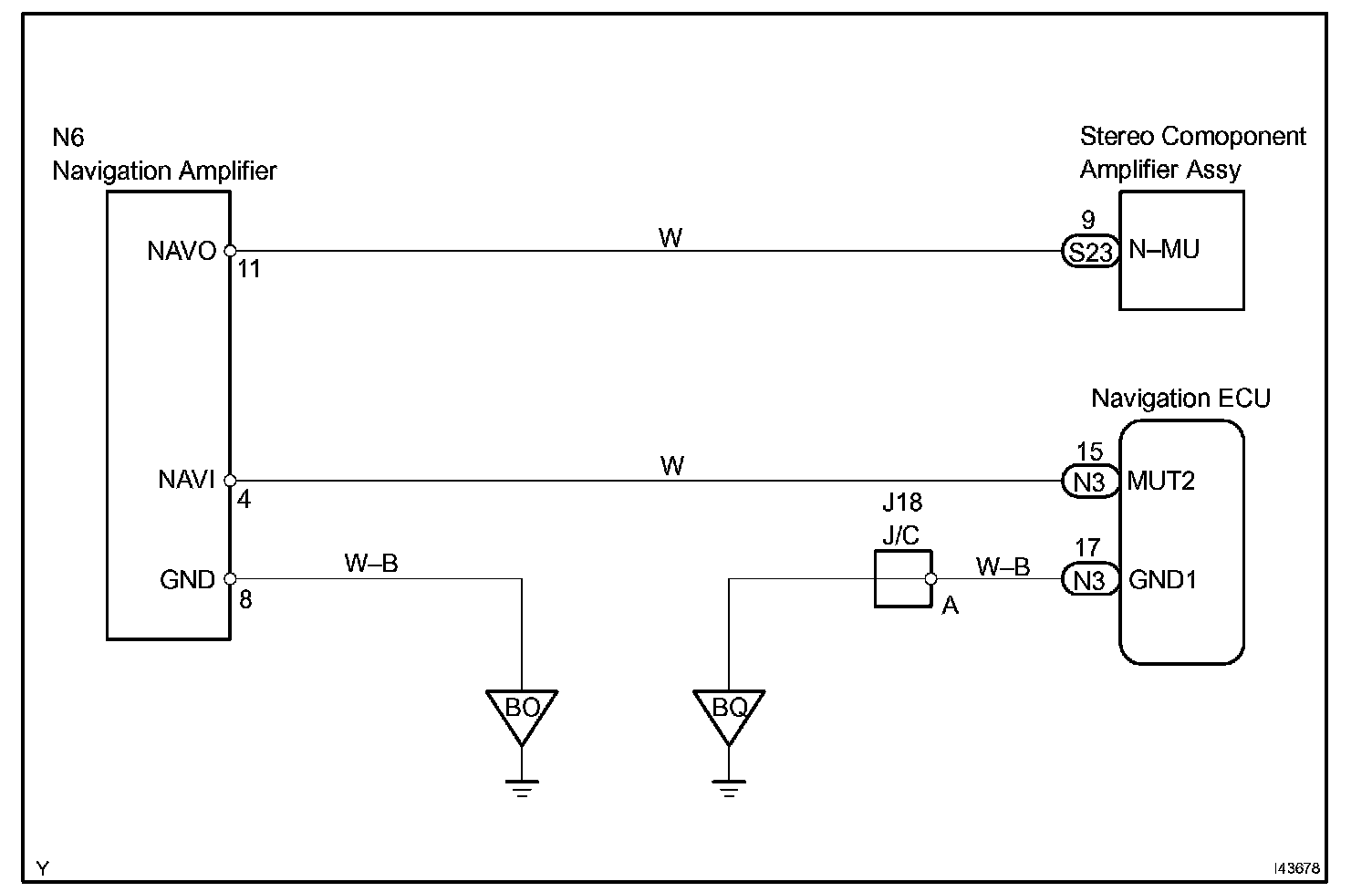

Wiring Diagram:

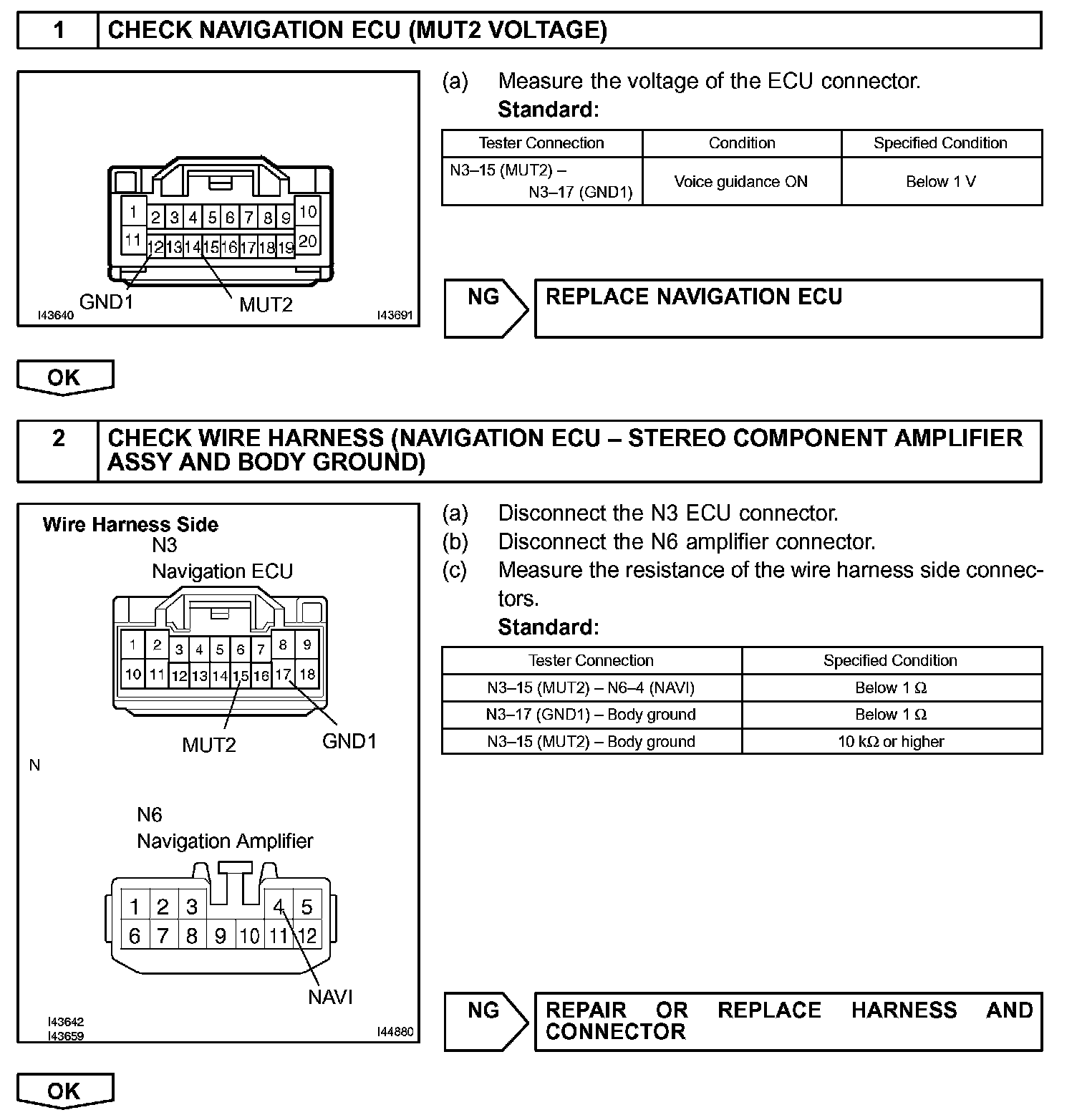

Step 1 - 2:

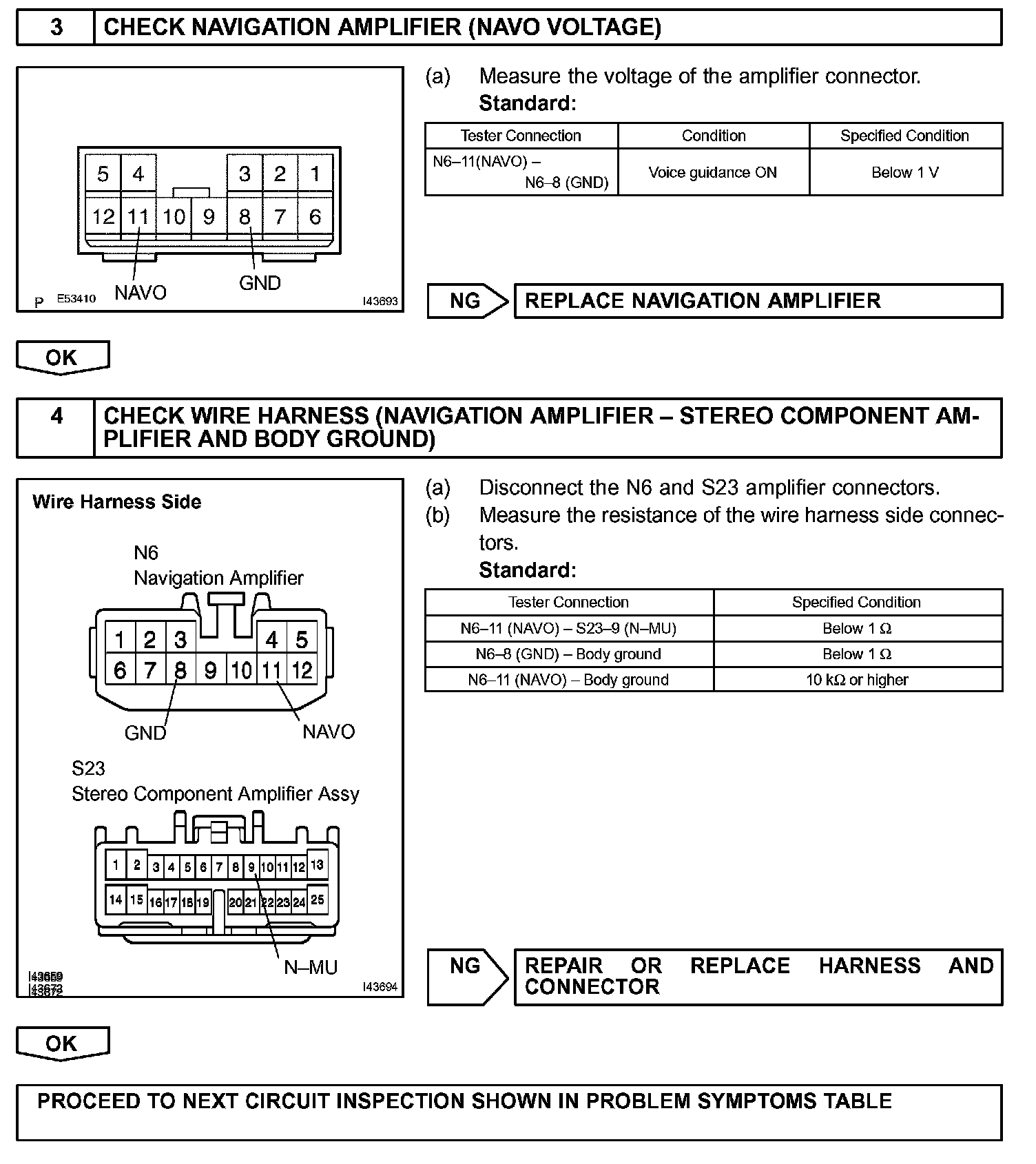

Step 3 - 4:

INSPECTION PROCEDURE
