Microphone Circuit (Telephone Microphone-Multi-Display)

MICROPHONE CIRCUIT (TELEPHONE MICROPHONE - MULTI-DISPLAY)

CIRCUIT DESCRIPTION

This circuit sends a microphone signal from the telephone microphone amplifier to the multi-display. It also supplies power from the multi-display to the telephone microphone amplifier.

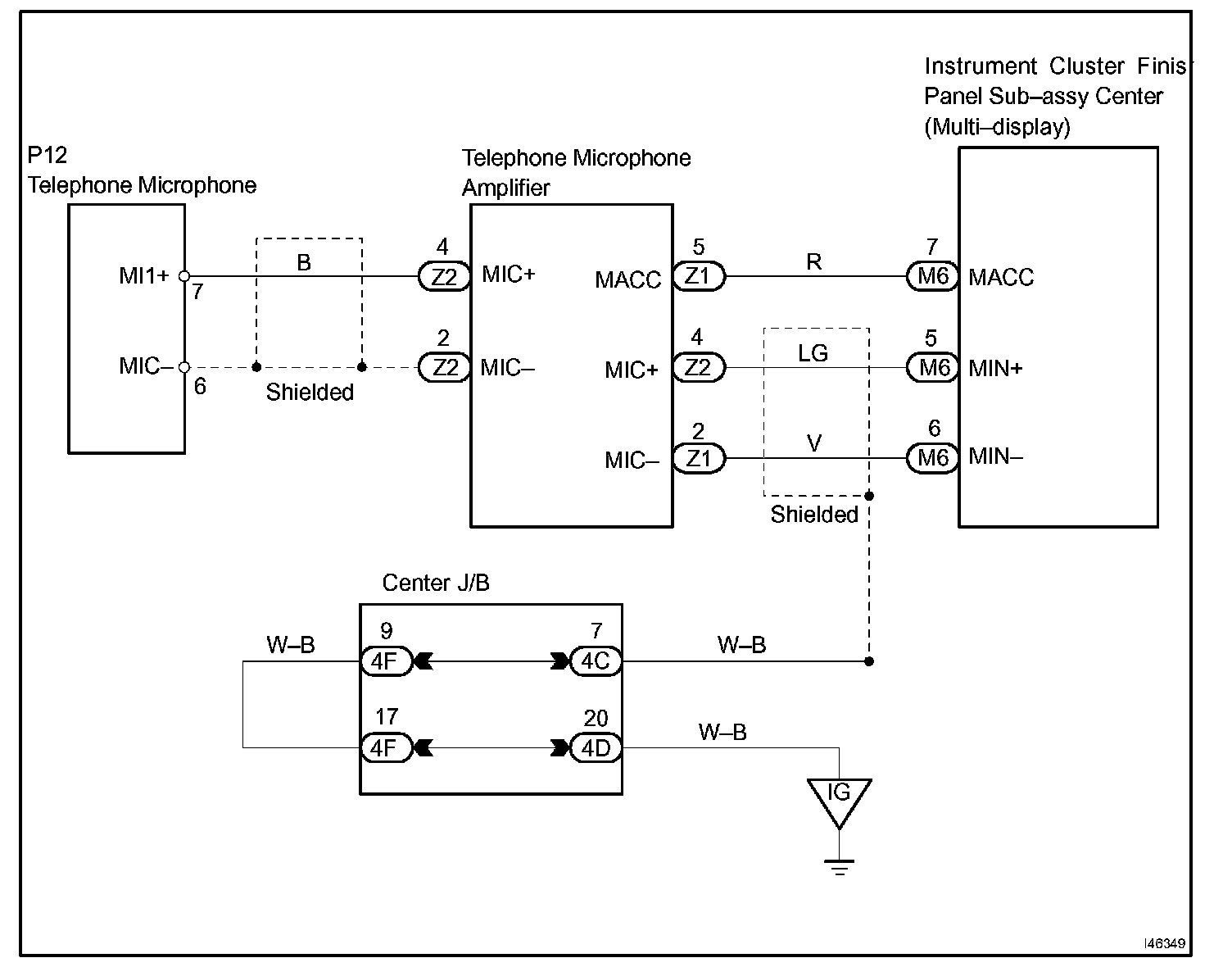

Wiring Diagram:

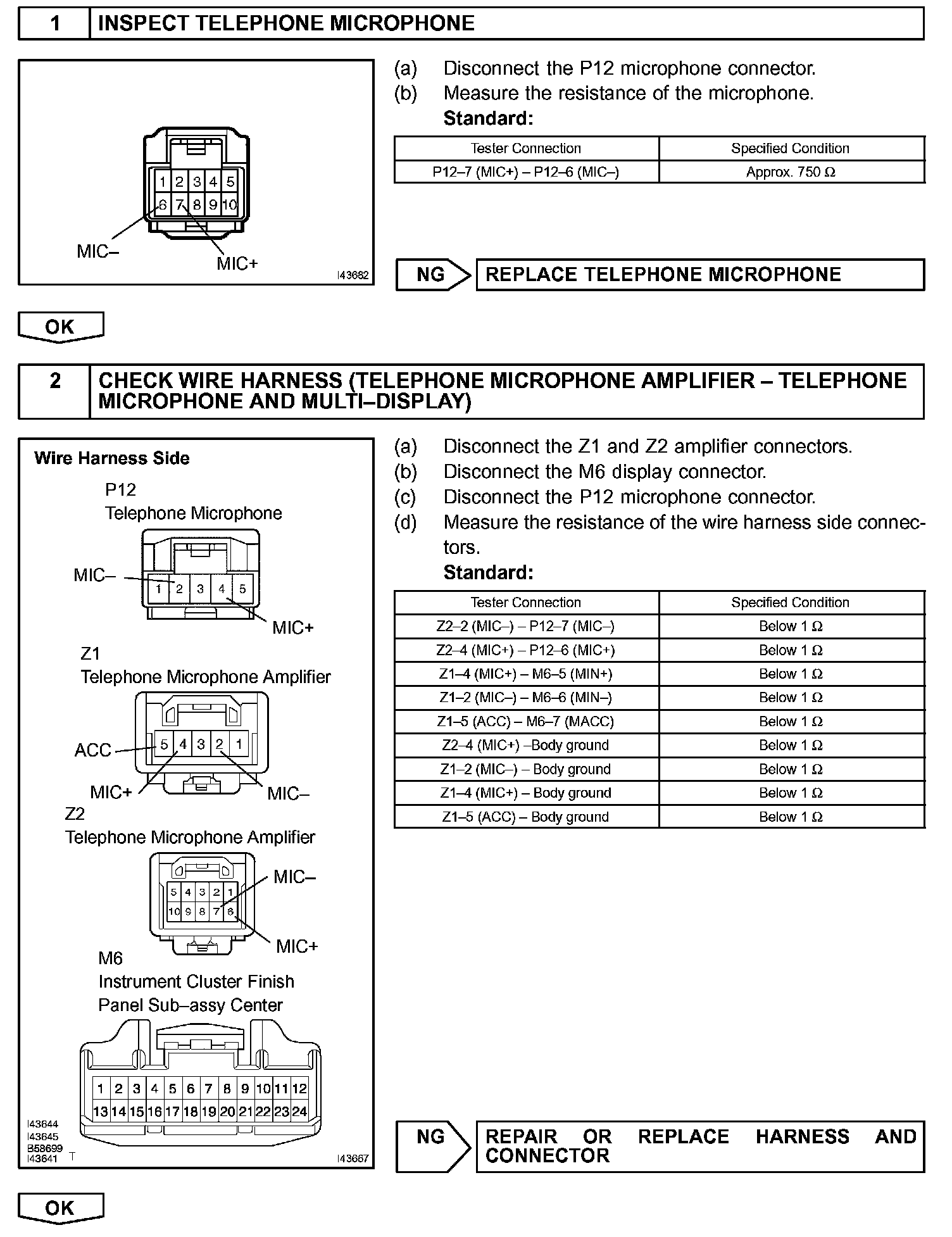

Step 1 - 2:

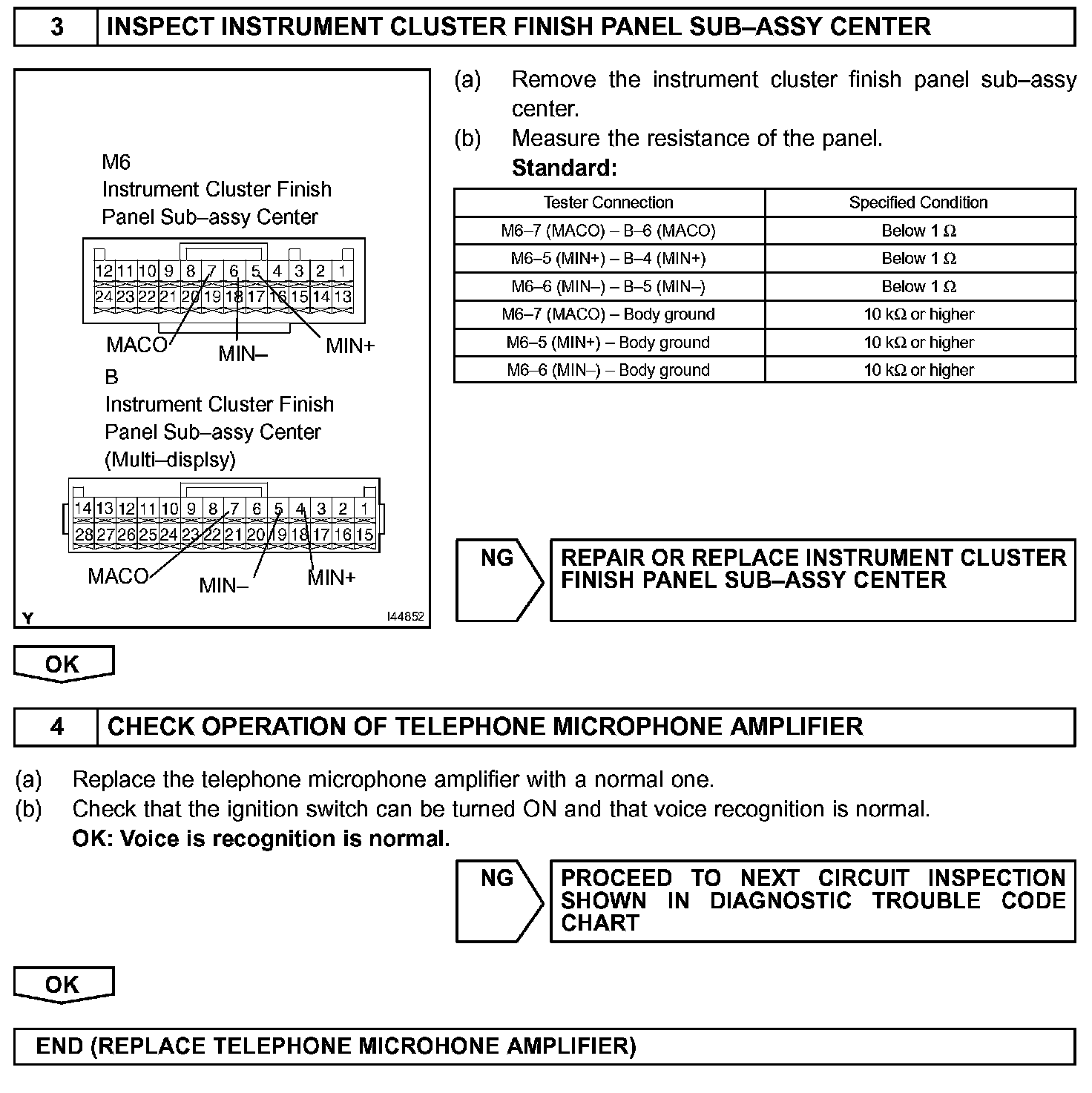

Step 3 - 4:

INSPECTION PROCEDURE
