Home >> Lexus >> 2005 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Component Tests and General Diagnostics >> MAP Display Is Incomplete

MAP Display Is Incomplete

MAP DISPLAY IS INCOMPLETE

Step 1 - 2:

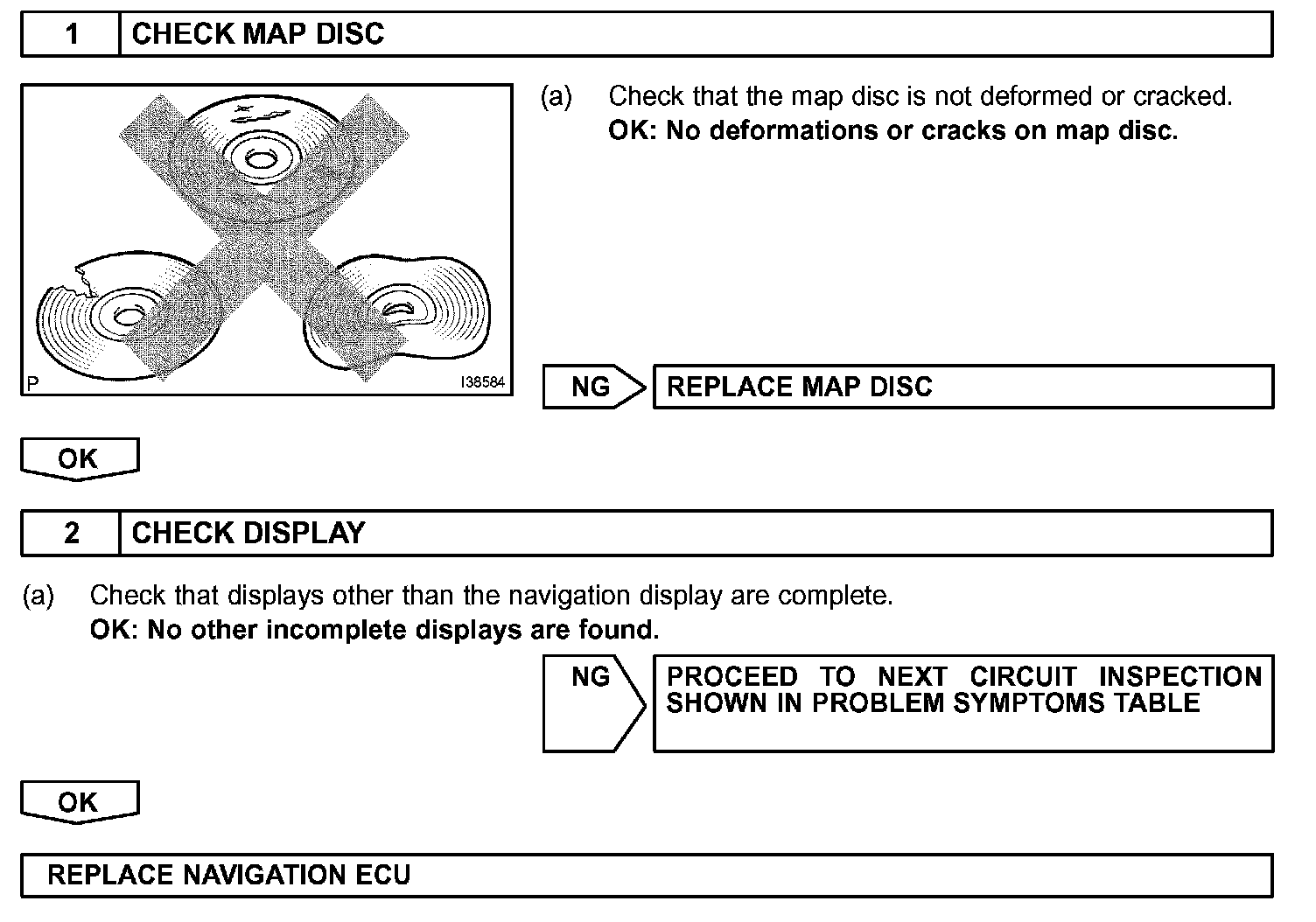

INSPECTION PROCEDURE
