Display Panel Does Not Open, or Tilt, or Tilts Is Defective
Display Panel Does Not Open, or Tilt, or Tilts Is Defective
DISPLAY PANEL DOES NOT OPEN, OR TILT, OR TILTS IS DEFECTIVE

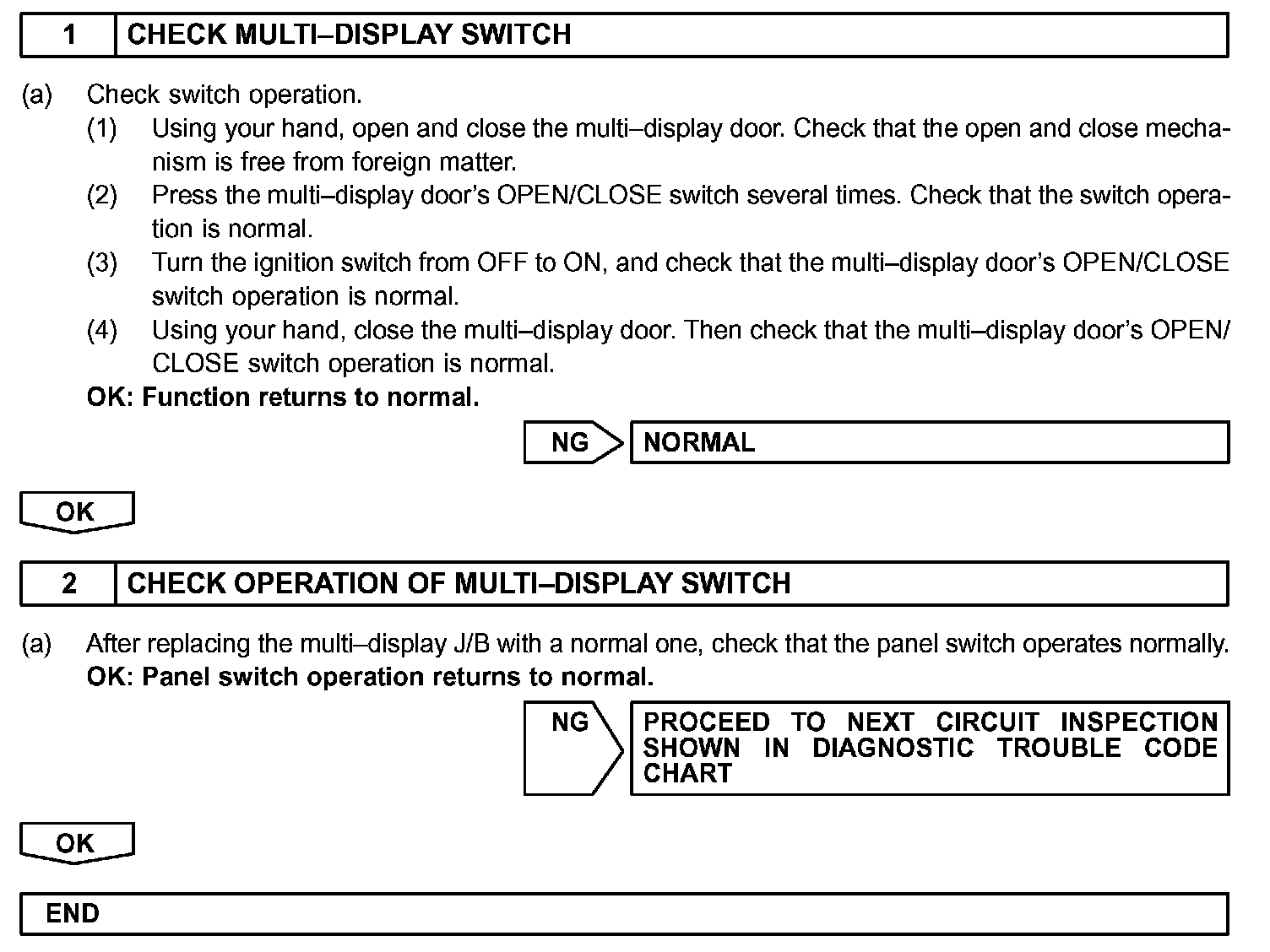

Step 1 - 2:
INSPECTION PROCEDURE
