Navigation Check Mode (Parts Information)

NAVIGATION CHECK MODE (PARTS INFORMATION)

HINT:
- This mode displays product information about the navigation systems and discs.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM PARTS INFORMATION CHECK




a. Enter diagnostic mode

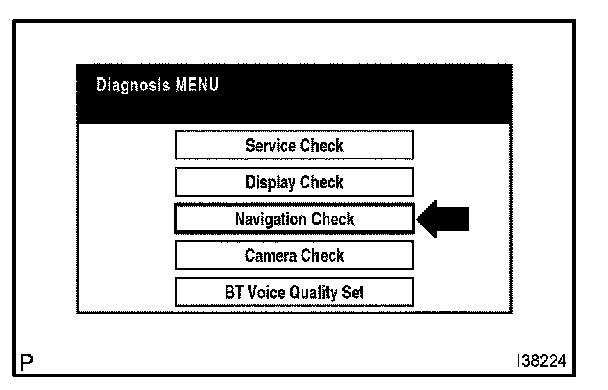

b. Select "Navigation Check" from the "Diagnosis MENU" screen.

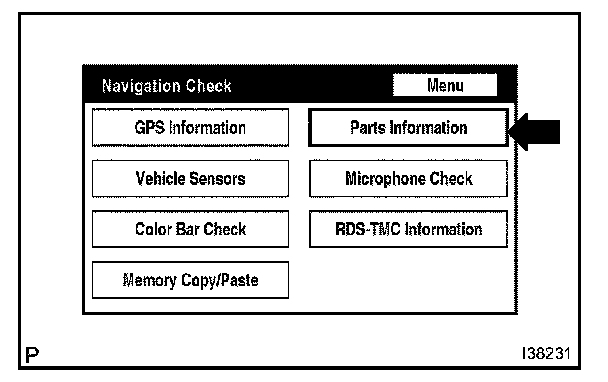

c. Select "Parts Information" from the "Navigation Check" screen.

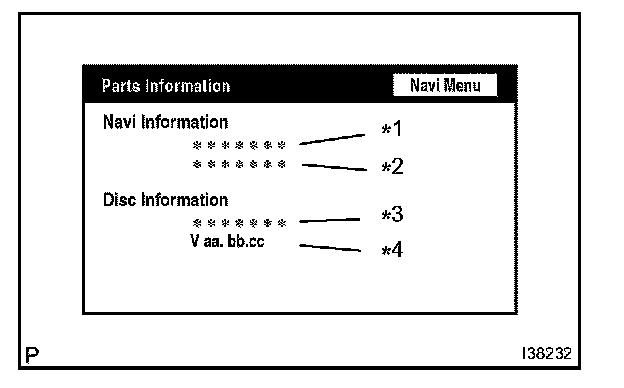

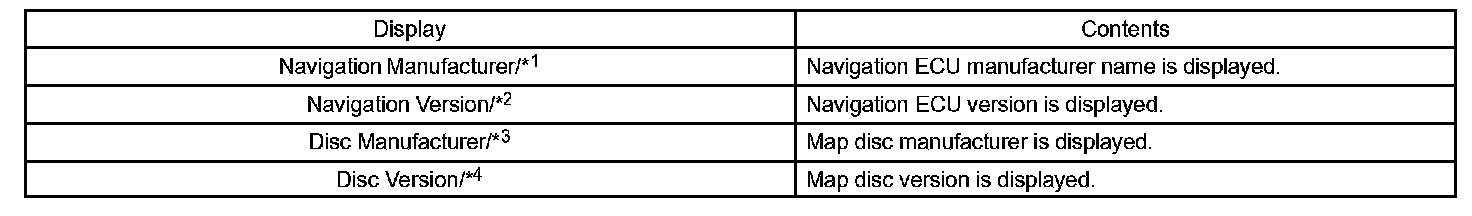

d. Check the navigation and disc information when the "Parts Information" screen is displayed.
