Navigation Check Mode (GPS Information)

NAVIGATION CHECK MODE (GPS INFORMATION)

HINT:
- This mode displays GPS satellite information.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM GPS INFORMATION CHECK

a. Enter diagnostic mode

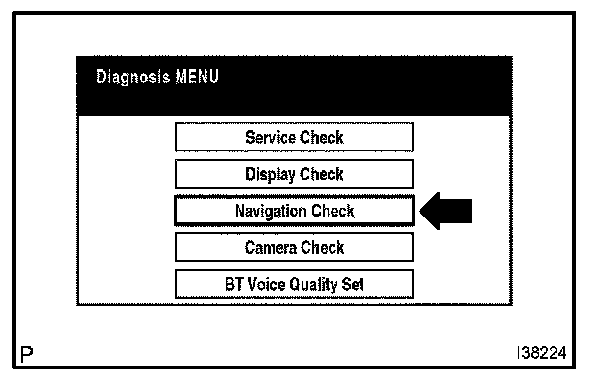

b. Select "Navigation Check" from the "Diagnosis MENU" screen.

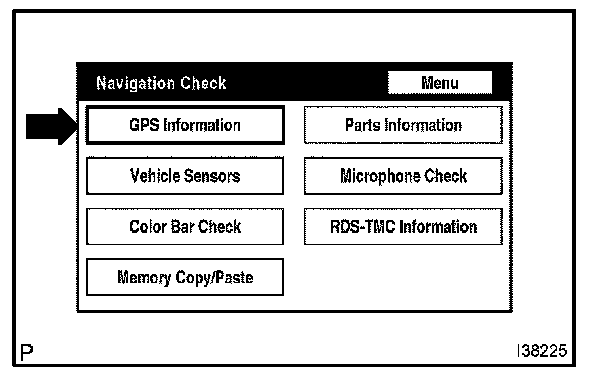

c. Select "GPS Information" from the "Navigation Check" screen.

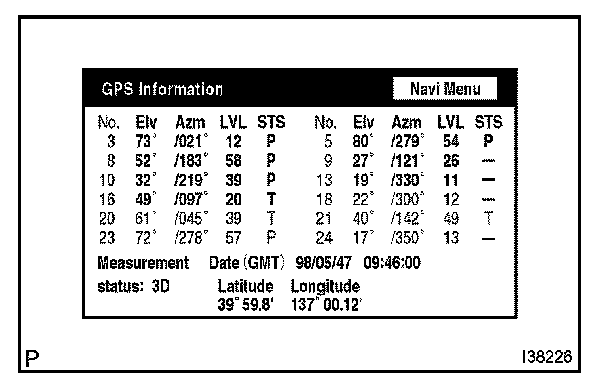

d. When "GPS Information" is displayed, check the GPS conditions.

HINT: This screen is updated once per second when input signals to the vehicle are changed.
