Cellular Phone Voice Circuit (Multi-Display-Navigation ECU)

CELLULAR PHONE VOICE CIRCUIT (MULTI-DISPLAY - NAVIGATION ECU)

CIRCUIT DESCRIPTION

This circuit sends a voice signal of the cellular phone from the multi-display to the navigation ECU.

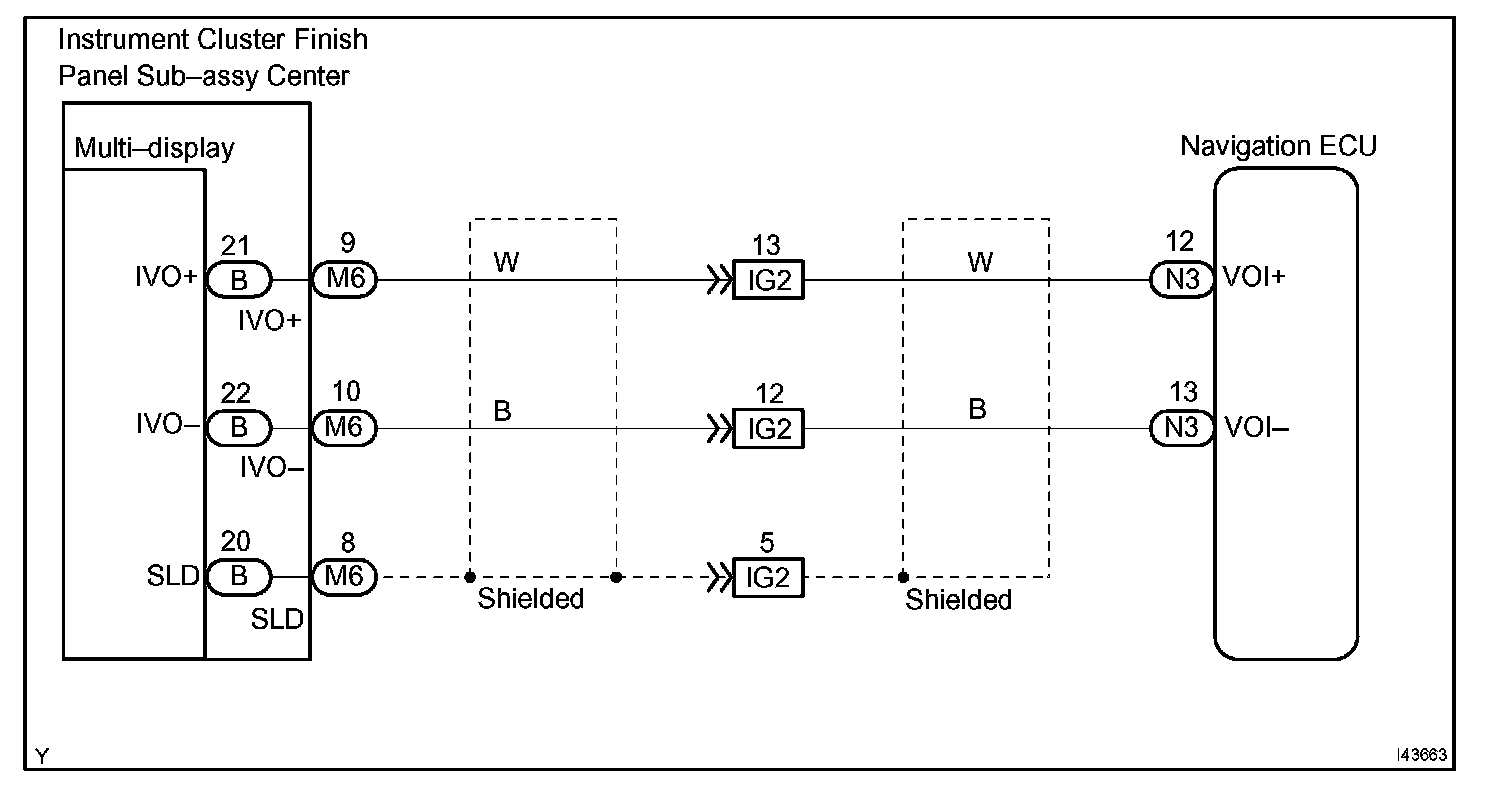

Wiring Diagram:






Step 1:




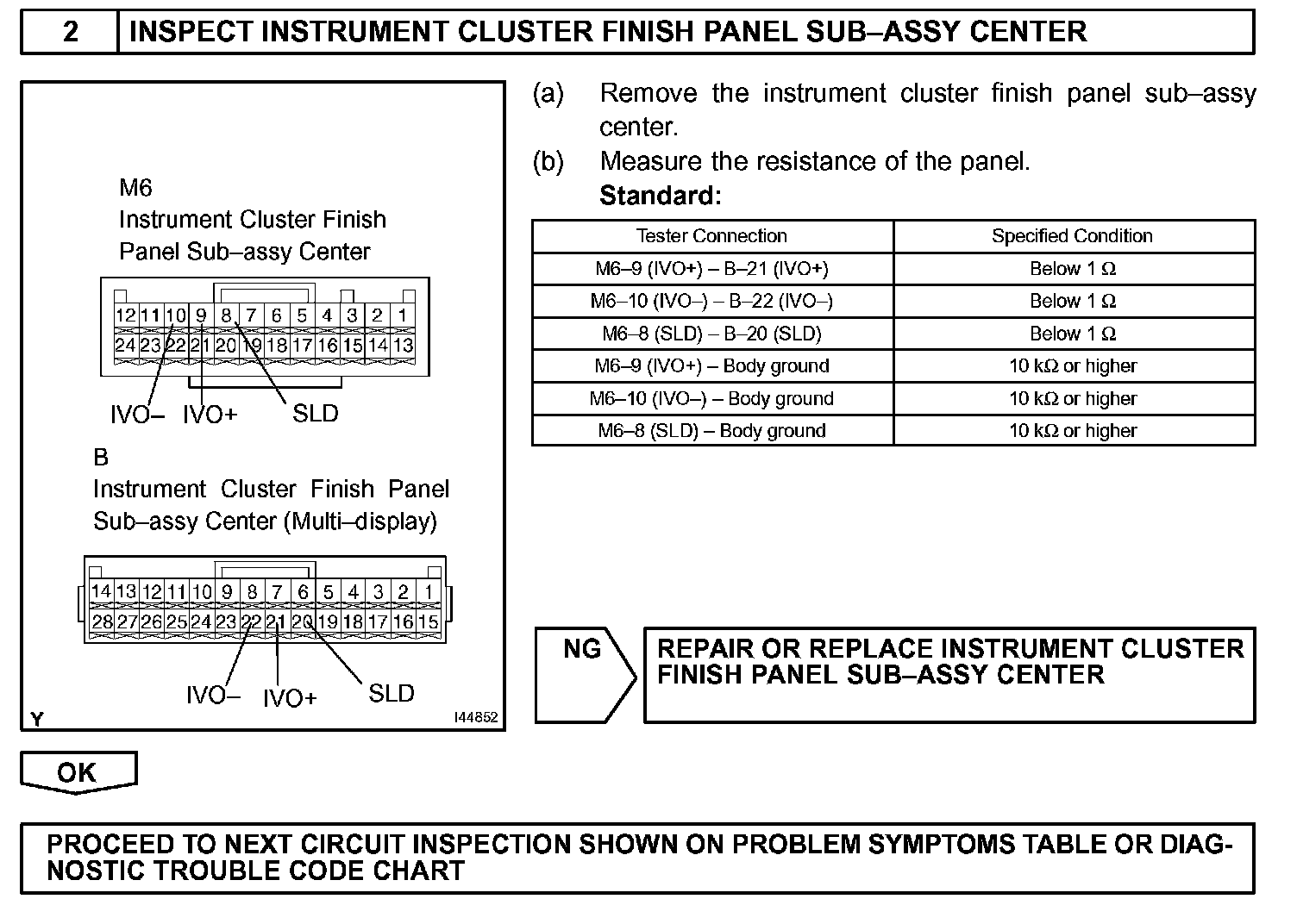

Step 2:




INSPECTION PROCEDURE
