Theft Deterrent System

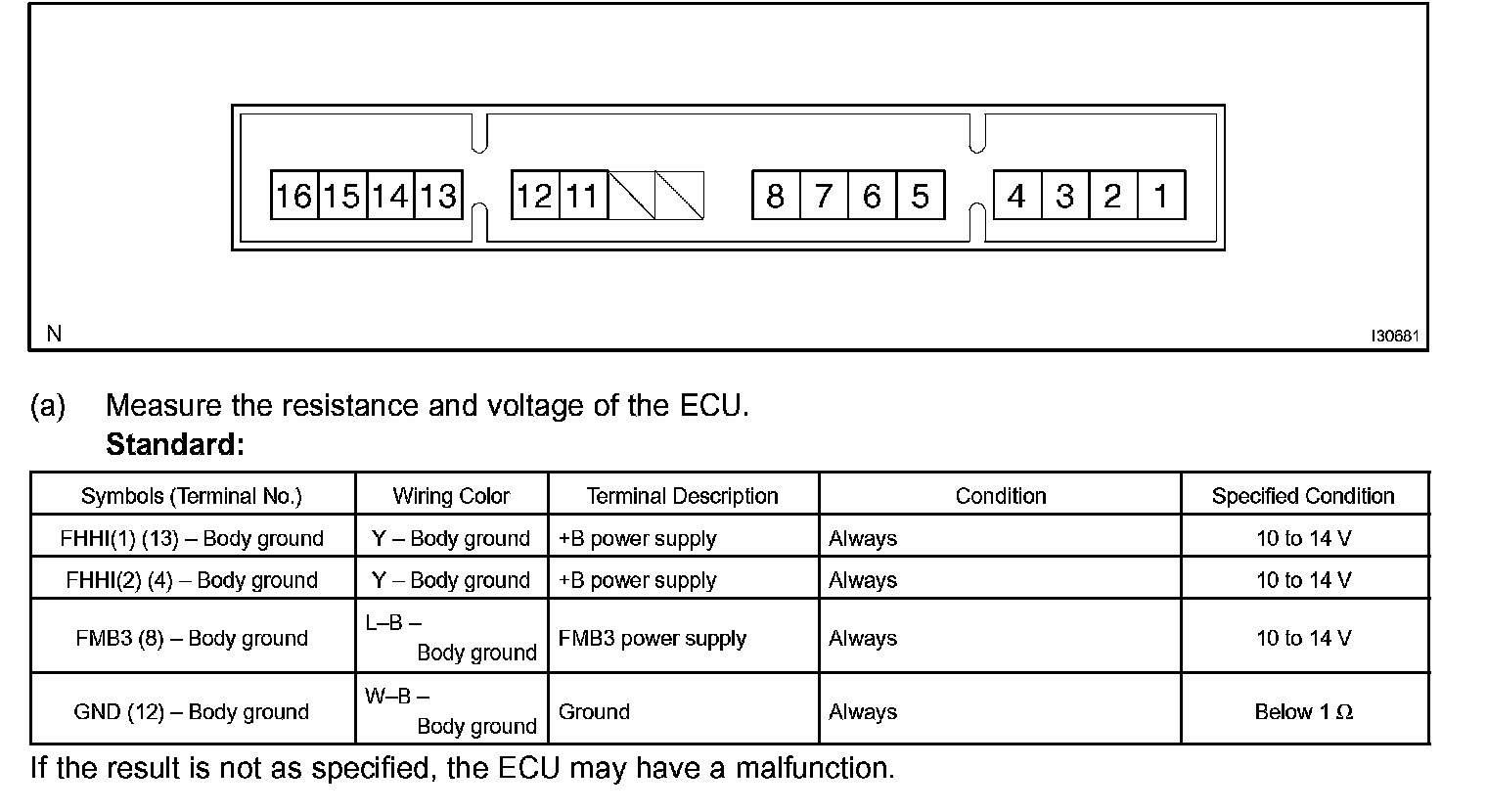

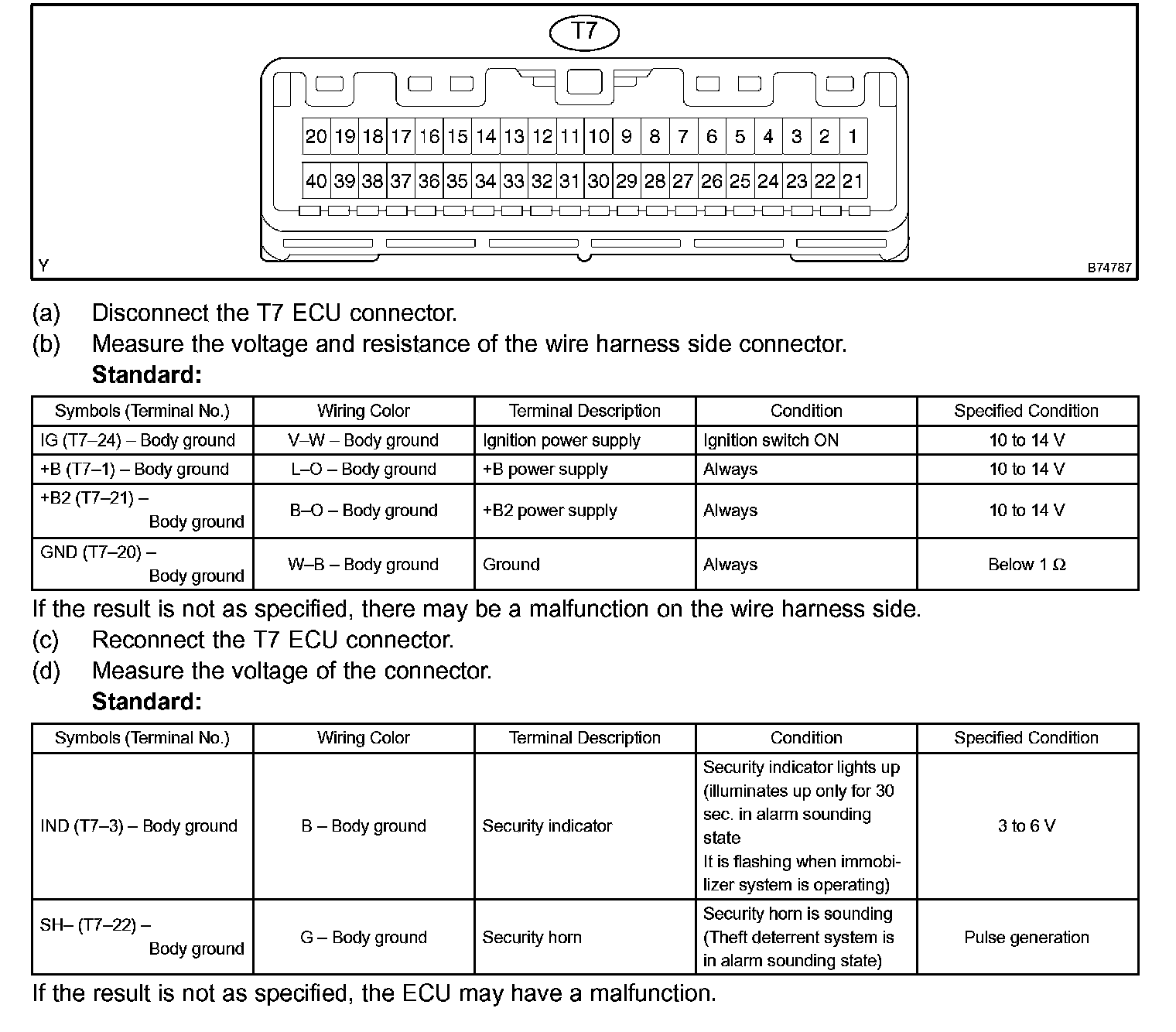

Terminals Of Control Module/Pinouts - Check Theft Warning ECU Assy:

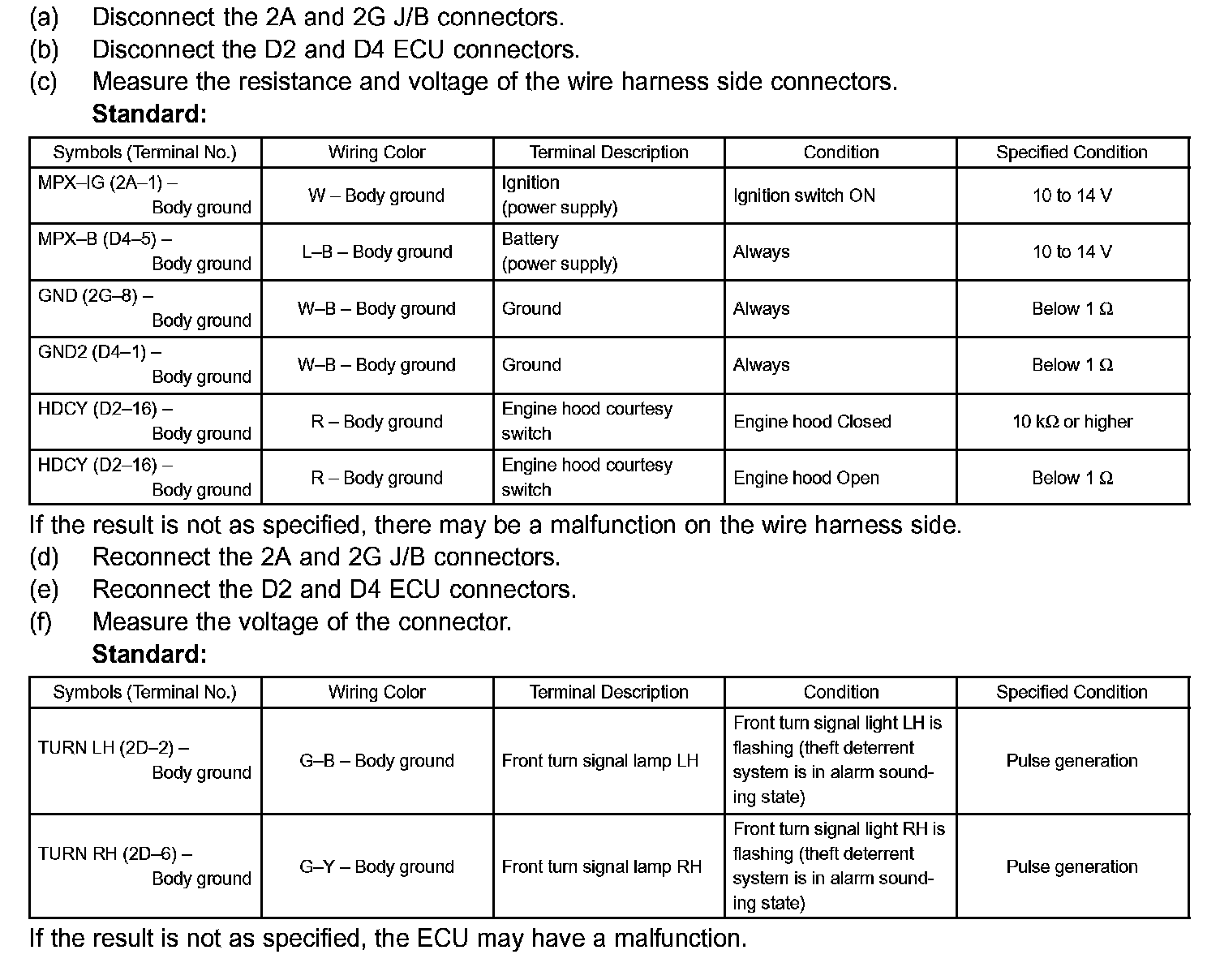

Terminals Of Control Module/Pinouts - Check Driver Side J/B (Multiplex Network Body ECU) Part 1:

Terminals Of Control Module/Pinouts - Check Driver Side J/B (Multiplex Network Body ECU) Part 2:

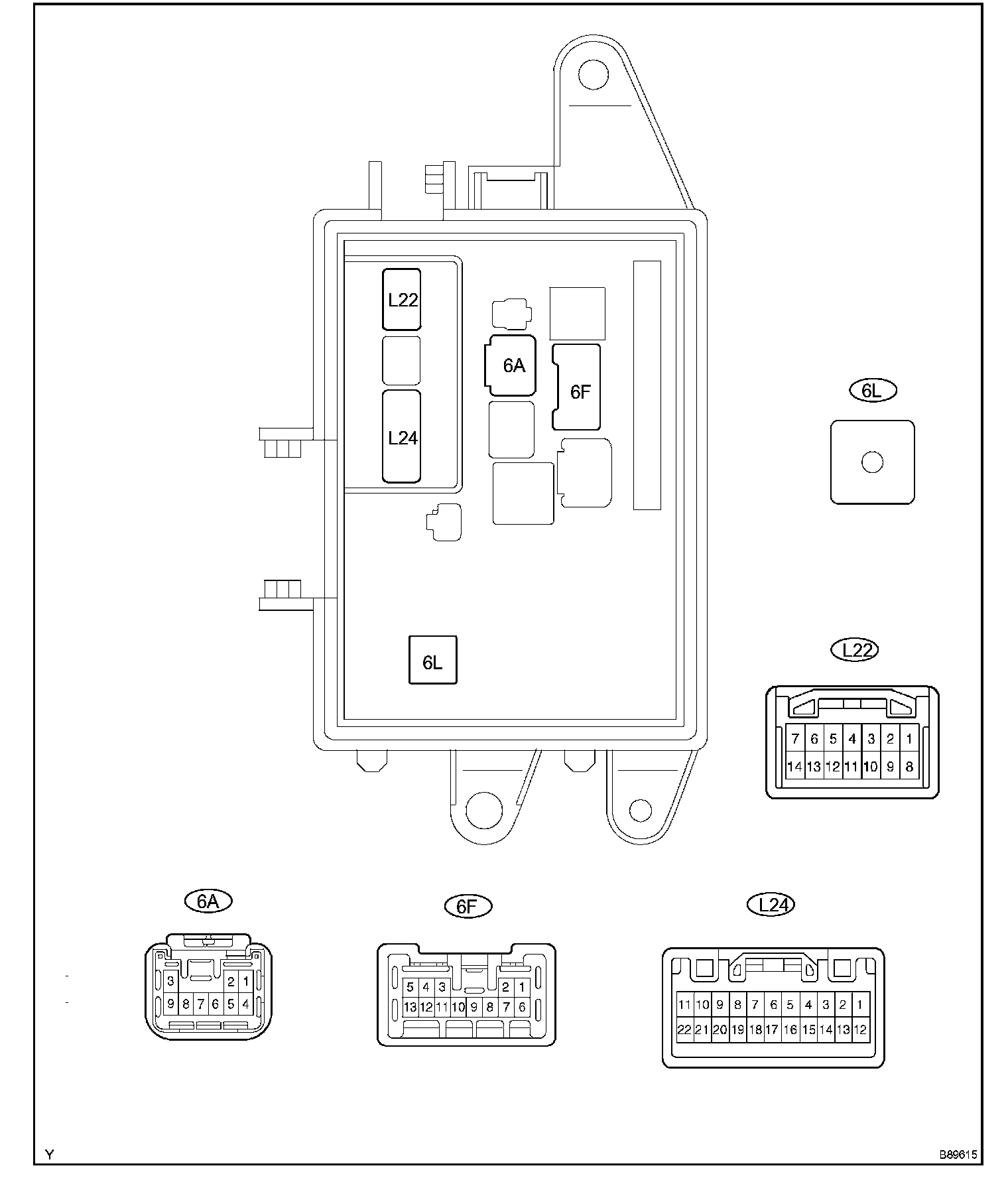

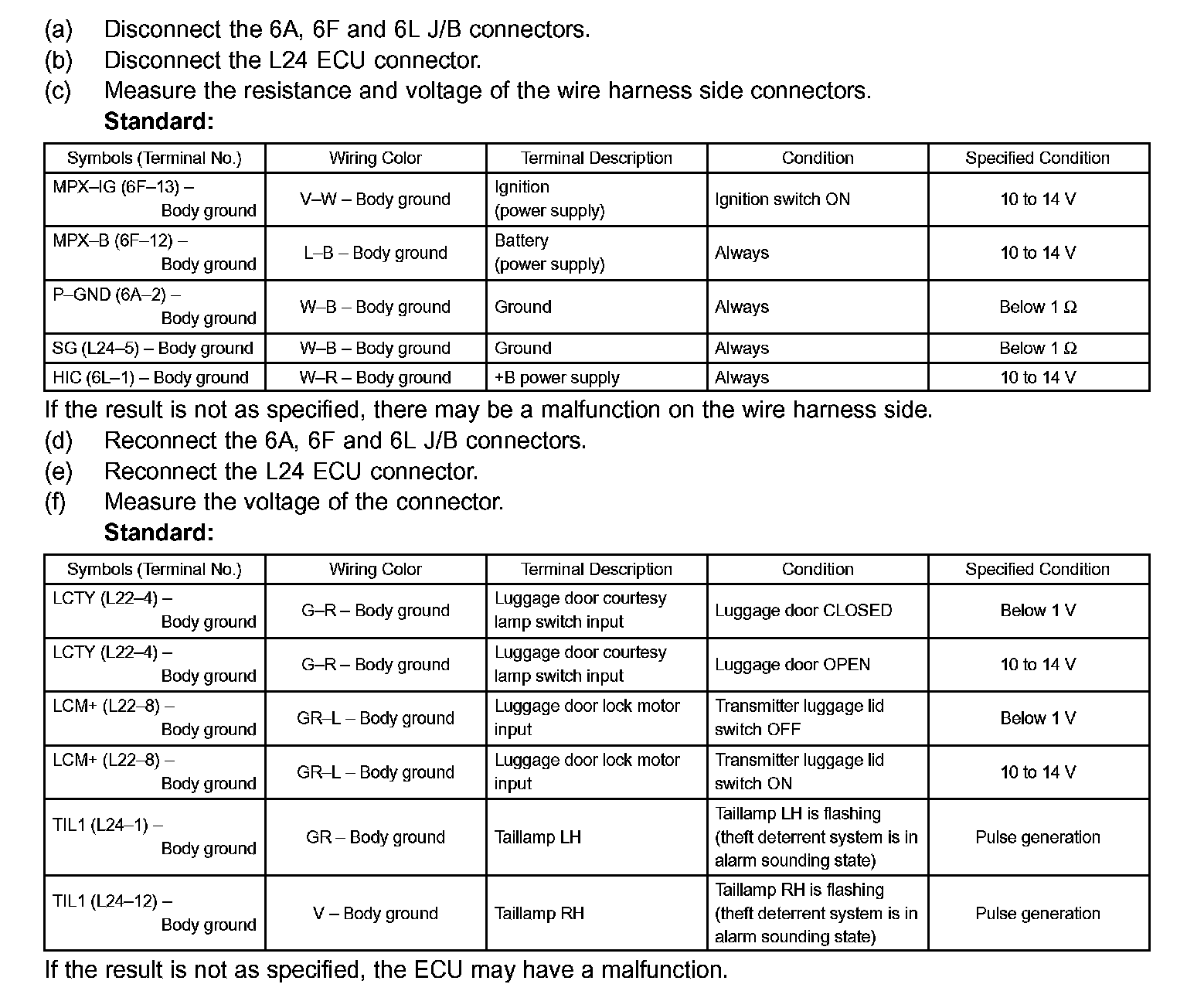

Terminals Of Control Module/Pinouts - Check Luggage Room J/B Assy (Luggage Room J/B ECU) Part 1:

Terminals Of Control Module/Pinouts - Check Luggage Room J/B Assy (Luggage Room J/B ECU) Part 2:

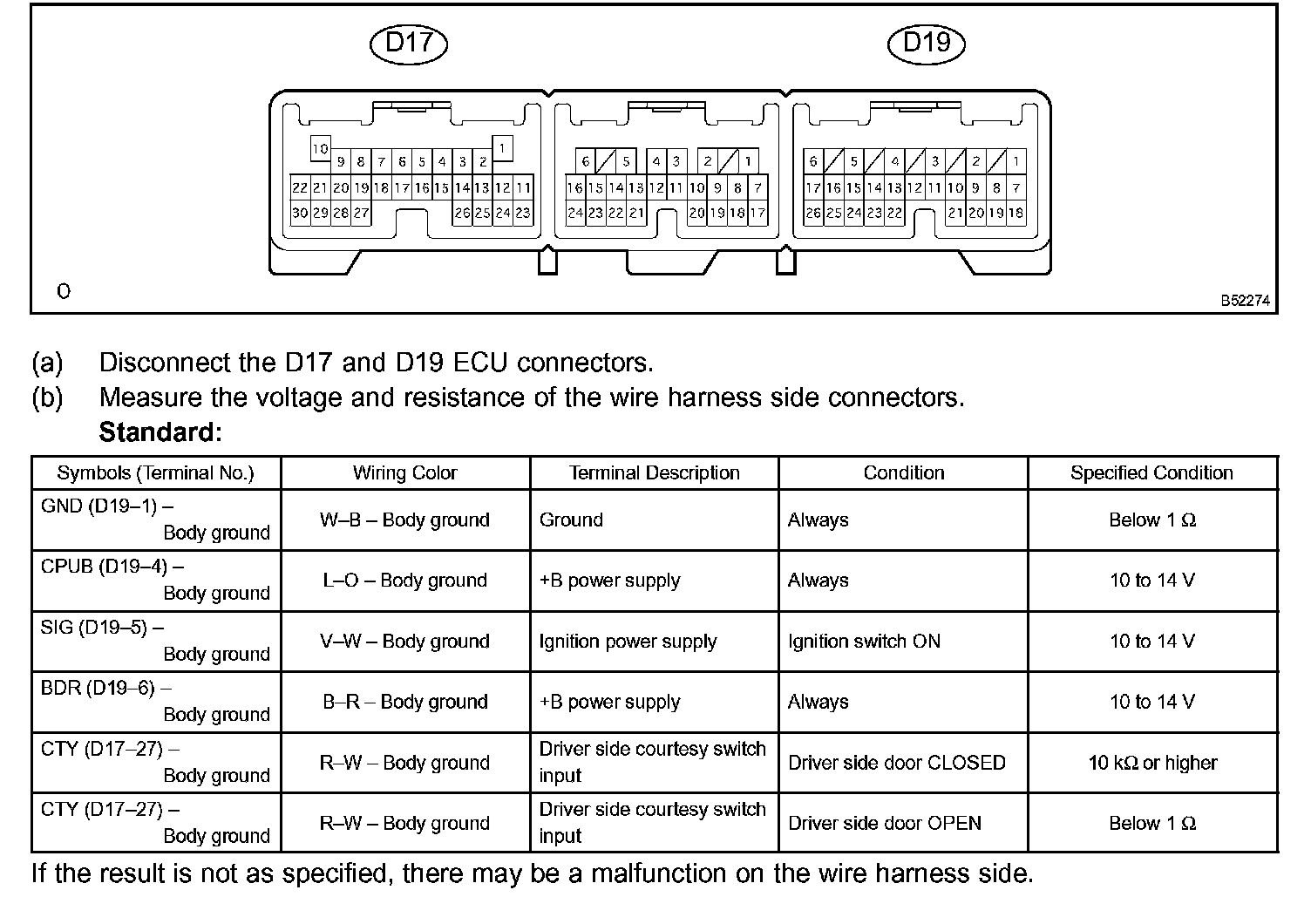

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH (Driver Door ECU):

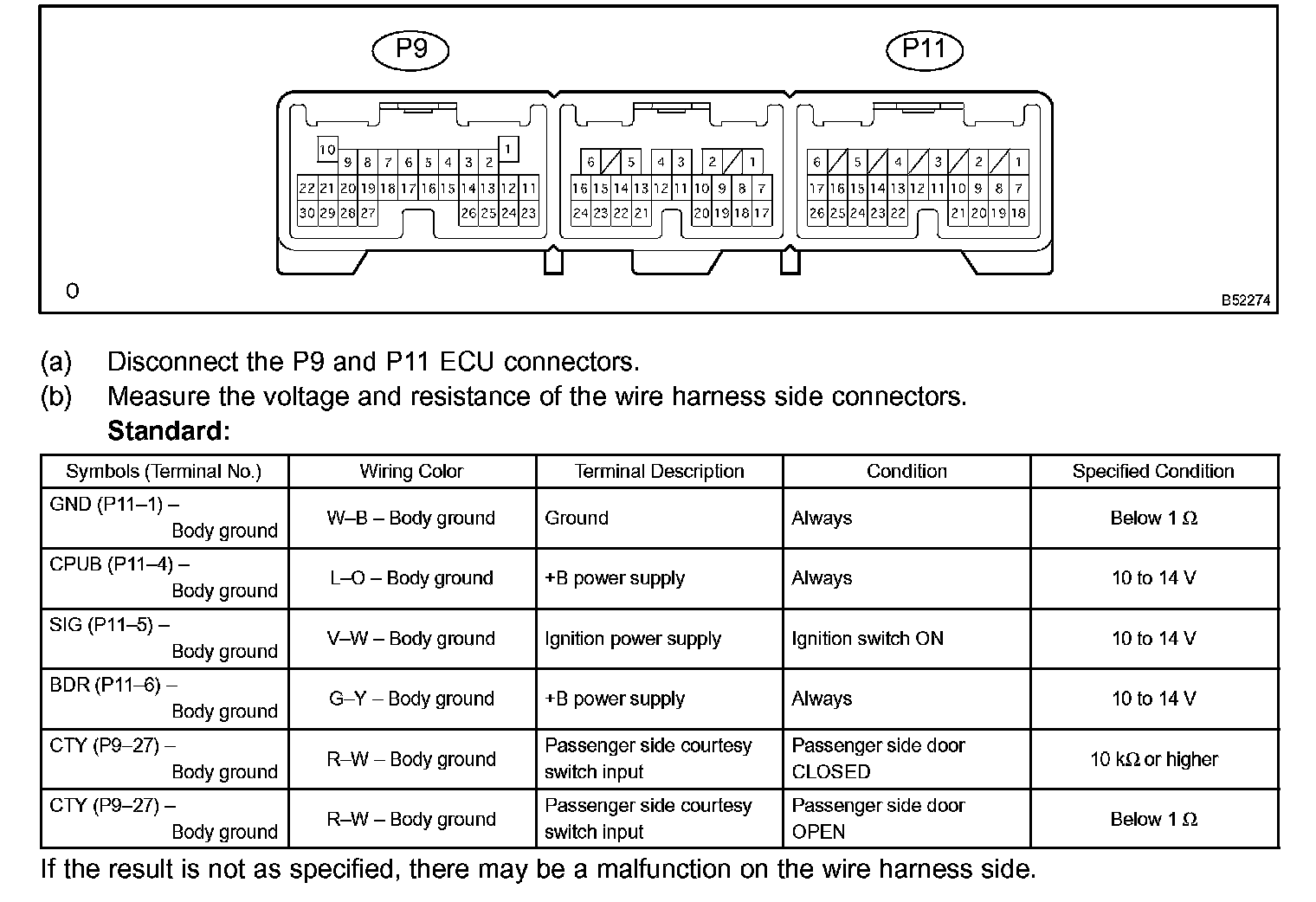

Terminals Of Control Module/Pinouts - Check Multiplex Network Body ECU Front RH (Passenger Door ECU):

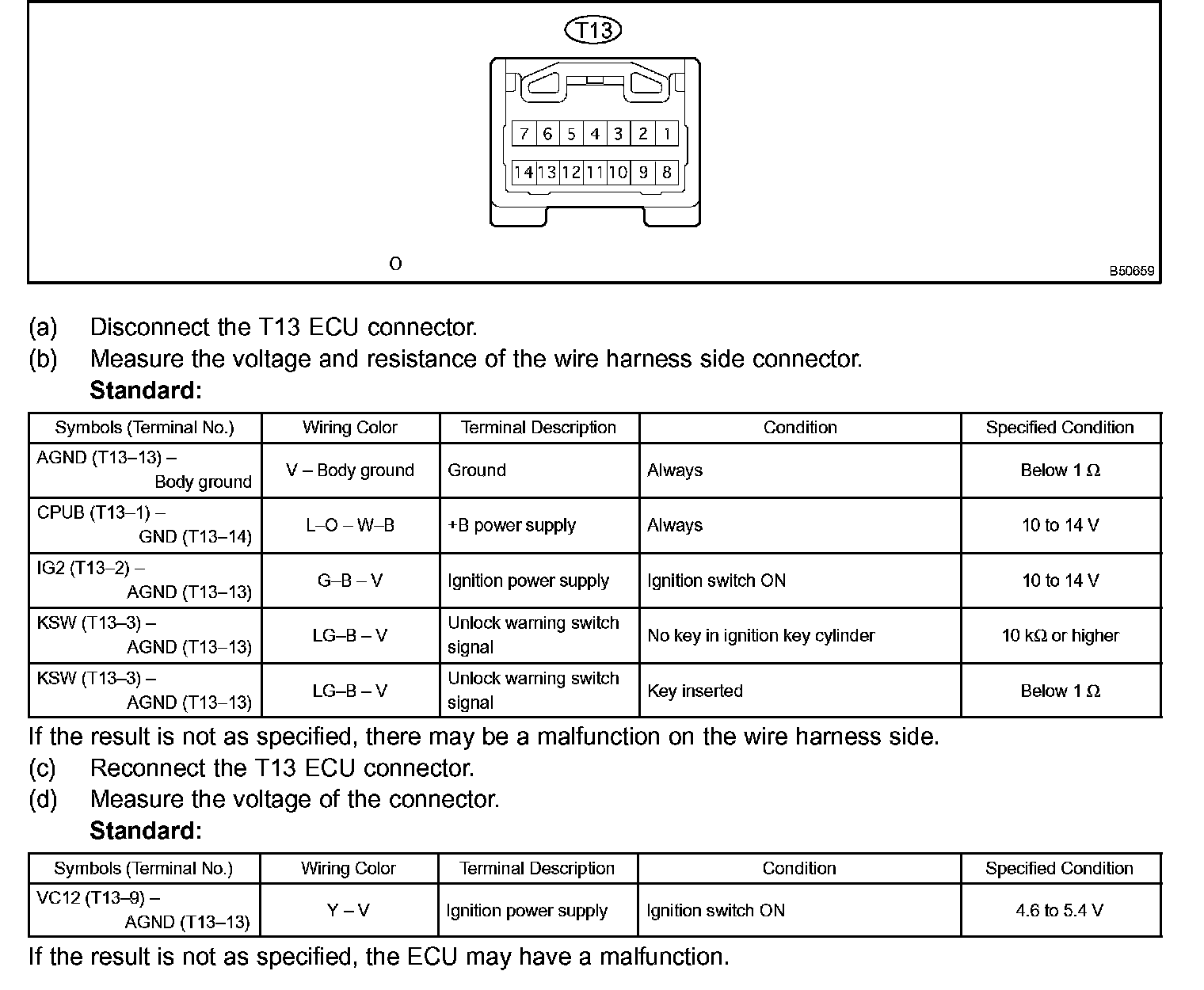

Terminals Of Control Module/Pinouts - Check Transponder Key ECU Assy:

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Lamp ECU (Front Controller):
