Ignition Switch Circuit

IGNITION SWITCH CIRCUIT

CIRCUIT DESCRIPTION

When the ignition switch is turned ON, battery positive (+) voltage is applied to the theft warning ECU.

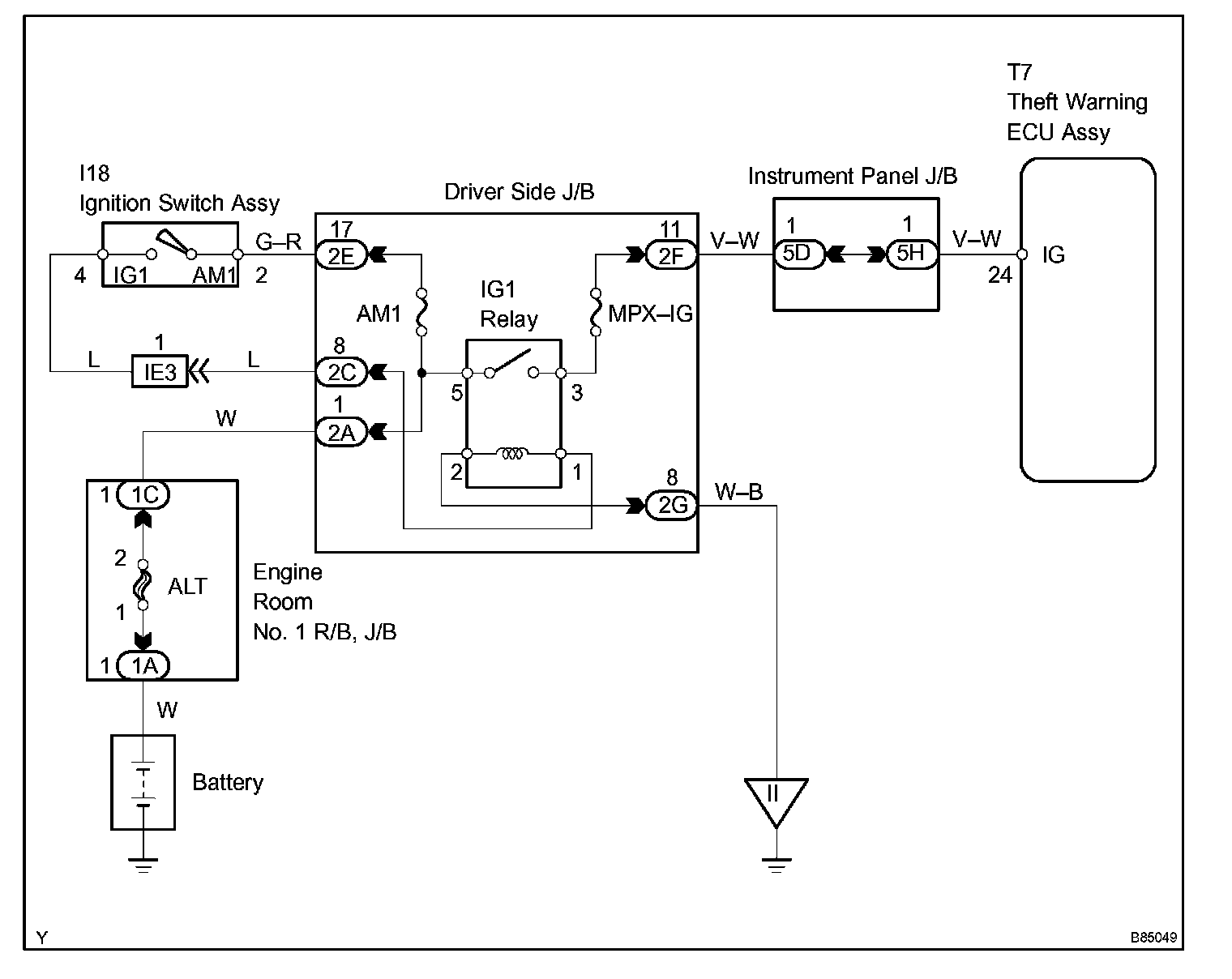

Wiring Diagram:

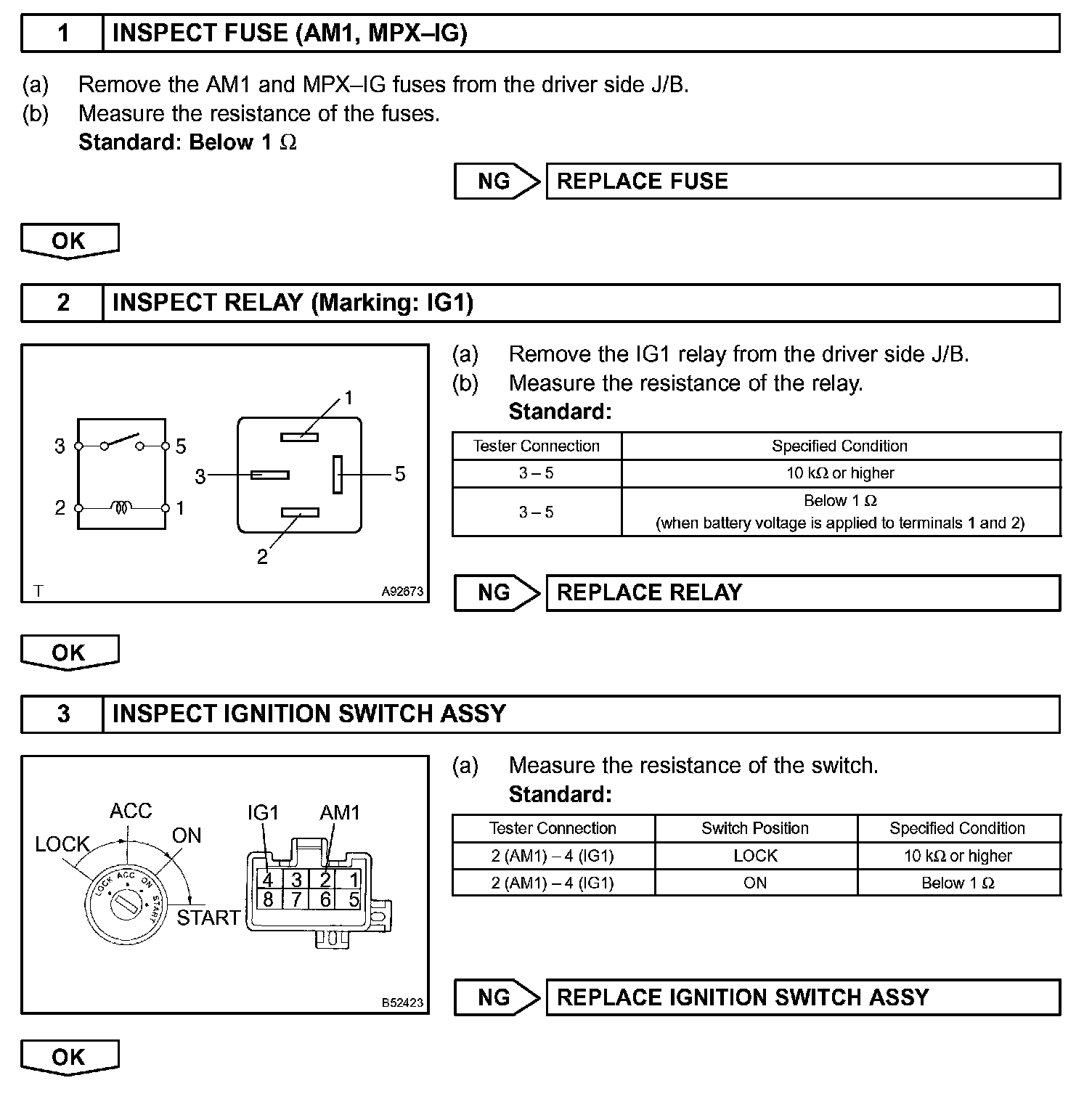

Step 1 - 3:

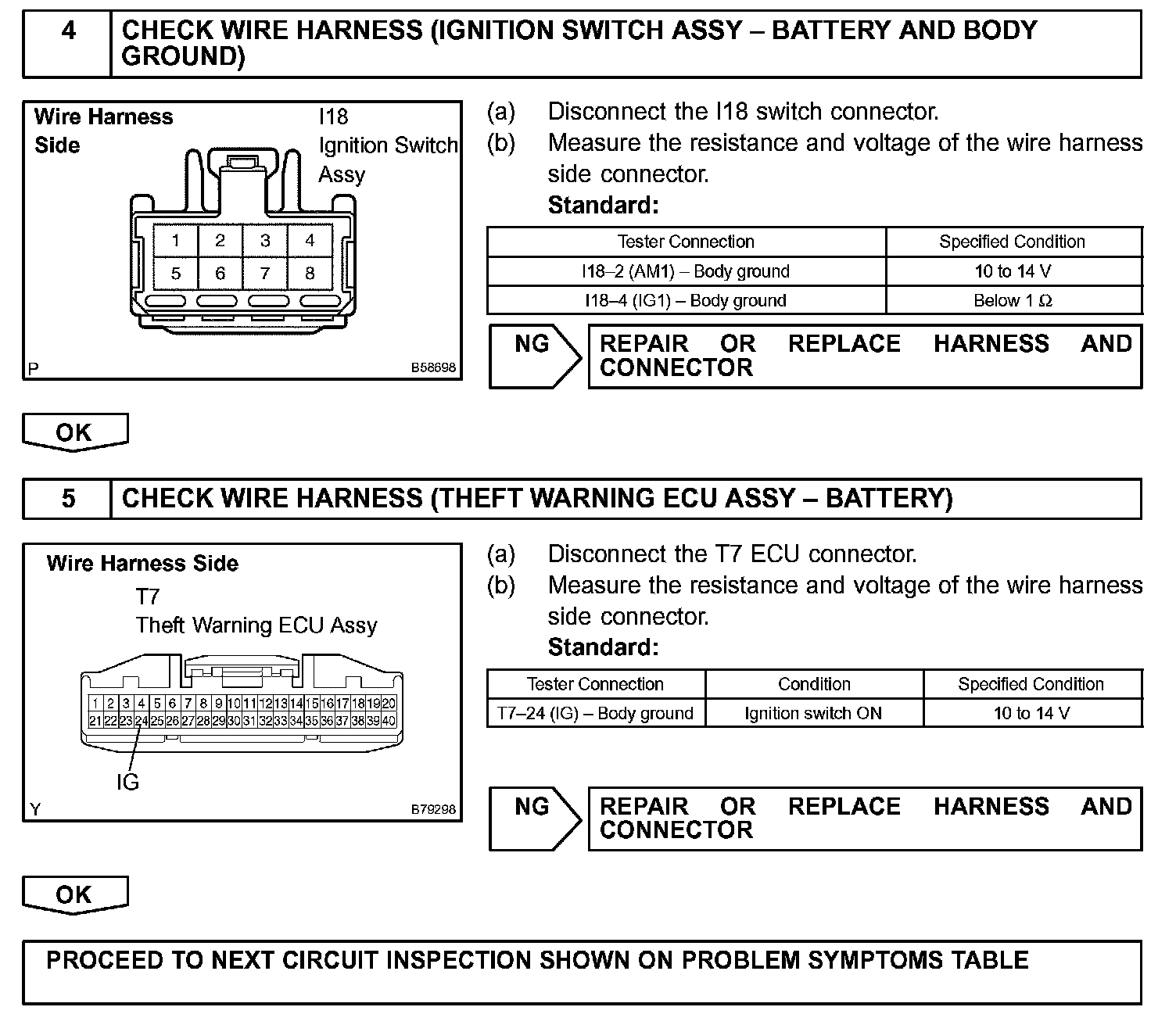

Step 4 - 5:

INSPECTION PROCEDURE
