Horn Circuit

HORN CIRCUIT

CIRCUIT DESCRIPTION

When the theft deterrent system is switched from the armed state to the alarm sounding state, the theft warning ECU transmits a signal to cause the horns to sound at intervals of 0.4 seconds.

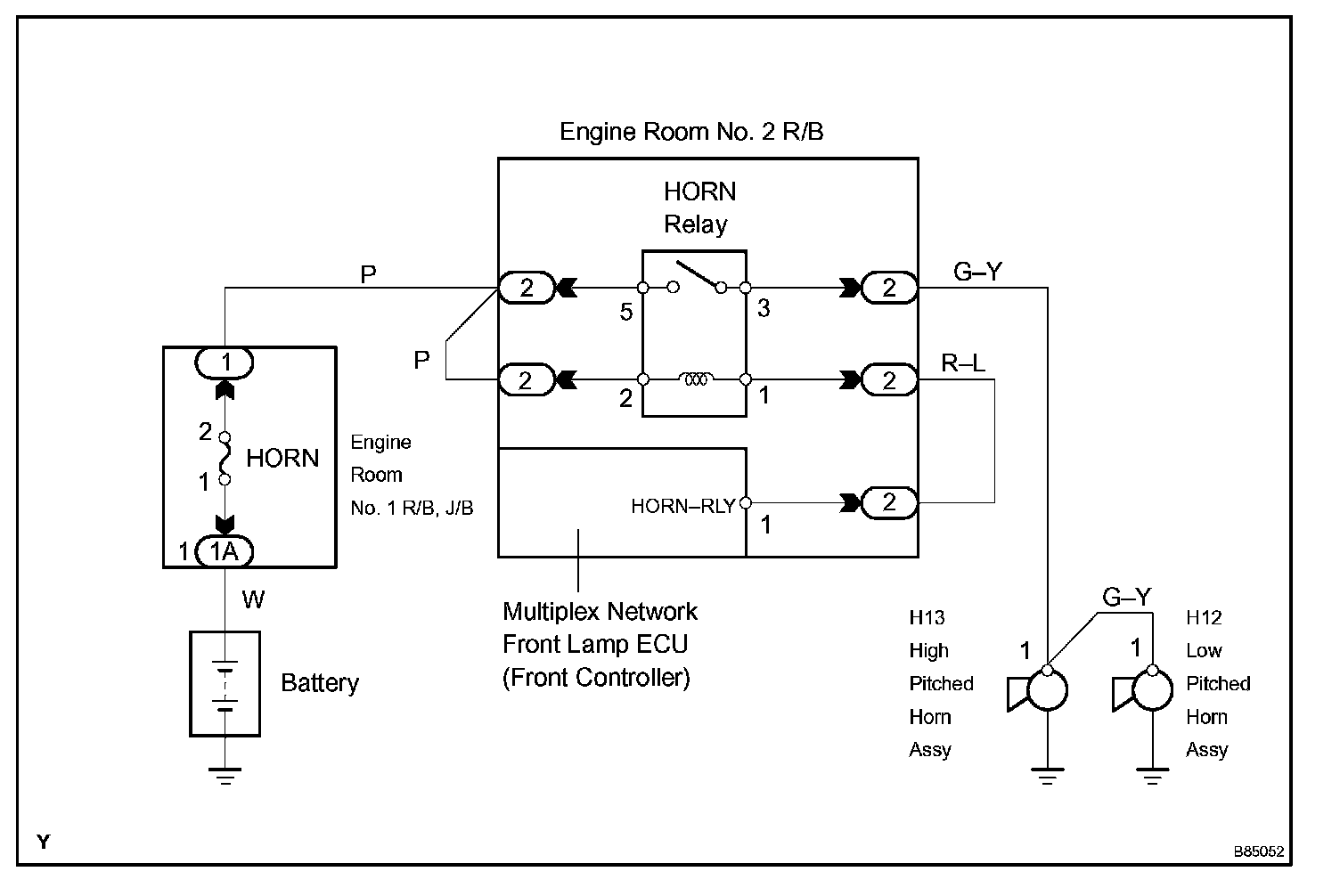

Wiring Diagram:

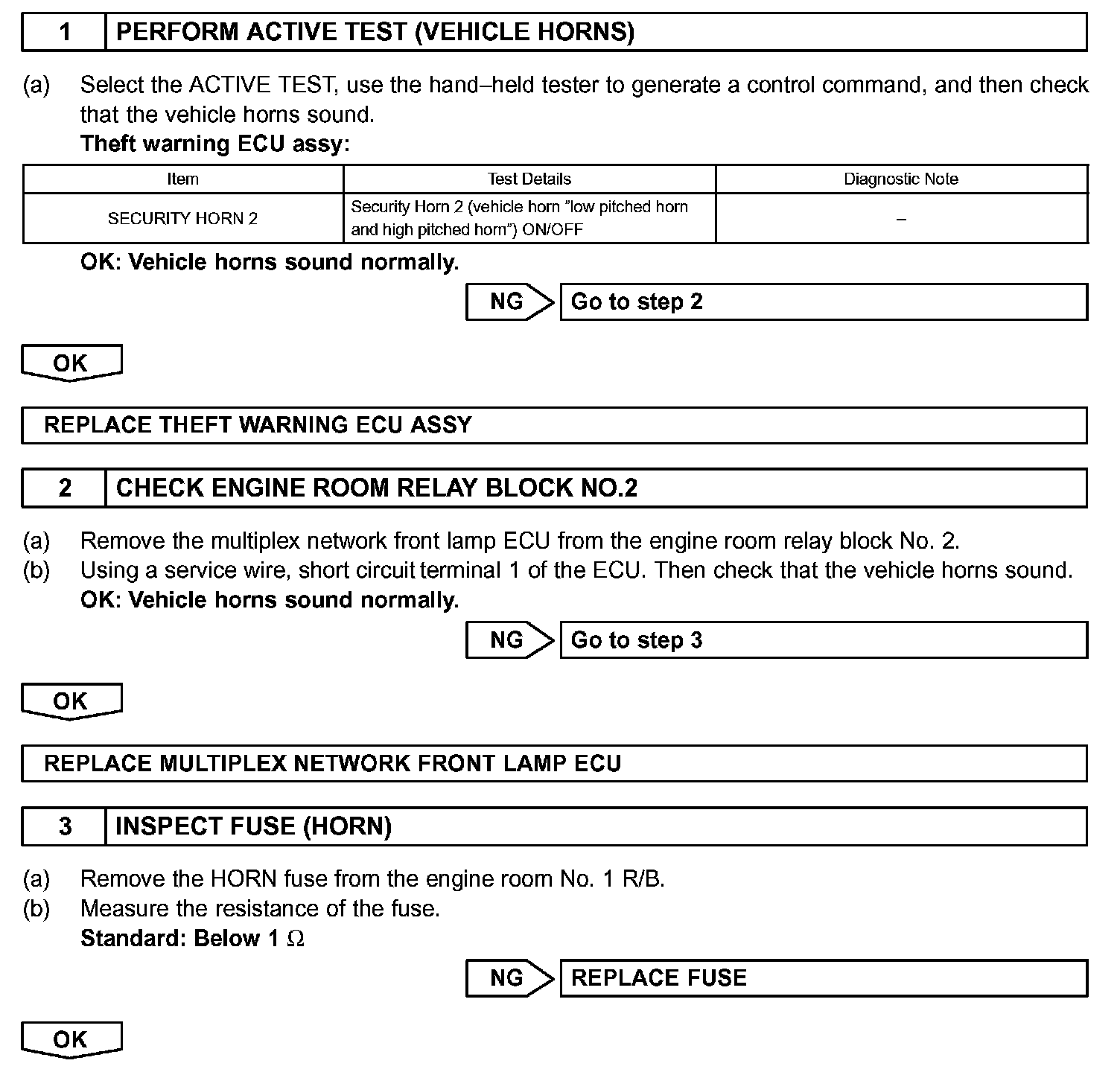

Step 1 - 3:

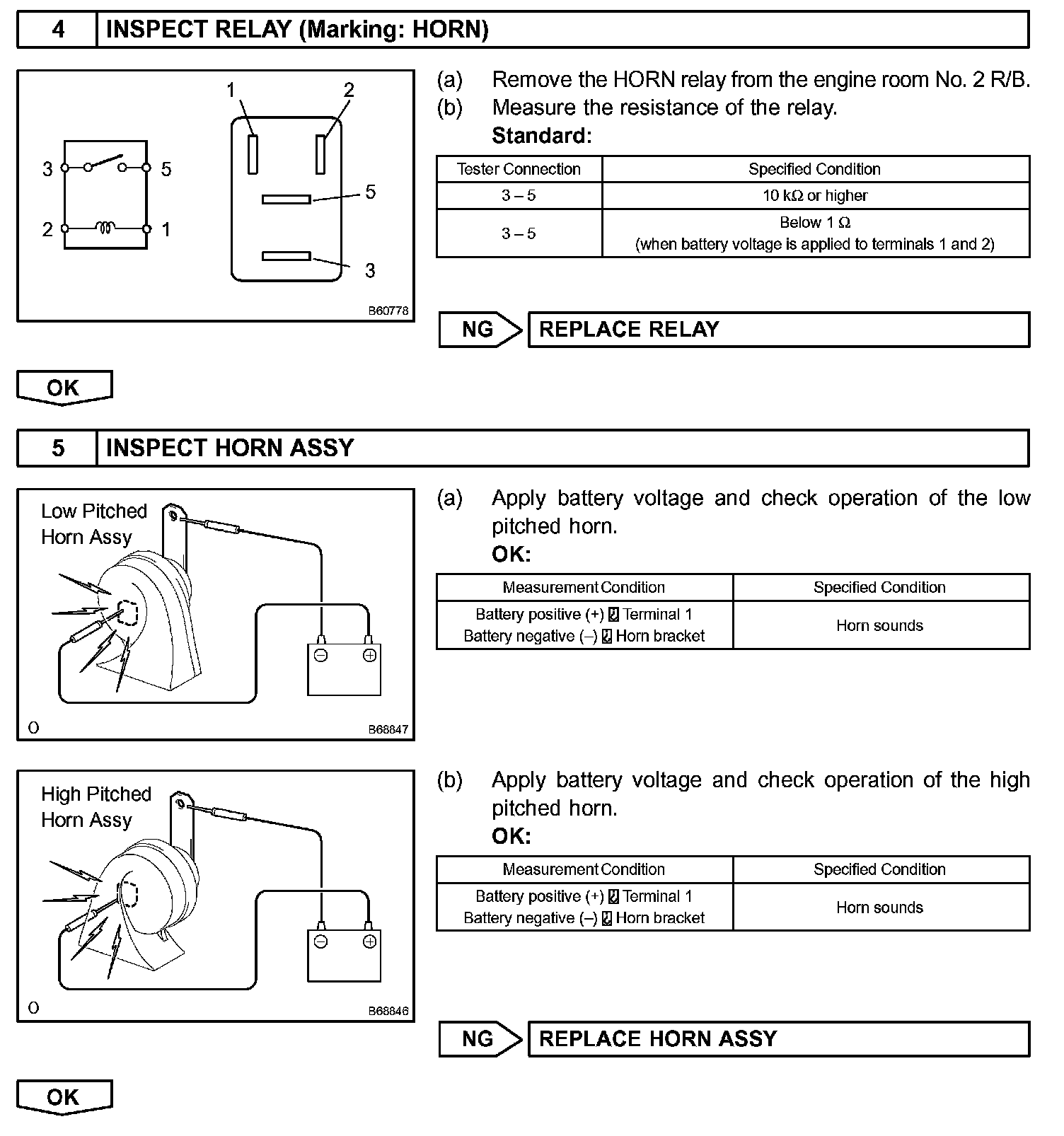

Step 4 - 5:

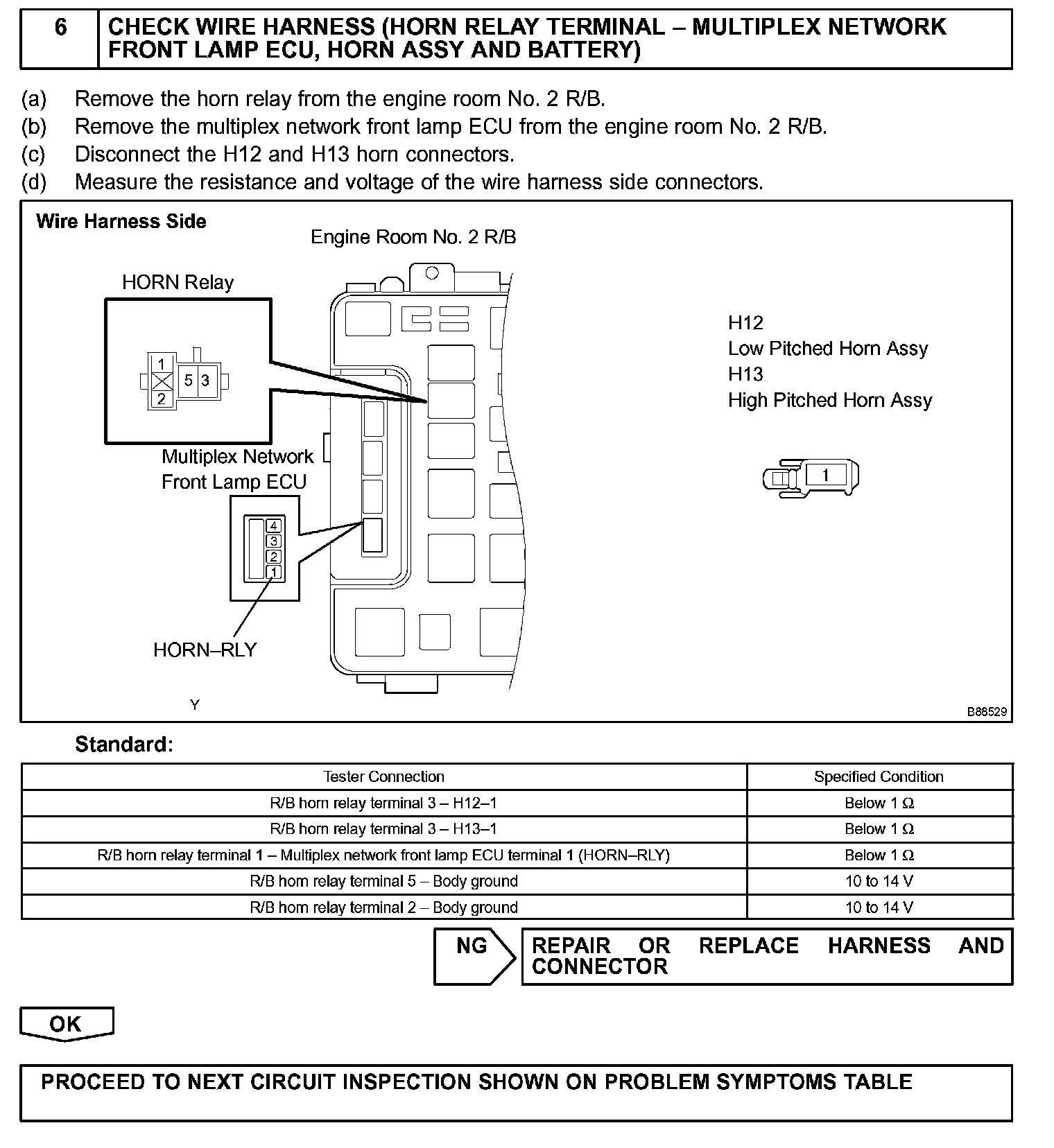

Step 6:

INSPECTION PROCEDURE
