Engine Hood Courtesy Switch Circuit

ENGINE HOOD COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The engine hood courtesy switch is installed into the hood lock. This switch turns ON when the engine hood is opened and turns OFF when the engine hood is closed.

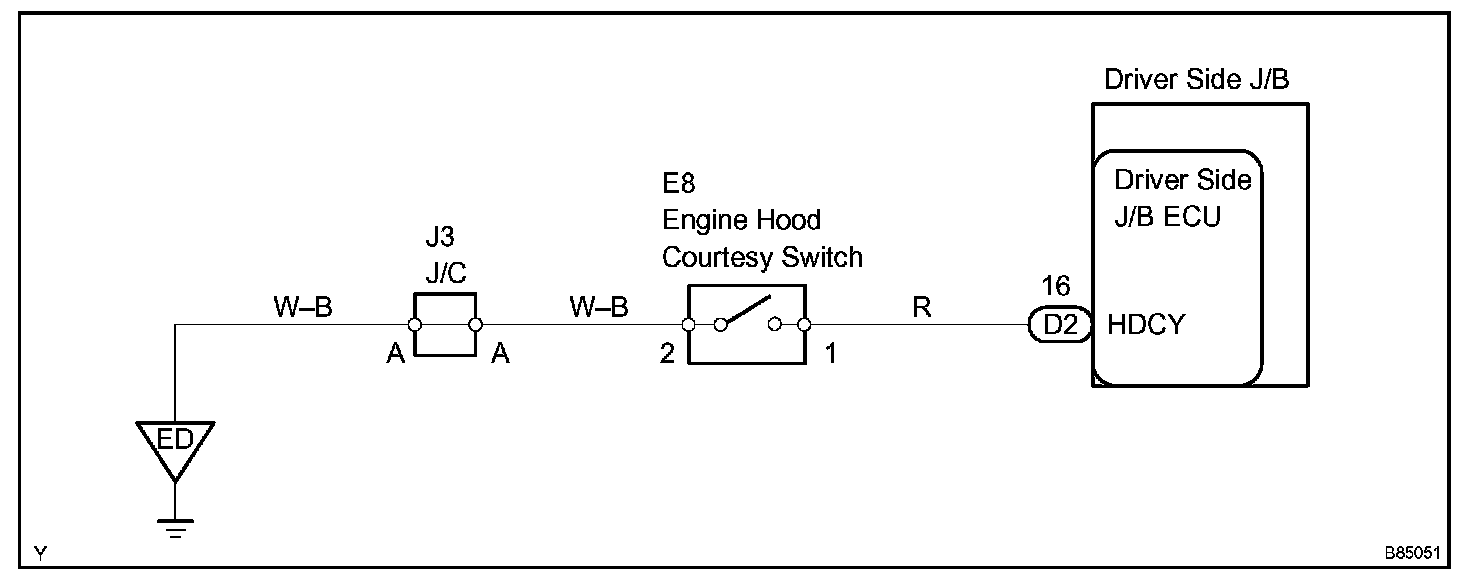

Wiring Diagram:

Step 1:

Step 2 - 3:

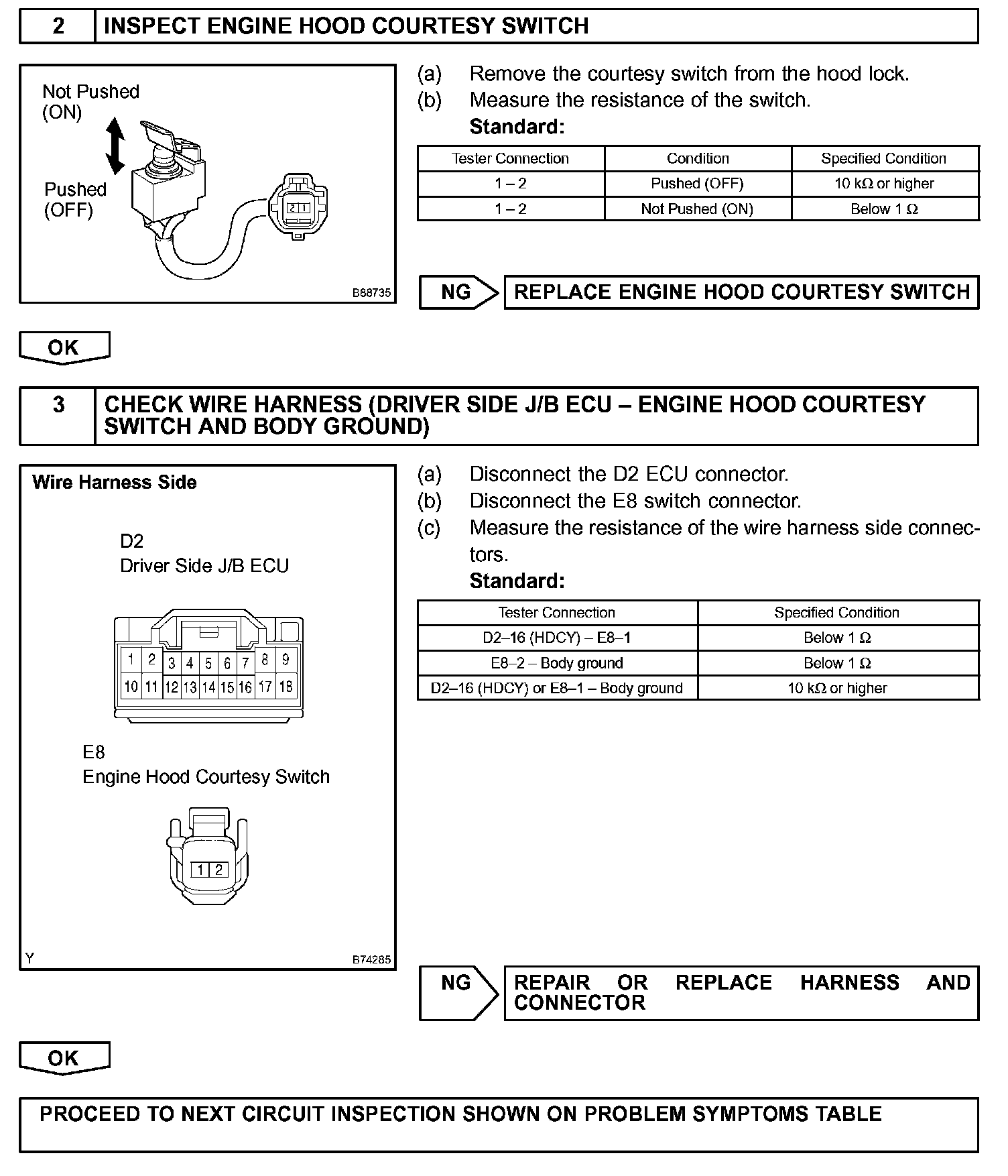

INSPECTION PROCEDURE
