Engine Immobilizer System

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to the transponder key ECU.

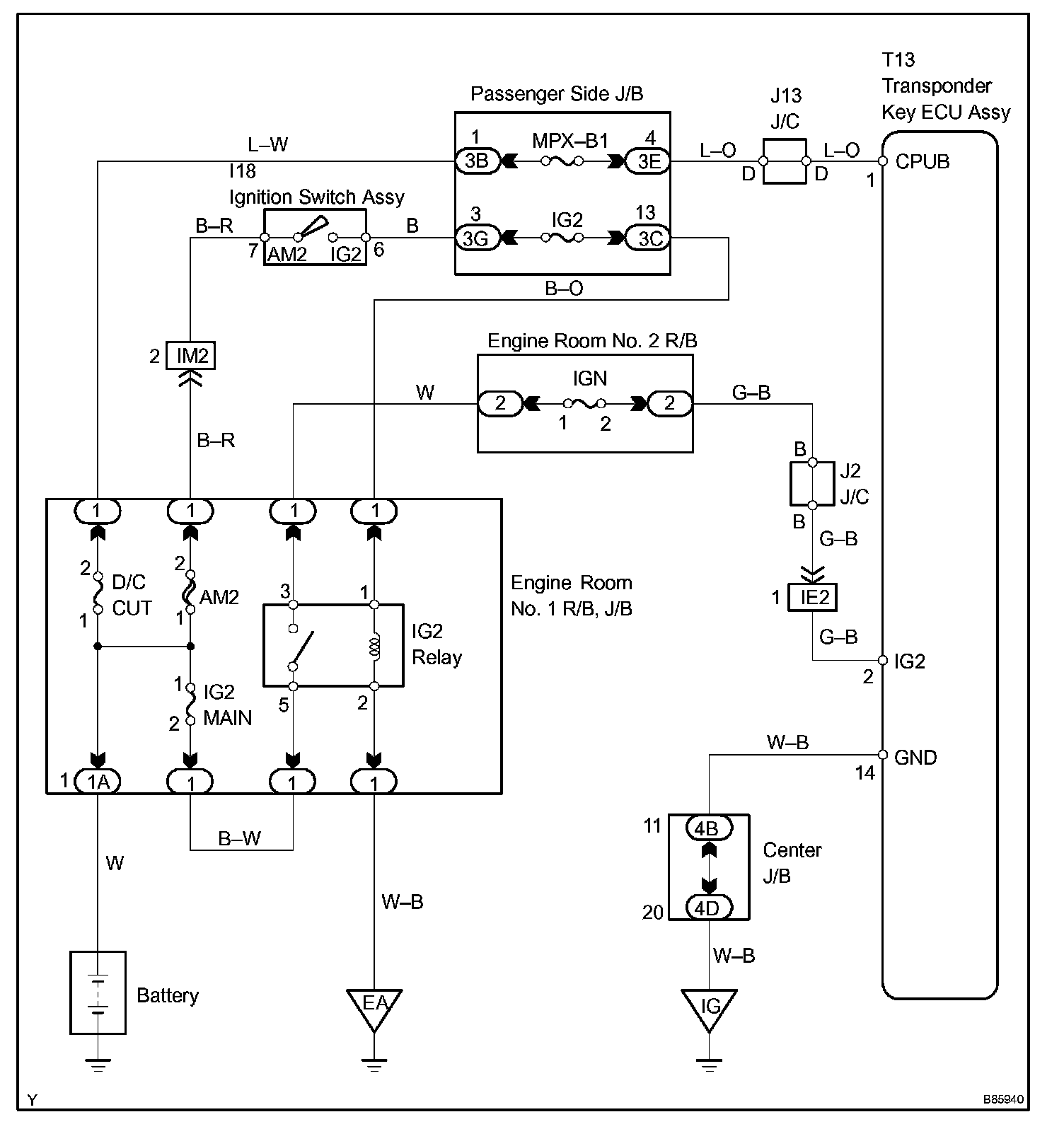

Wiring Diagram:

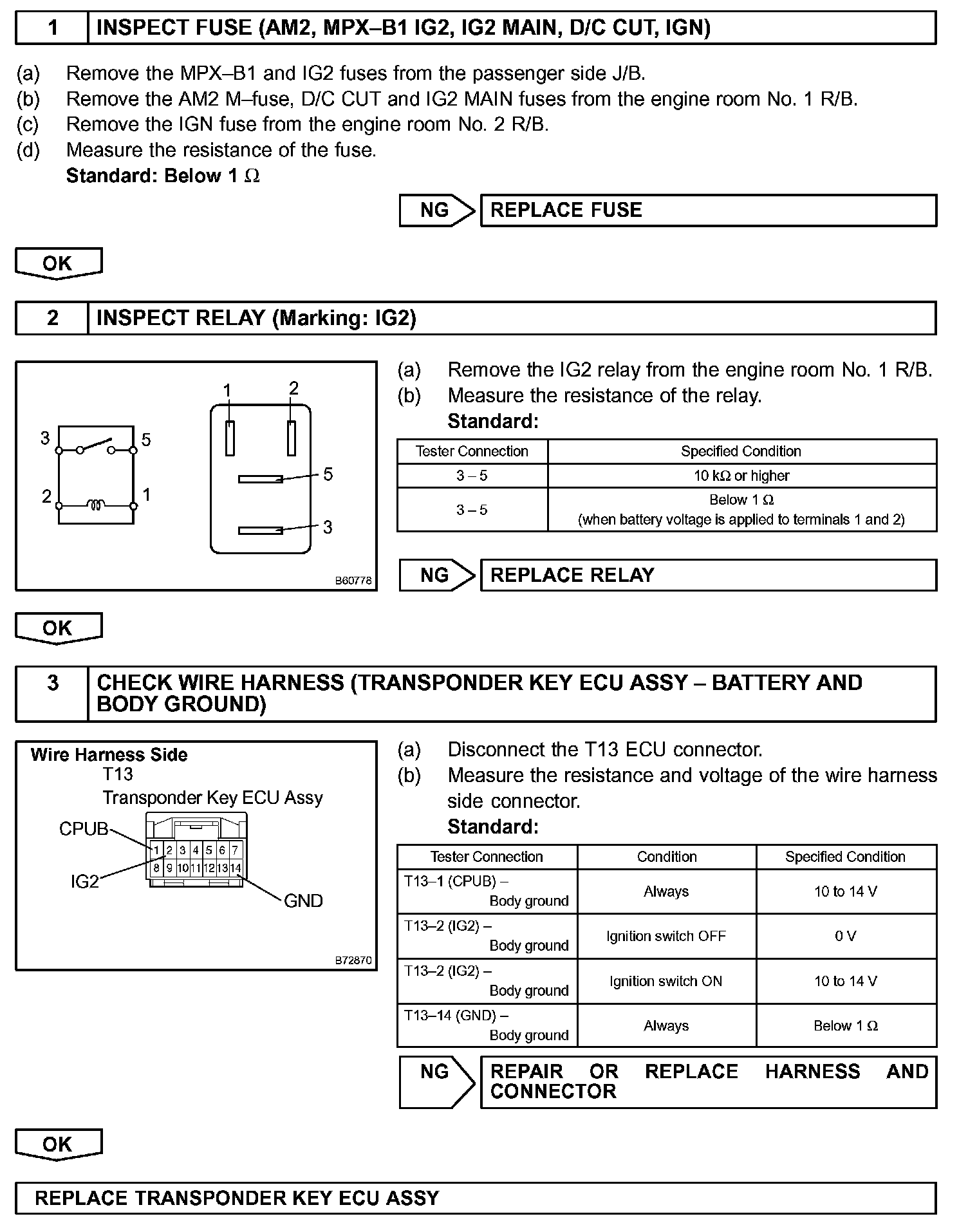

Step 1- 3:




INSPECTION PROCEDURE
