Antenna Cord Sub-Assy No.3

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE CONSOLE UPPER PANEL GARNISH REAR
3. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
4. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
6. REMOVE CONSOLE BOX CARPET
7. REMOVE BOX PANEL NO.3
8. REMOVE CONSOLE BOX ASSEMBLY
9. REMOVE REAR SEAT CUSHION ASSEMBLY
10. REMOVE REAR SEAT HEADREST PLATE COVER
11. REMOVE WIND DEFLECTOR BOARD ASSEMBLY
12. REMOVE REAR SEAT HEADREST PLATE
13. REMOVE REAR SEAT HEADREST ASSEMBLY
14. REMOVE REAR SEATBACK ASSEMBLY
15. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH
16. REMOVE REAR FLOOR FINISH PLATE
17. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
18. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
19. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
20. REMOVE SPARE WHEEL COVER ASSEMBLY
21. REMOVE TOOL BOX COVER
22. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
23. REMOVE TONNEAU COVER ASSEMBLY
24. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
25. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
26. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
27. REMOVE ANTENNA CORD SUB-ASSEMBLY NO.3
a. w/ LEXUS navigation system:
Disconnect the 4 connectors.
b. w/o LEXUS navigation system:
Disconnect the 2 connectors.
c. Remove the bolt.

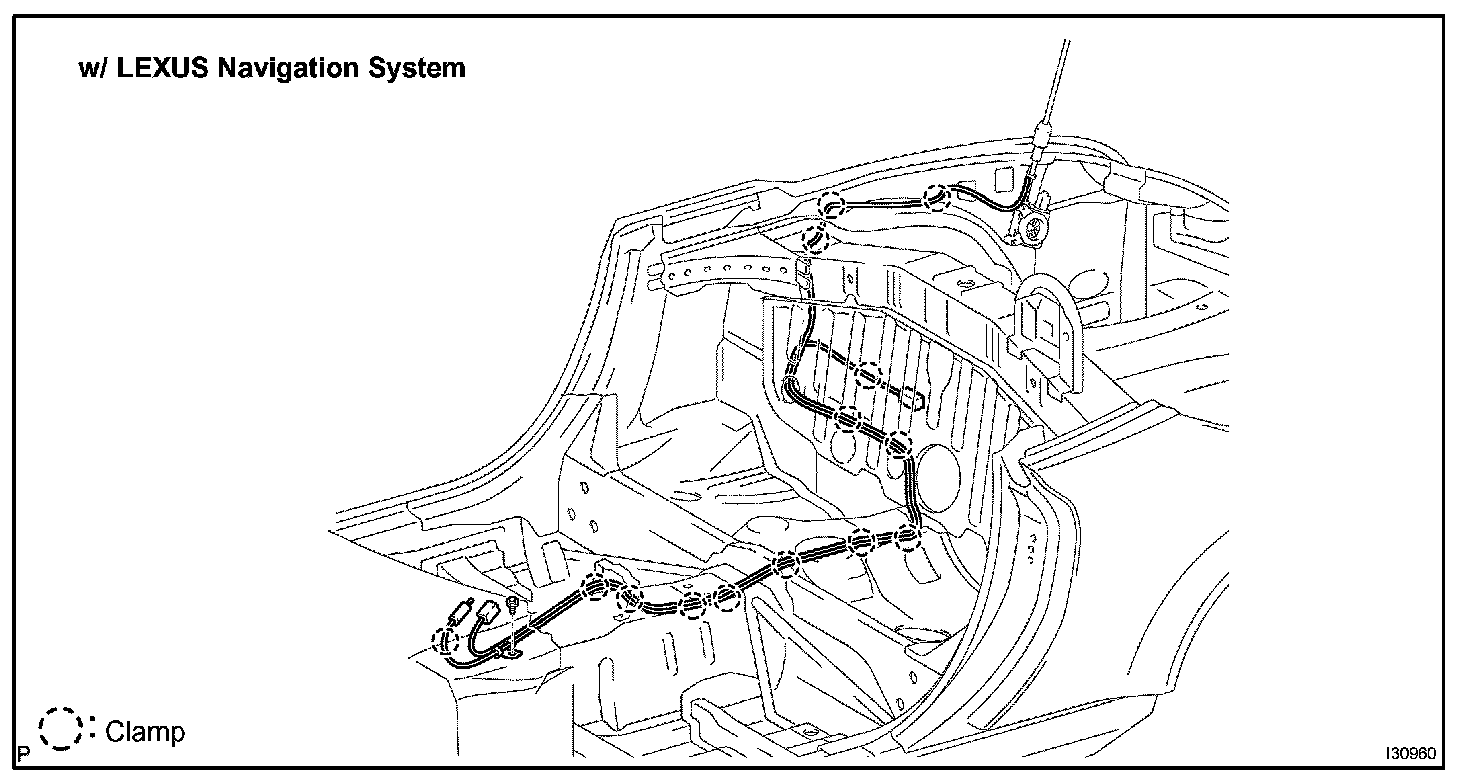

d. w/ LEXUS navigation system:
Remove the 14 clamps and antenna cord.

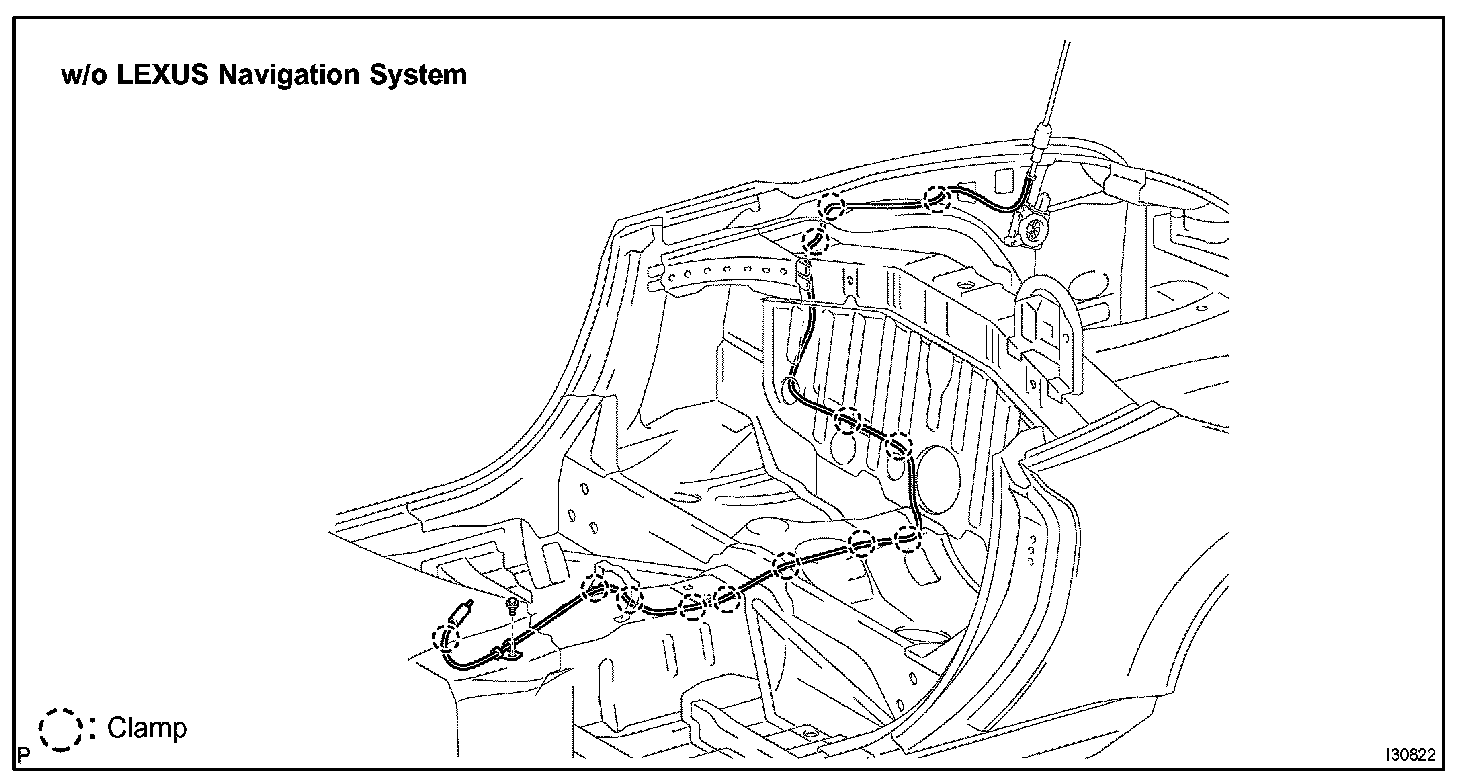

e. w/o LEXUS navigation system:
Remove the 13 clamps and antenna cord.

28. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
29. PERFORM INITIALIZATION

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

30. CHECK SRS WARNING LAMP
