DTC 24

DTC 24 SOLAR SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

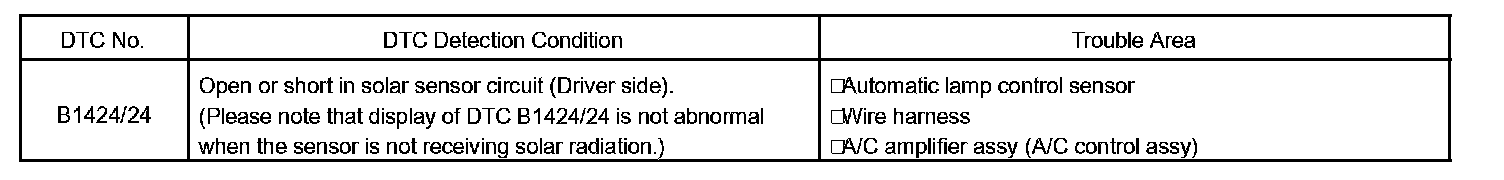

DTC Detection Condition:

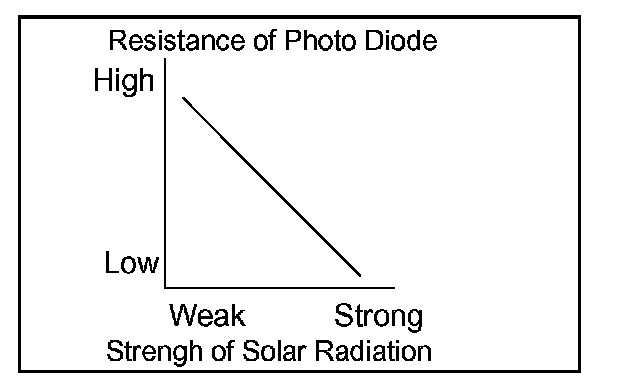

A photo diode in the automatic lamp control sensor detects solar radiation and sends appropriate signals to the A/C amplifier.

HINT: When DTC B1424/24 is displayed simultaneously with DTC B1244, repair the malfunction indicated by DTC B1244 first.

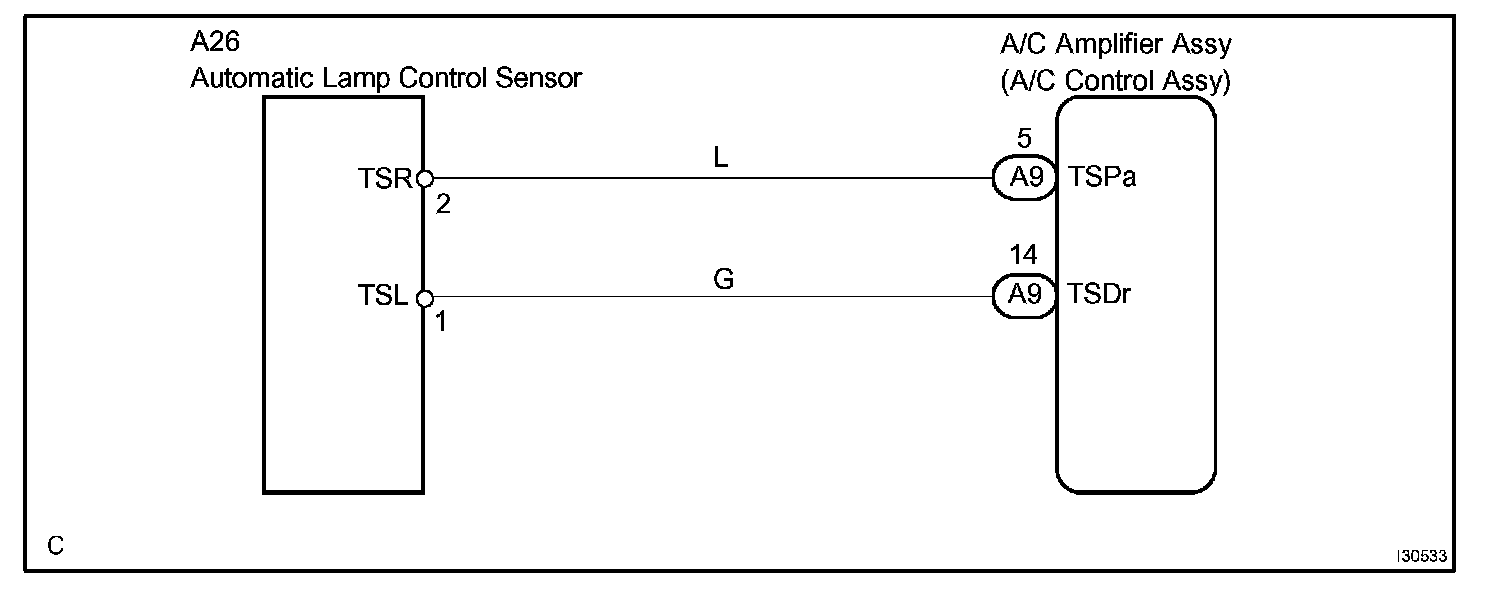

Wiring Diagram:

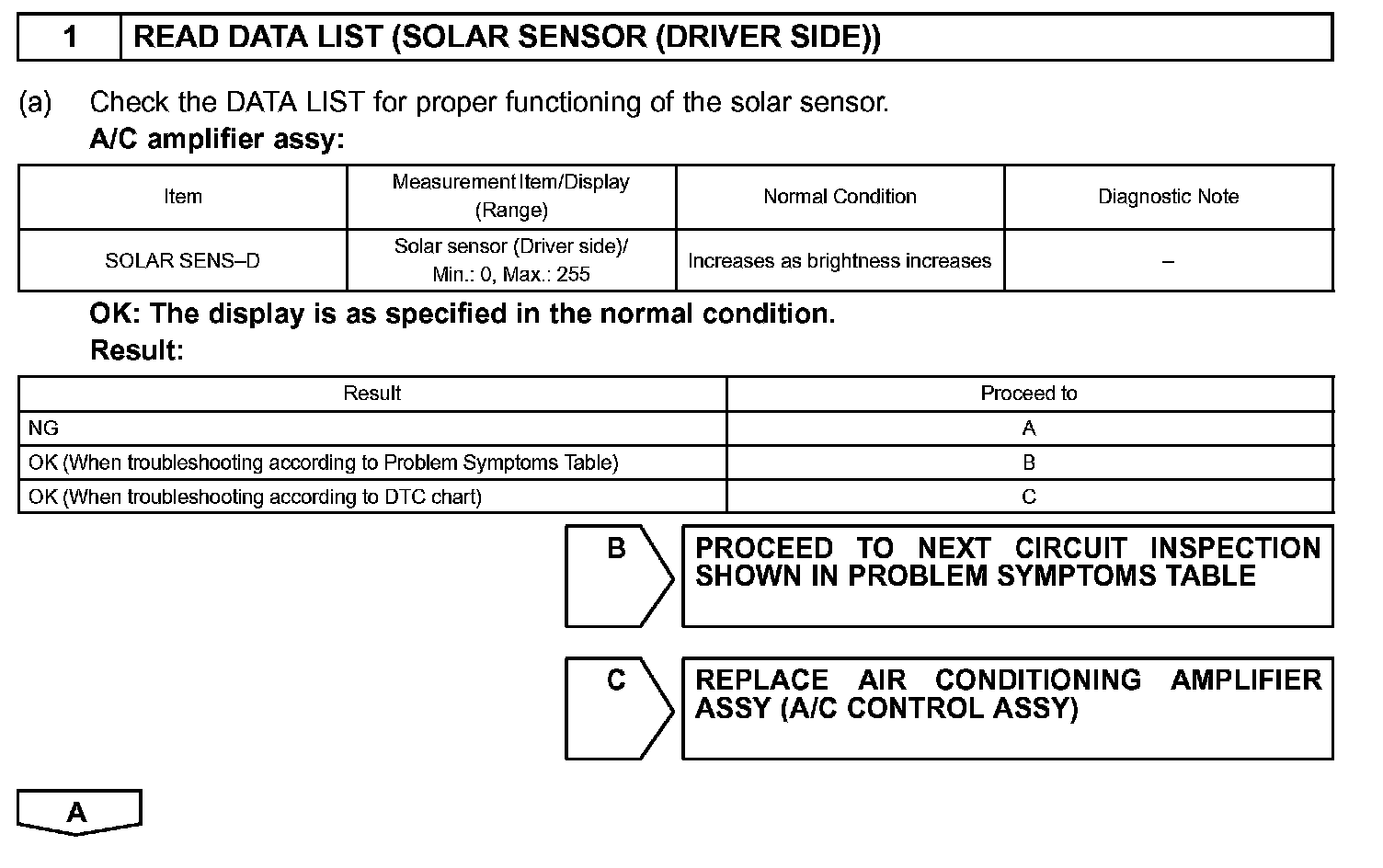

Step 1:

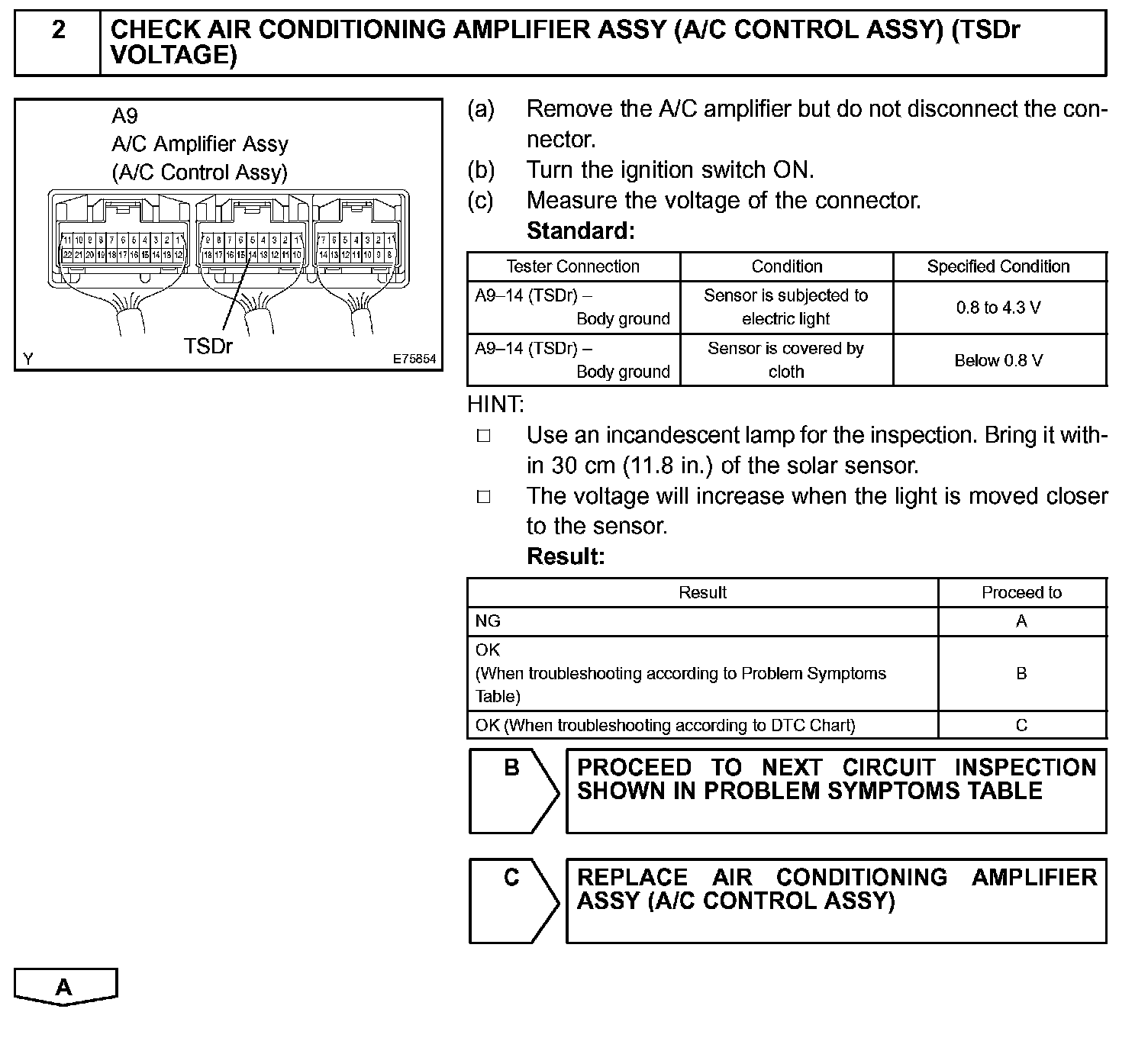

Step 2:

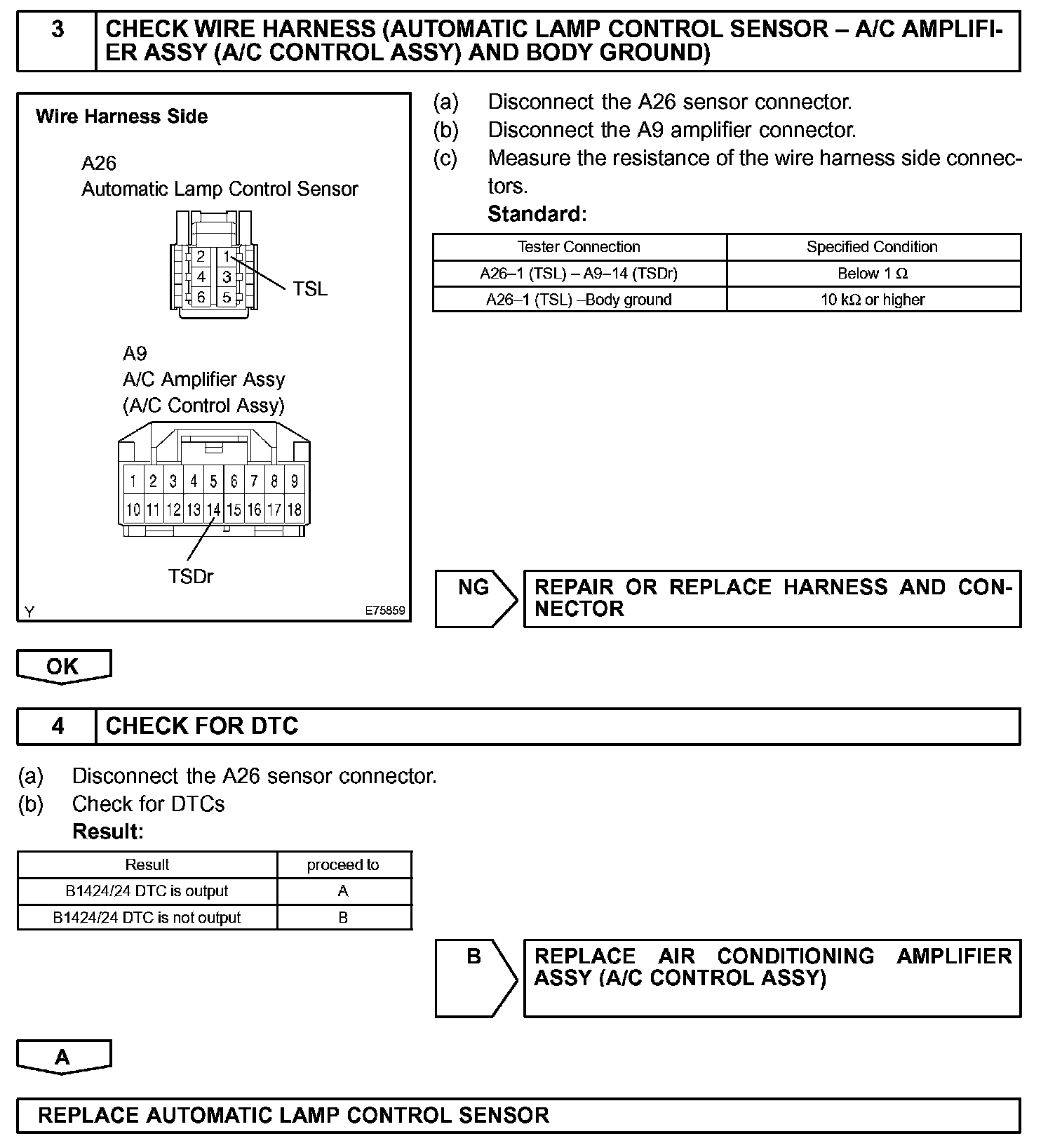

Step 3 - 4:

INSPECTION PROCEDURE
