Zero Point Calibration of Deceleration Sensor Undone

DTC 39 ZERO POINT CALIBRATION OF DECELERATION SENSOR UNDONE

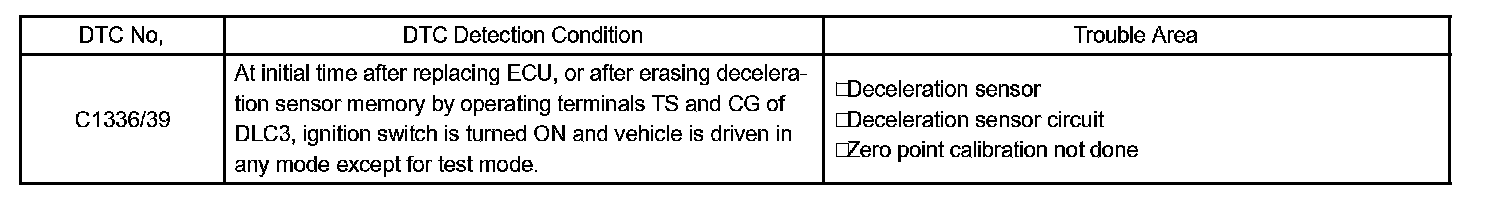

DTC Detection Condition:

CIRCUIT DESCRIPTION

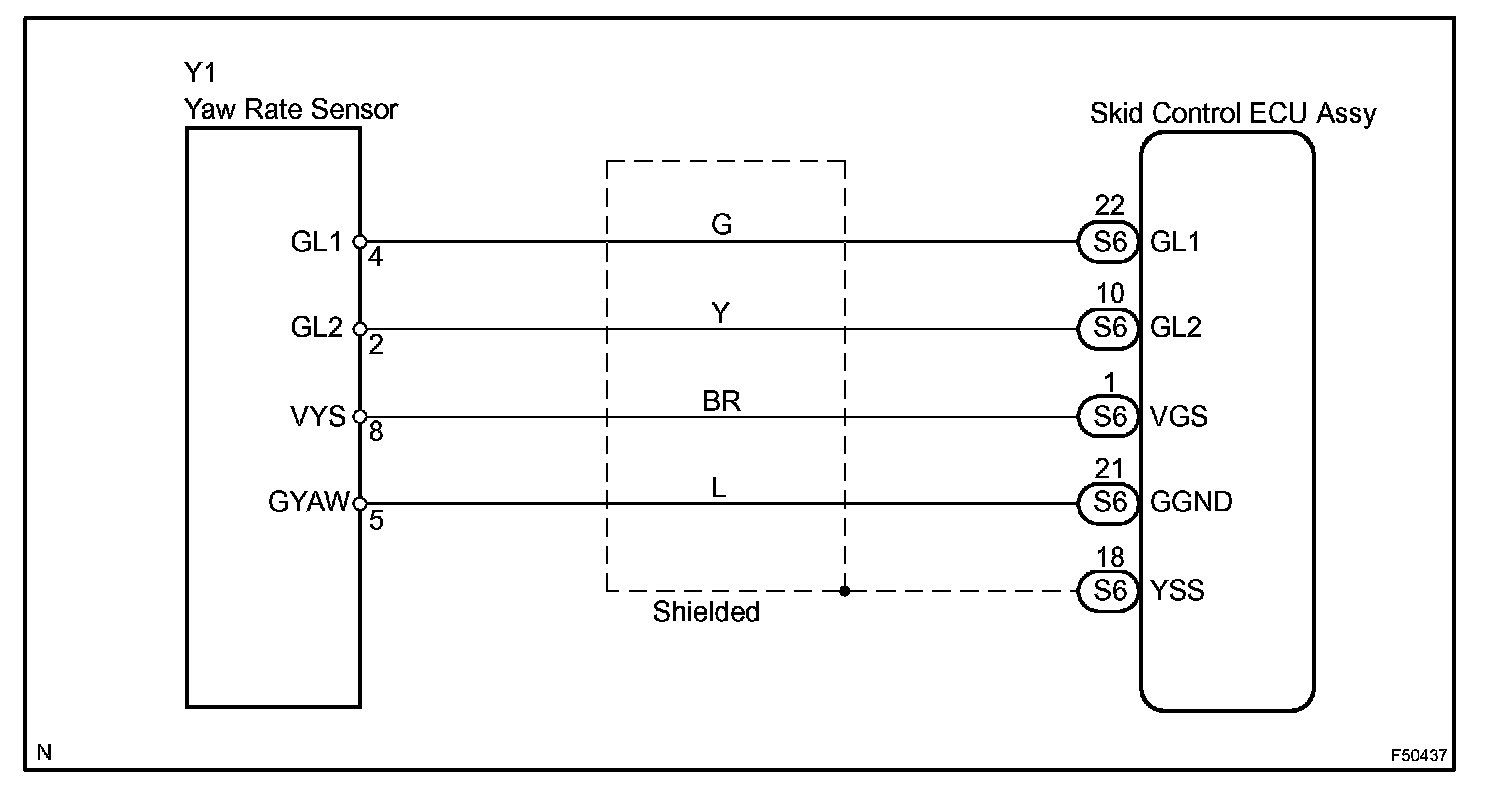

Wiring Diagram:

Step 1 - 2:

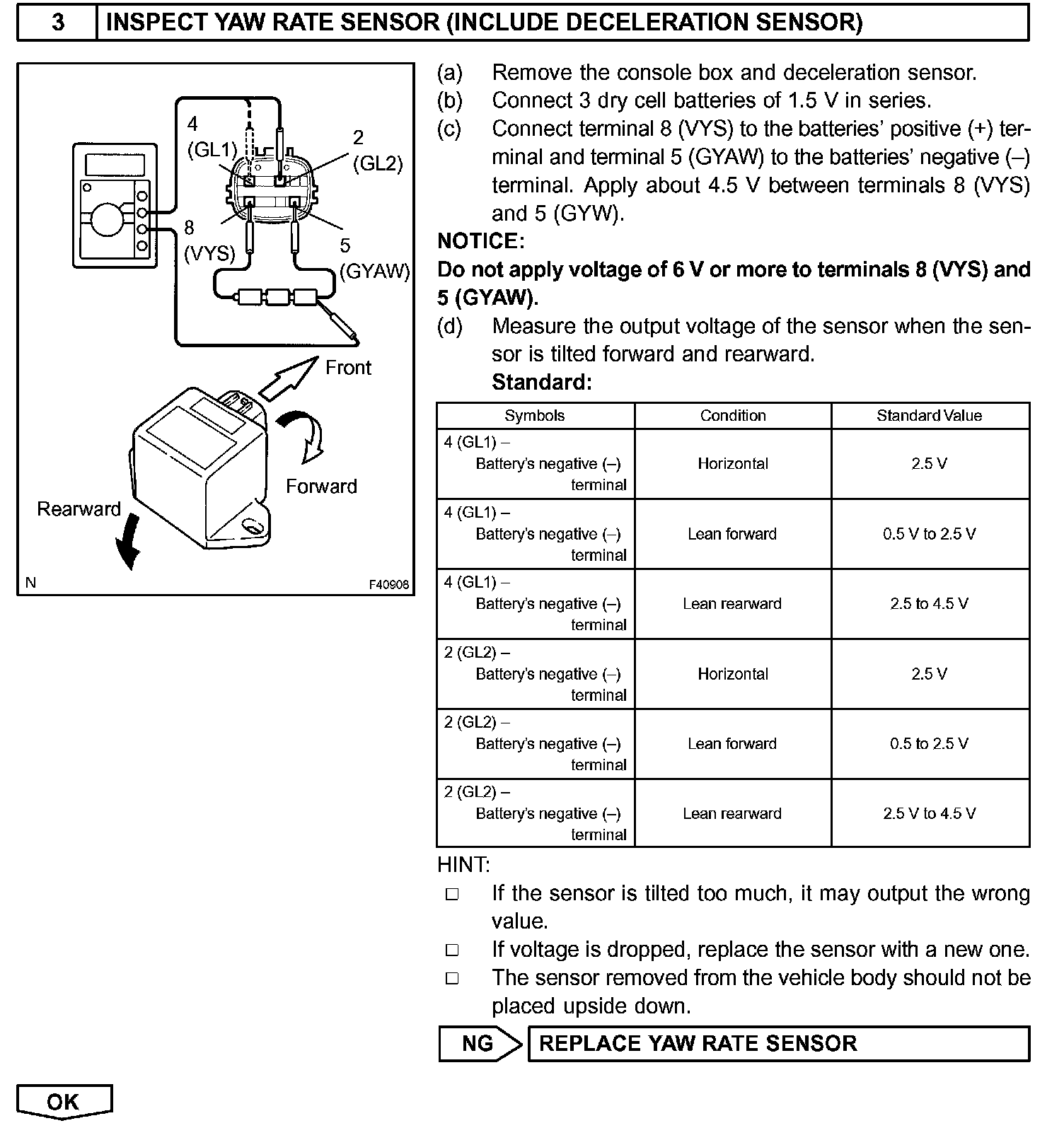

Step 3:

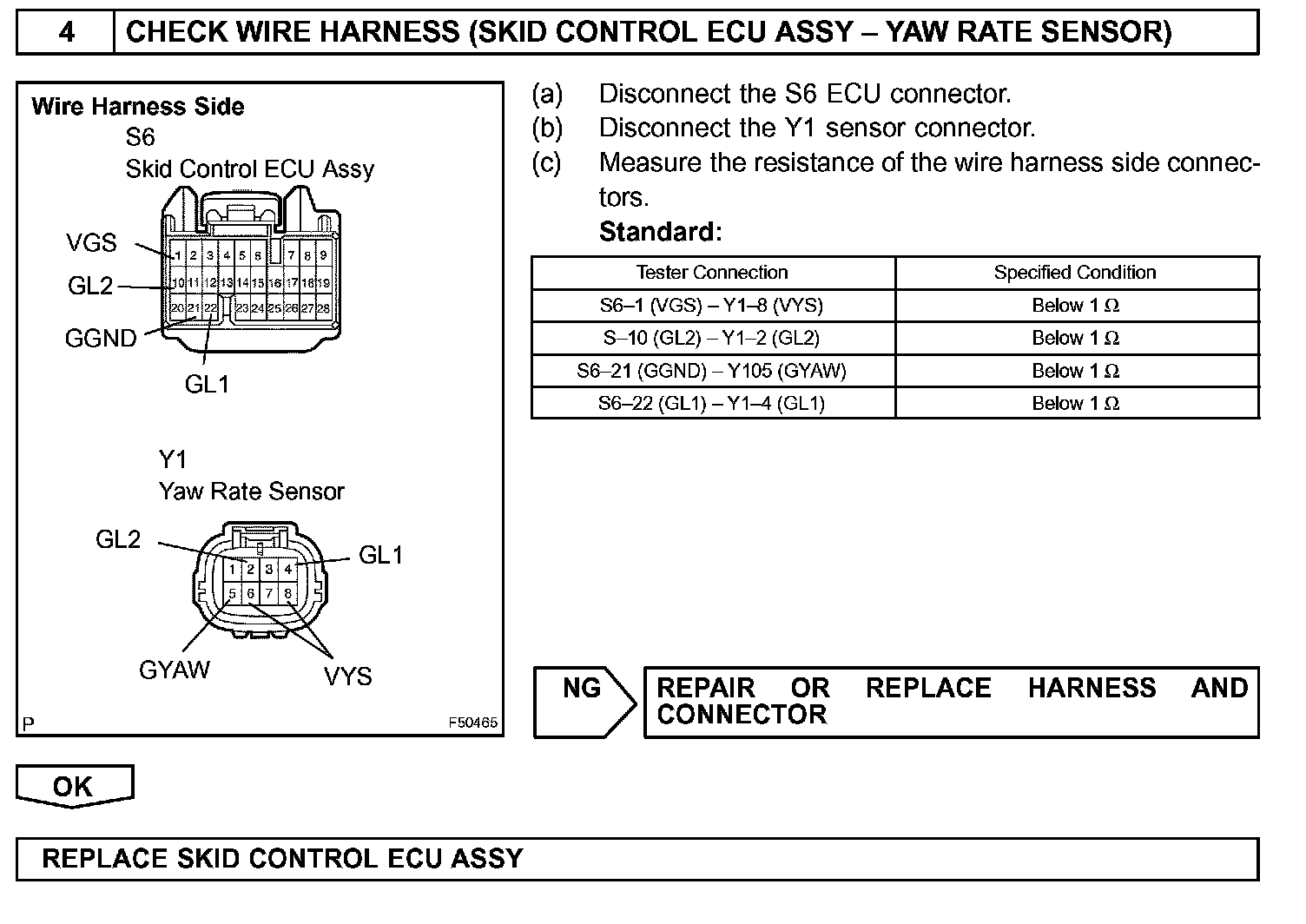

Step 4:

INSPECTION PROCEDURE
