Zero Point Calibration of Yaw Rate Sensor Undone

DTC 36 ZERO POINT CALIBRATION OF YAW RATE
SENSOR UNDONE

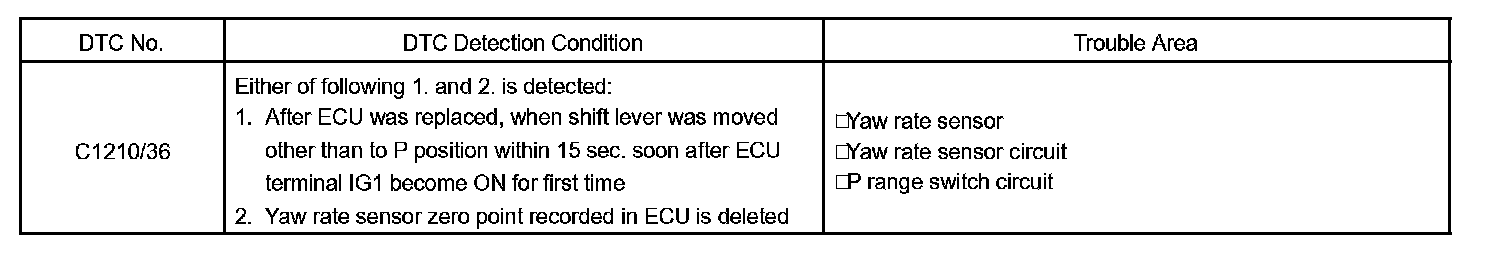

DTC Detection Condition:

CIRCUIT DESCRIPTION

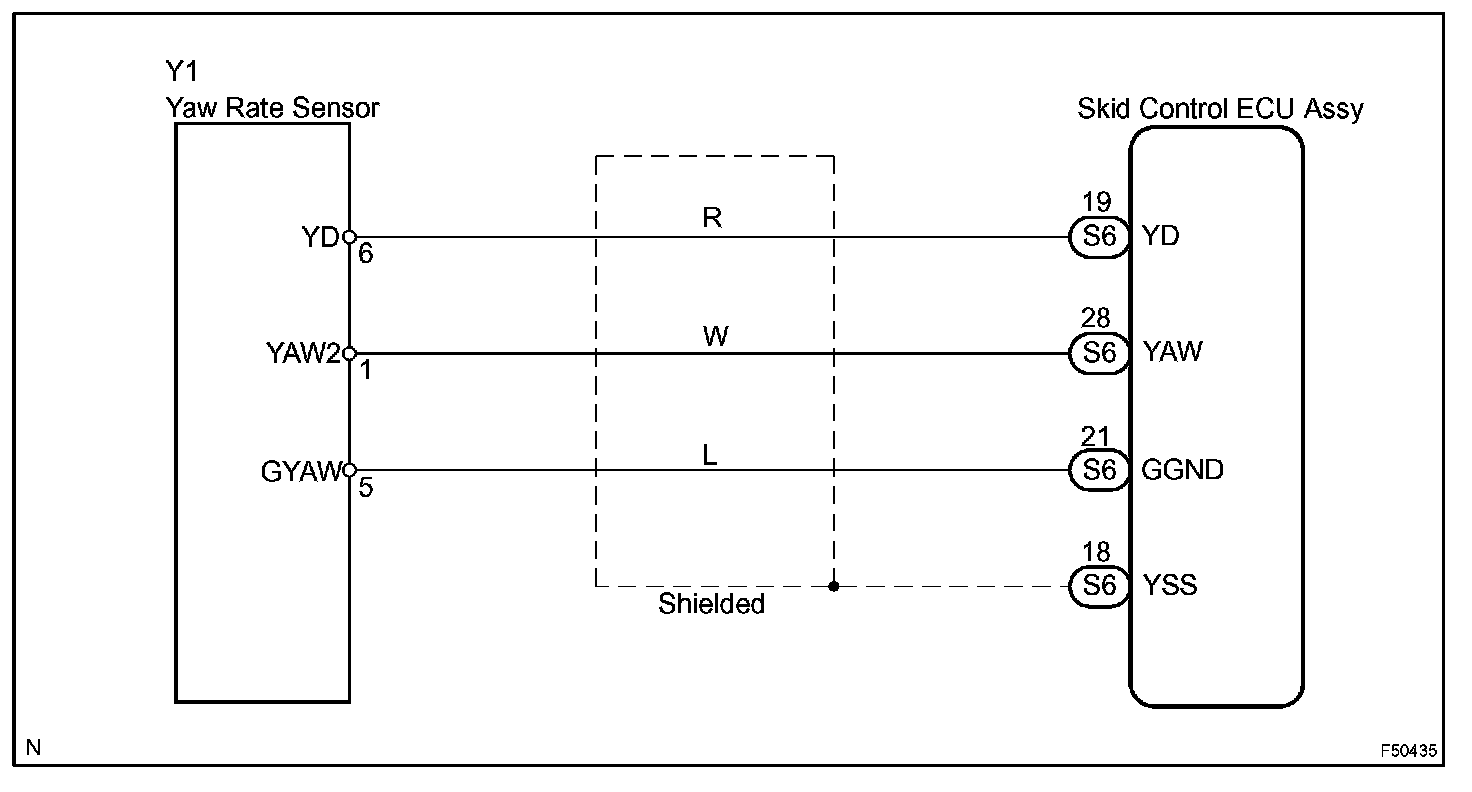

Wiring Diagram:

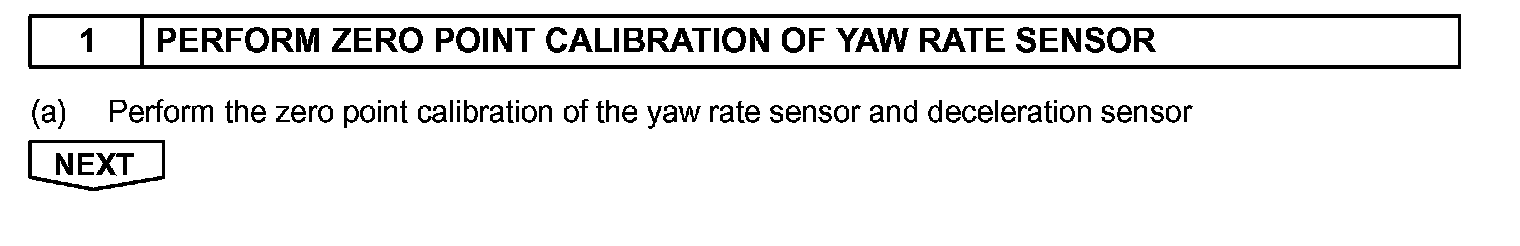

Step 1:

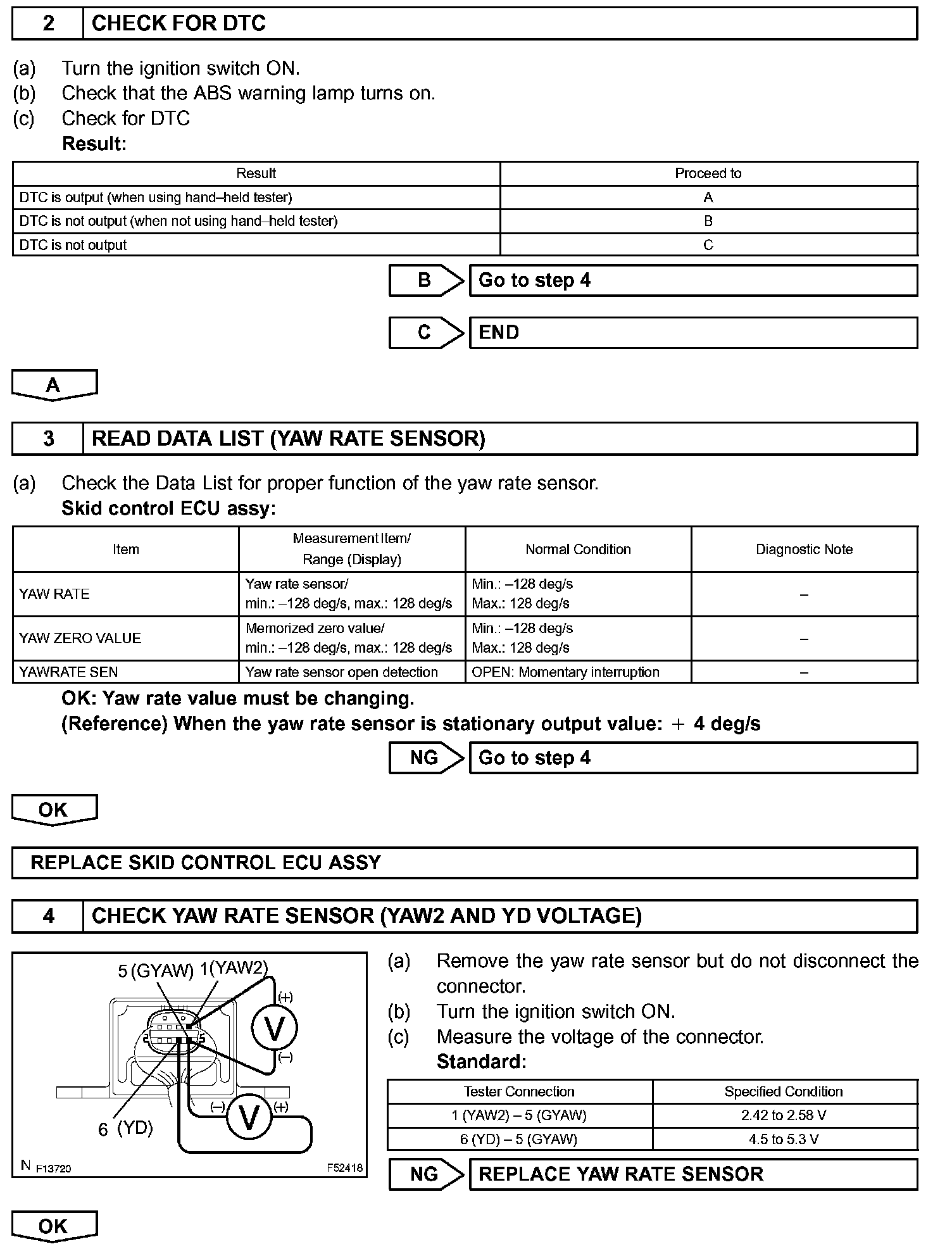

Step 2 - 4:

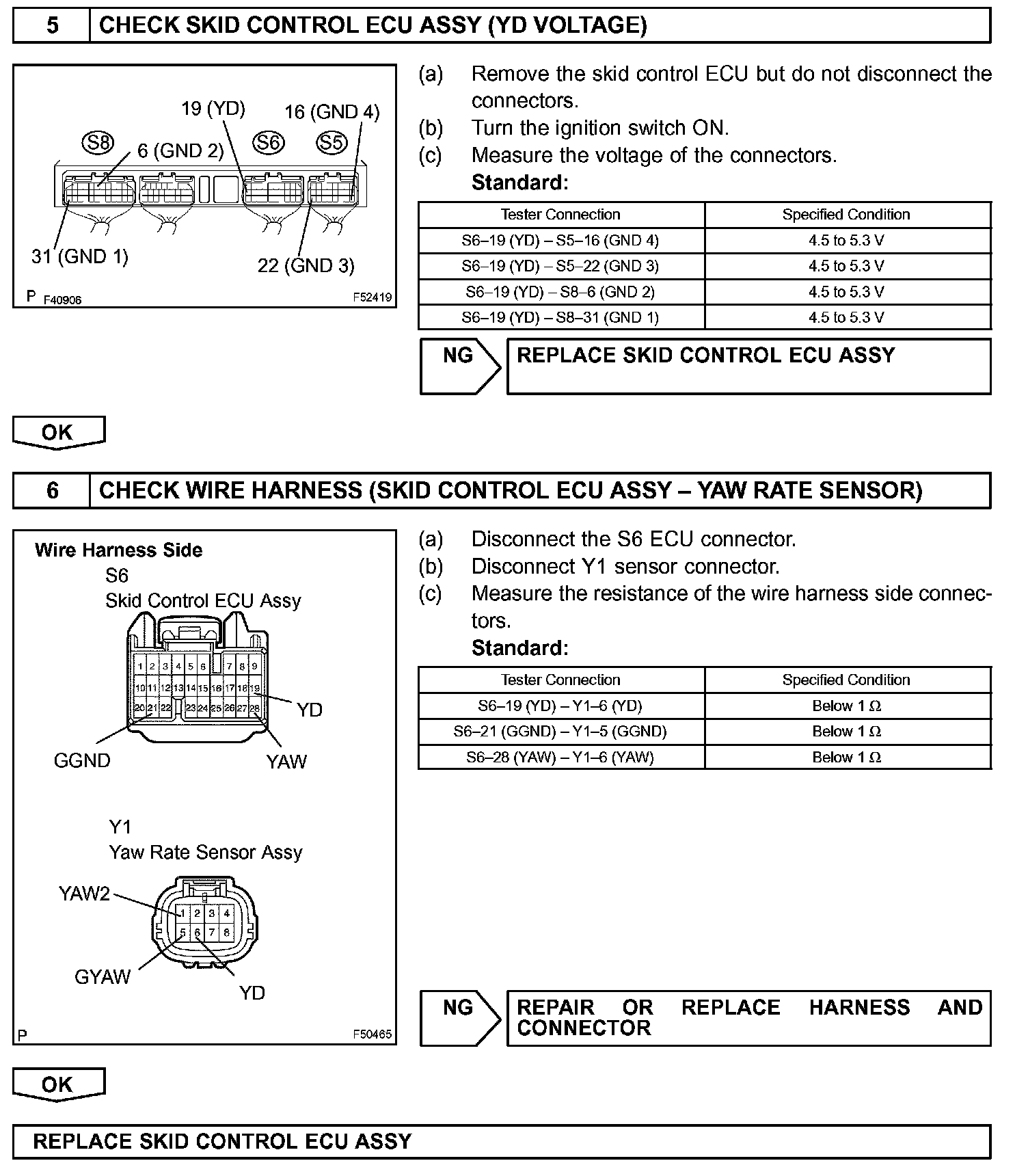

Step 5 - 6:

INSPECTION PROCEDURE
