Malfunction In Yaw Rate Sensor

DTC 34 MALFUNCTION IN YAW RATE SENSOR

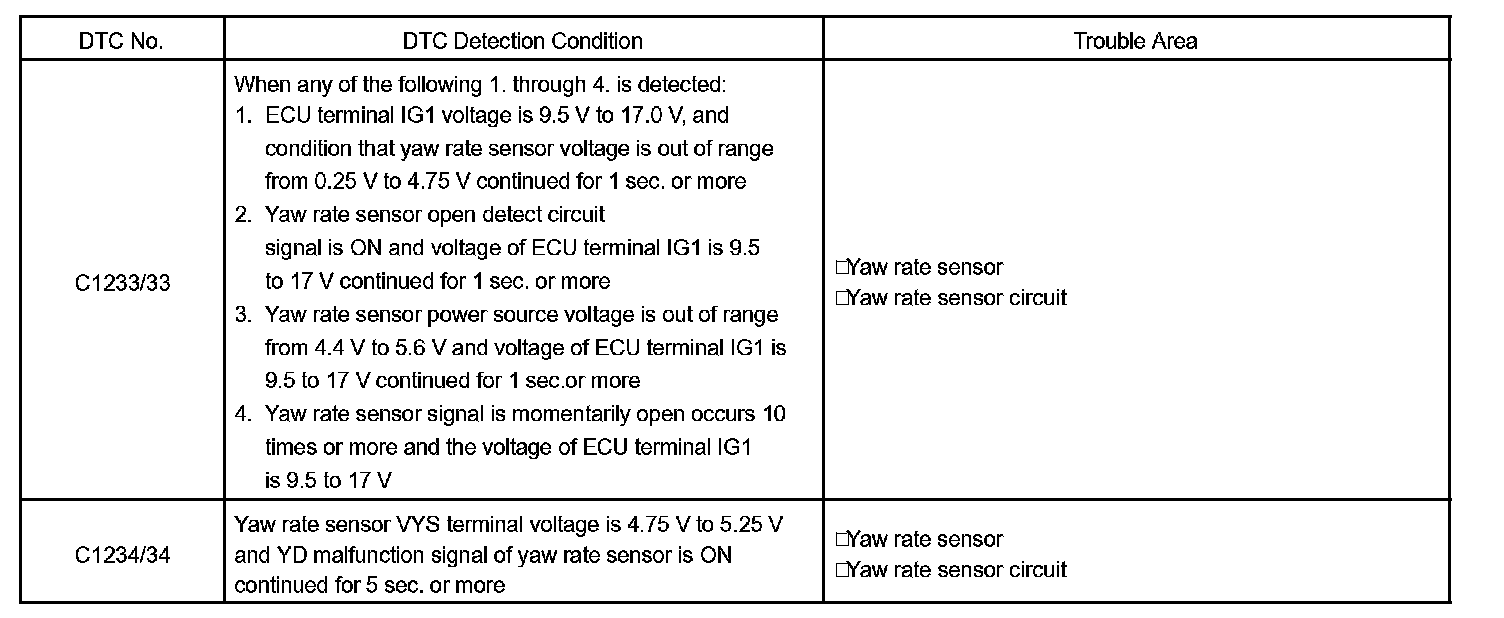

DTC Detection Condition:

CIRCUIT DESCRIPTION

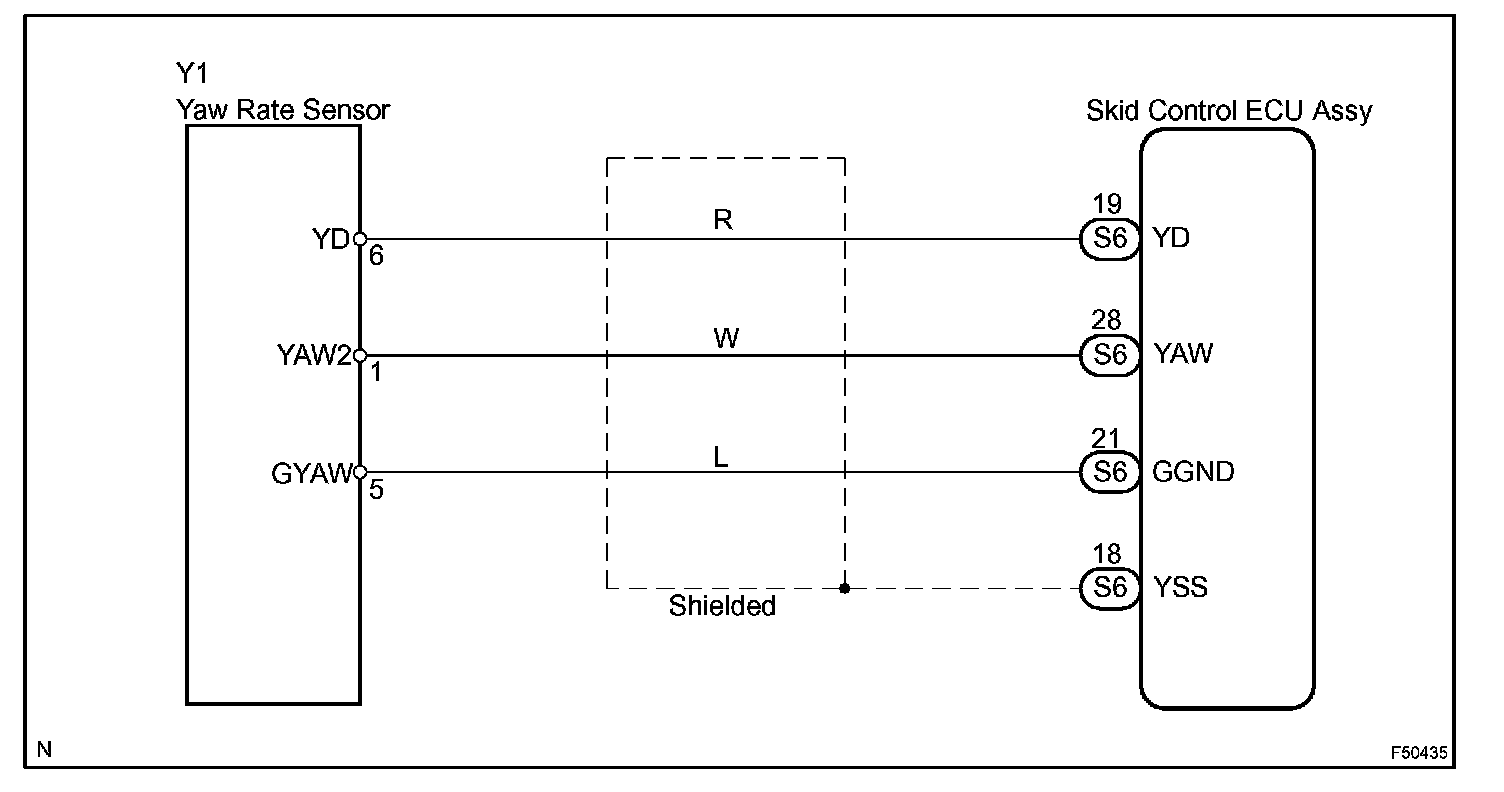

Wiring Diagram:

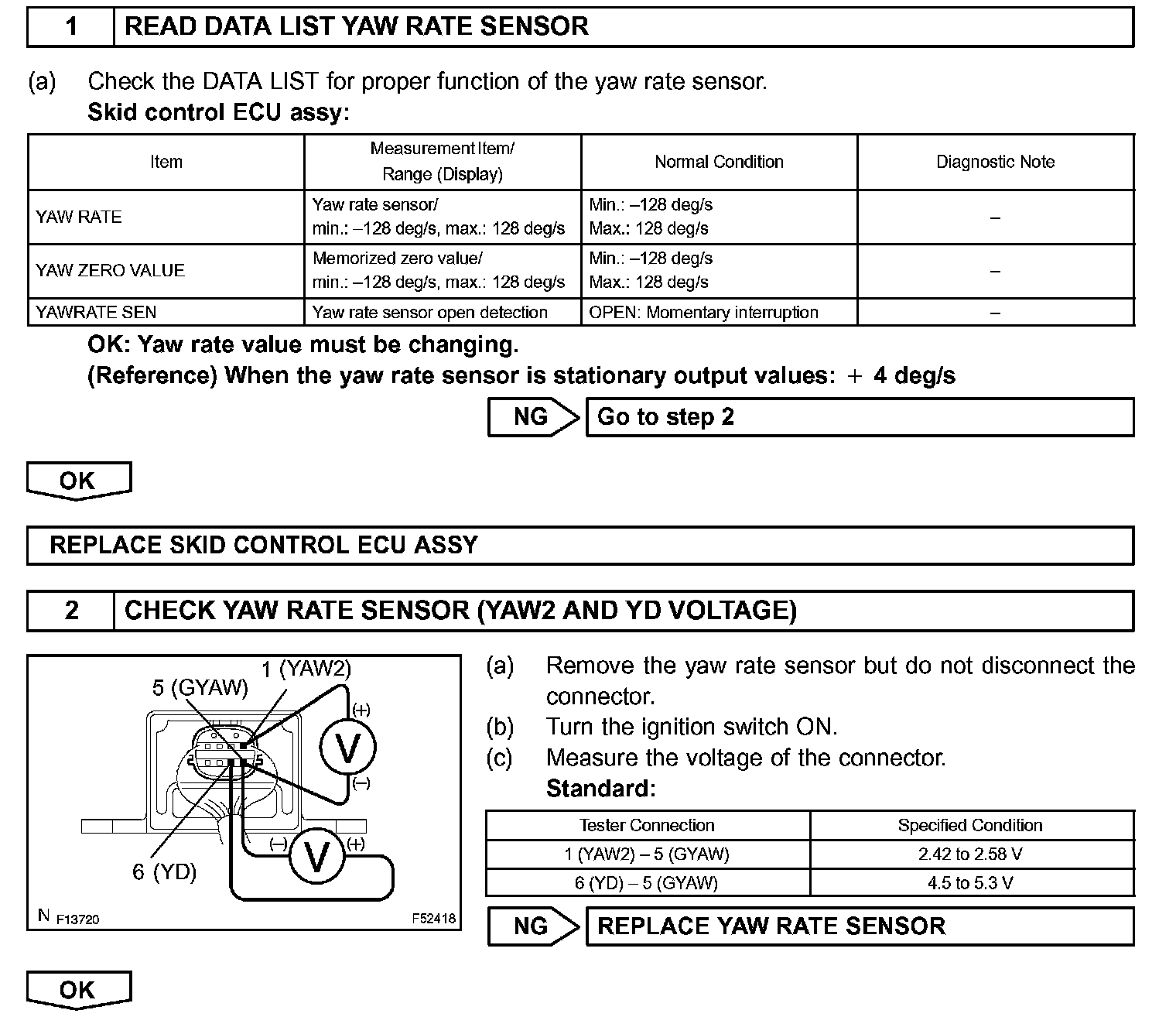

Step 1 - 2:

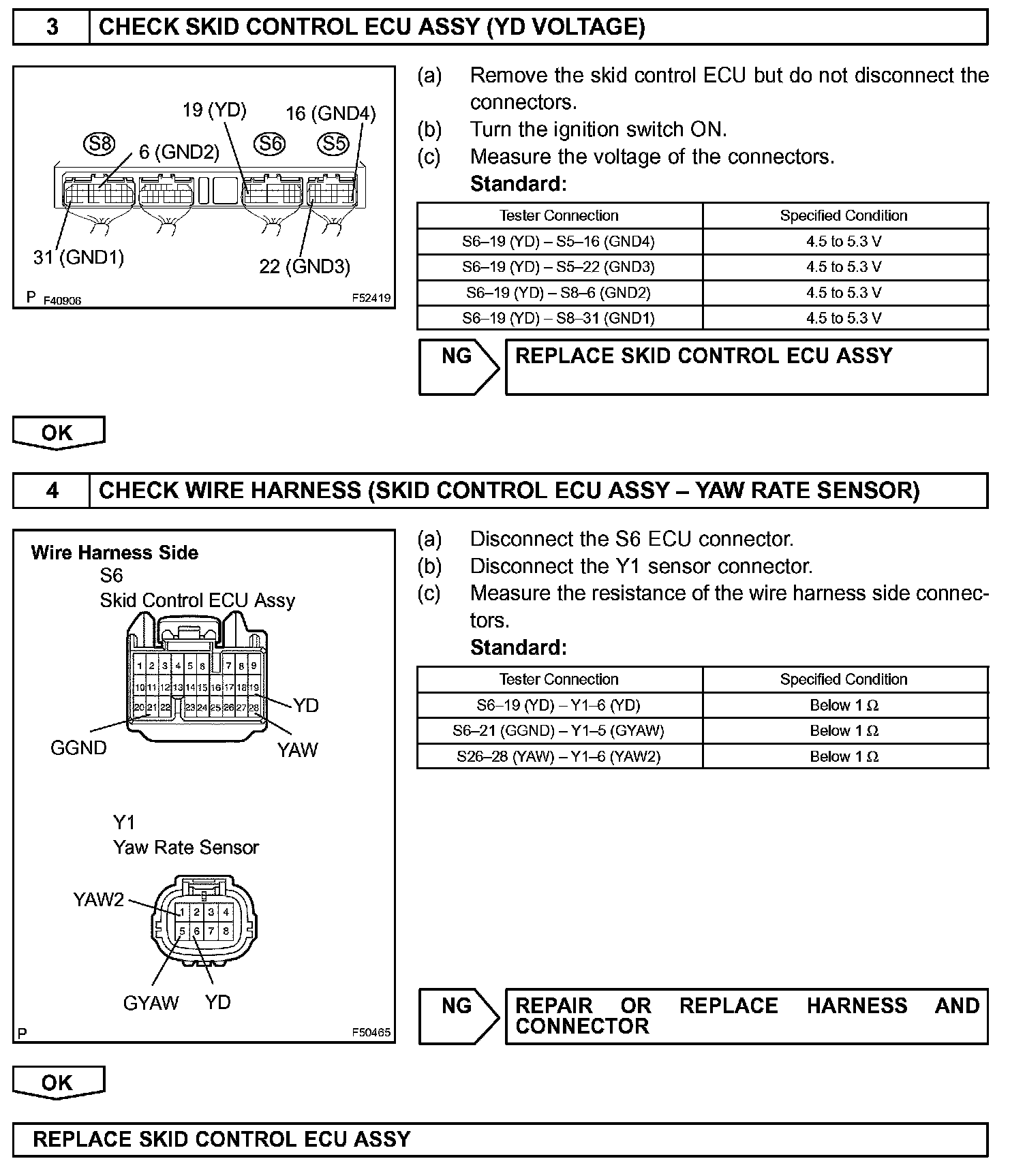

Step 3 - 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
