Retractable Hardtop System

DIAGNOSTIC TROUBLE CODE CHART

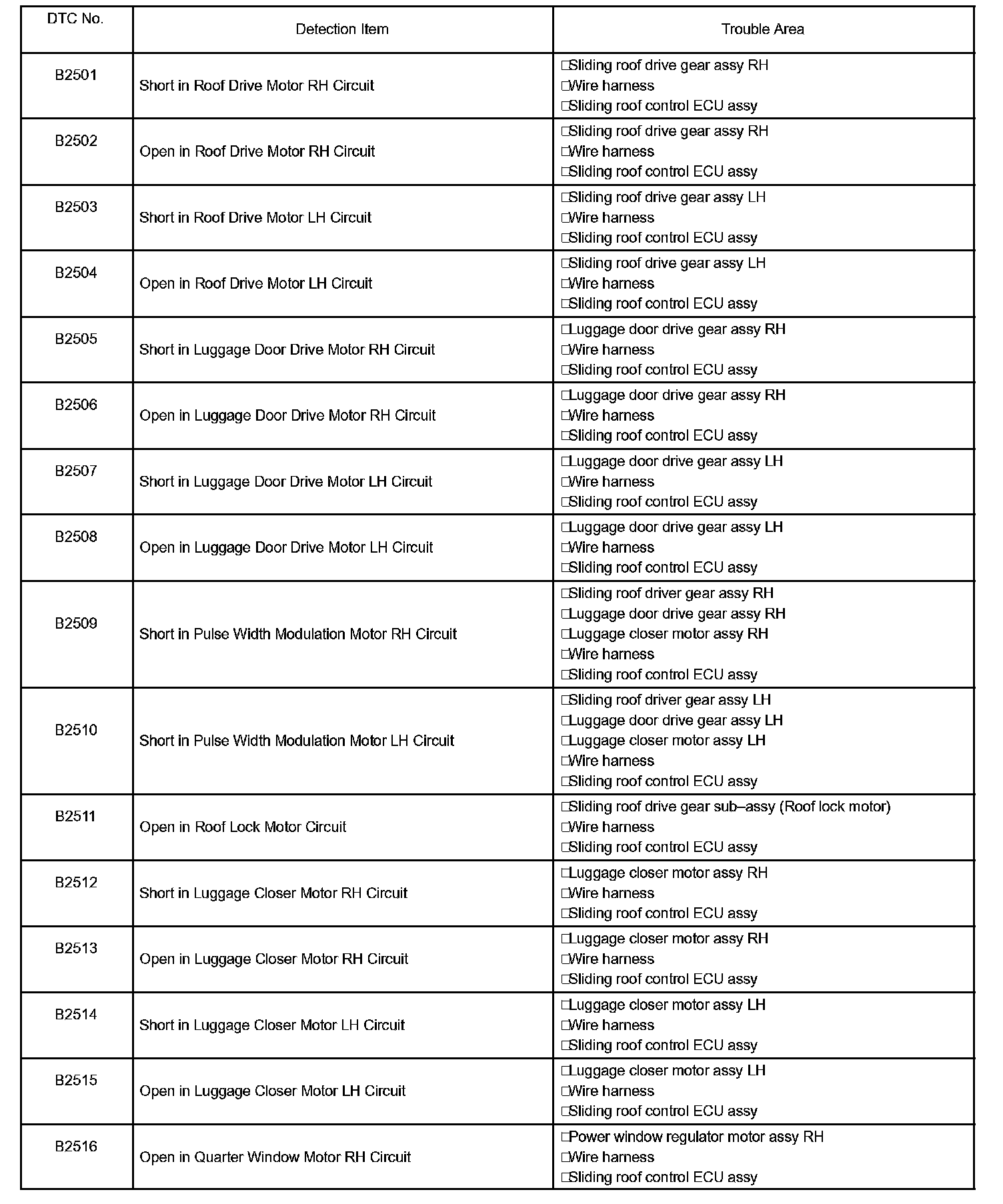

B2501 - B2516:

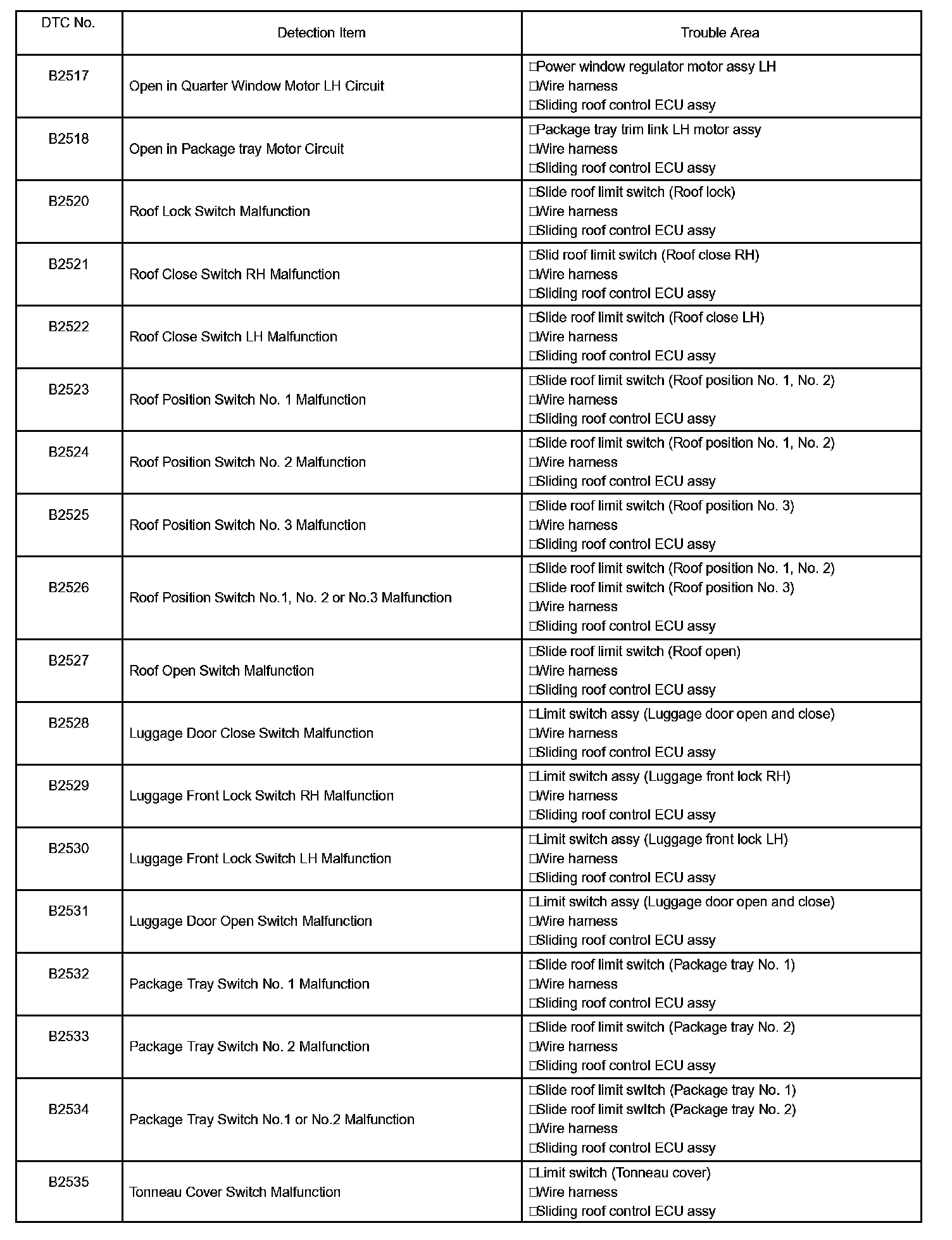

B2517 - B2535:

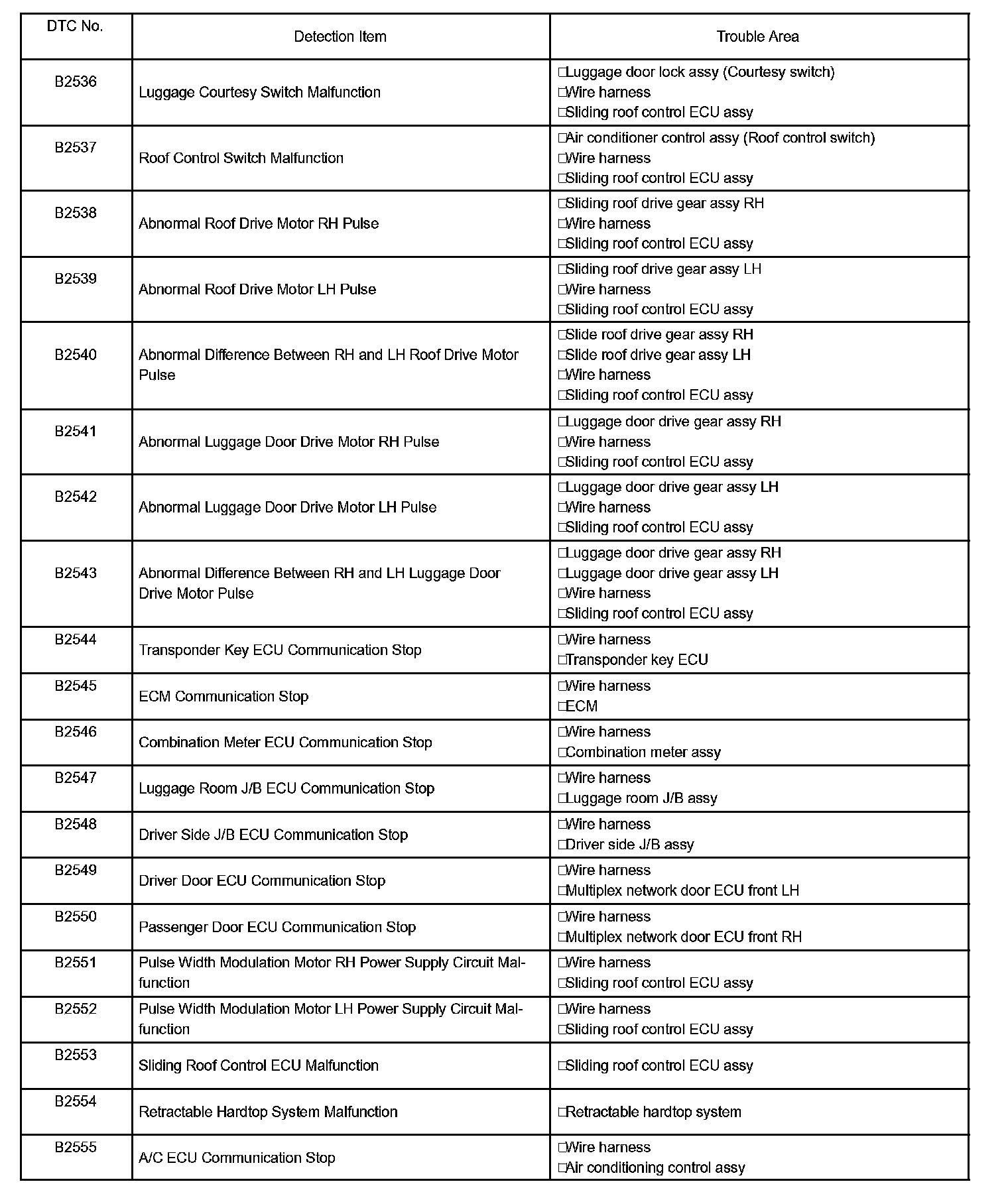

B2536 - B2555:

HINT: If a DTC is displayed during the DTC check, check the circuit for that code listed in the table. For details of each code, turn to the "DTC No." in the DTC chart.
