Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART






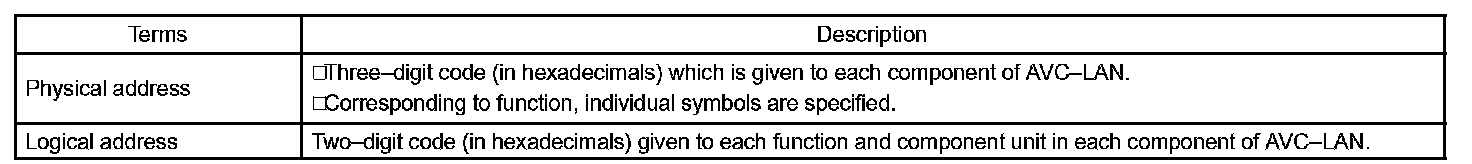

HINT: Titles for each unit below are stated in the following order: part name (physical address)[name indicated by DTC].

1. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]

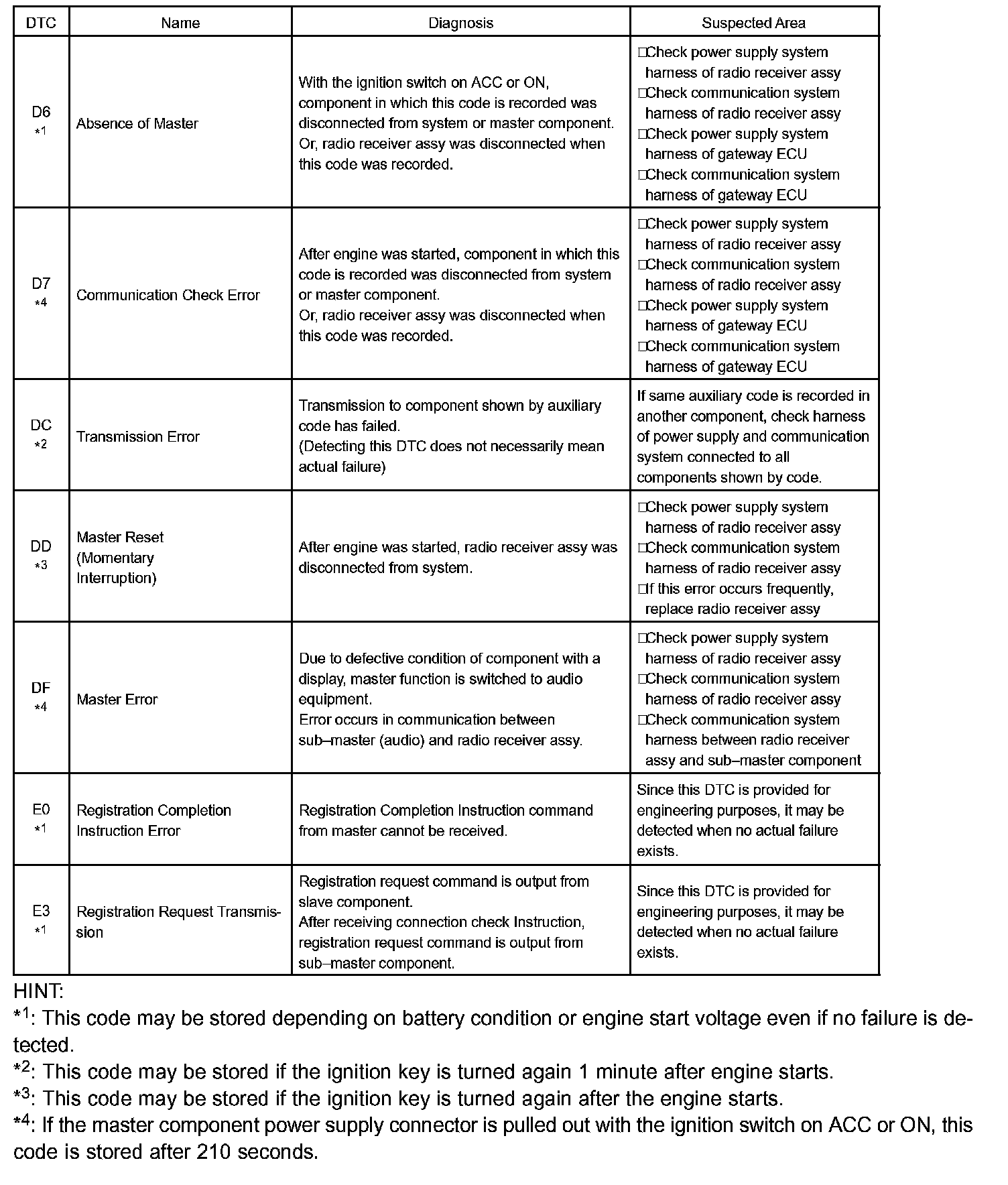

D6 - DF:

E0 - E3:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

42 - 48:

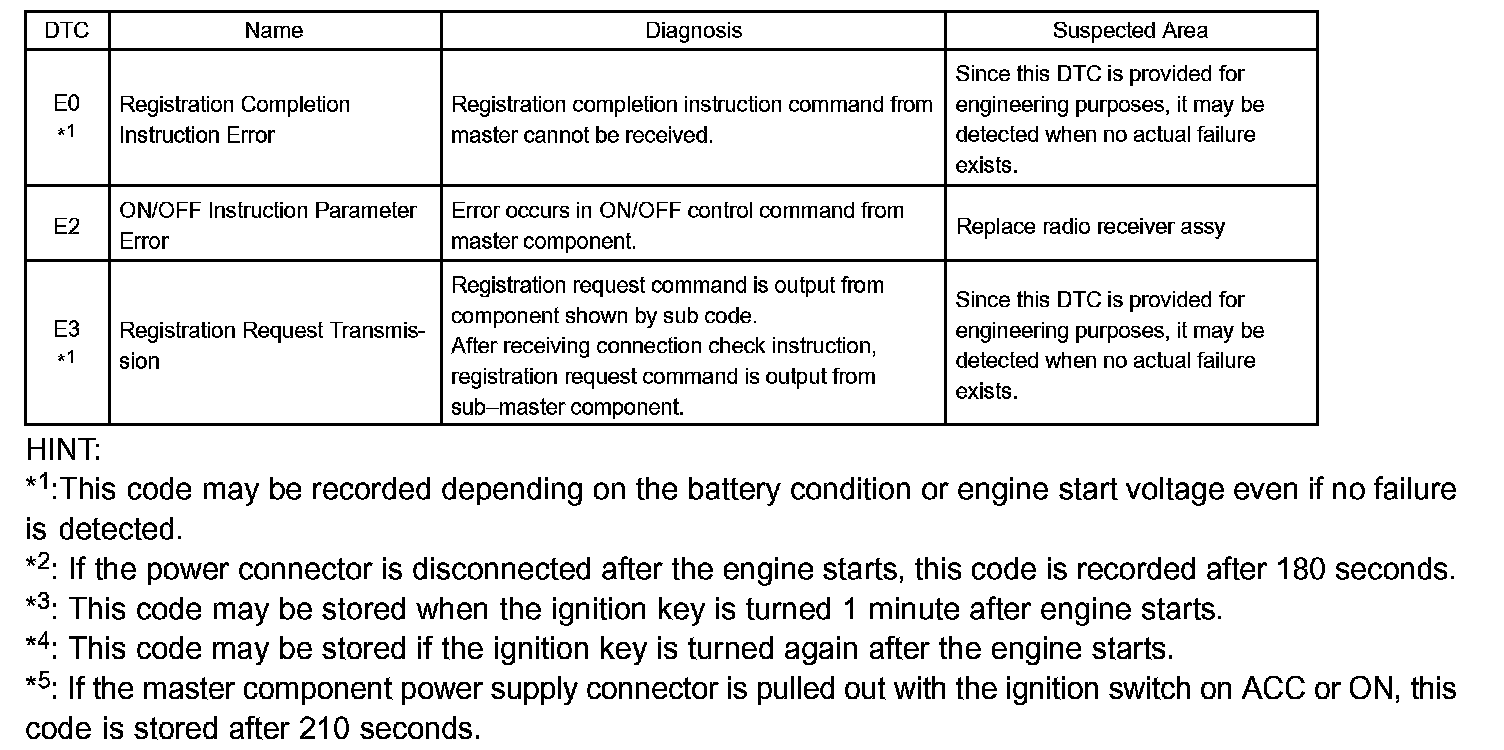

b. Logical address: 62 (CD): 63 (CD changer)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

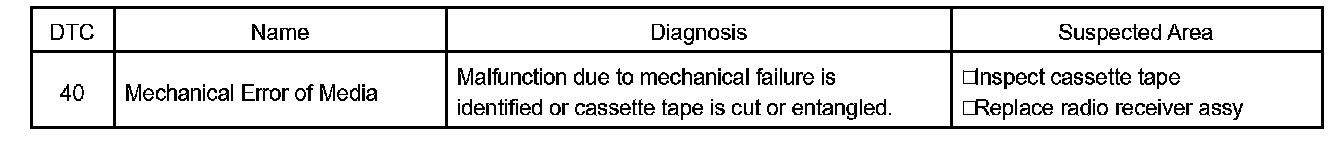

40:

c. Logical address: 61 (Cassette.

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

2. GATEWAY ECU (Physical address: 1C6) [G/W]

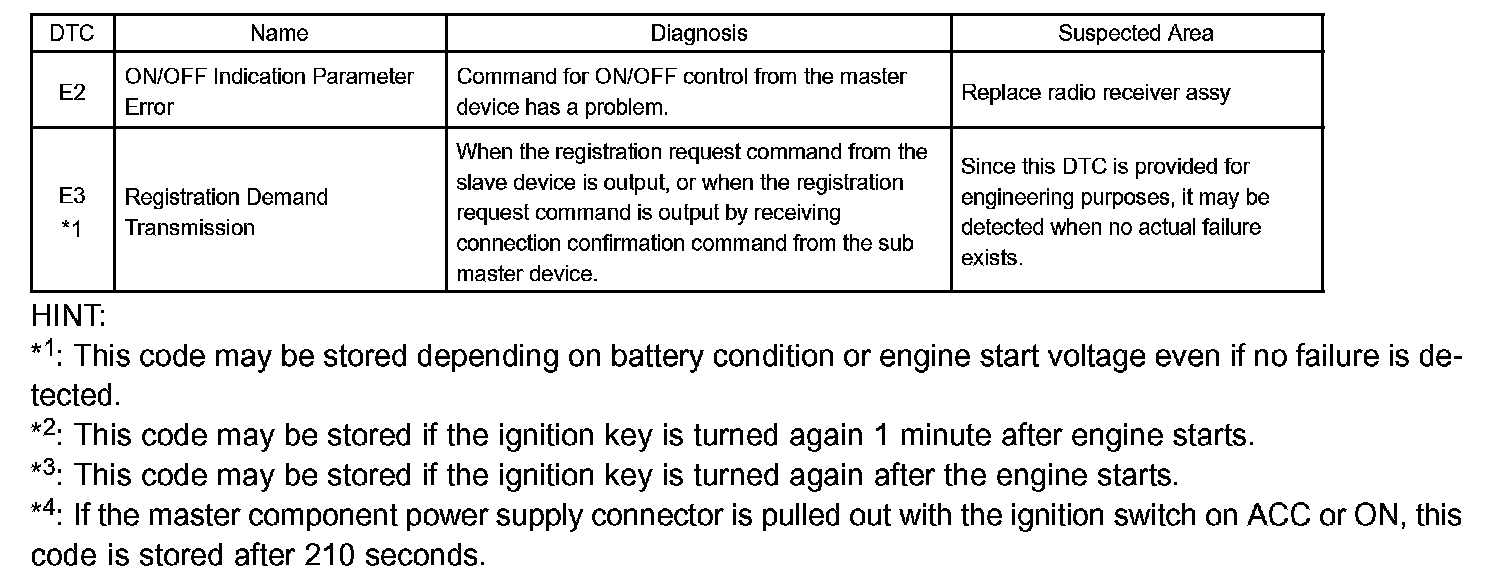

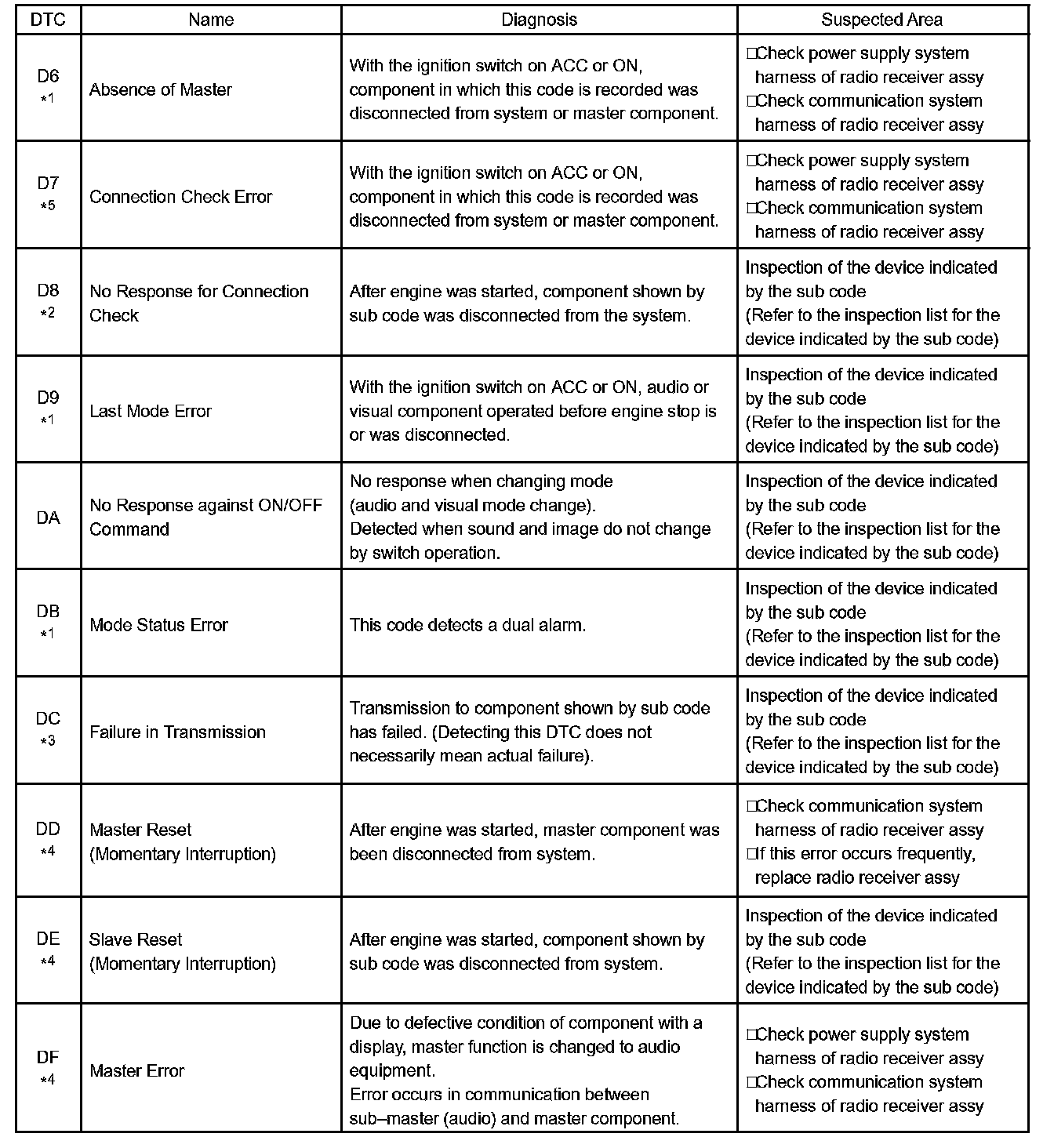

D6 - E3:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

3. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP AMP]

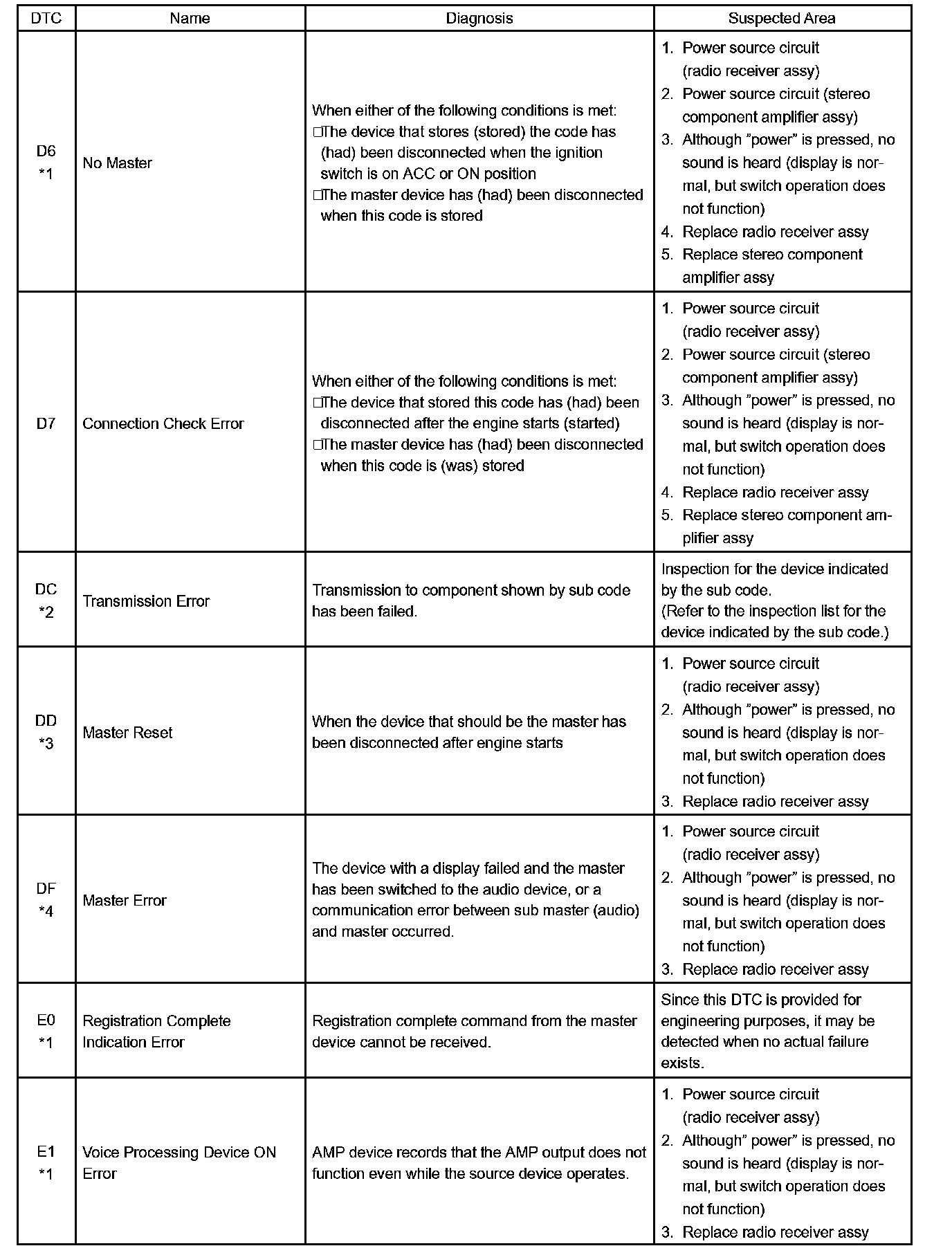

D6 - E1:

E2 - E3:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

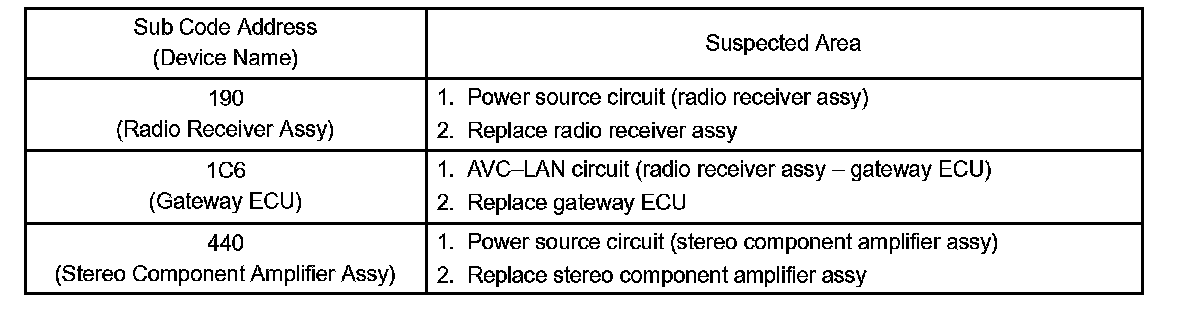

4. INSPECTION LIST FOR DEVICE INDICATED BY SUB CODE

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.
