Navigation System

DIAGNOSTIC TROUBLE CODE CHART

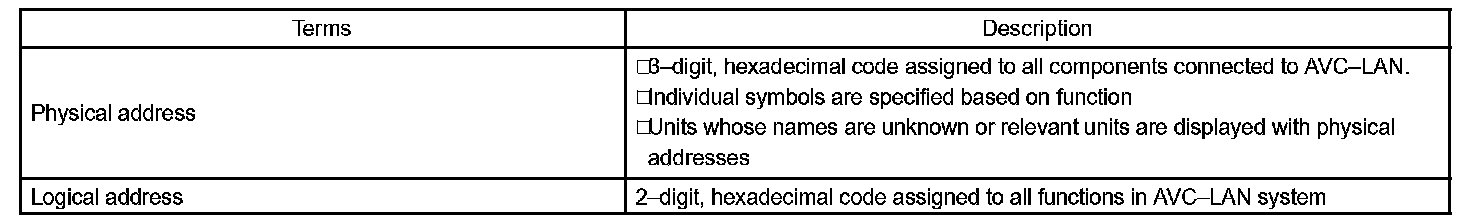

HINT: Titles for each unit are stated in the following order: part name (physical address) [name indicated by DTC].

1. MULTI-DISPLAY (physical address: 110) [EMV]

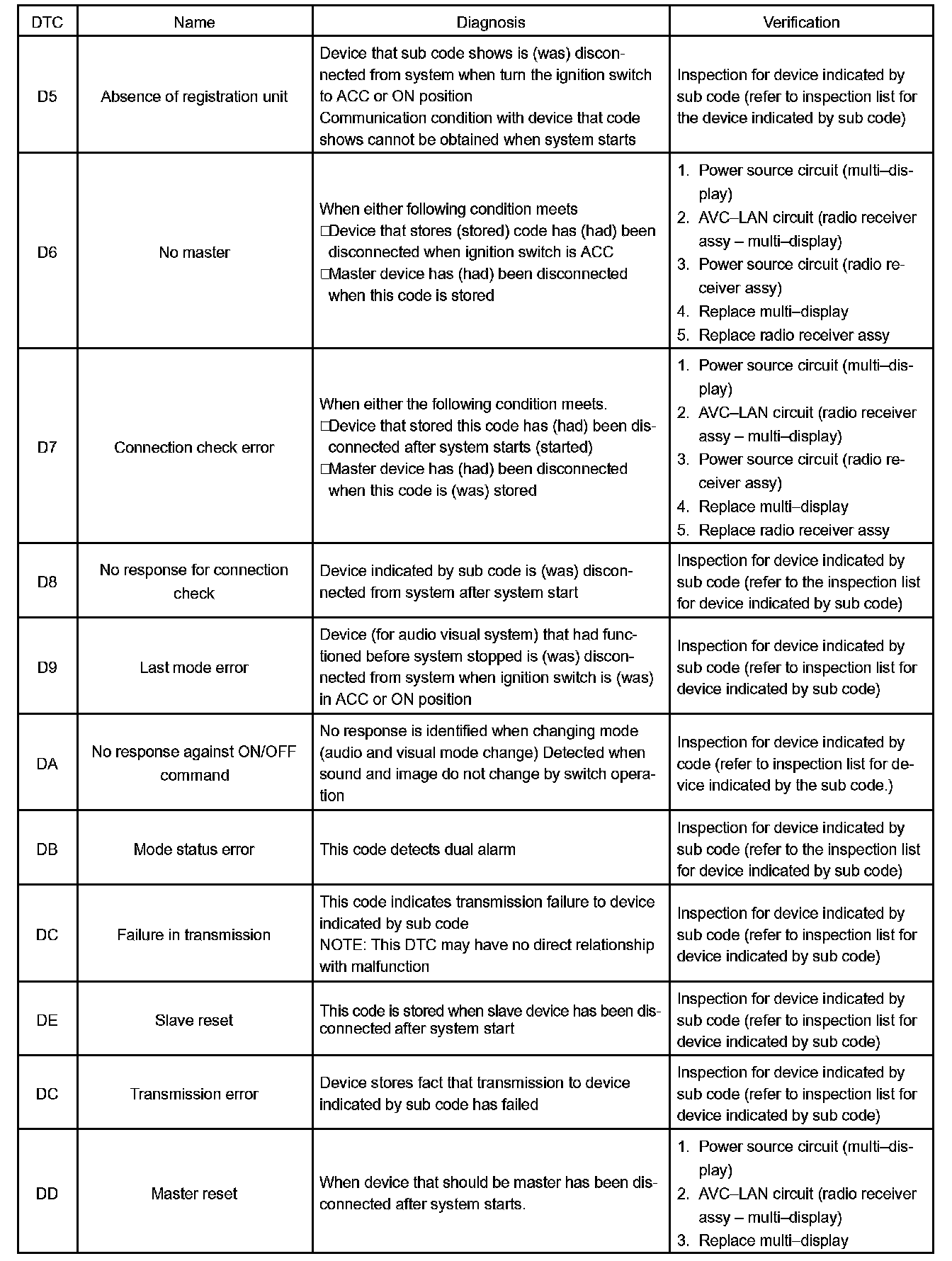

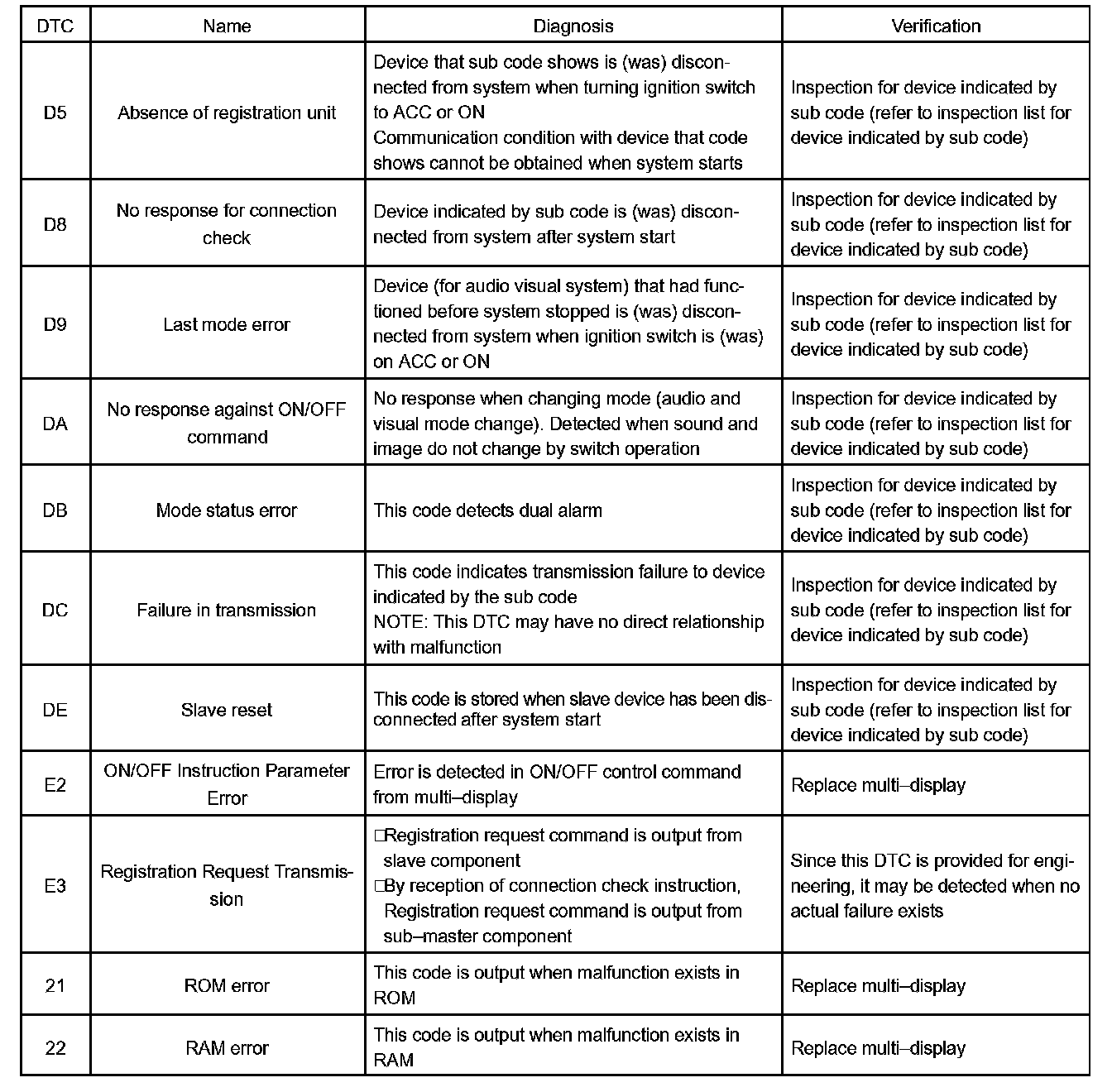

D5 - 22:

a. Logical address: 01 (Communication control)

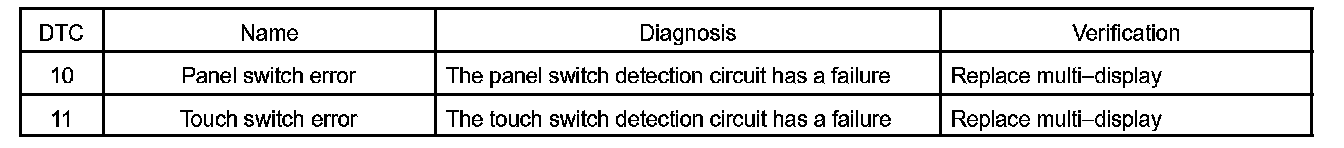

10 - 11:

b. Logical address: 21 (SW)

2. NAVIGATION ECU (Physical address: 178) [NAVI]

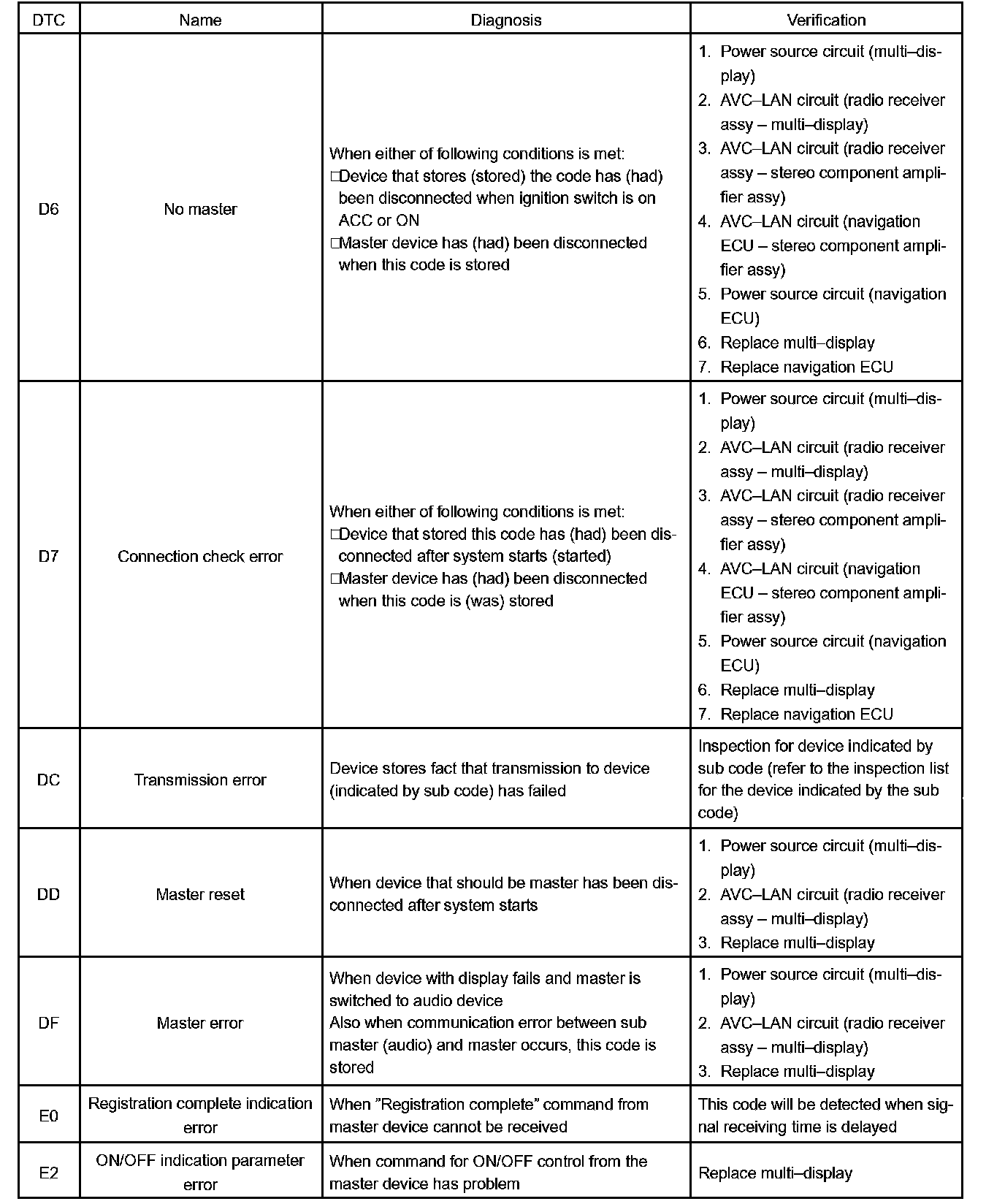

D6 - E2:

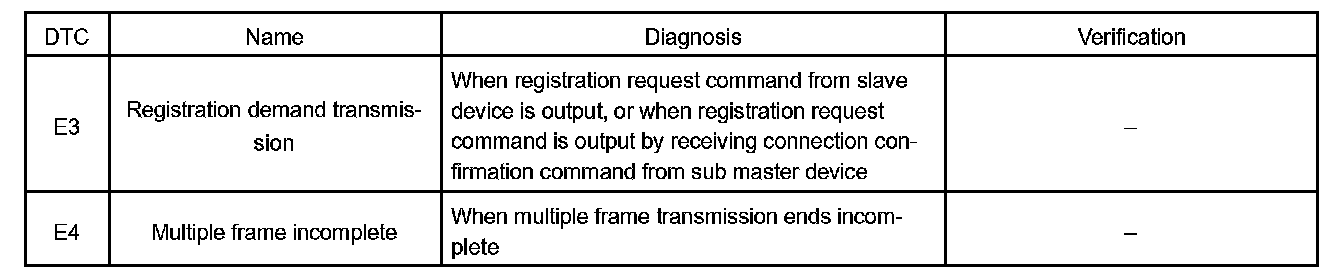

E3 - E4:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

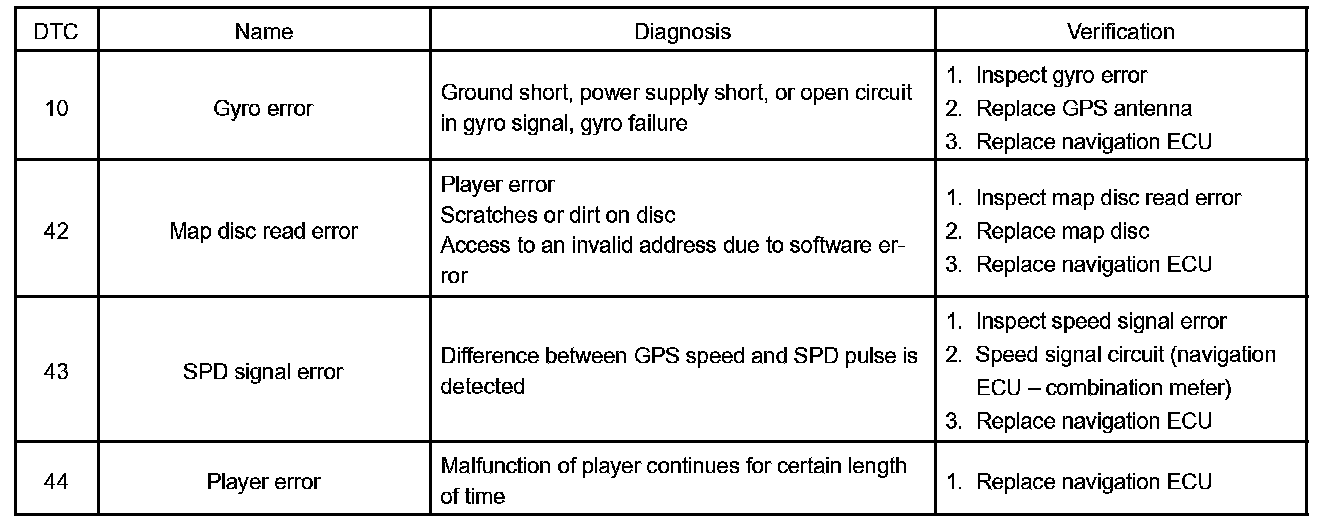

10 - 44:

b. Logical address: 58 (Navigation)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

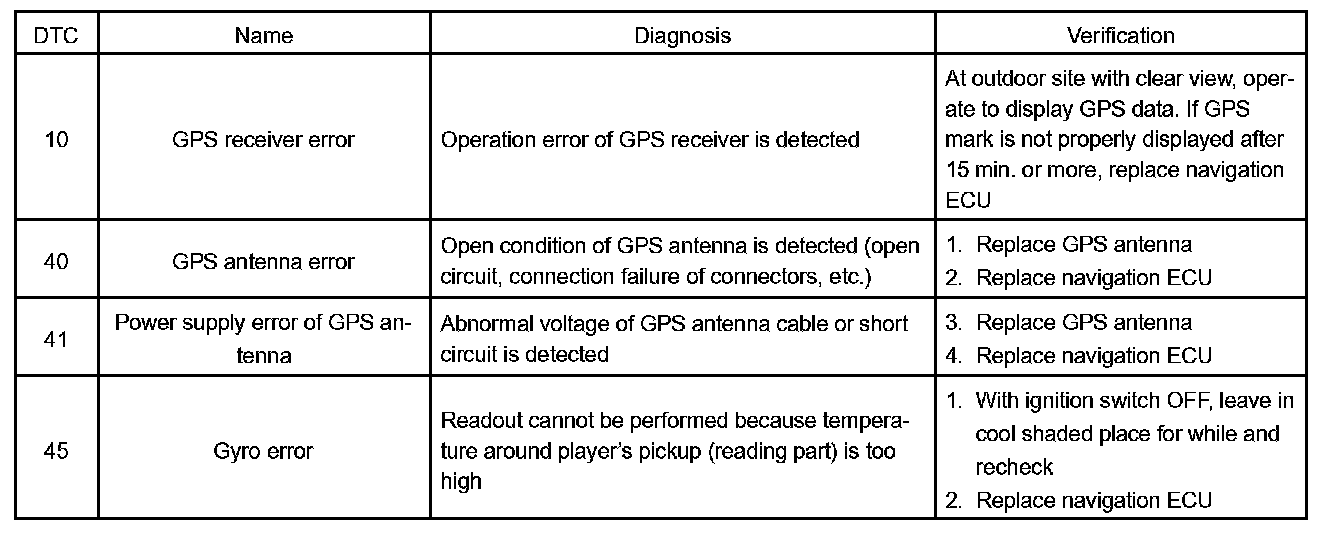

10 - 45:

c. Logical address: 80 (GPS)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

3. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]

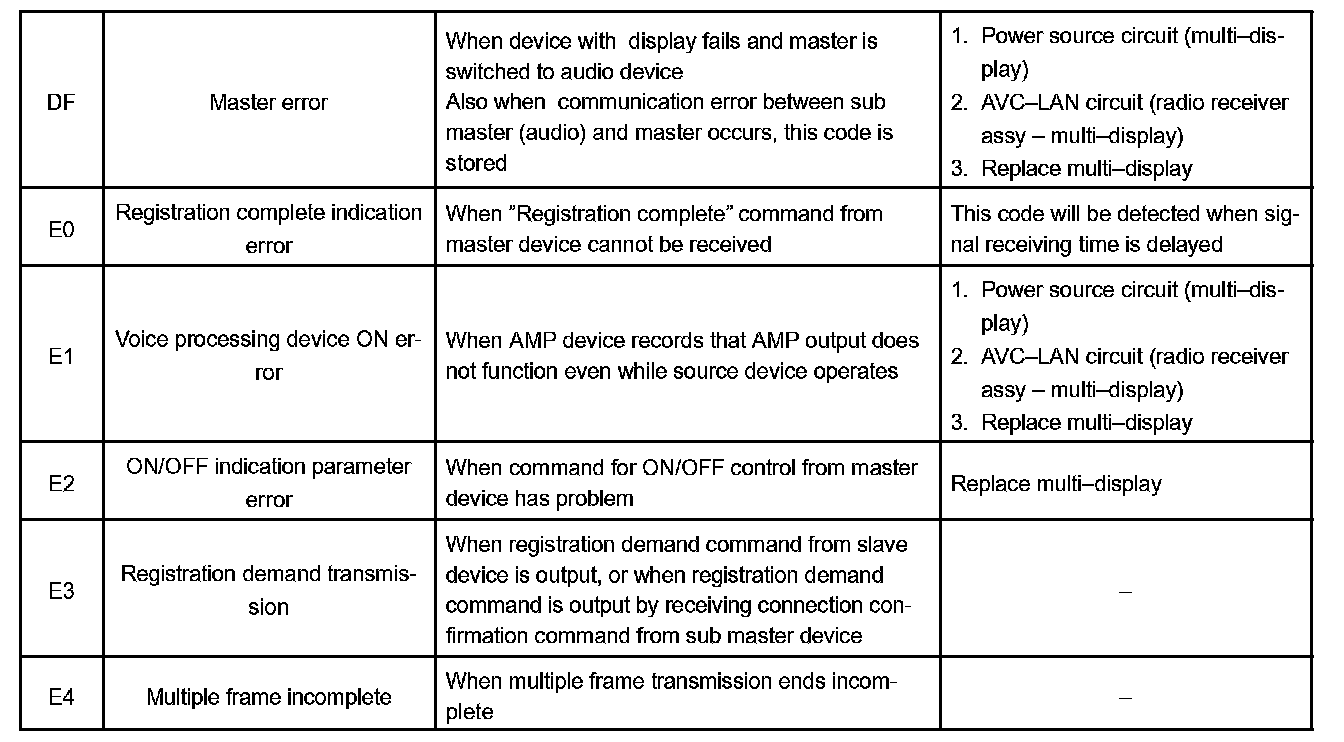

D5 - DD:

DF - E3:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

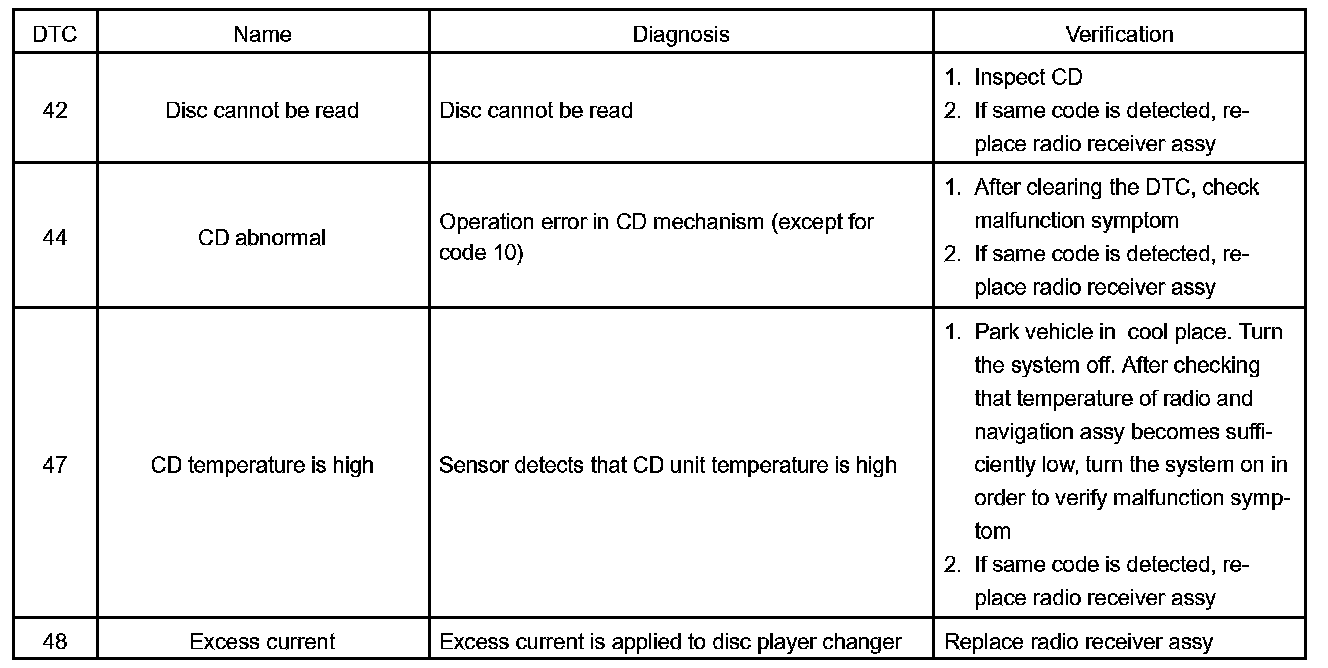

42 - 48:

b. Logical address: 62 (CD): 63 (CD changer)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

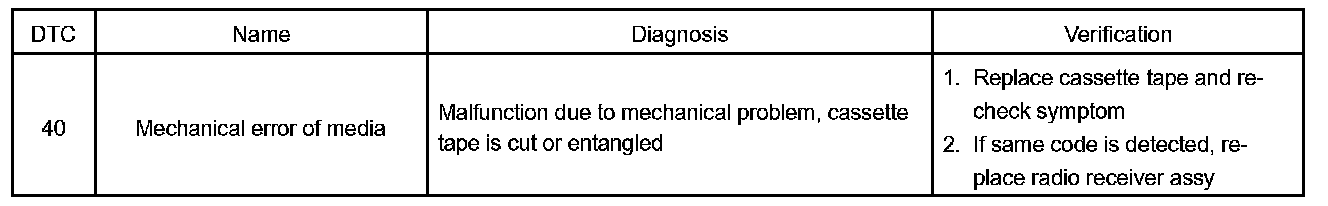

40:

c. Logical address: 61 (Cassette.

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

4. GATEWAY ECU (Physical address: 1C6) [G/W]

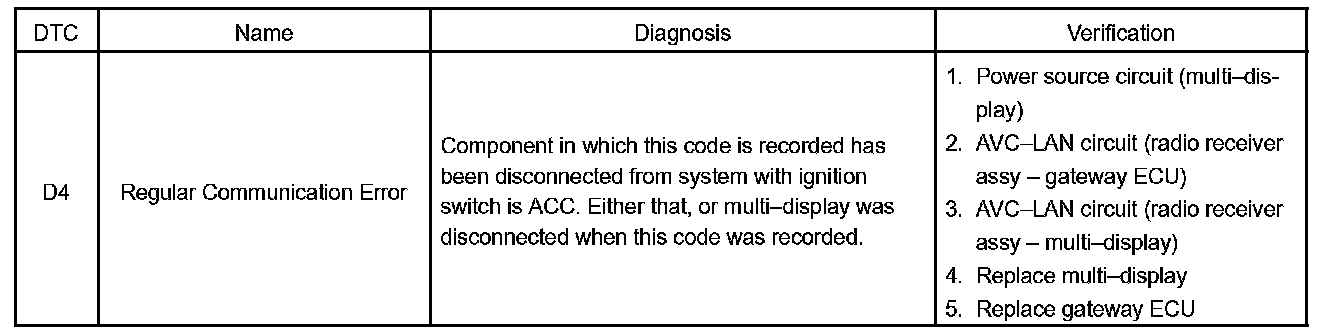

D4:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

5. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP AMP]

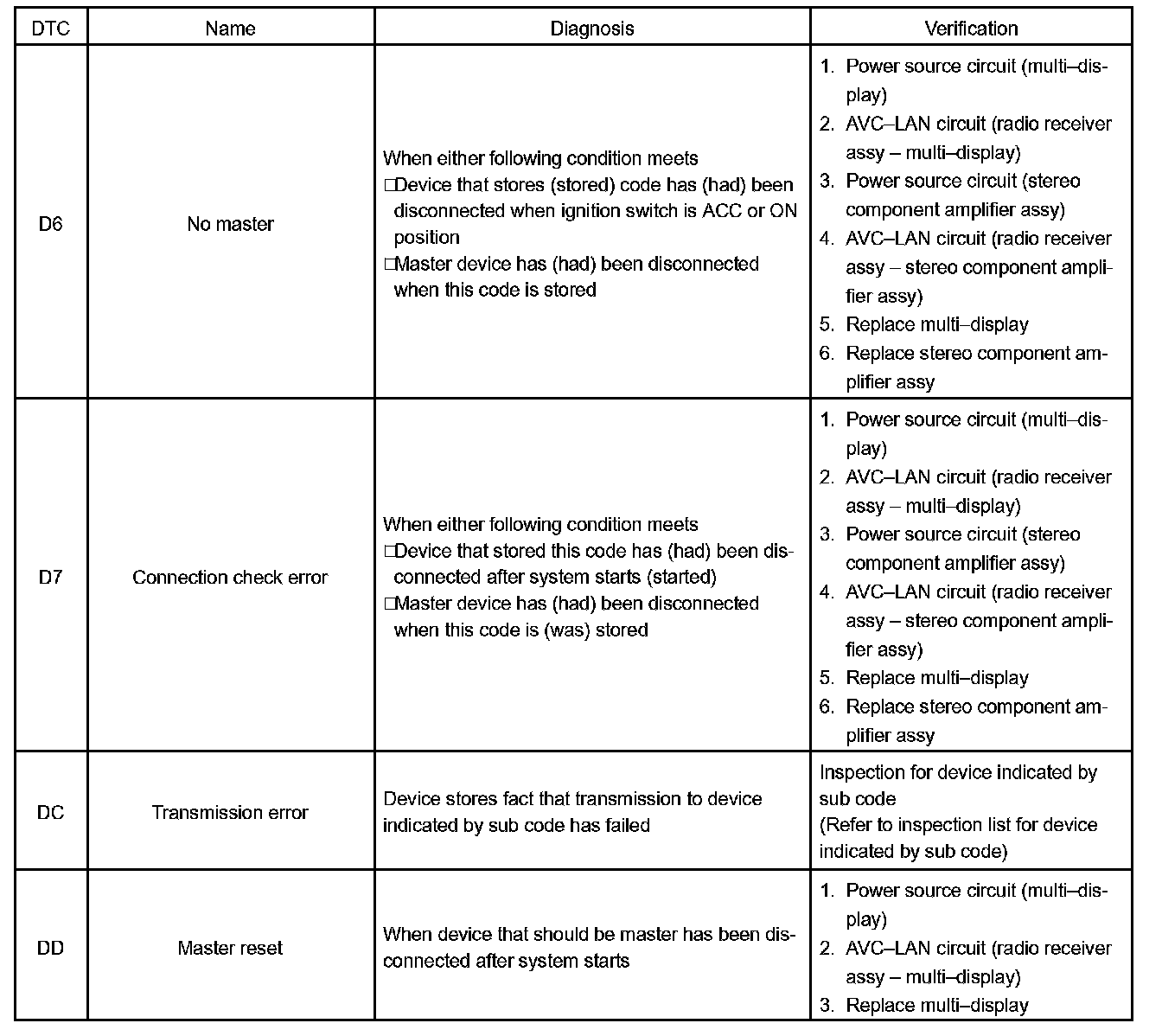

D6 - DD:

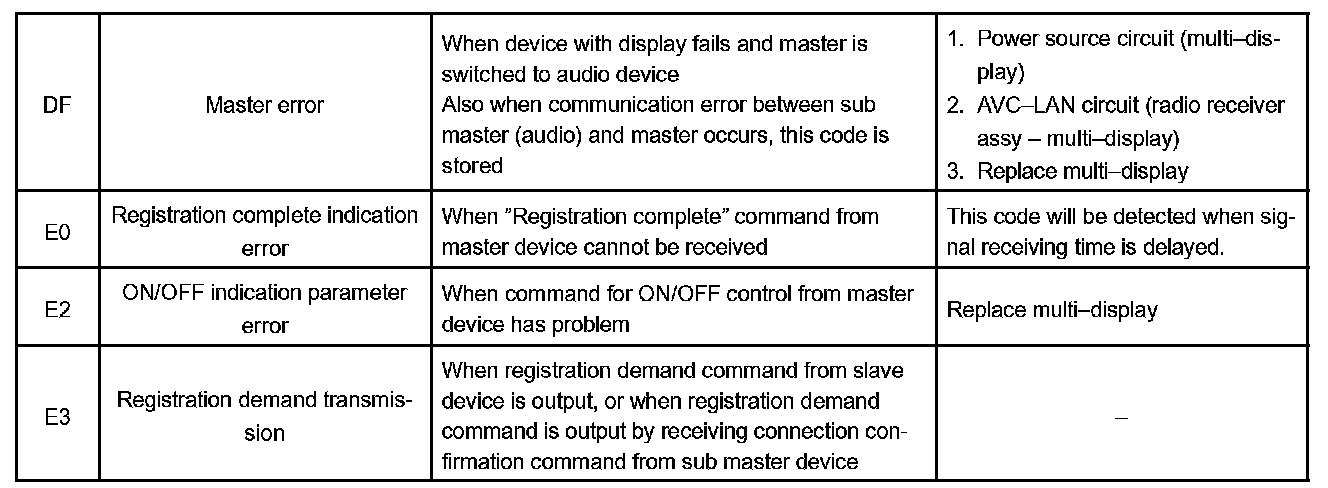

DF - E4:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

110 - 440:

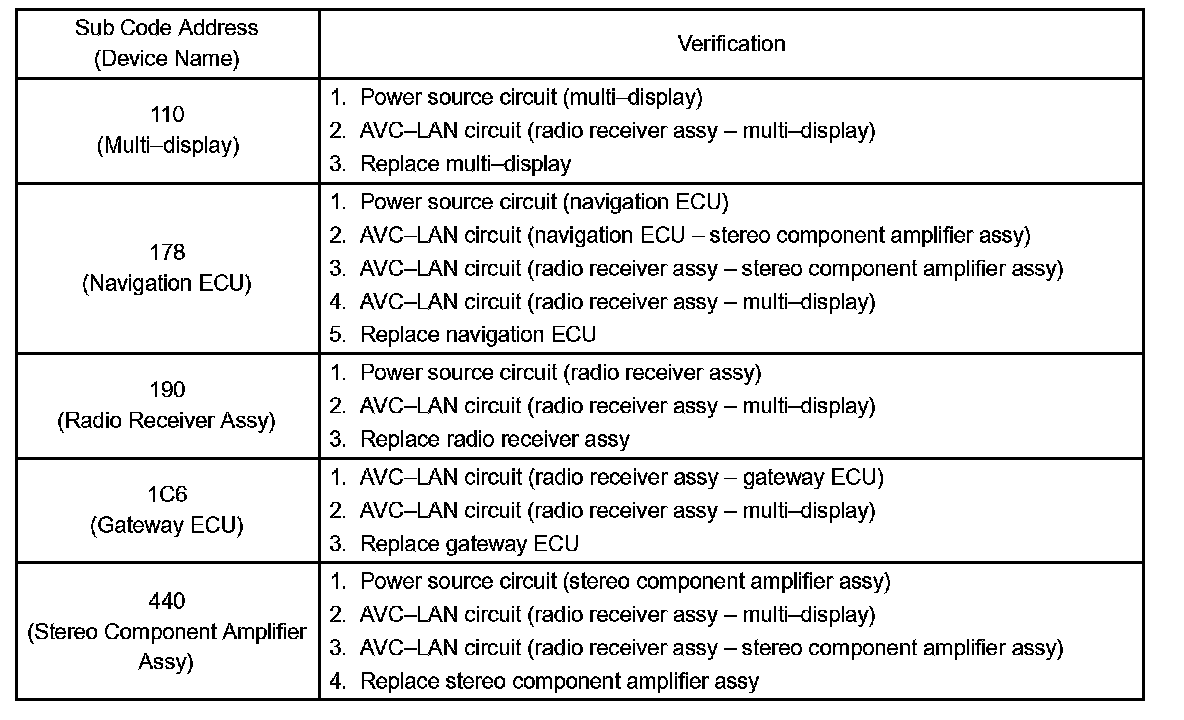

6. INSPECTION LIST FOR DEVICE INDICATED BY SUB CODE

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.
