ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- If an abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code.For details of each code, refer to the DTC in the chart.
- When 2 or more DTCs are detected, perform inspections on each circuit until the problem is identified.

C0200/31 - C1239/39:

C1241/41 - Always ON:

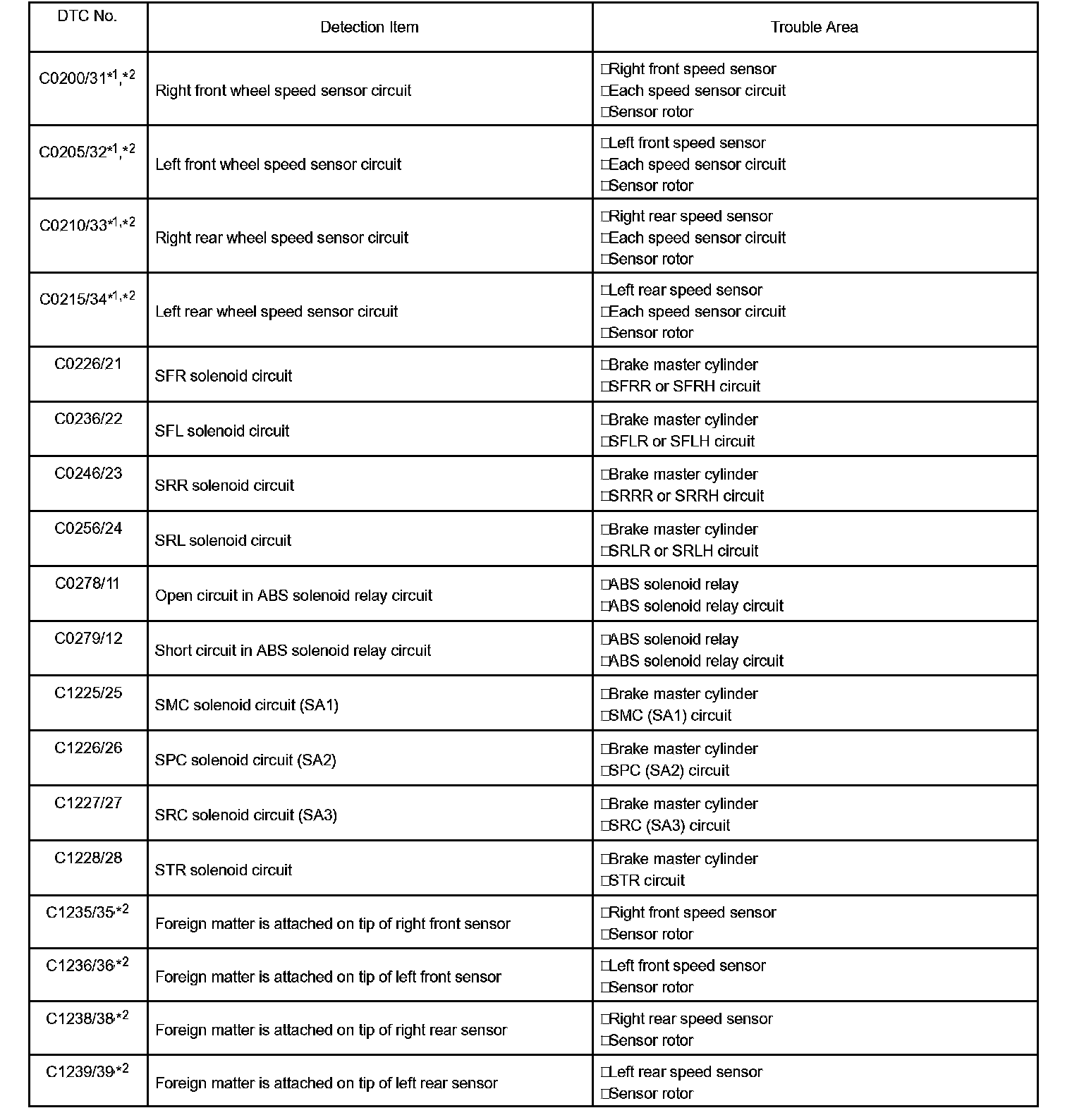

DTC chart of ABS:

C1201/51 - Always ON:

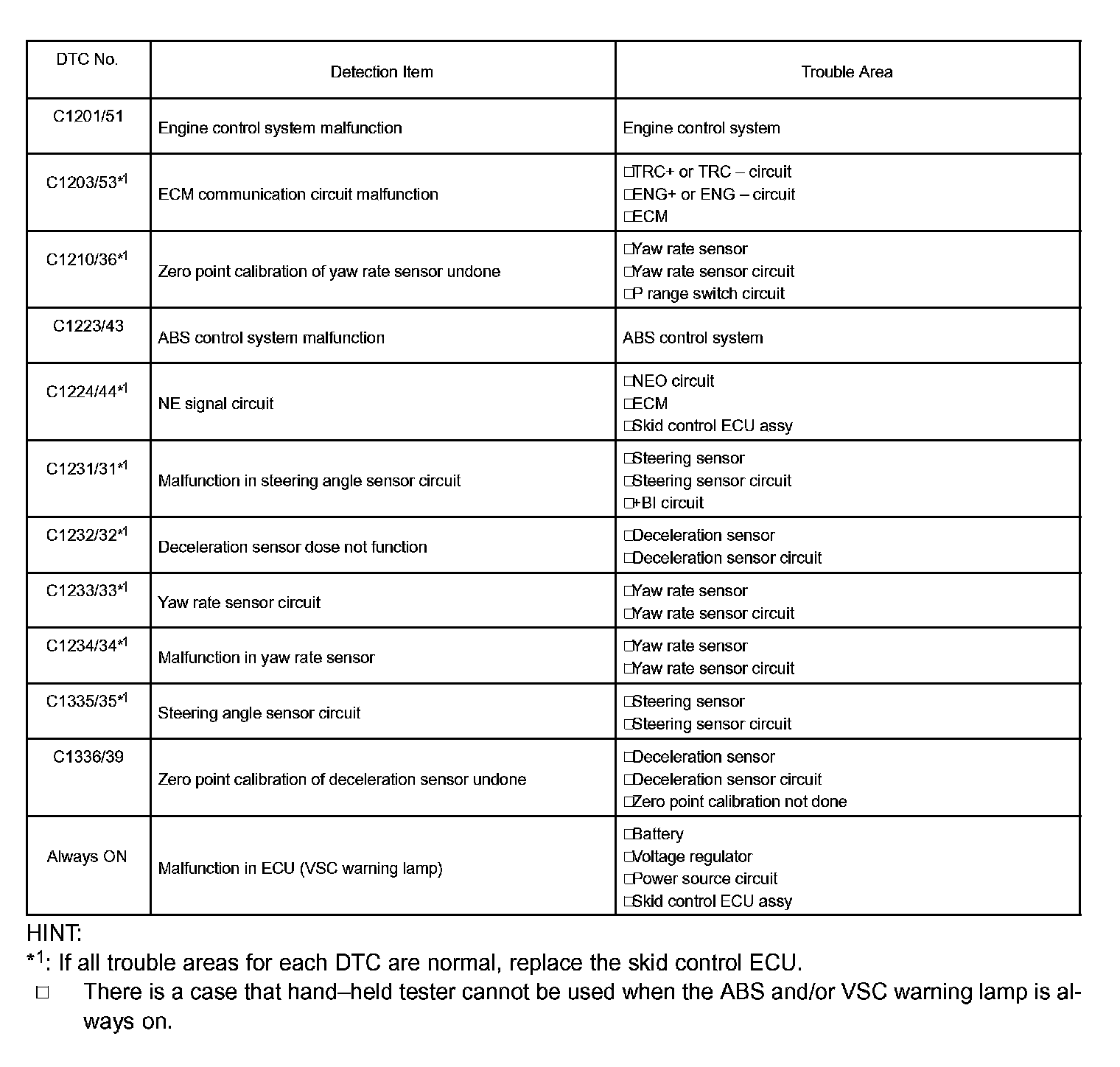

DTC chart of VSC

C1271/71 - C1281/81:

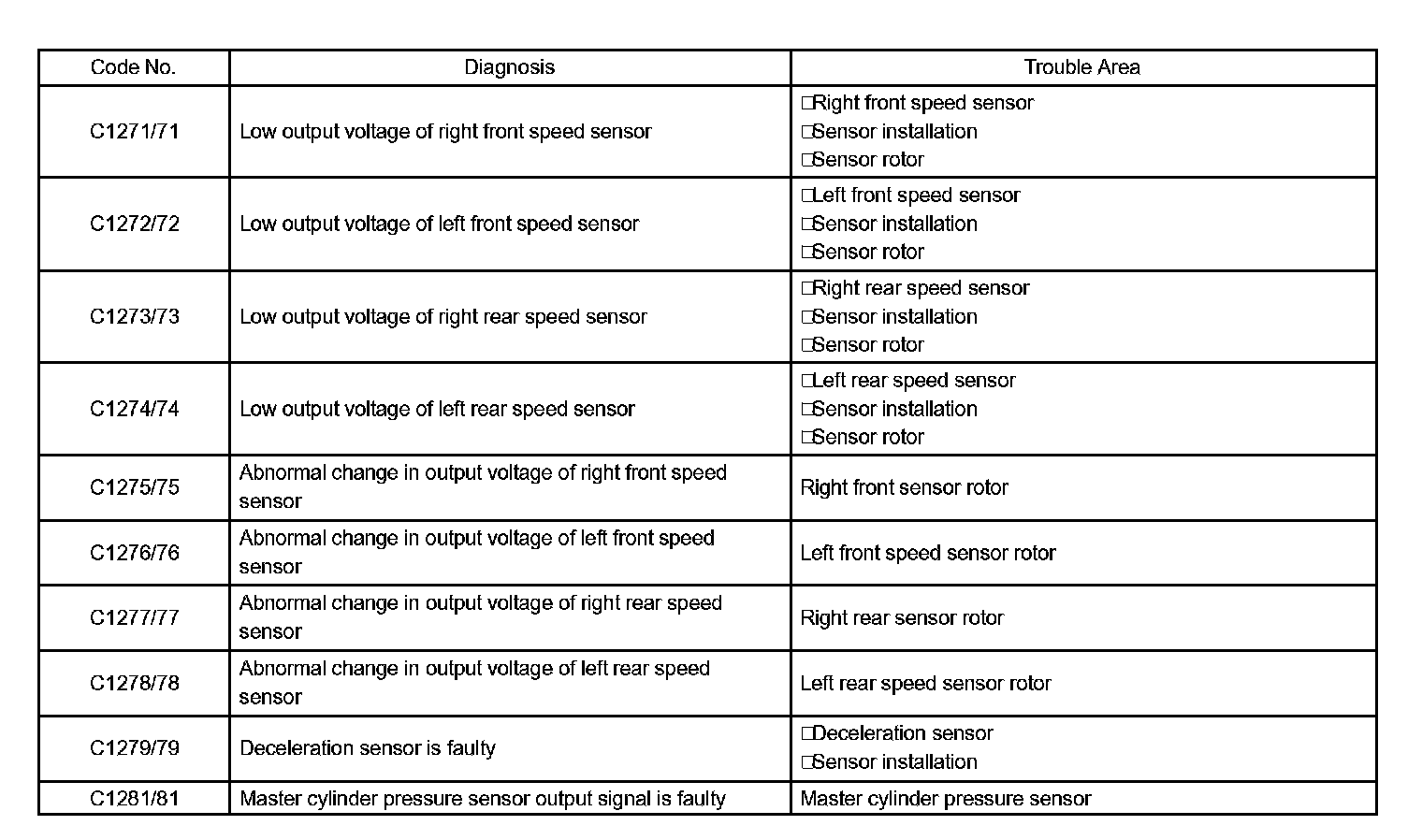

DTC of sensor check function
