C2159

DTC C2159 TRANSMITTER ID4 VOLTAGE DROP

CIRCUIT DESCRIPTION

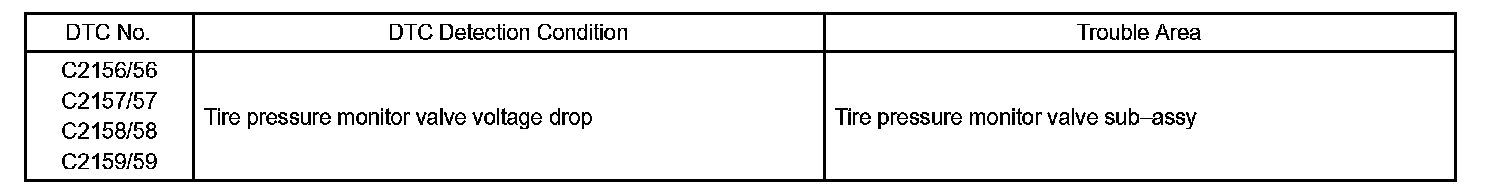

DTC Detection Condition:

HINT: Because the pressure monitor valve cannot be identified by a DTC, it is necessary to identify it through other methods.

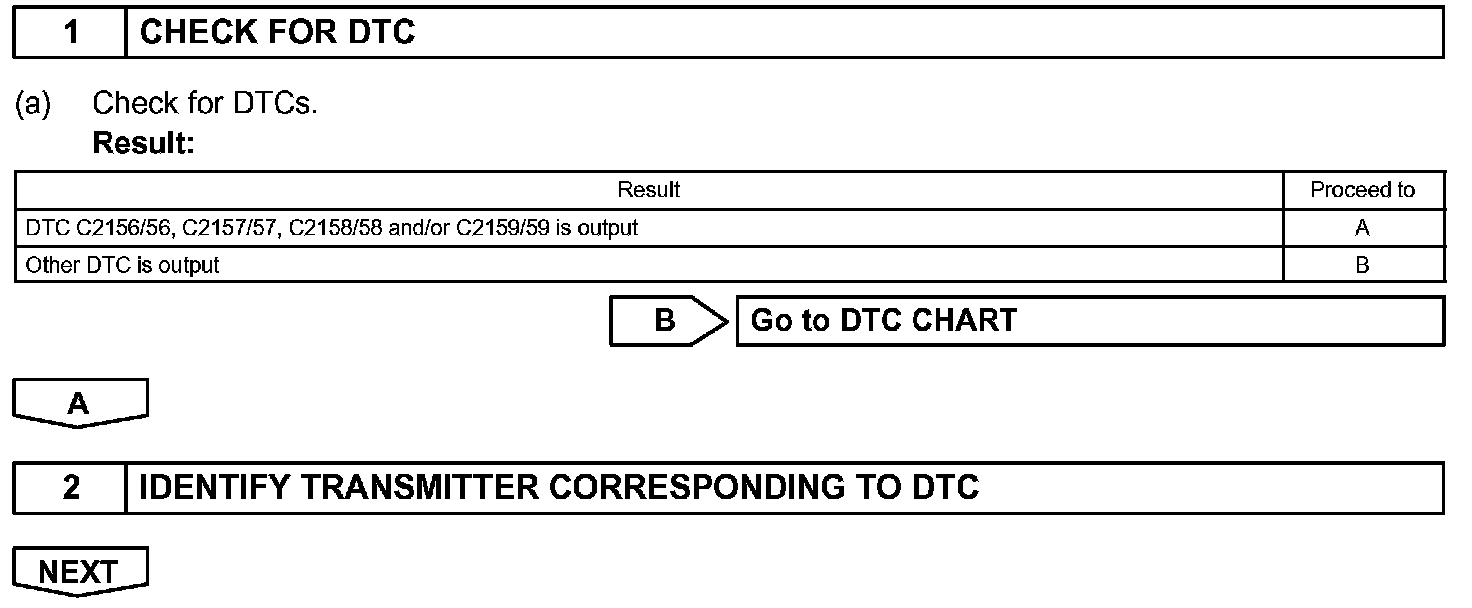

Step 1 - 2:

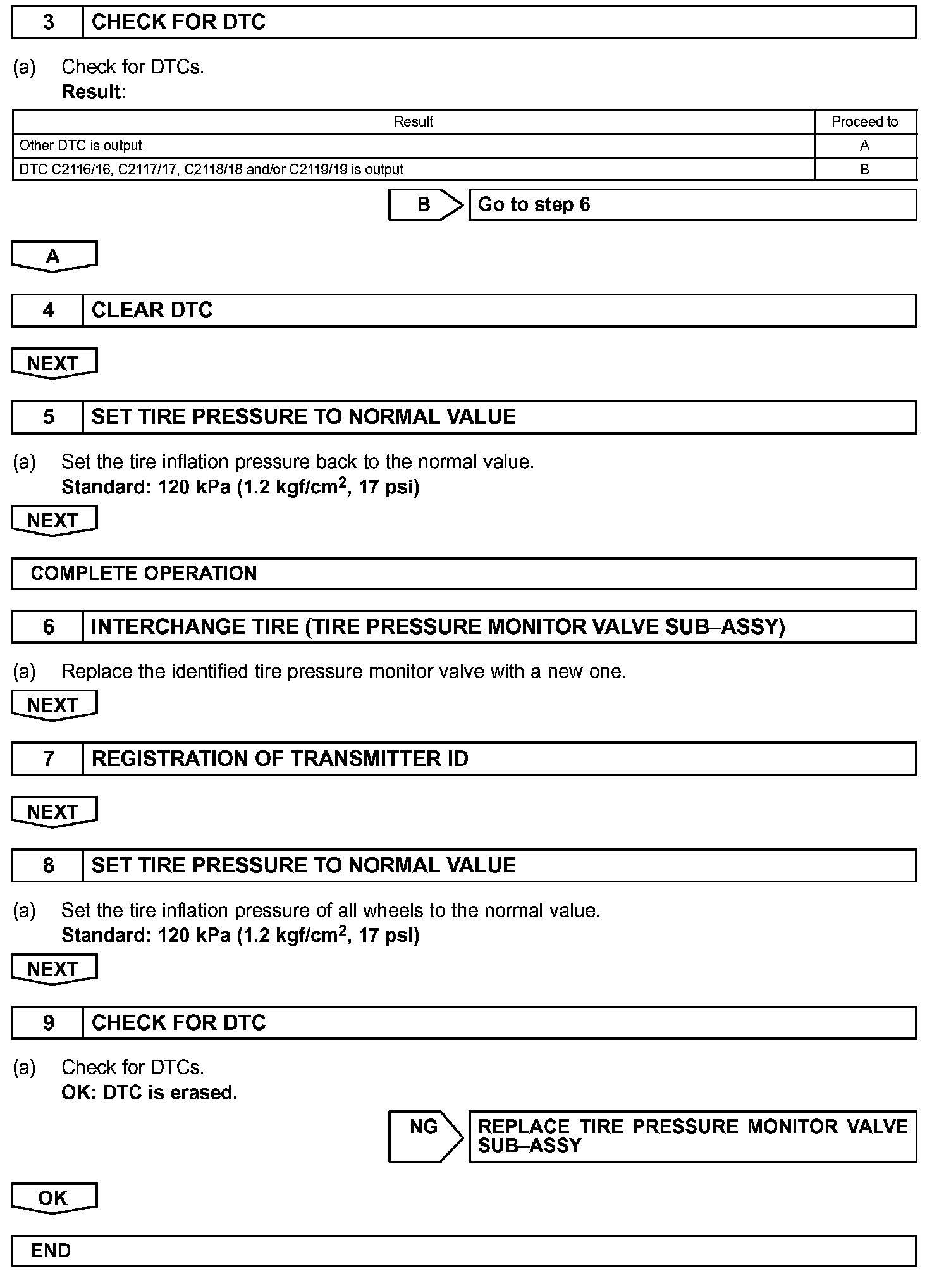

Step 3 - 9:

INSPECTION PROCEDURE

HINT: Correct the tire inflation pressure and inspect while the DTC is being output.
