C2144

DTC C2144 TRANSMITTER ID4 ERROR

CIRCUIT DESCRIPTION

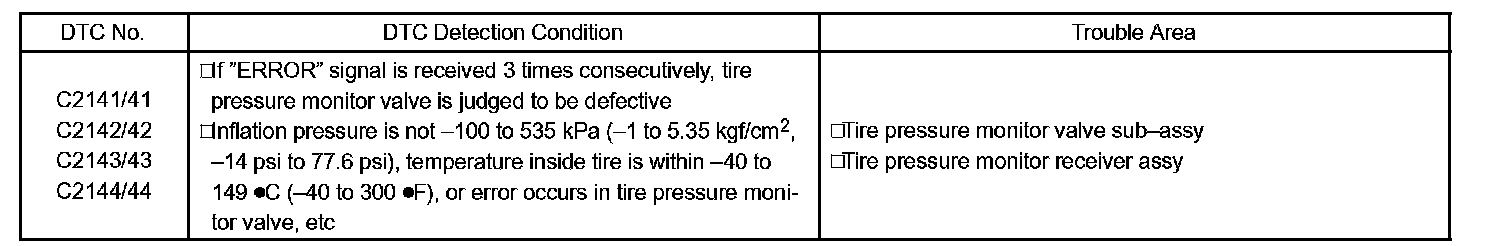

DTC Detection Condition:

HINT: Because the pressure monitor valve cannot be identified by a DTC, it is necessary to identify it through other methods.

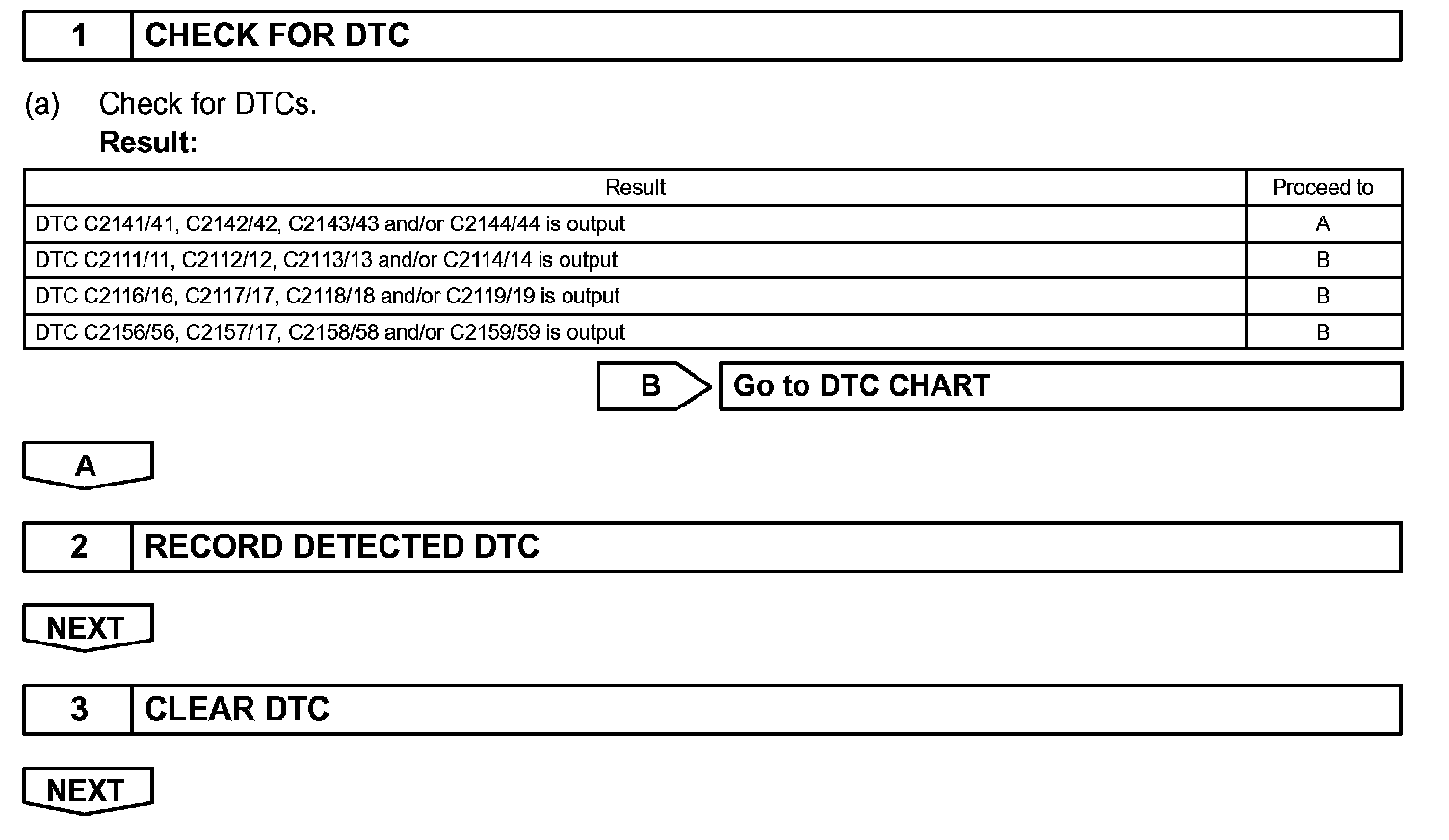

Step 1 - 3:

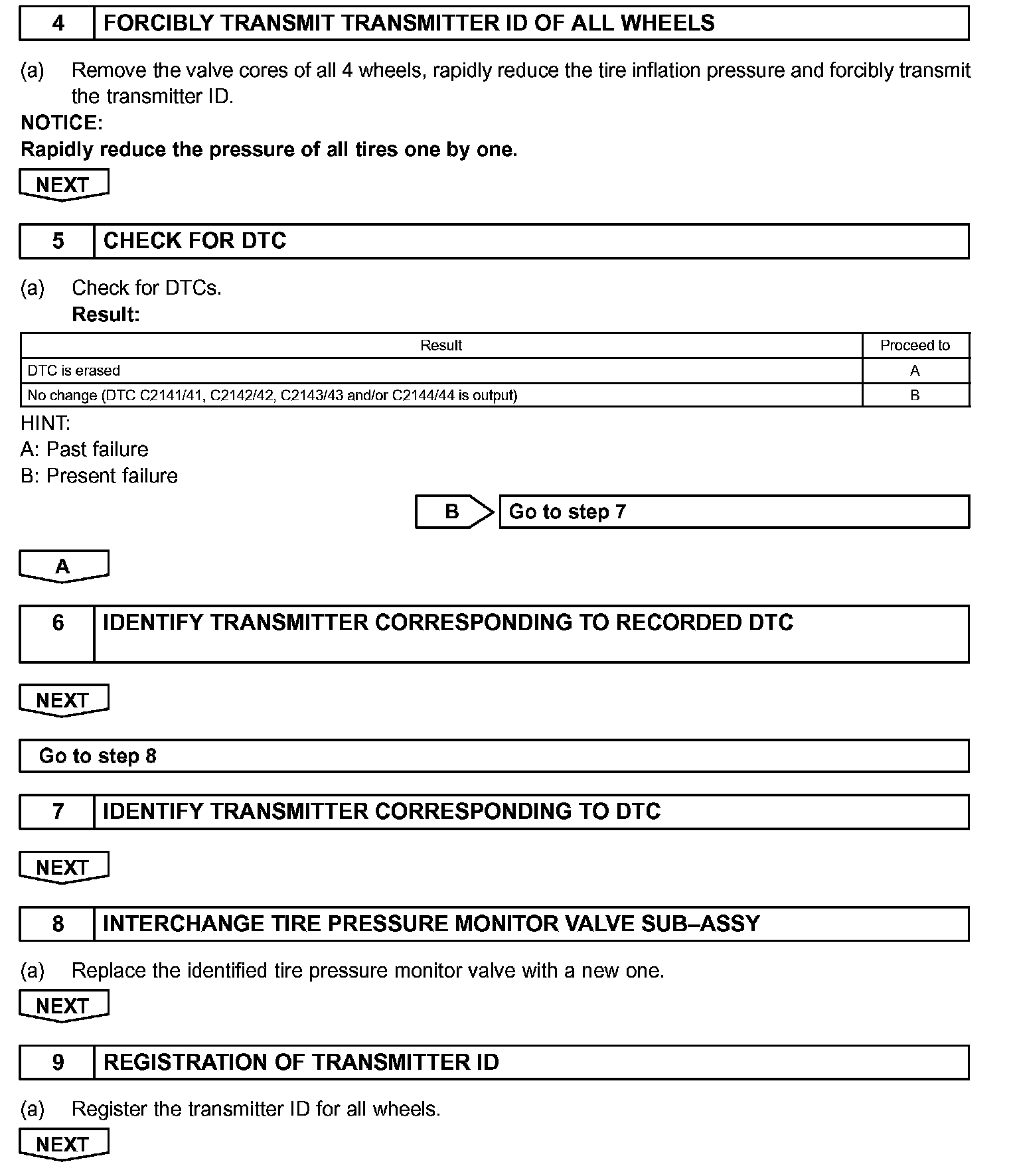

Step 4 - 9:

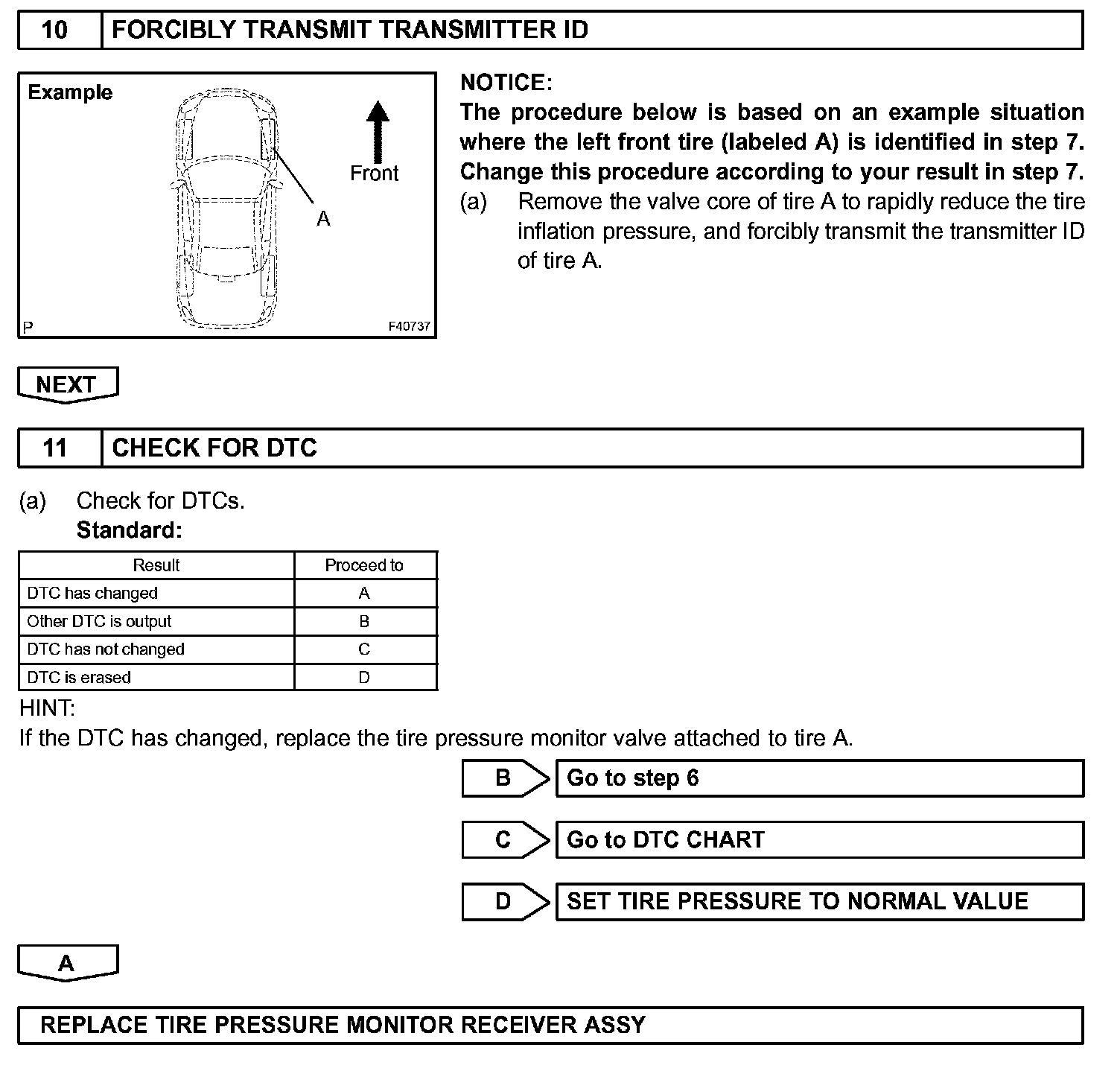

Step 10 - 11:

INSPECTION PROCEDURE

HINT: Correct the tire inflation pressure and inspect it while a DTC is being output.
