C1249
C1249
DTC C1249 STOP LIGHT SWITCH CIRCUIT

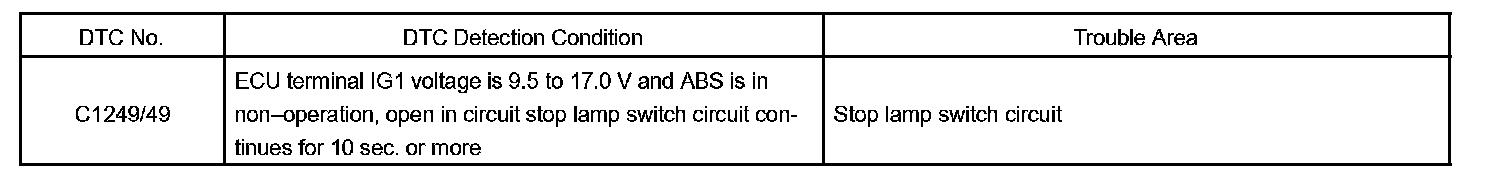

DTC Detection Condition:
CIRCUIT DESCRIPTION

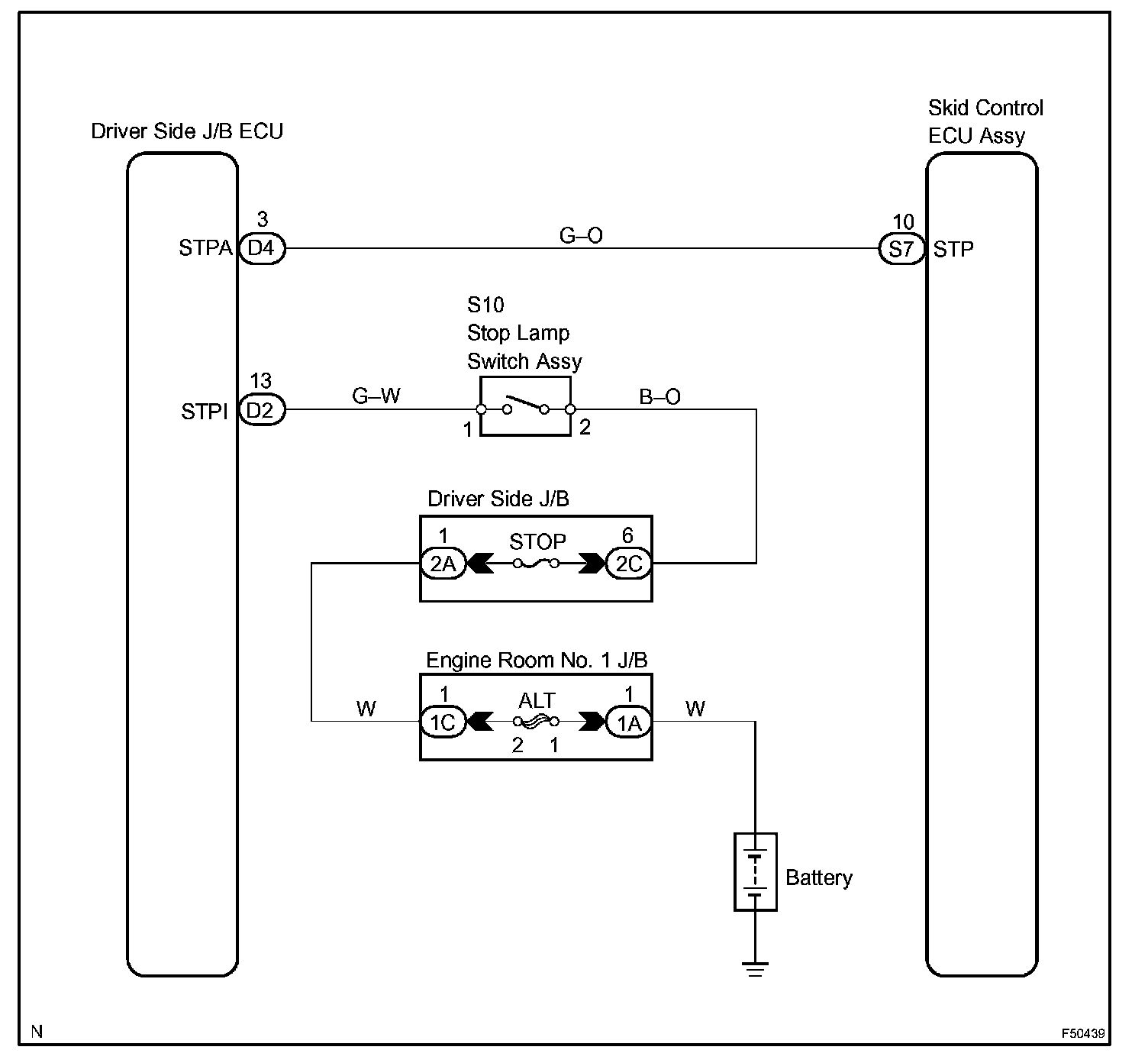

Wiring Diagram:

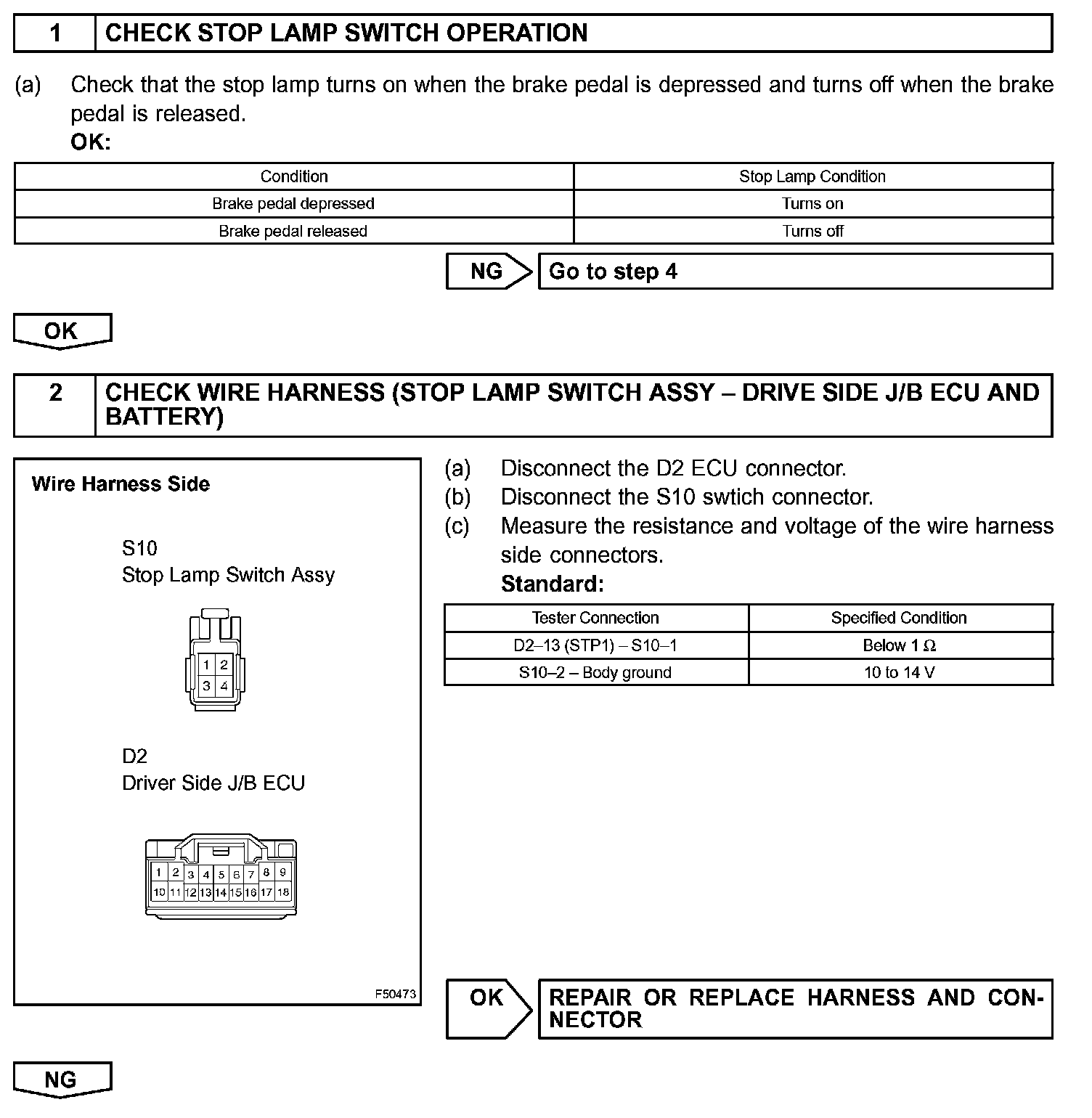

Step 1 - 2:

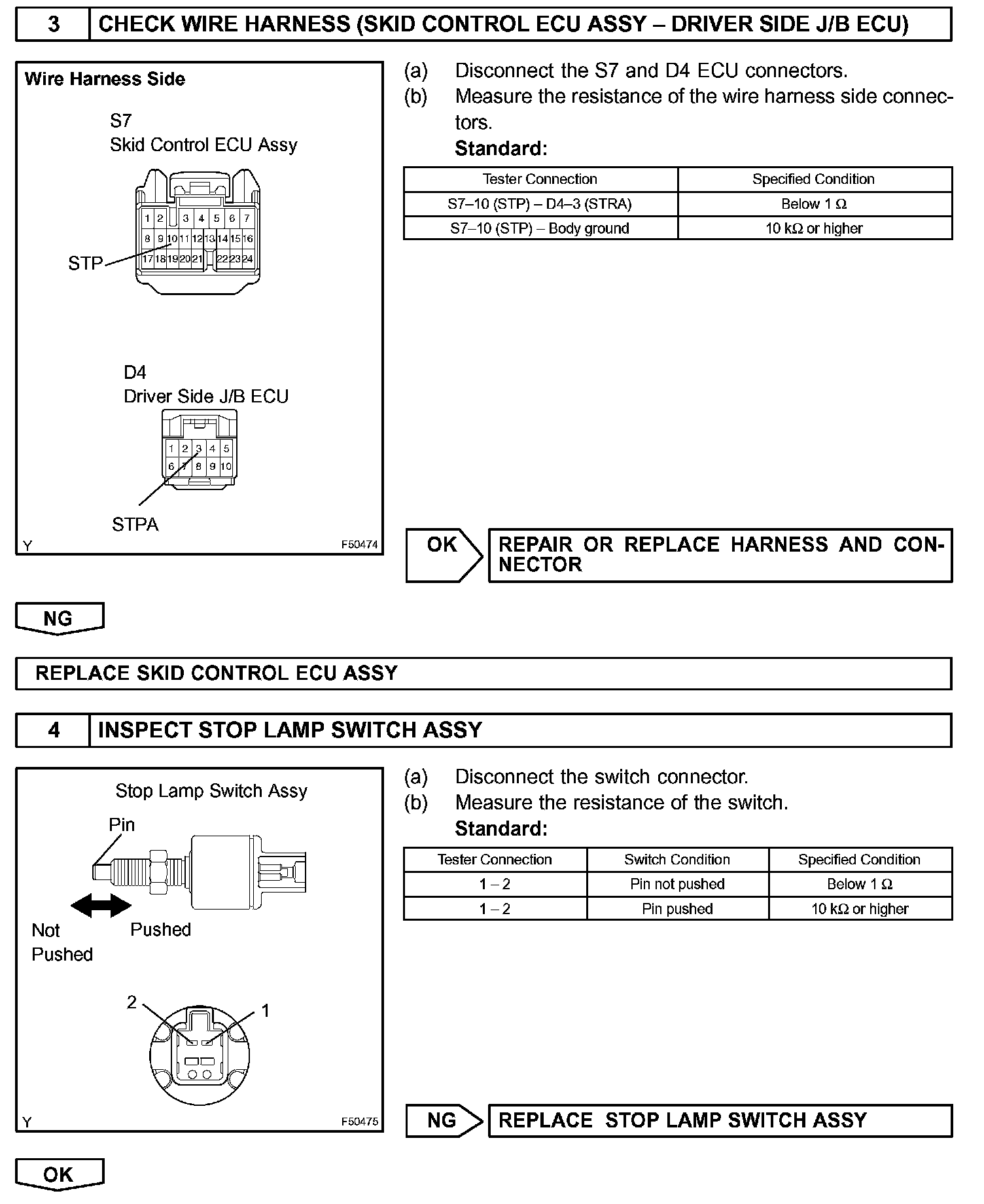

Step 3 - 4:

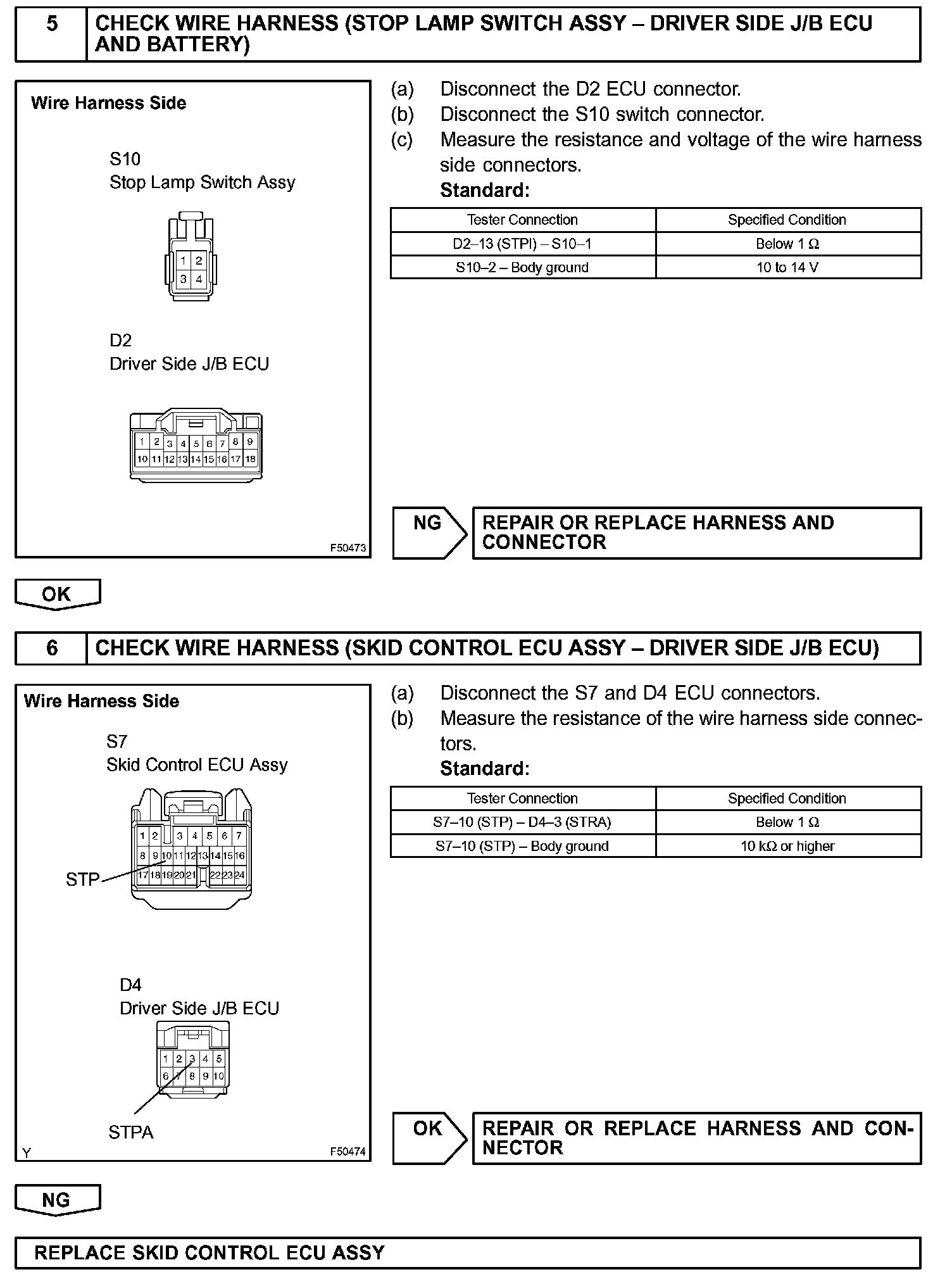

Step 5 - 6:
INSPECTION PROCEDURE
