C1231

DTC C1231 MALFUNCTION IN STEERING ANGLE SENSOR CIRCUIT

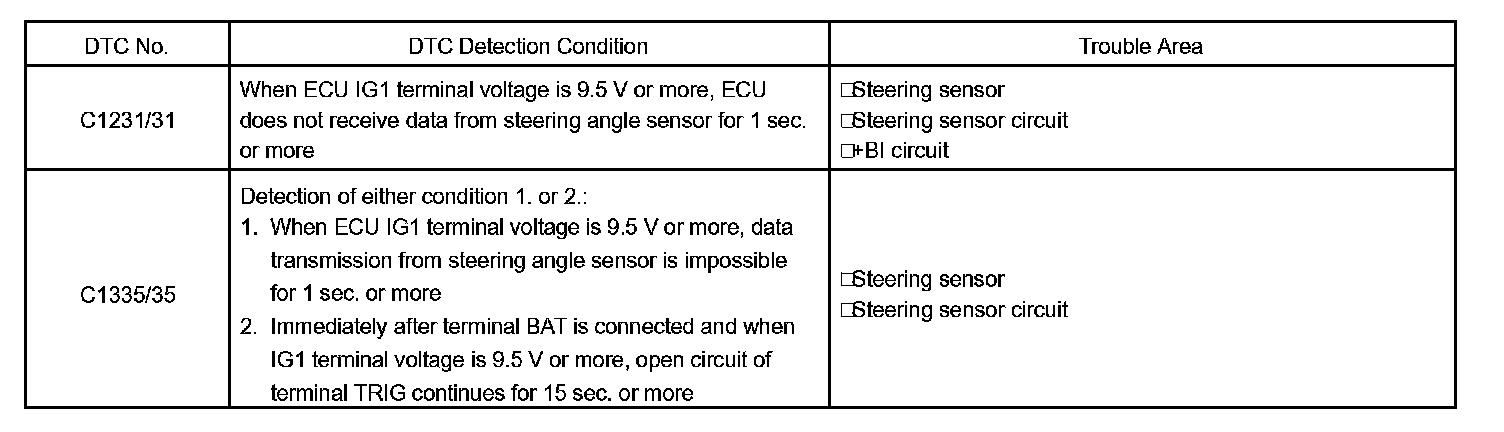

DTC Detection Condition:

CIRCUIT DESCRIPTION

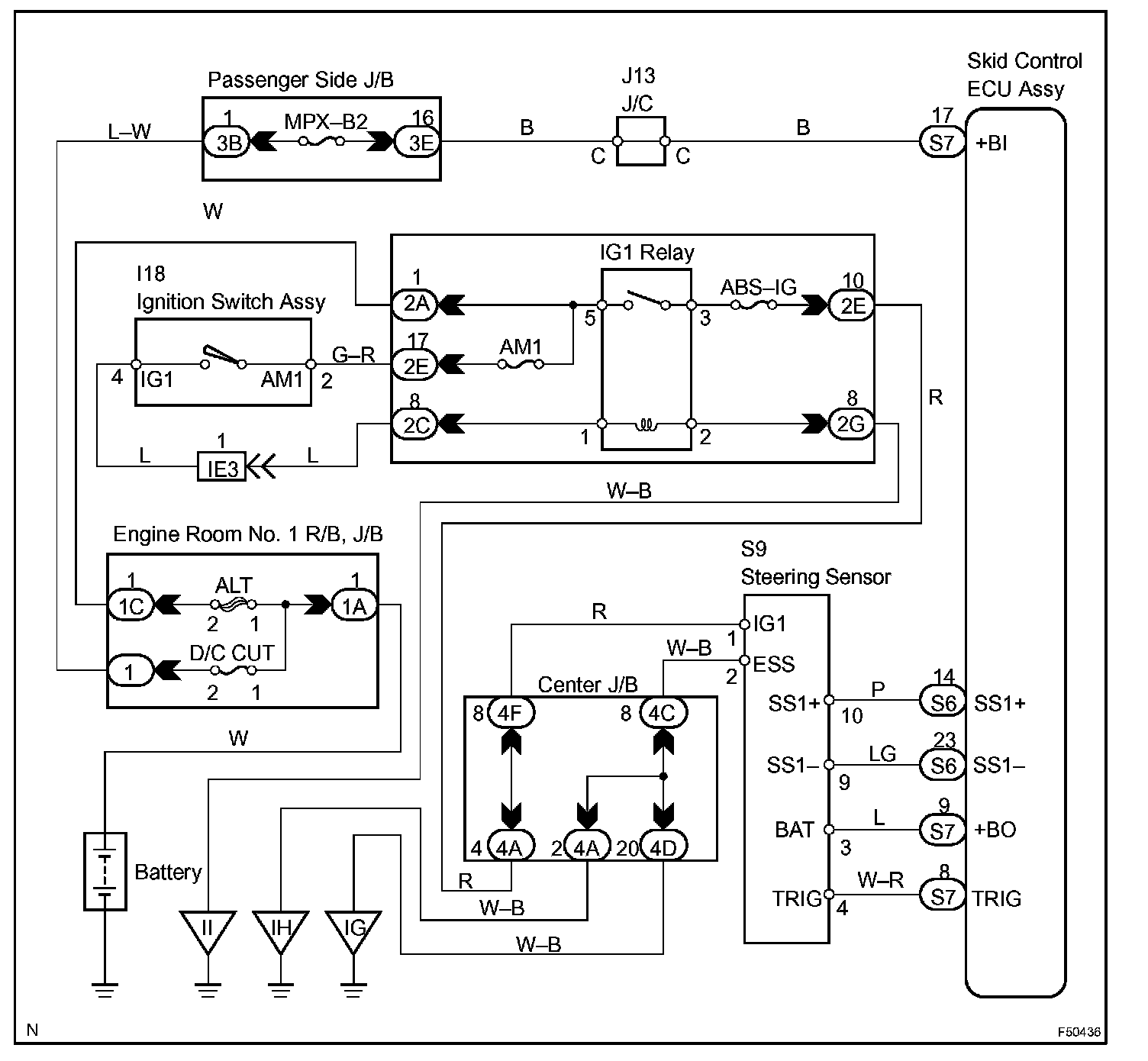

Wiring Diagram:

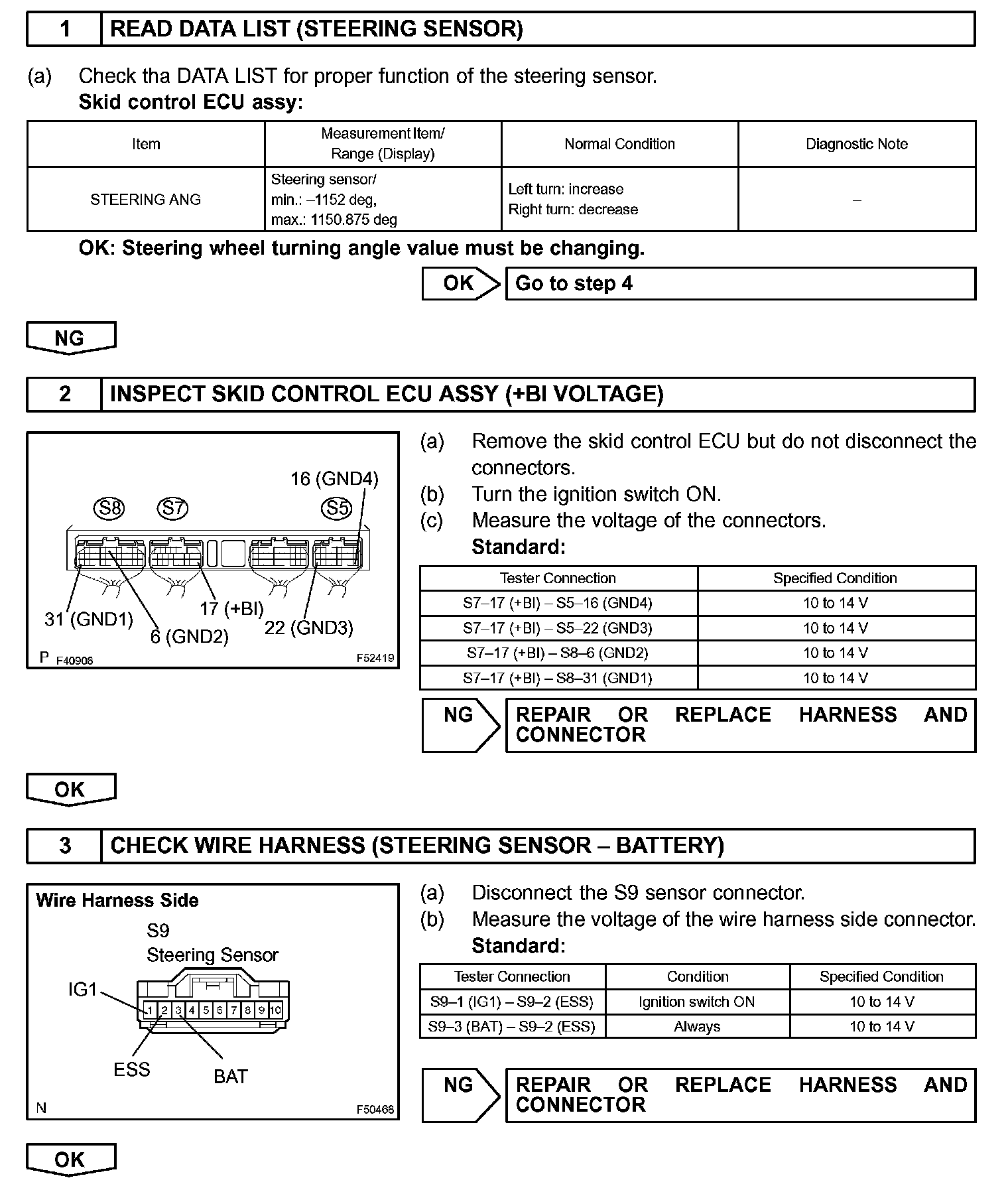

Step 1 - 3:

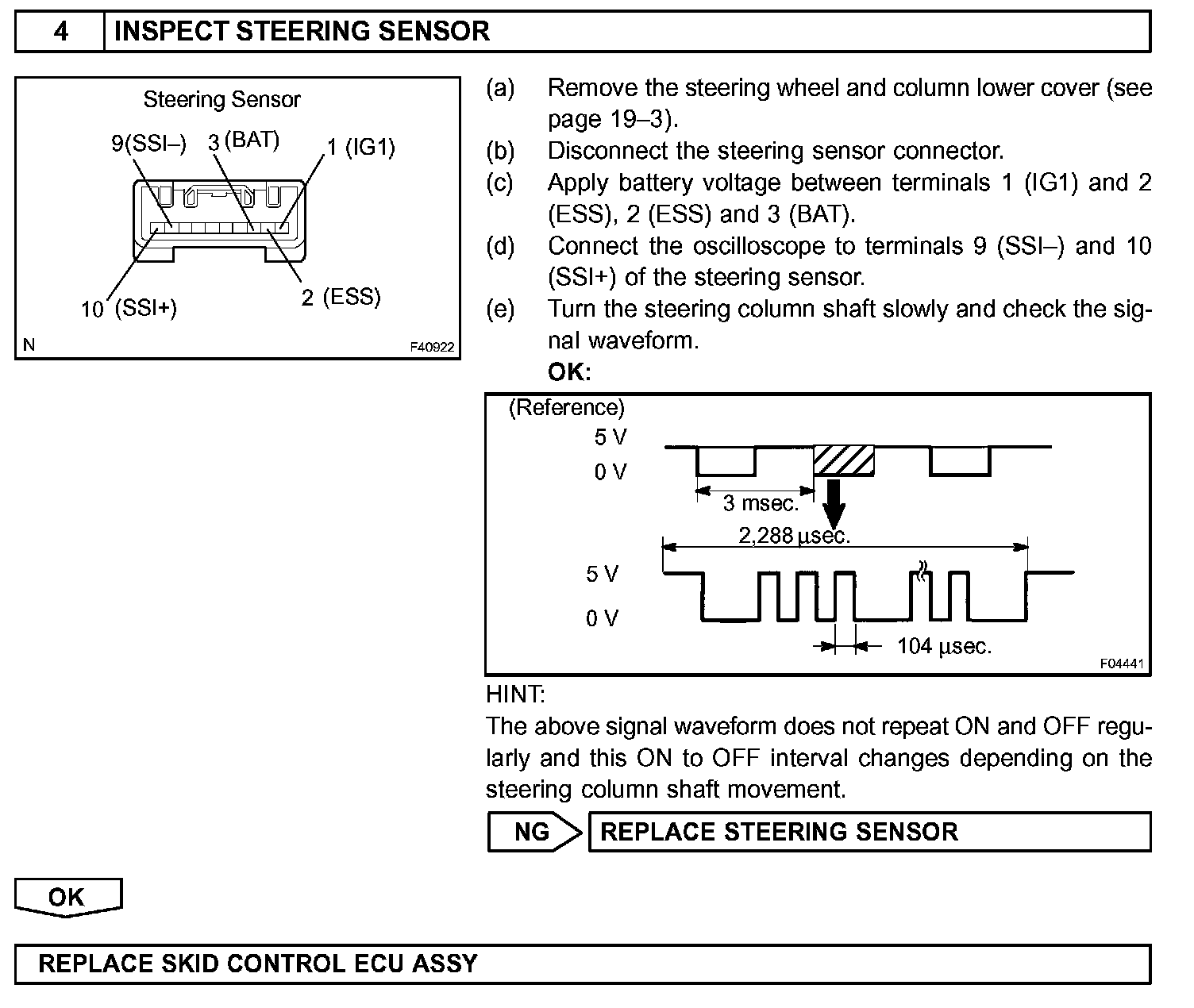

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
