B2551

DTC B2551 PULSE WIDTH MODULATION MOTOR RH POWER SUPPLY CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

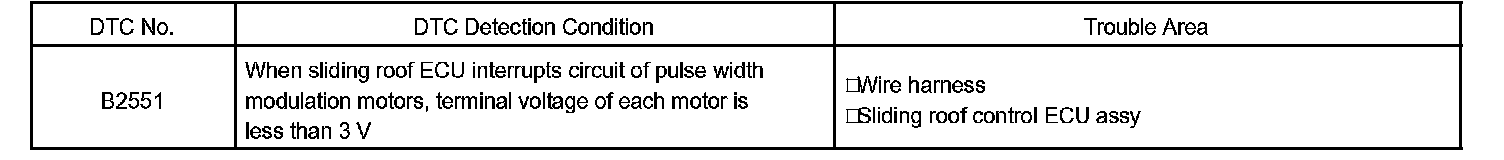

DTC Detection Condition:

This circuit indicates the roof motor, luggage motor or luggage closer motor depending on which motor is being used.

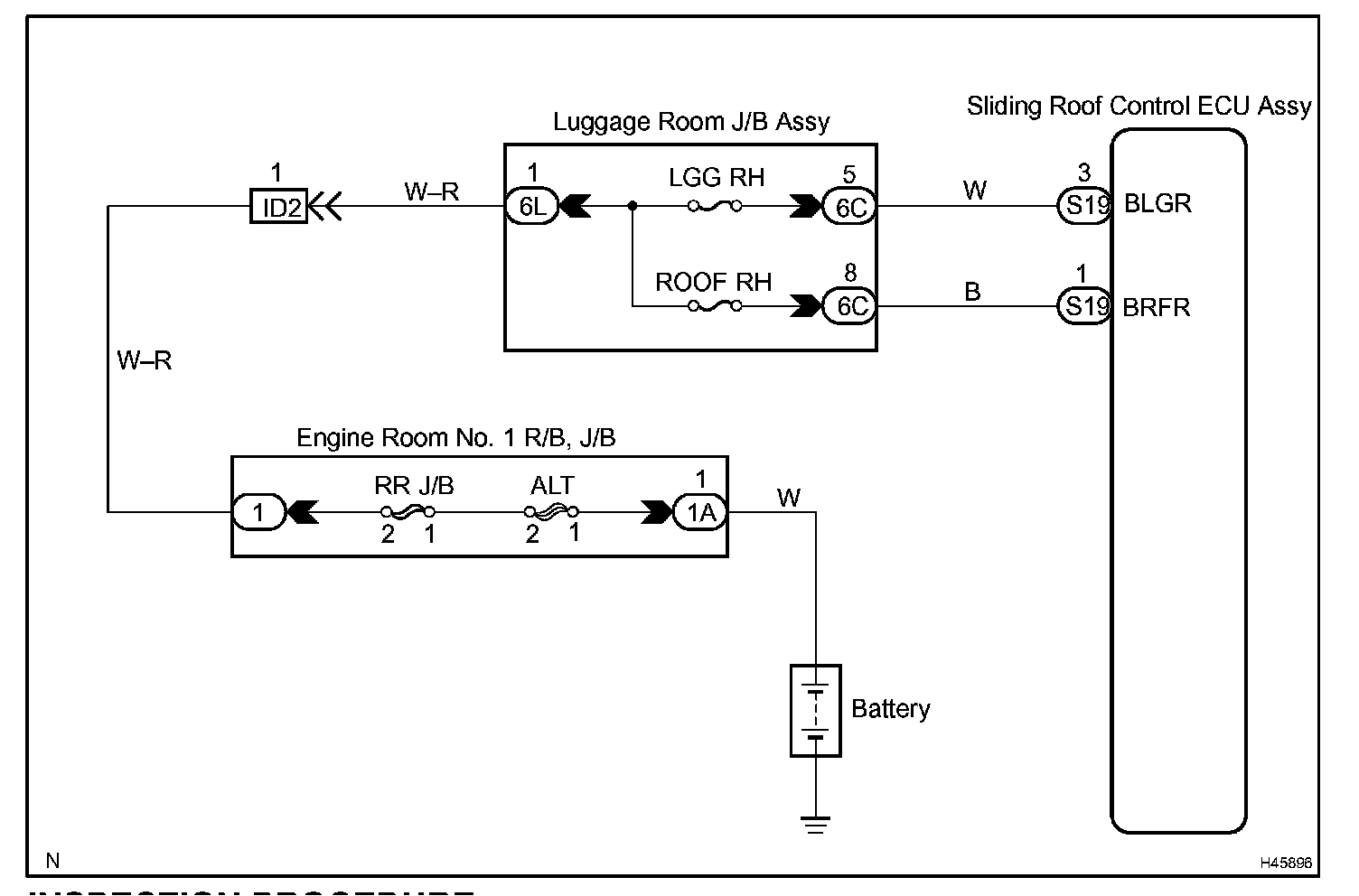

Wiring Diagram:

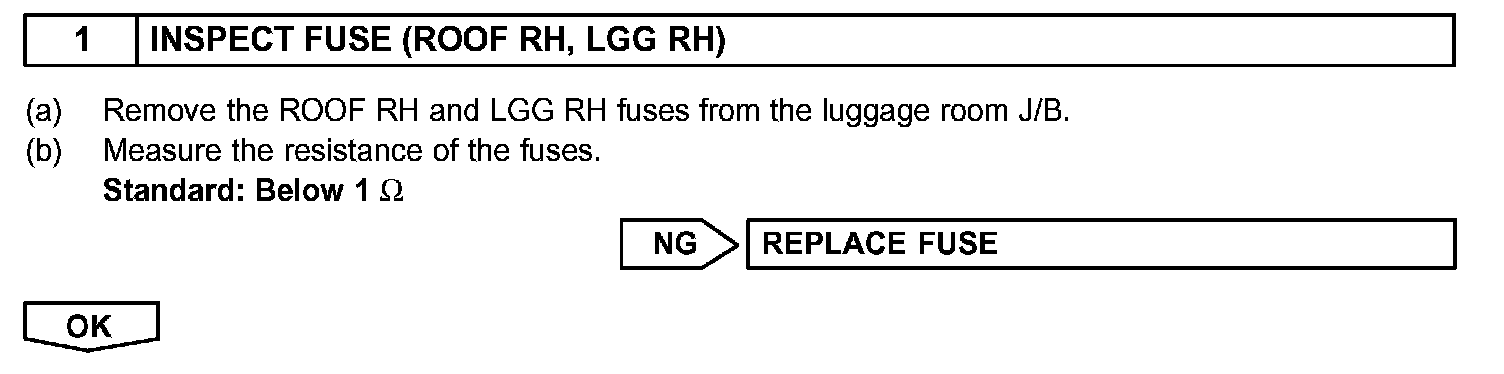

Step 1:

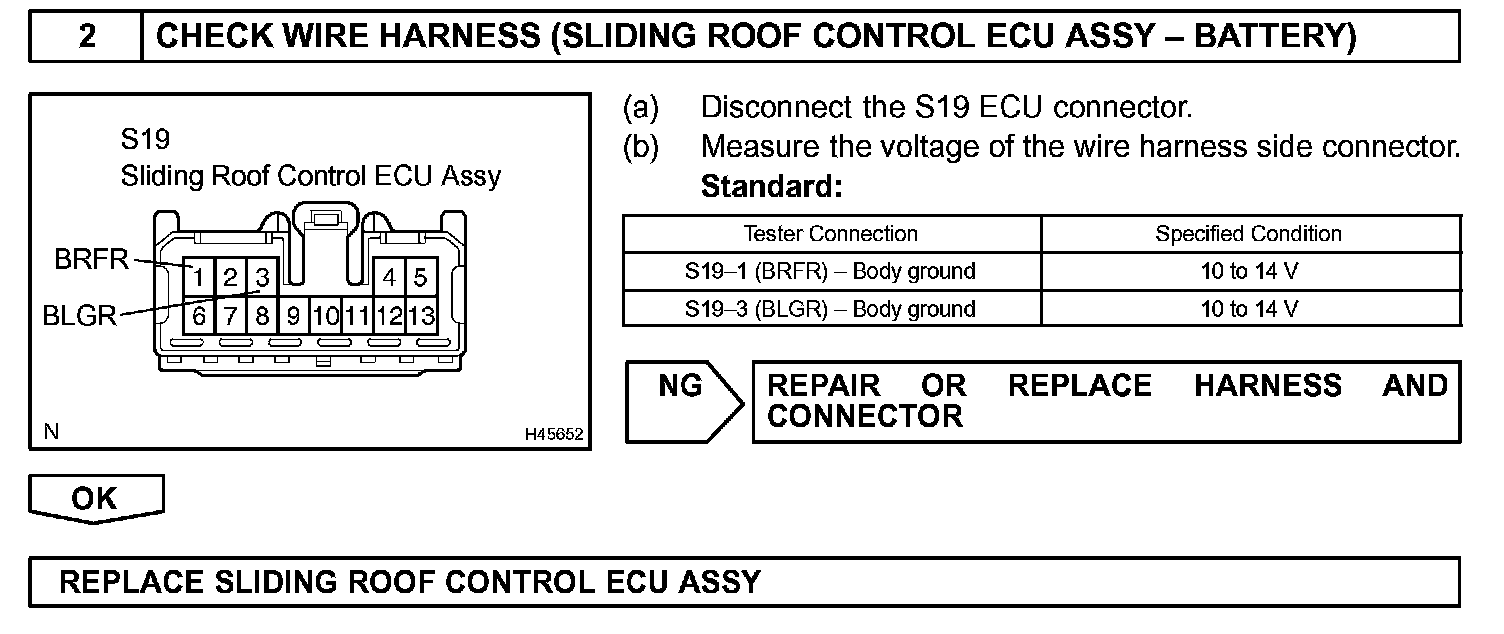

Step 2:

INSPECTION PROCEDURE
