B2543

DTC B2543 ABNORMAL DIFFERENCE BETWEEN RH AND LH LUGGAGE DOOR DRIVE MOTOR PULSE

CIRCUIT DESCRIPTION

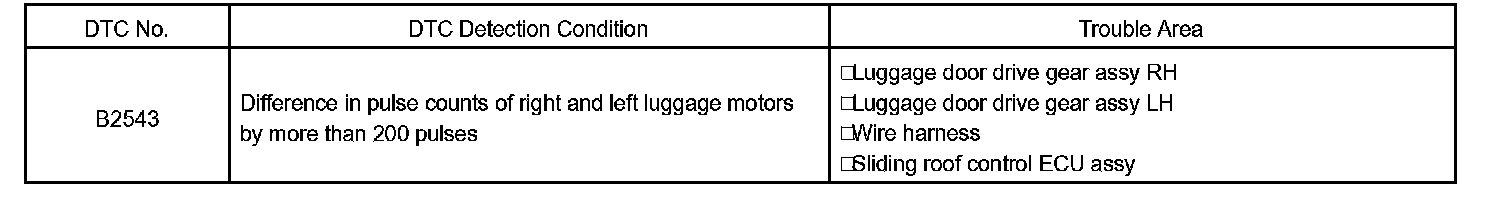

DTC Detection Condition:

Pulse signal is created by the rotation of the luggage door drive motor.
The signal is used to control the luggage door operation's speed.

Wiring Diagram:

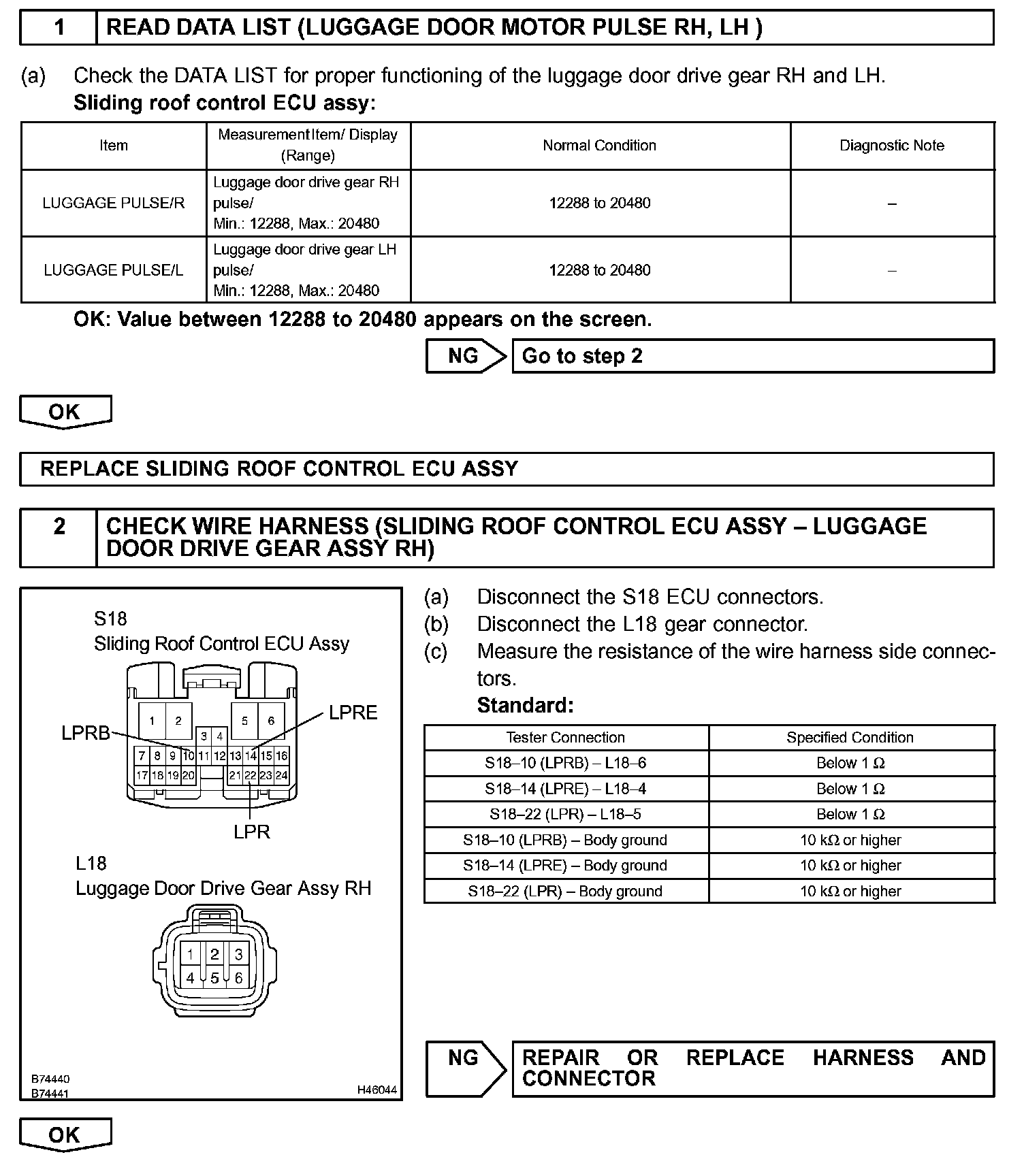

Step 1 - 2:

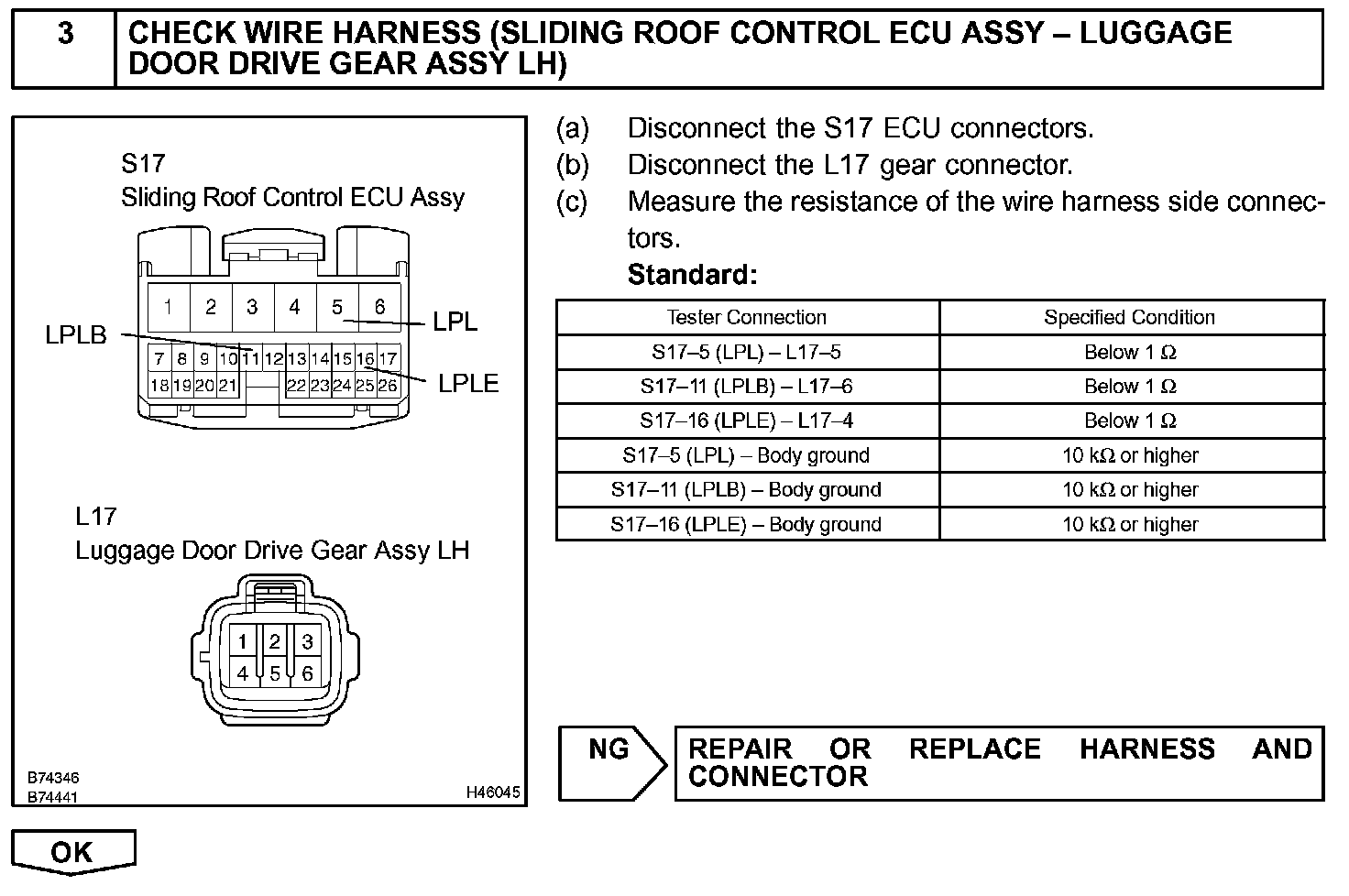

Step 3:

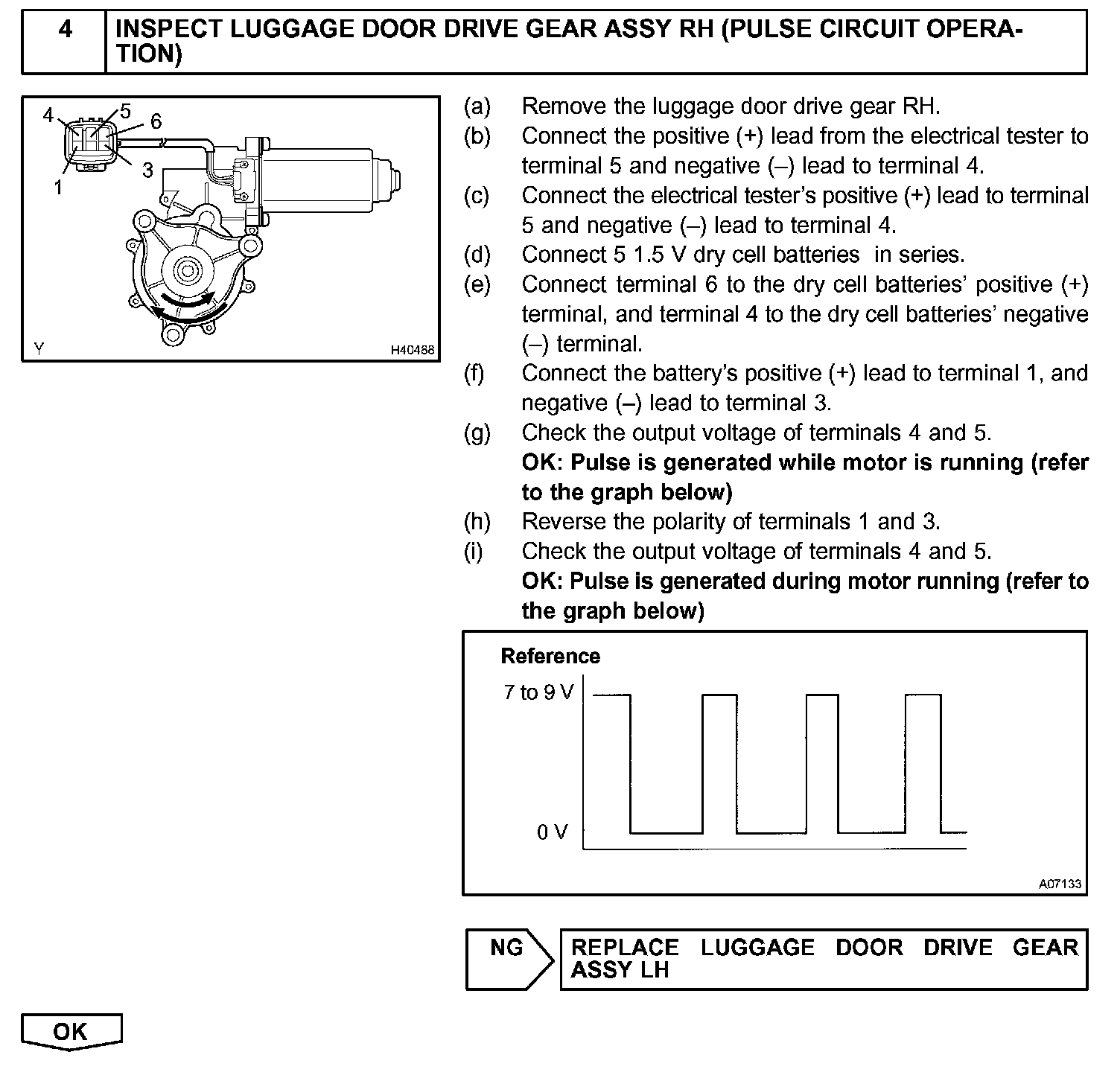

Step 4:

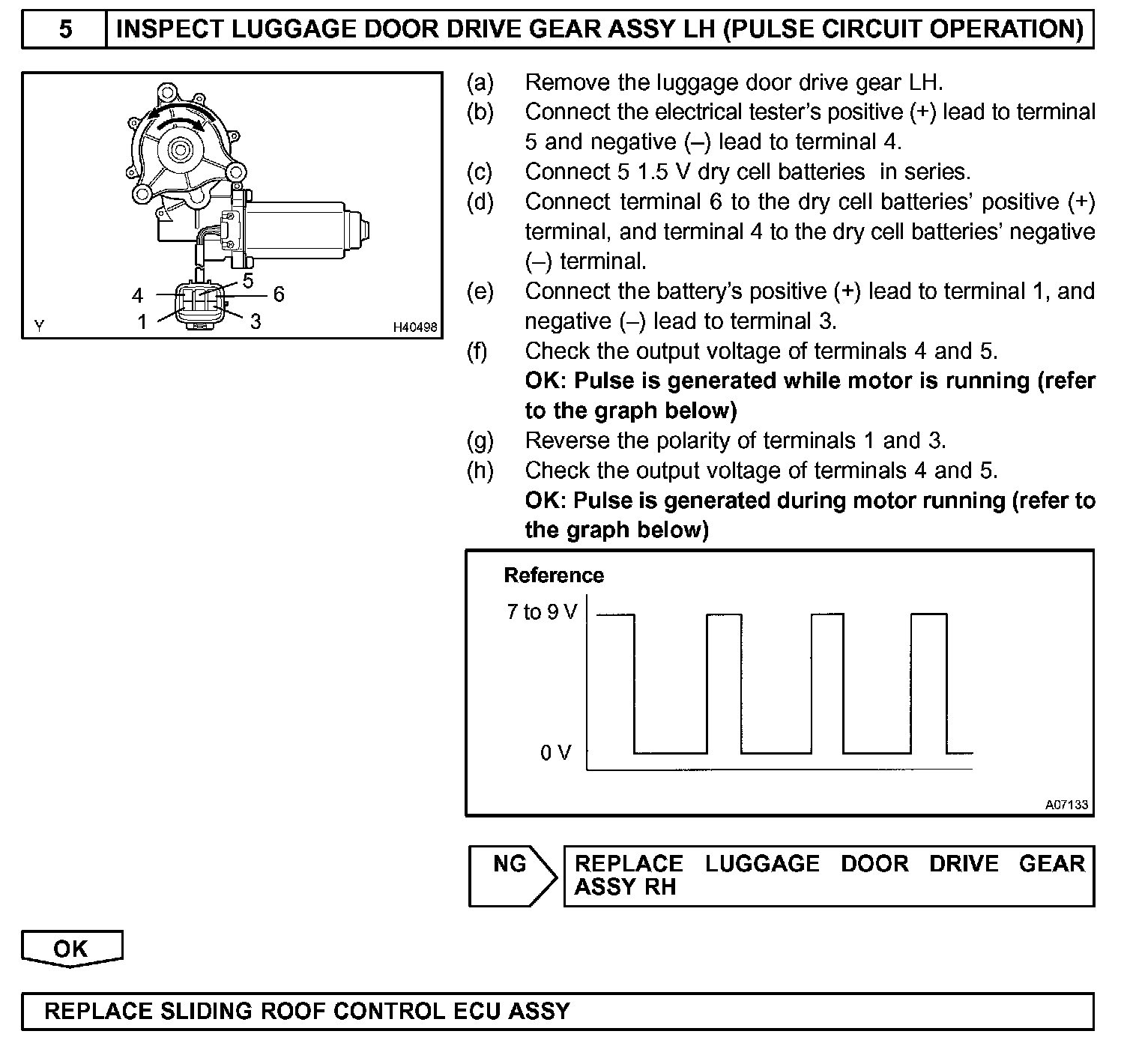

Step 5:

INSPECTION PROCEDURE
