B2542

DTC B2542 ABNORMAL LUGGAGE DOOR DRIVE MOTOR LH PULSE

CIRCUIT DESCRIPTION

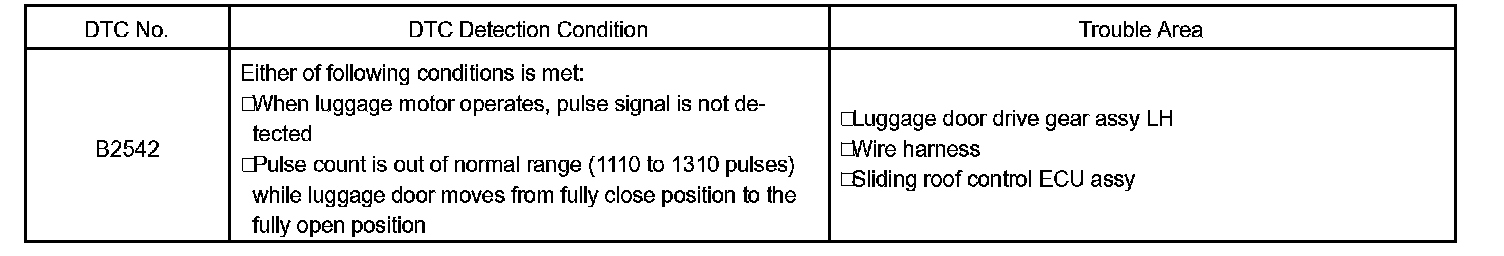

DTC Detection Condition:

Pulse signal is created by the rotation of the luggage door drive motor.
The signal is used to control the luggage door operation's speed.

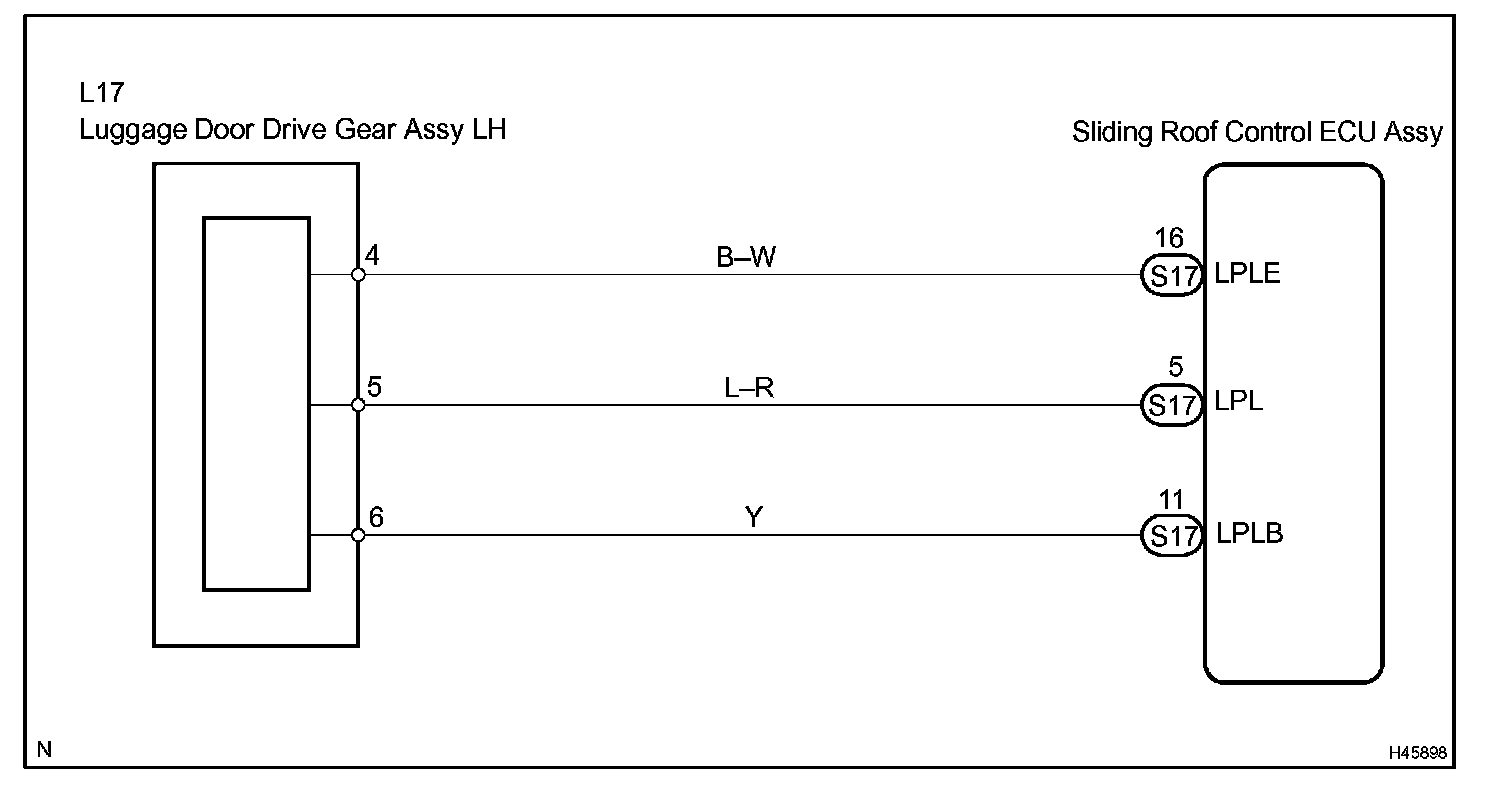

Wiring Diagram:

Step 1 - 2:

Step 3:

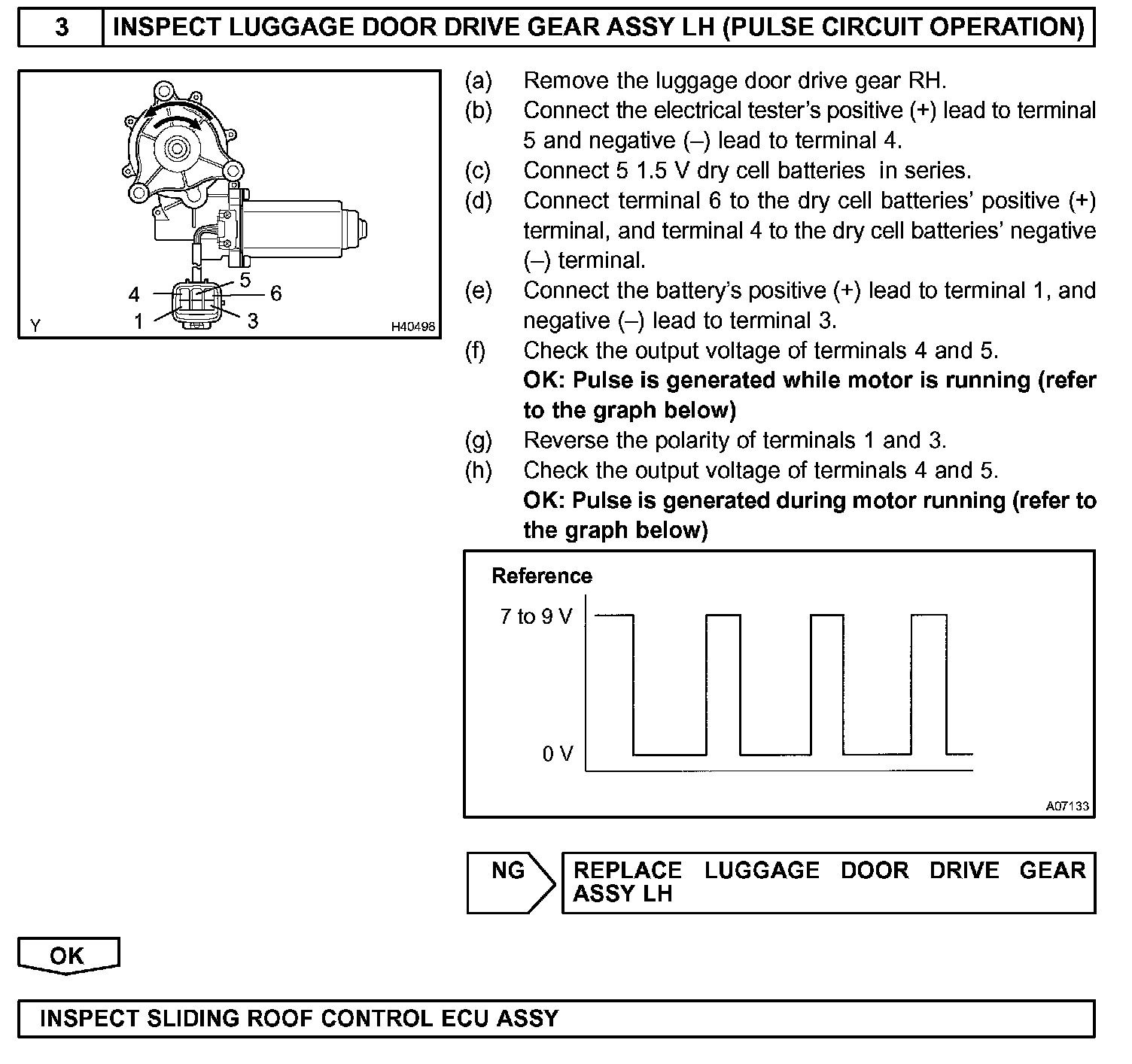

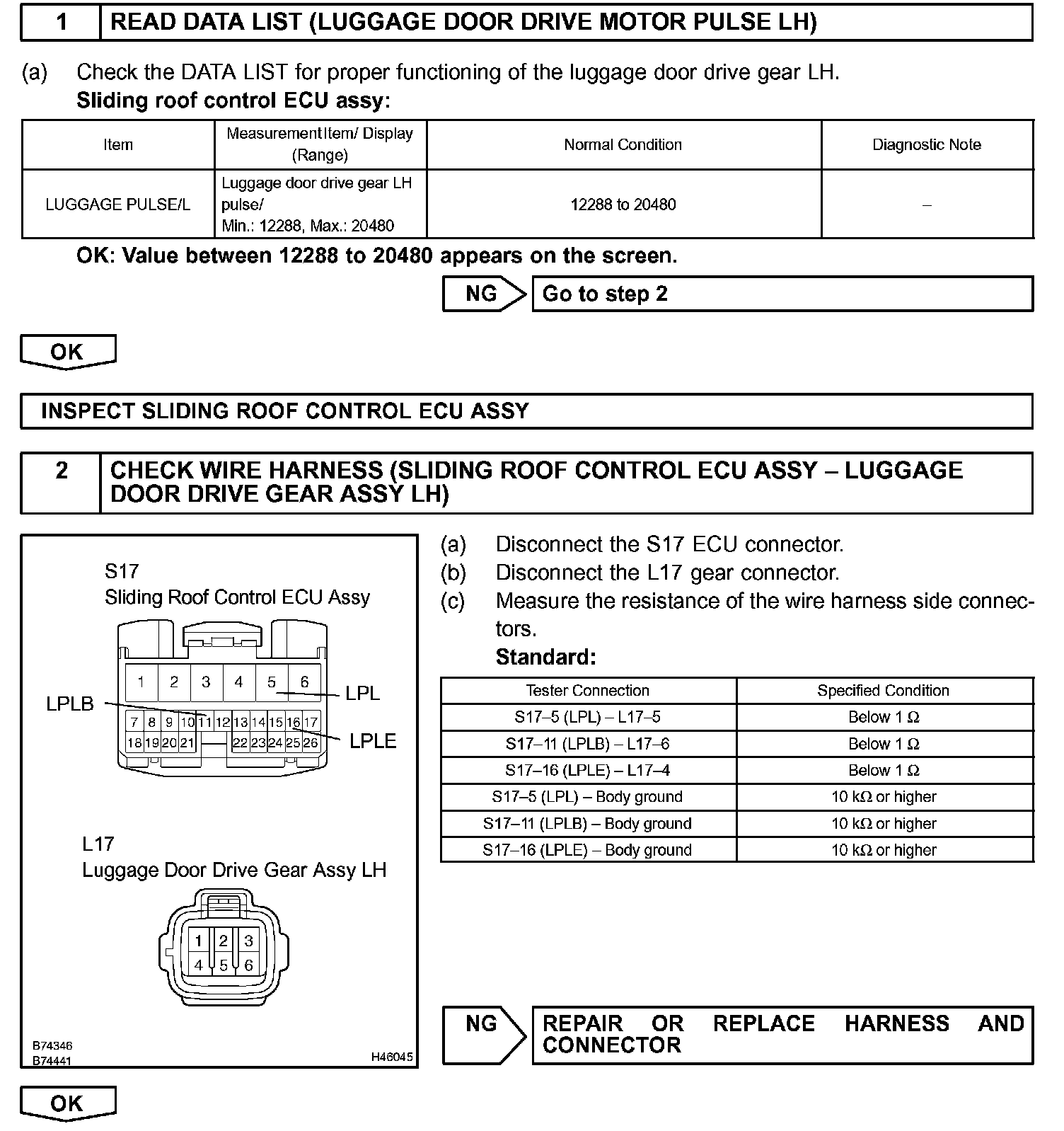

INSPECTION PROCEDURE

HINT: If DTCs B2508 and B2538 are output simultaneously, luggage door drive motor LH circuit may be open. Perform troubleshooting of DTC B2508 first.
