B2541

DTC B2541 ABNORMAL LUGGAGE DOOR DRIVE MOTOR RH PULSE

CIRCUIT DESCRIPTION

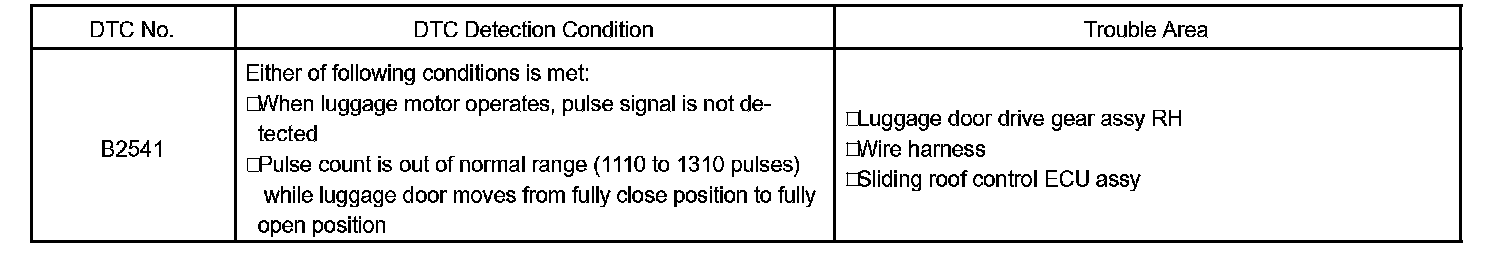

DTC Detection Condition:

Pulse signal is created by the rotation of the luggage door drive motor.
The signal is used to control the luggage door operation's speed.

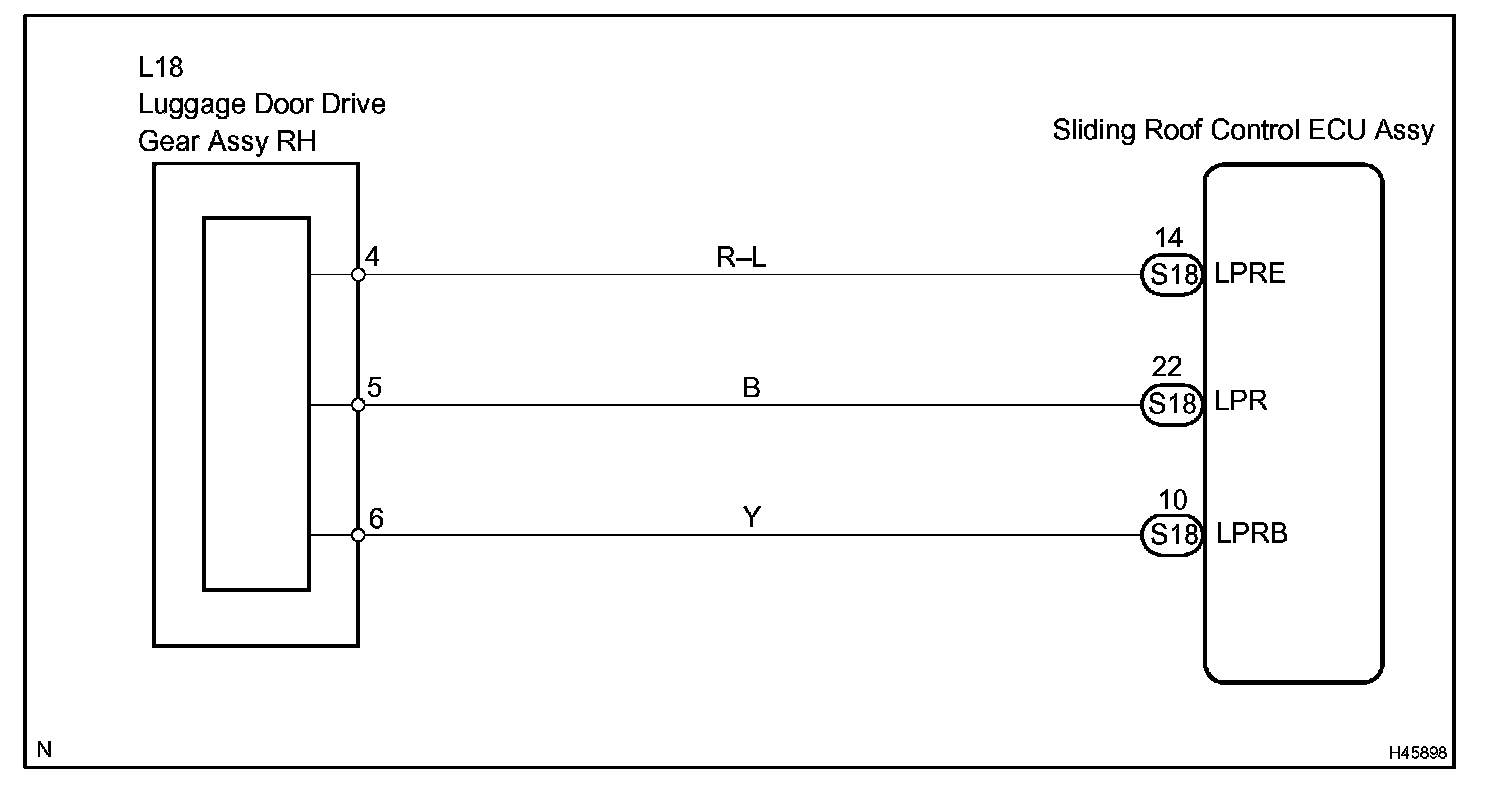

Wiring Diagram:

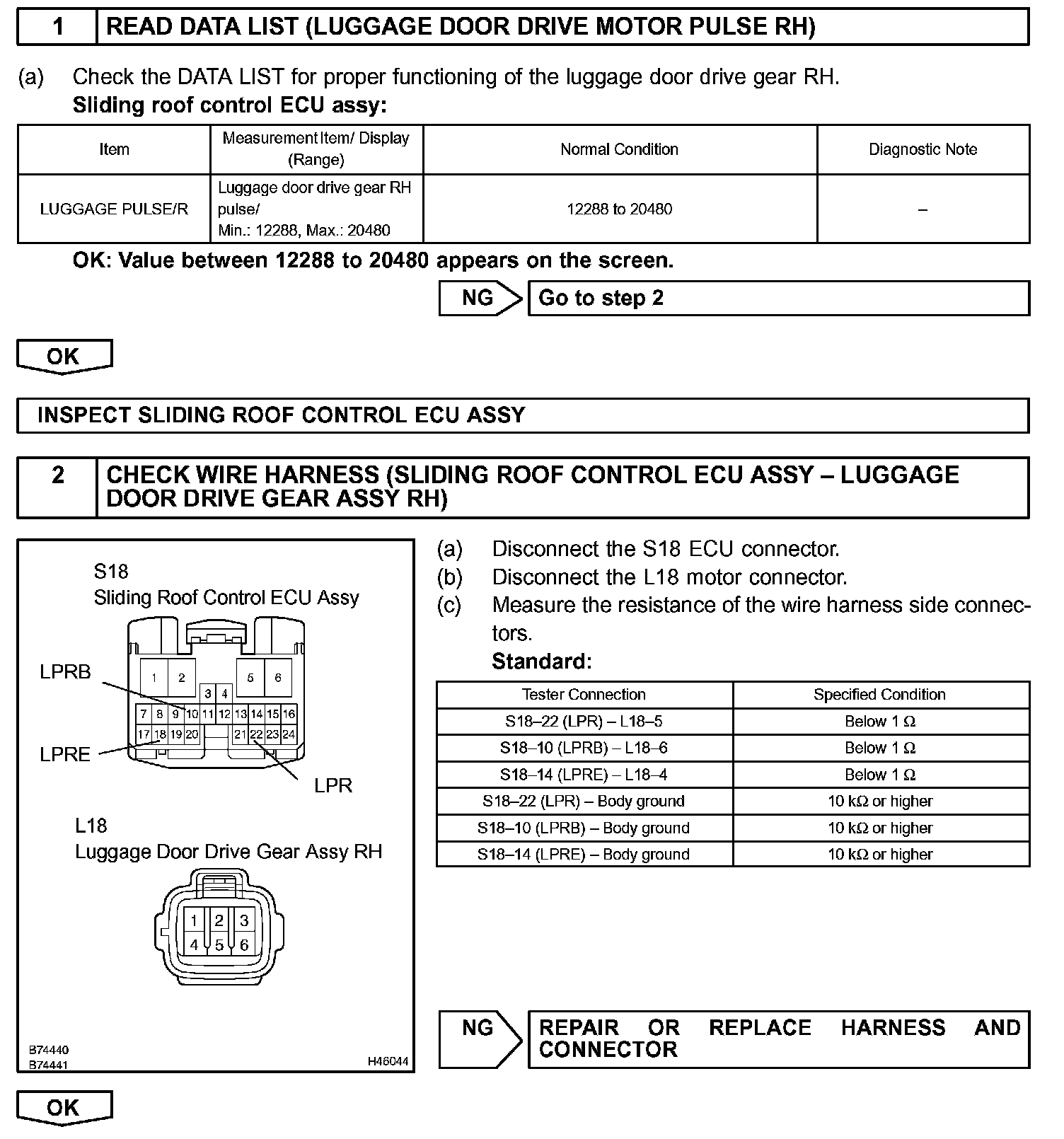

Step 1 - 2:

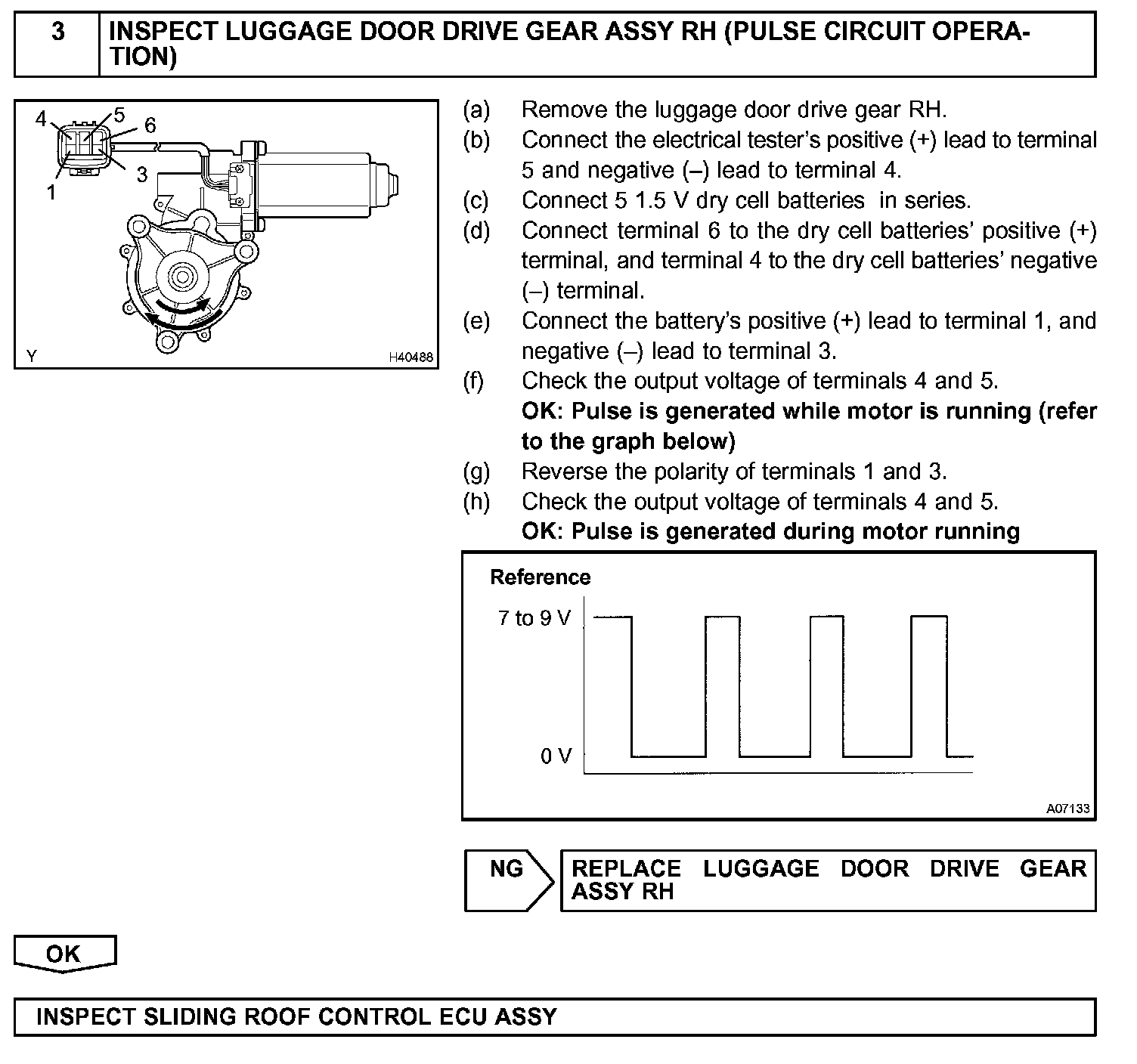

Step 3:

INSPECTION PROCEDURE
