B2538

DTC B2538 ABNORMAL ROOF DRIVE MOTOR RH PULSE

CIRCUIT DESCRIPTION

DTC Detection Condition:

Pulse signal is created by the rotation of the roof drive motor.
The signal is used to control the speed for the luggage roof operation.

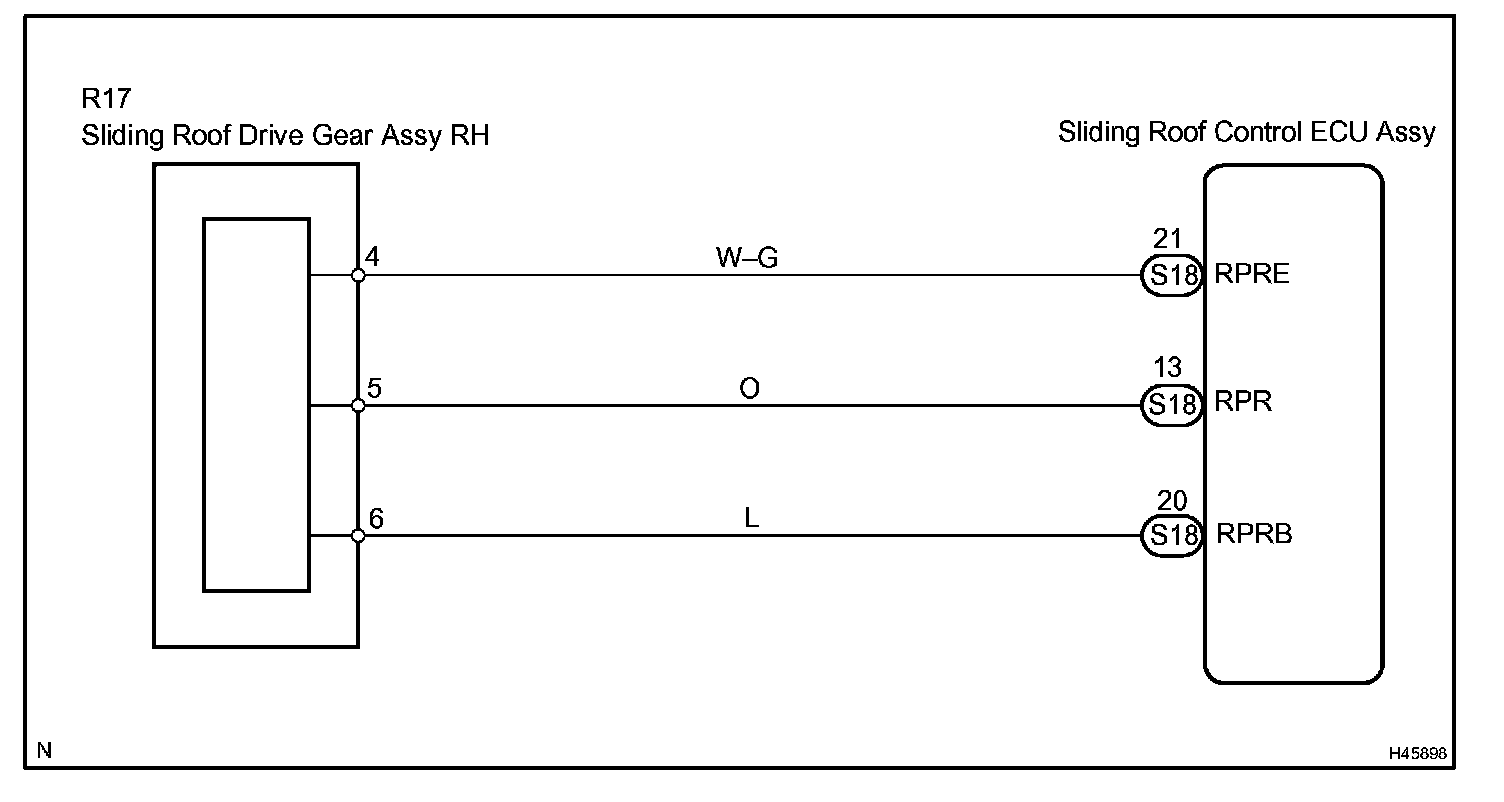

Wiring Diagram:

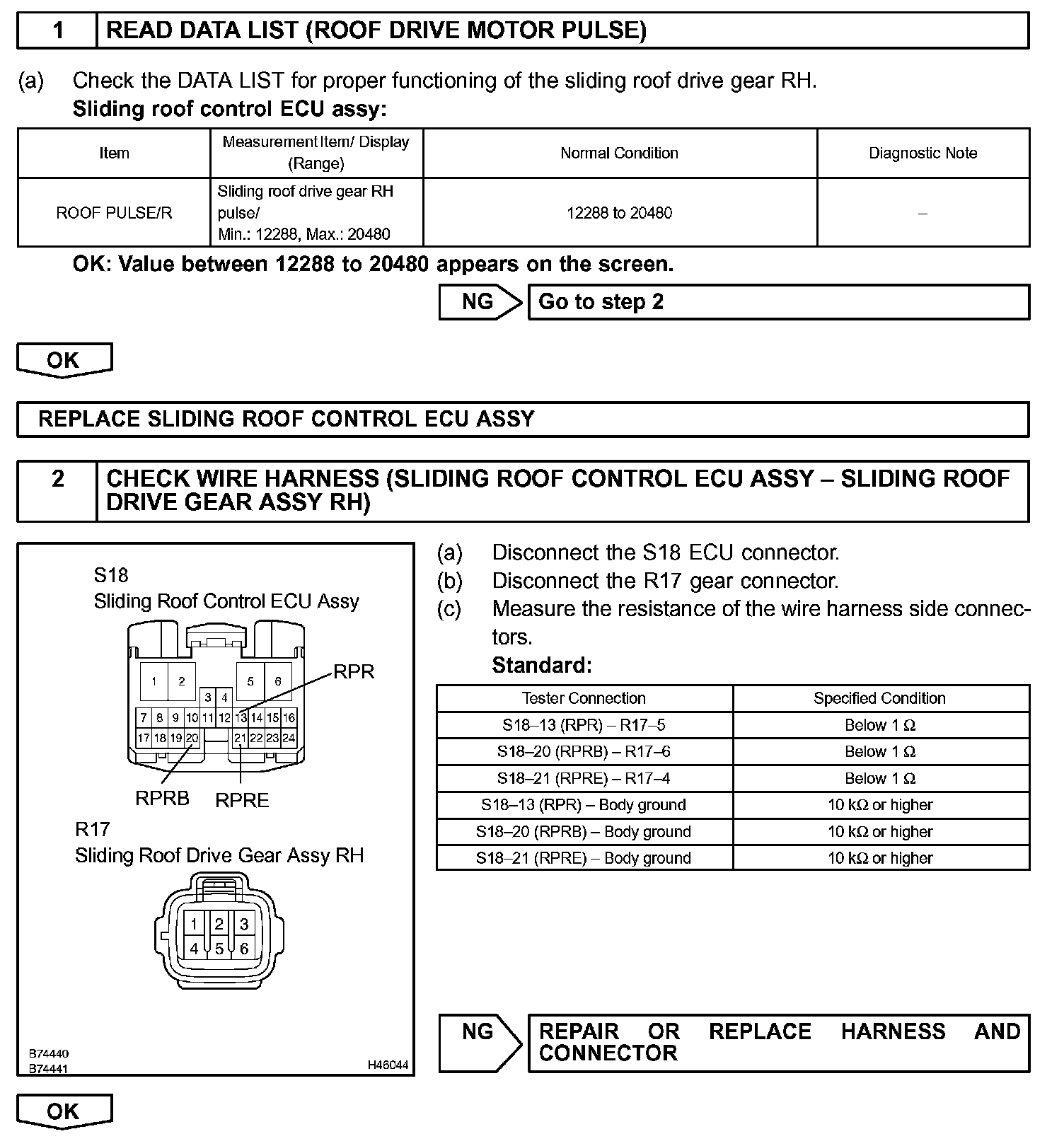

Step 1 - 2:

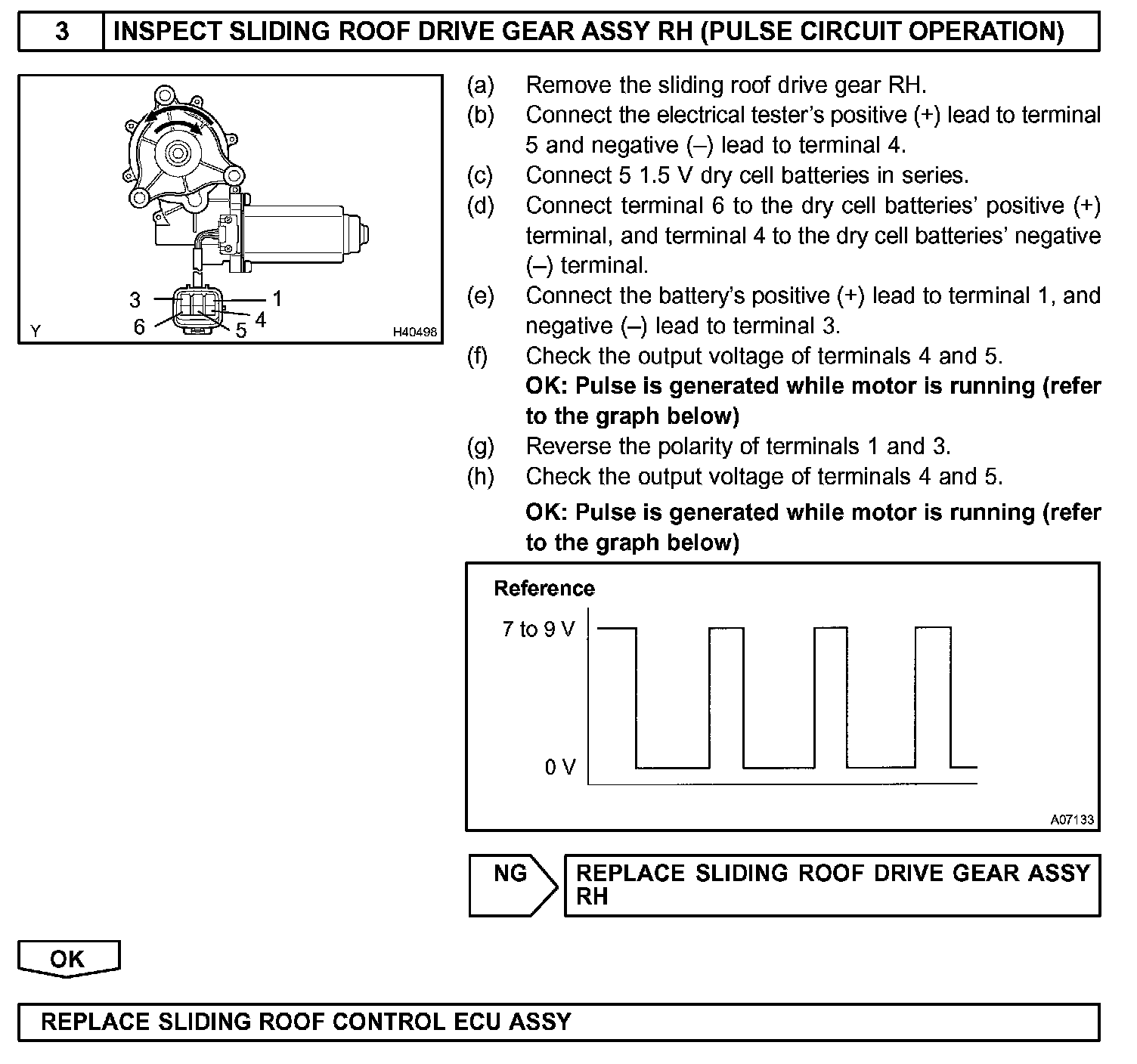

Step 3:

INSPECTION PROCEDURE
