B2535

DTC B2535 TONNEAU COVER SWITCH MALFUNCTION

CIRCUIT DESCRIPTION

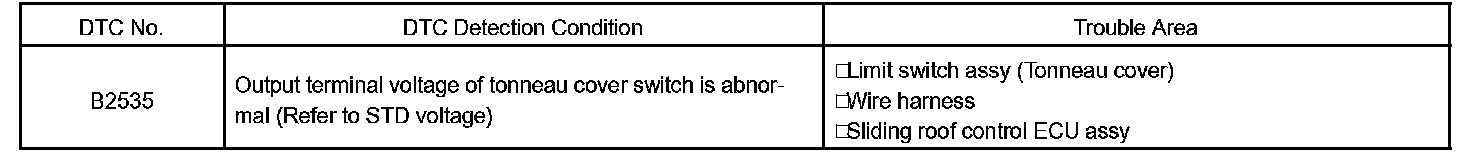

DTC Detection Condition:

Turning the tonneau cover switch ON permits the luggage door to start opening. Therefore, pressing the operating switch with the tonneau cover switch not turned ON causes the indicator to blink.

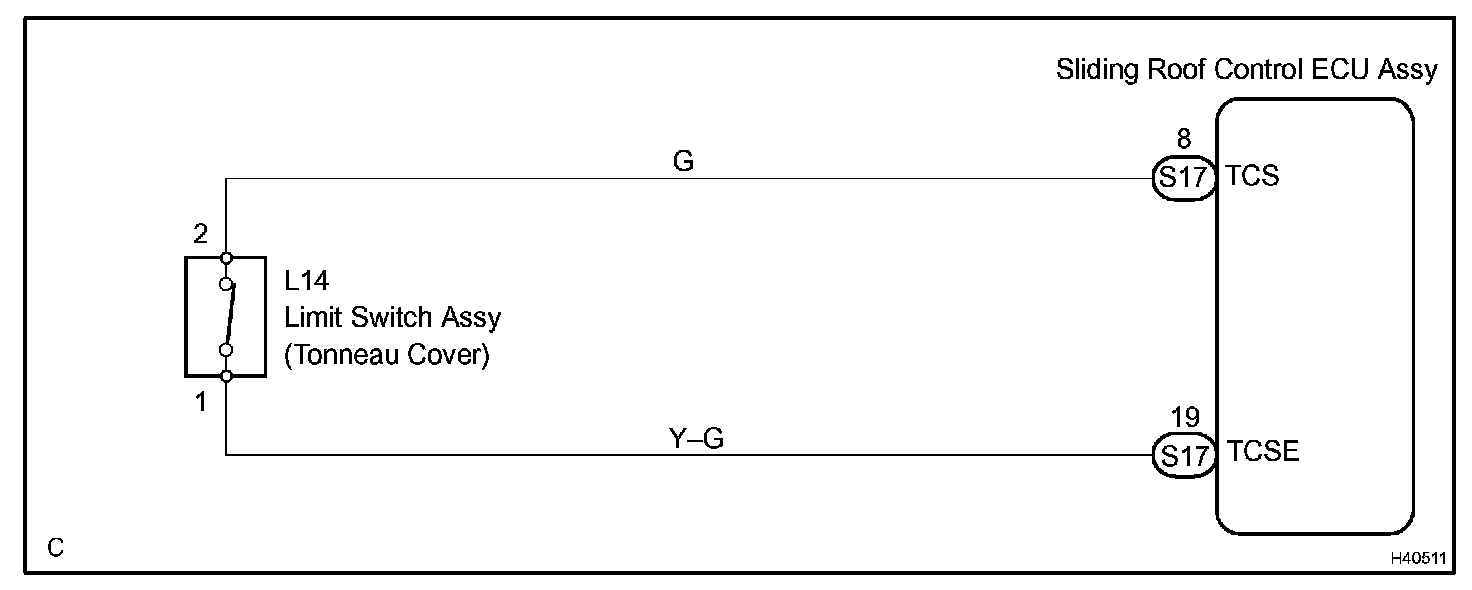

Wiring Diagram:

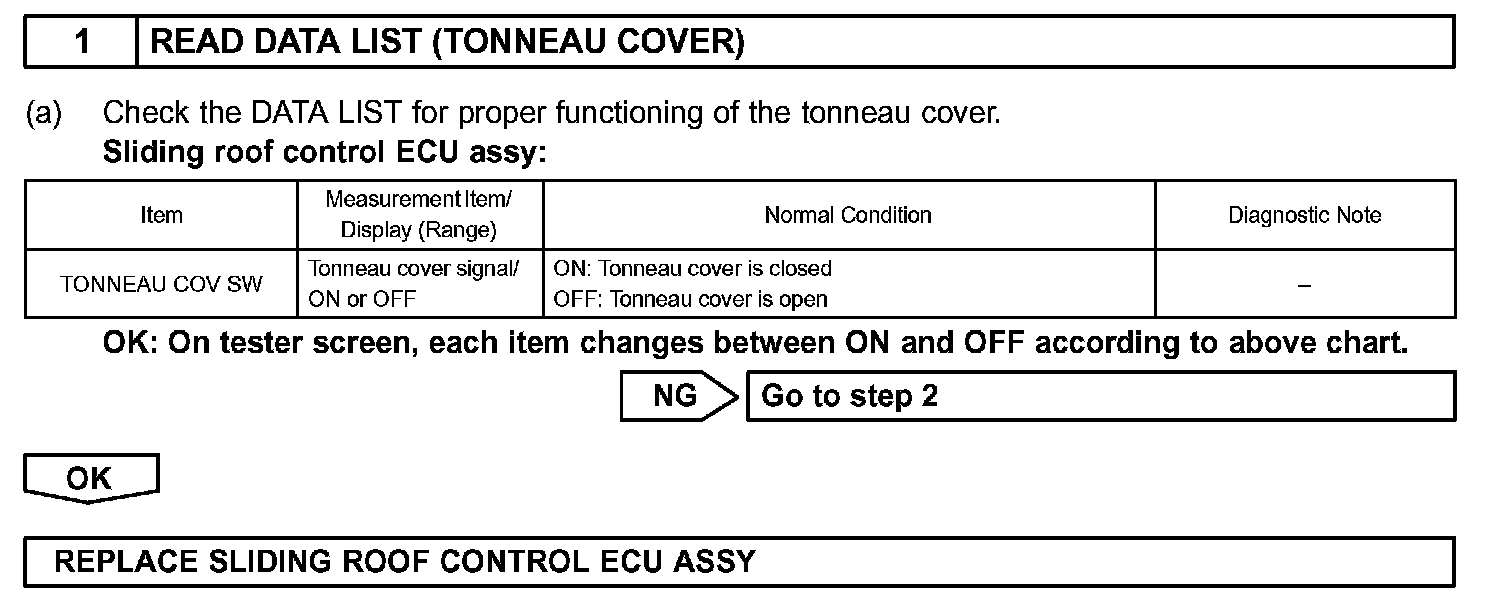

Step 1:

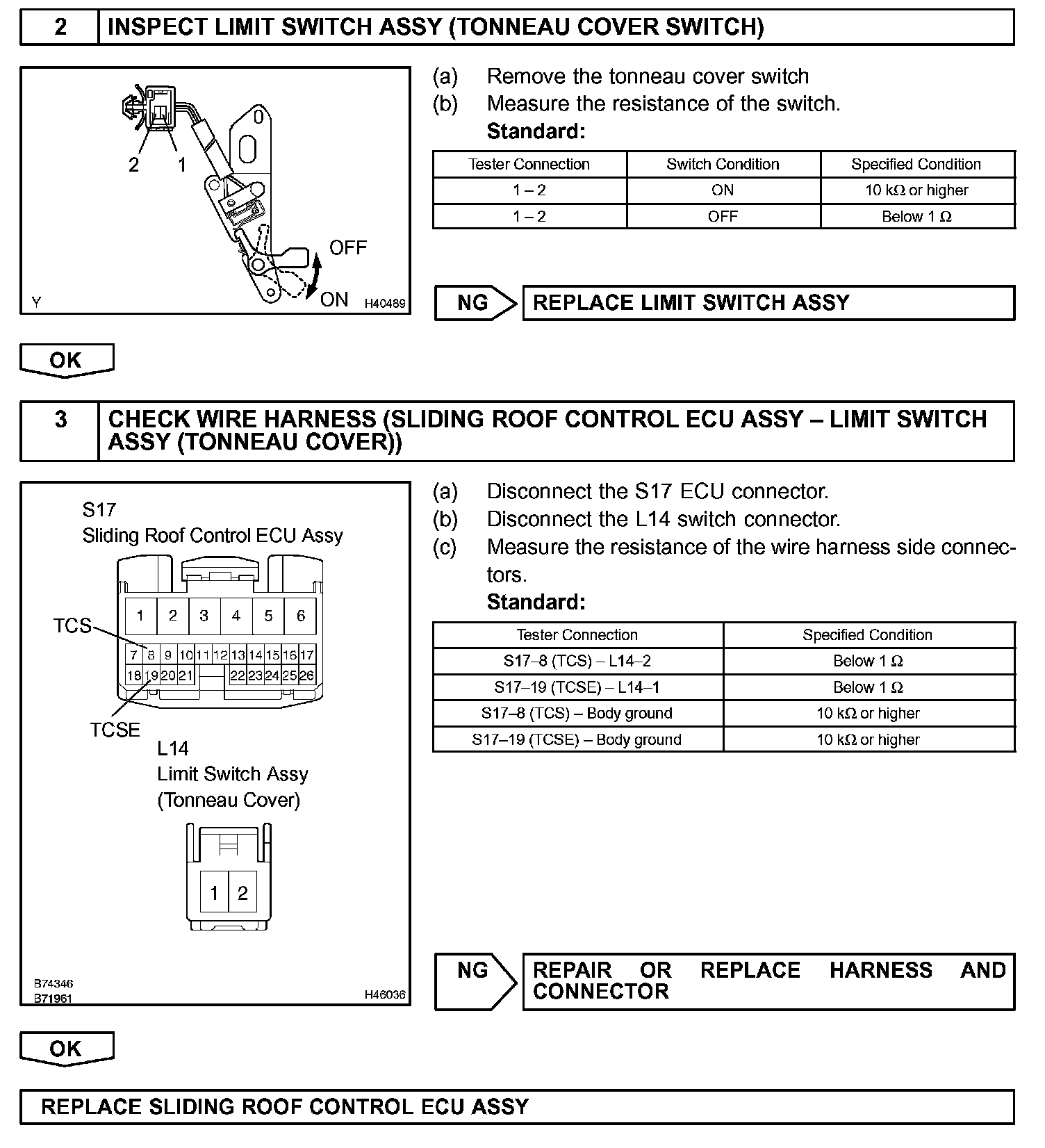

Step 2 - 3:

INSPECTION PROCEDURE
