B2526

DTC B2526 ROOF POSITION SWITCH NO. 1, NO. 2 OR NO. 3 MALFUNCTION

CIRCUIT DESCRIPTION

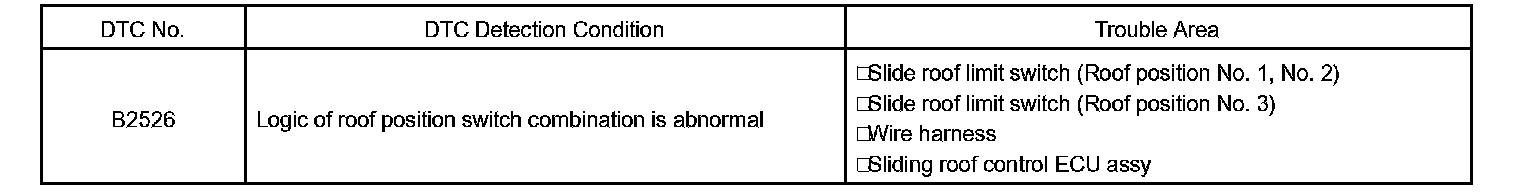

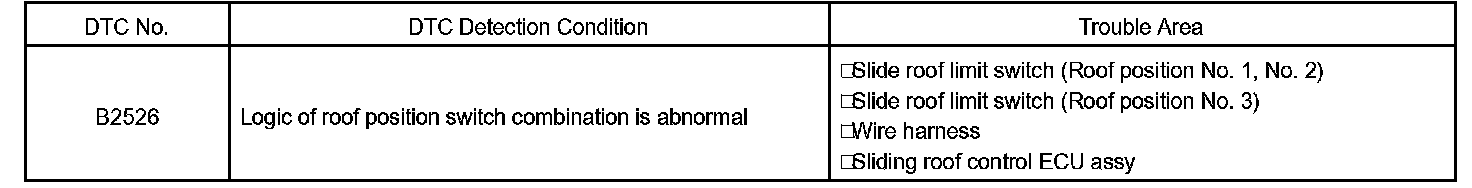

DTC Detection Condition:

This circuit indicates roof position switch No. 1, No. 2 or No. 3 depending on the position of the sliding roof.

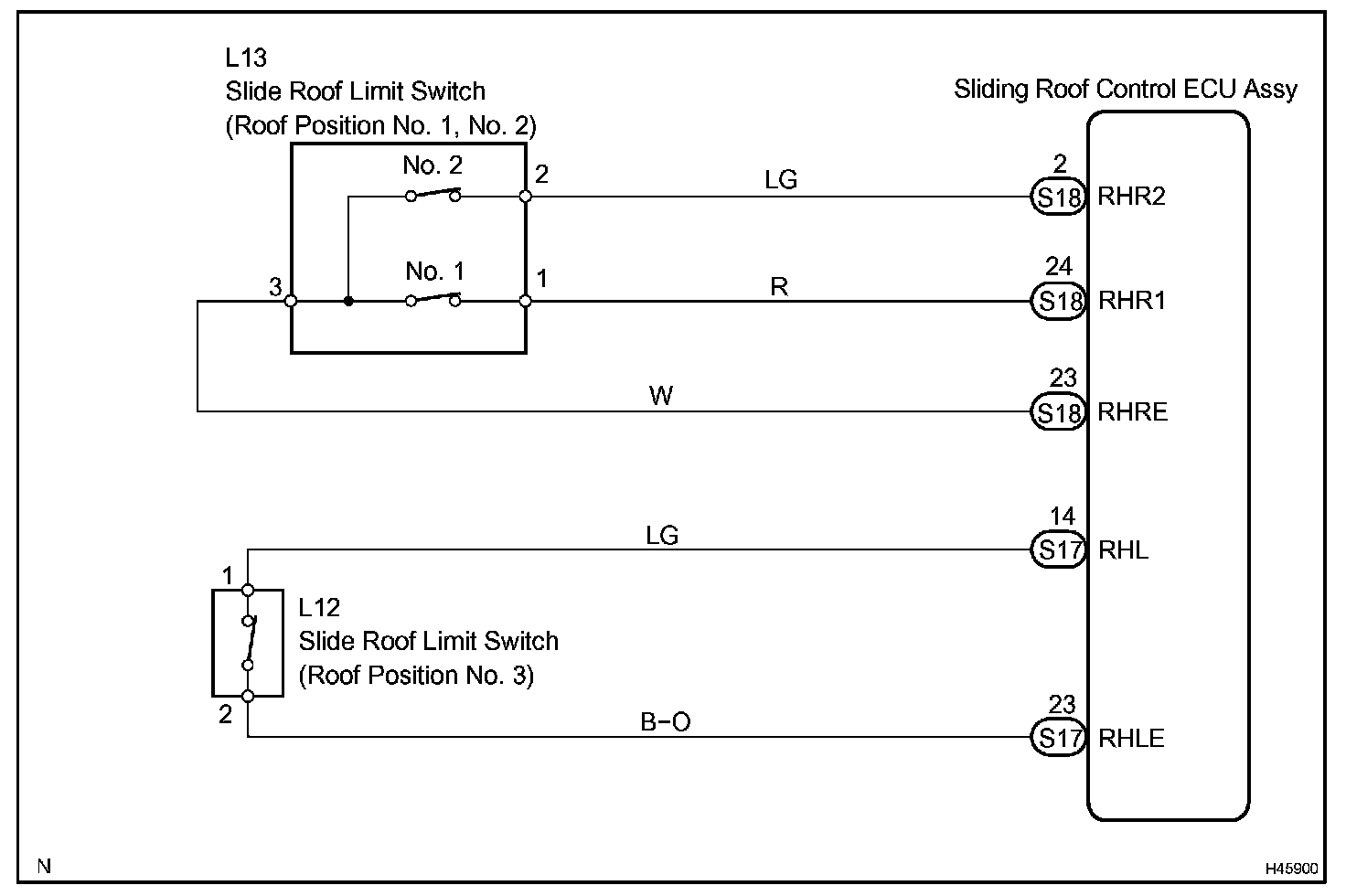

Wiring Diagram:

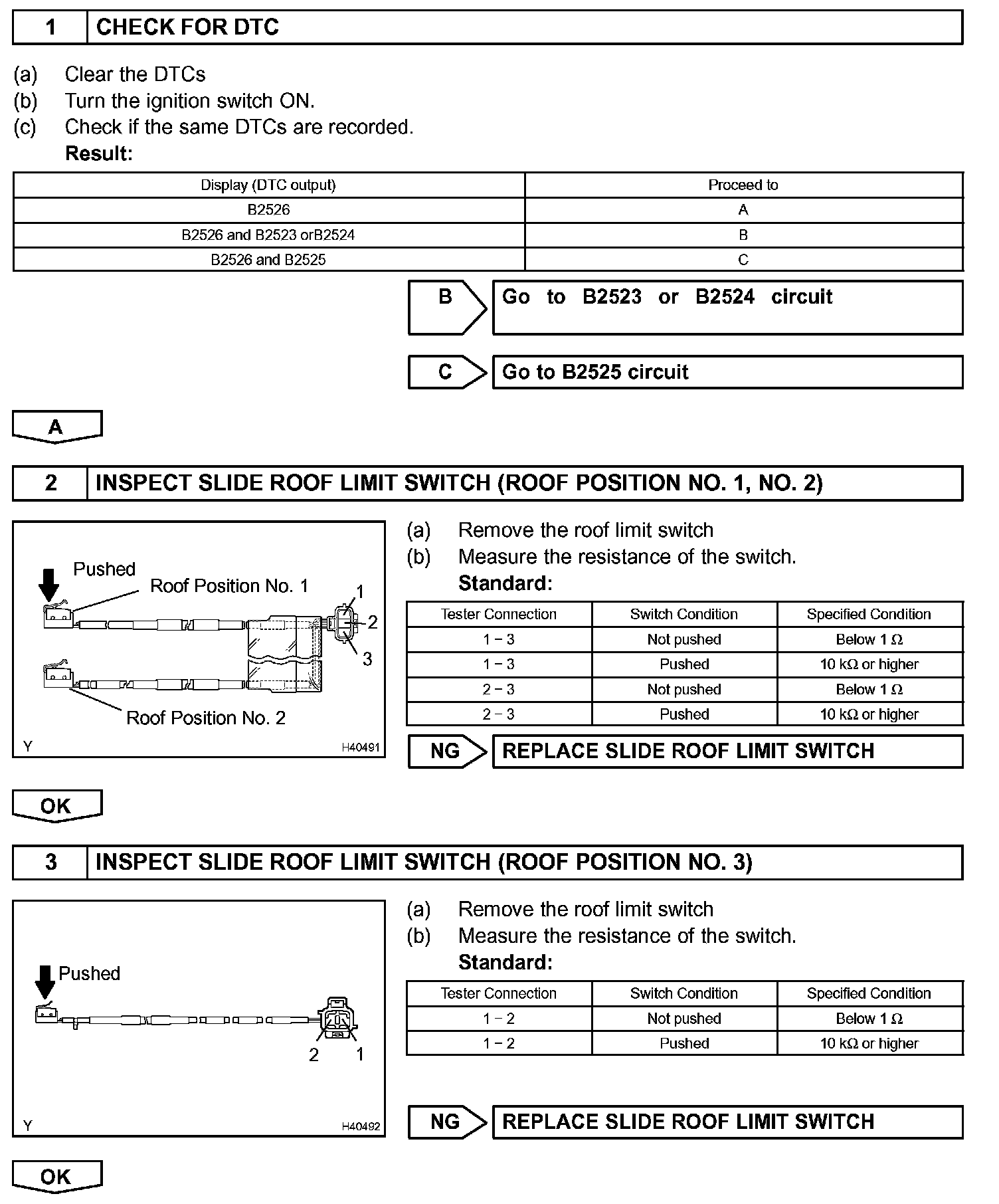

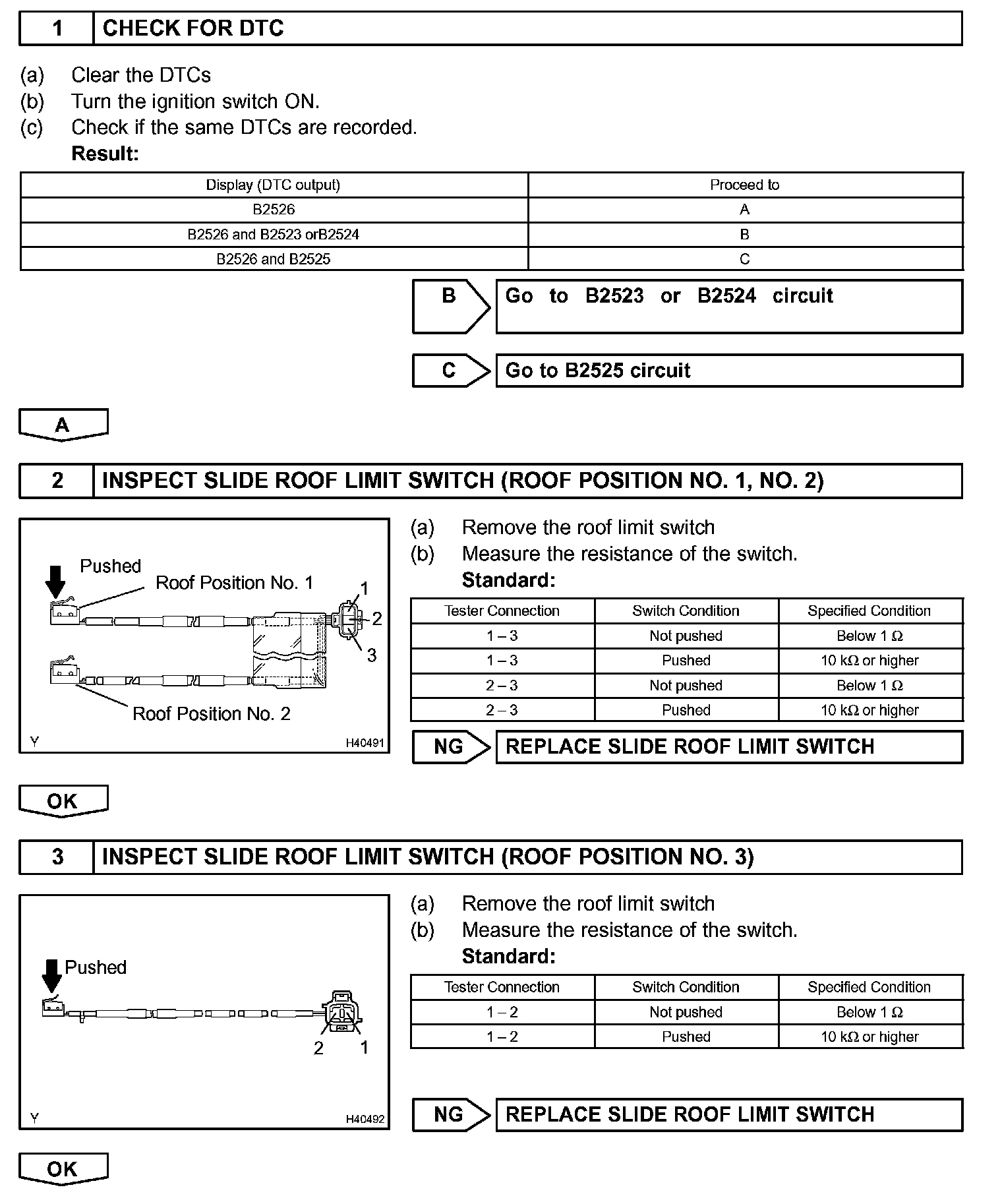

Step 1 - 3:

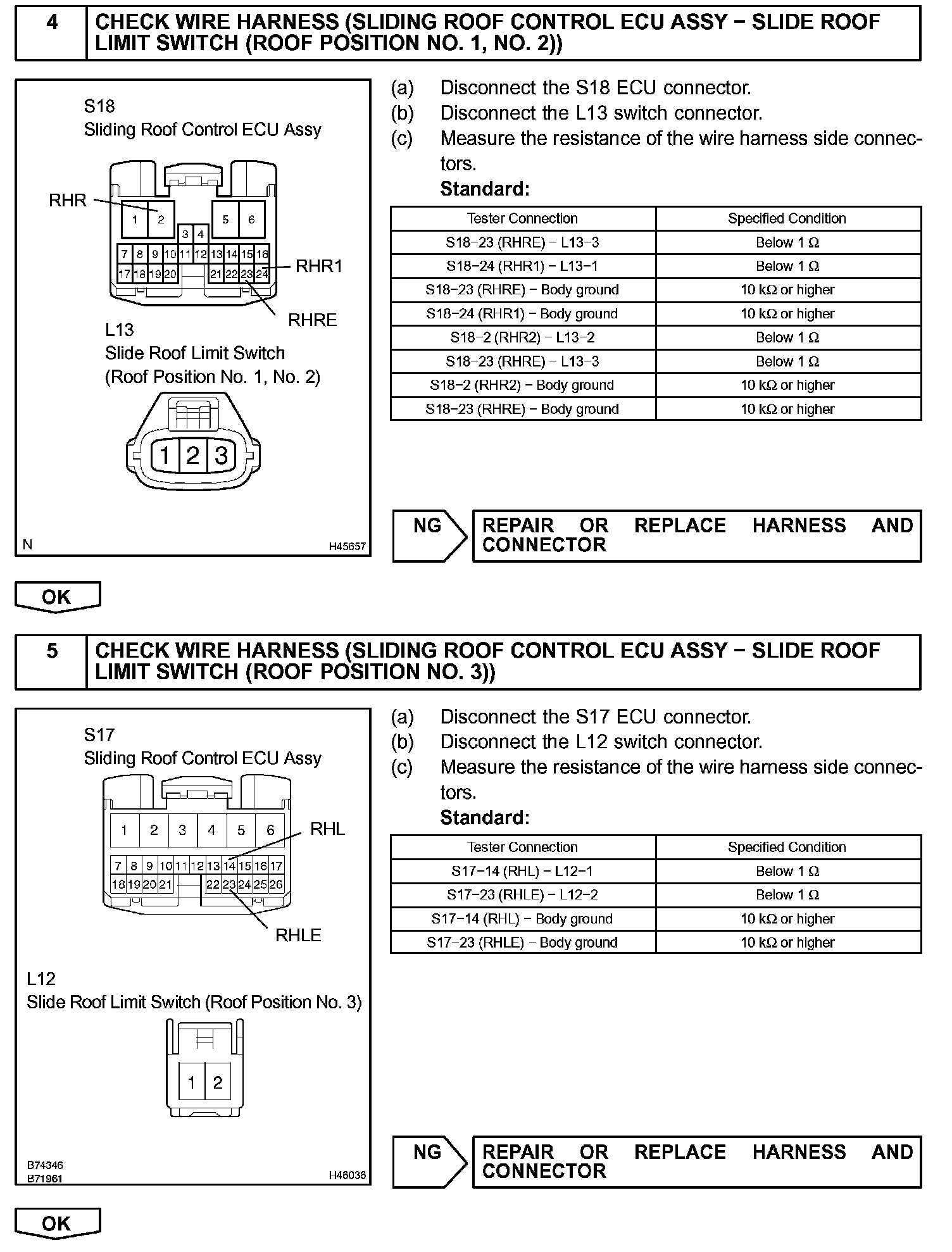

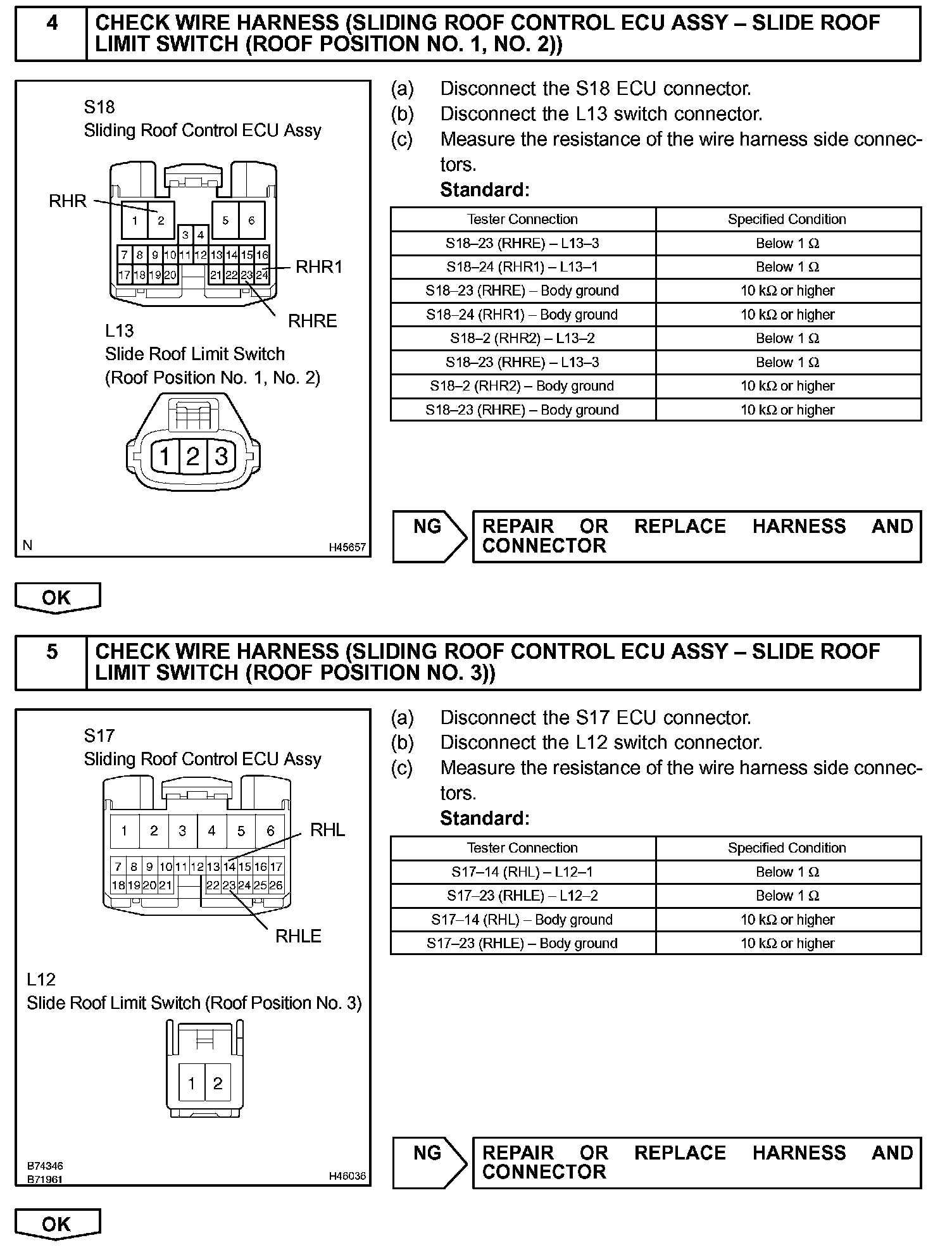

Step 4 - 5:

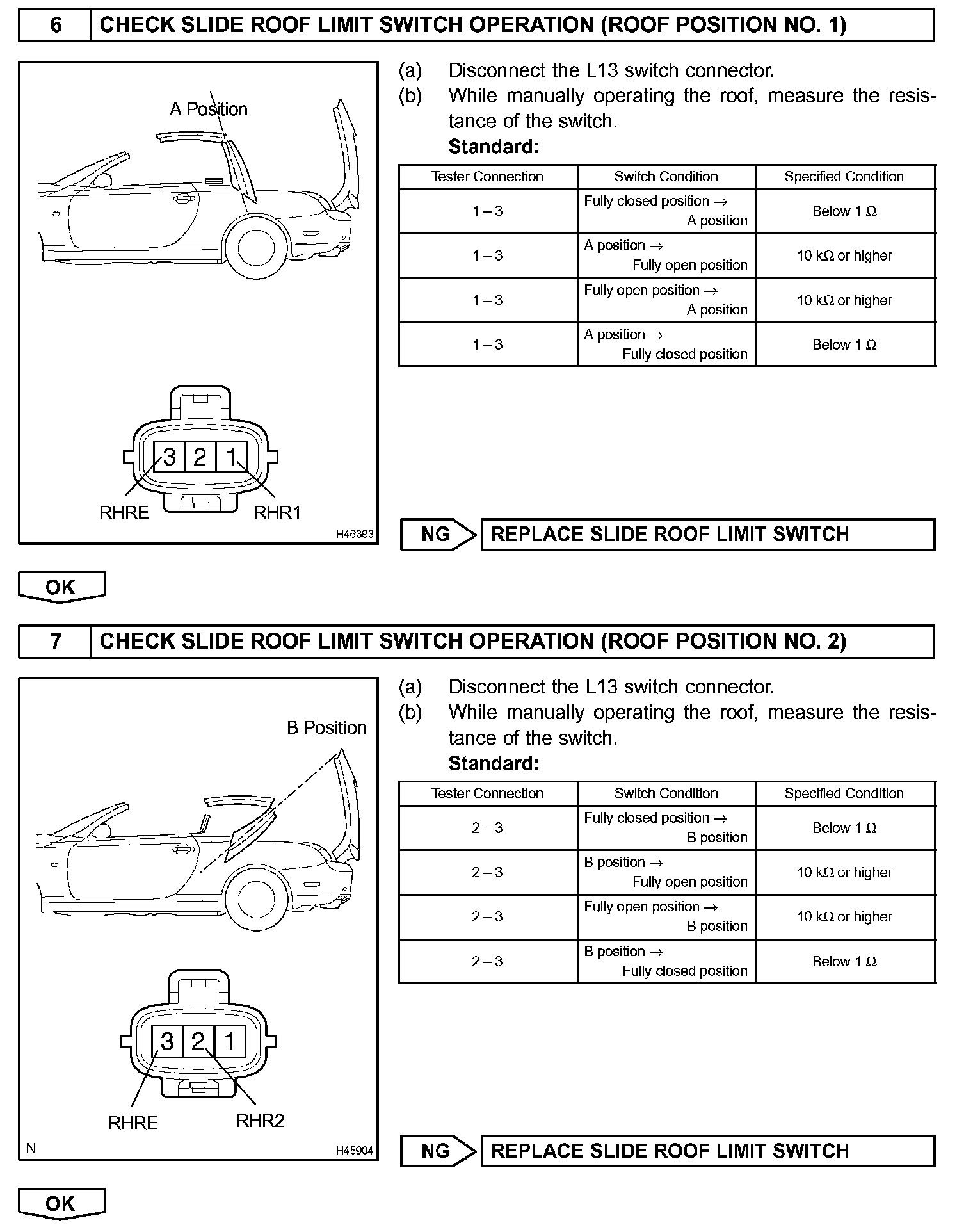

Step 6 - 7:

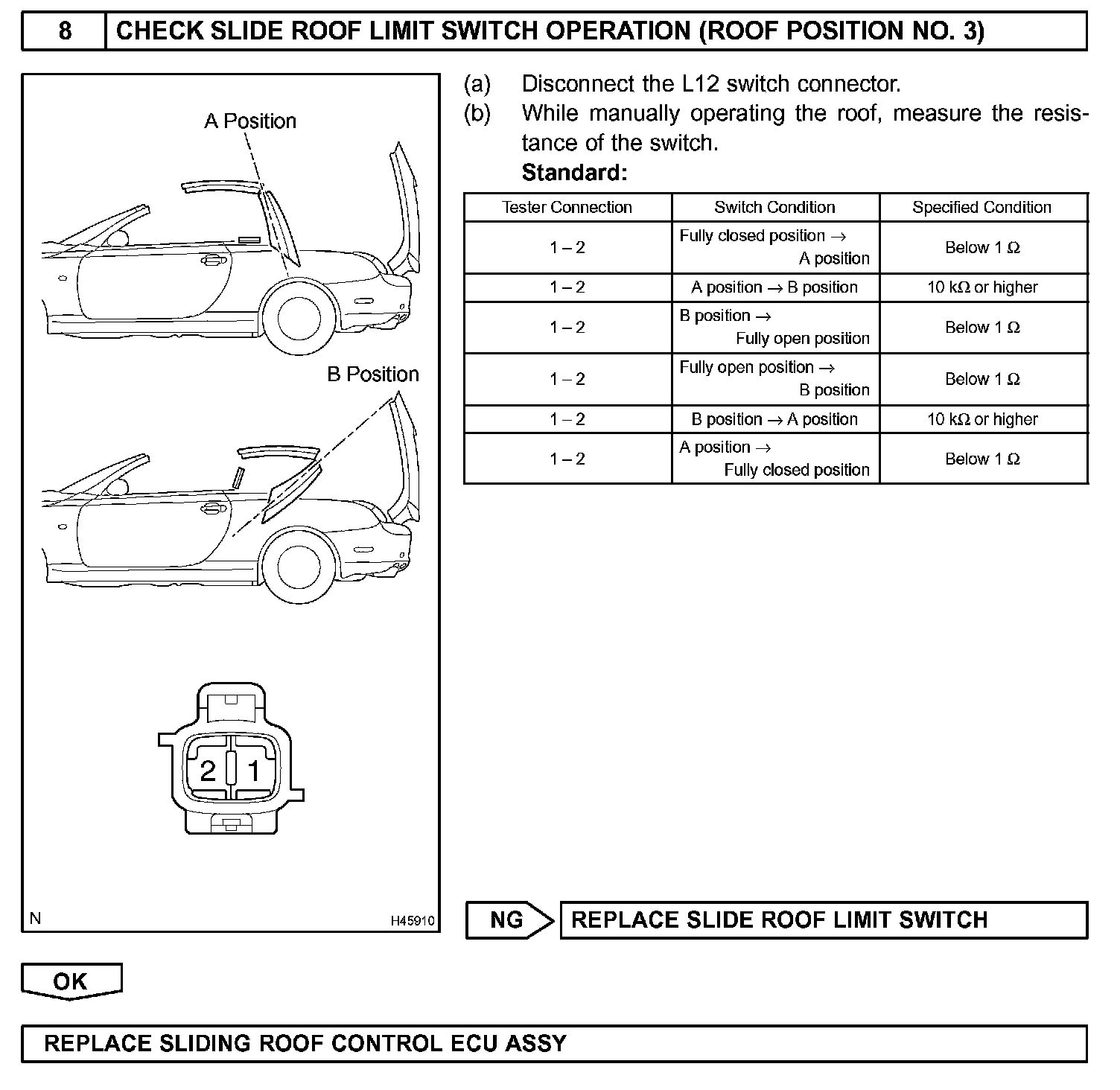

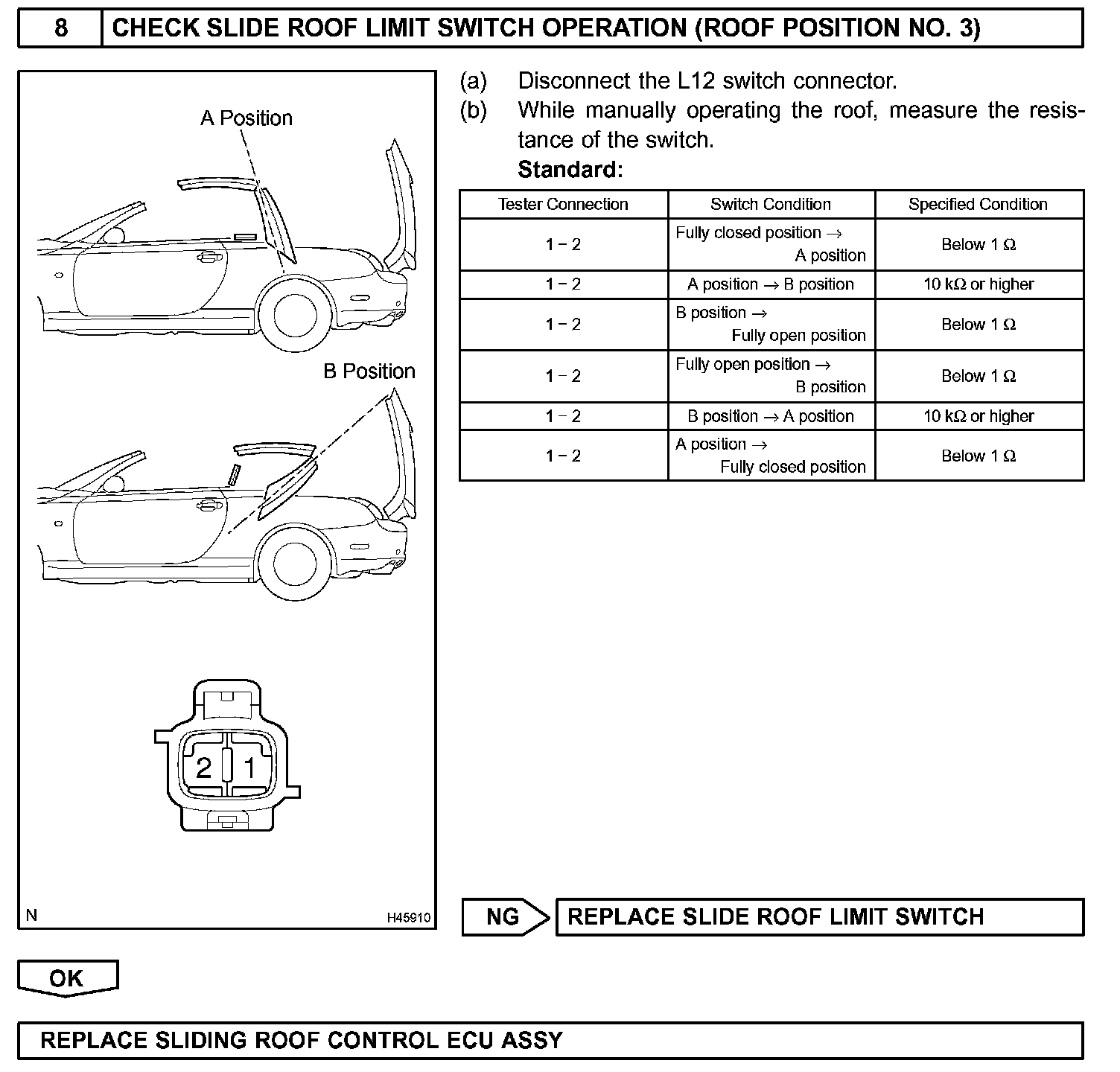

Step 8:

INSPECTION PROCEDURE
