B2518

DTC B2518 OPEN IN PACKAGE TRAY MOTOR CIRCUIT

CIRCUIT DESCRIPTION

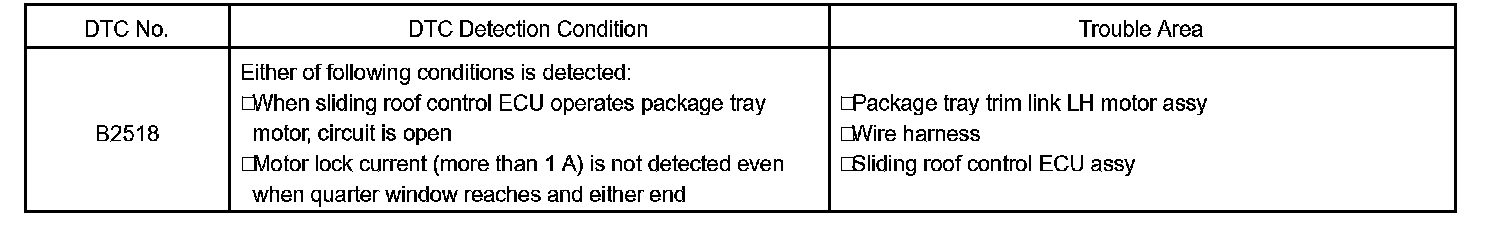

DTC Detection Condition:

With the roof control switch being pressed, the sliding roof control ECU operates the roof panel, luggage door and package tray in that order.

By operating the package tray motor, the position of the package tray can be changed.

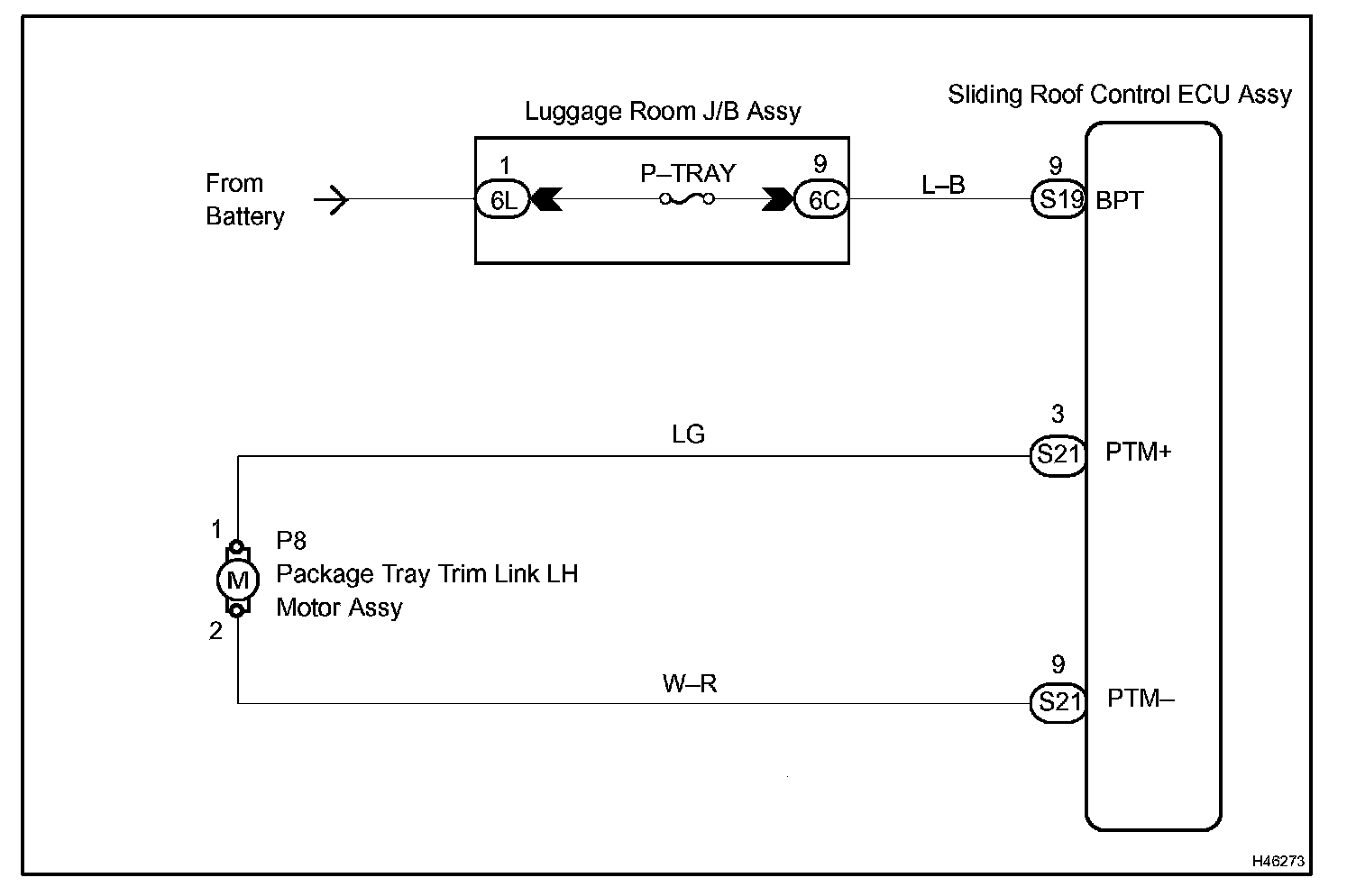

Wiring Diagram:

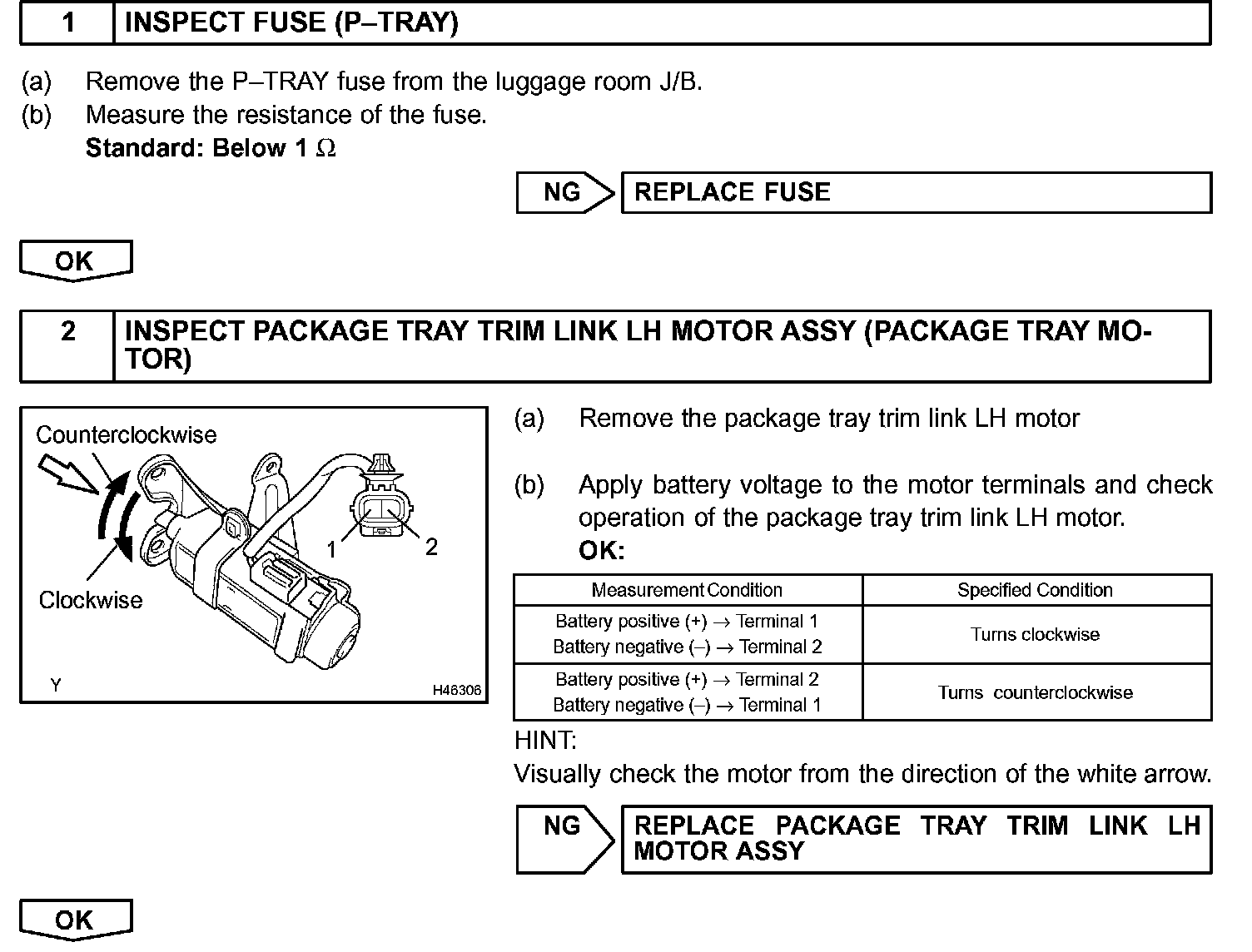

Step 1 - 2:

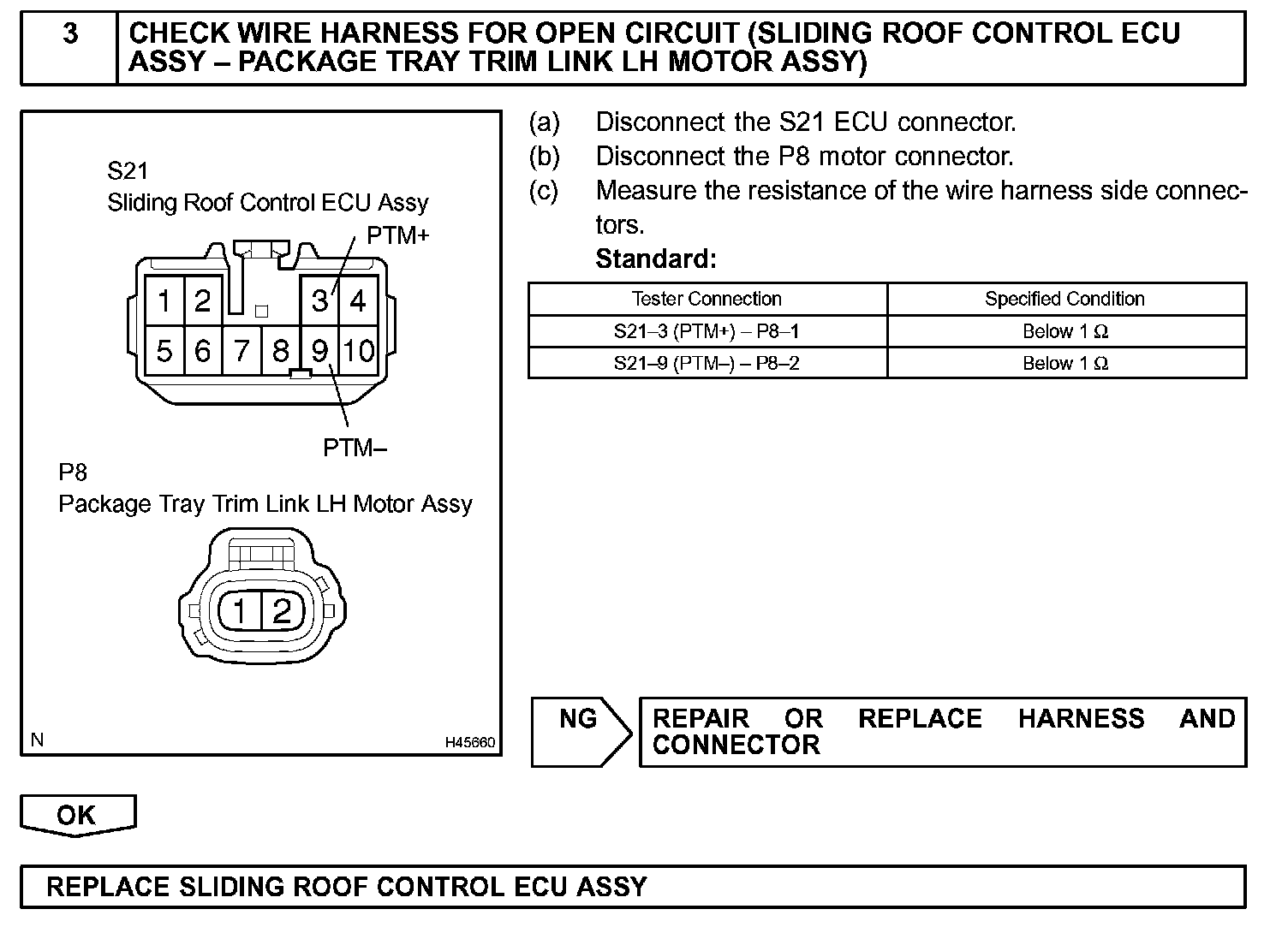

Step 3:

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.
