B2517

DTC B2517 OPEN IN QUARTER WINDOW MOTOR LH CIRCUIT

CIRCUIT DESCRIPTION

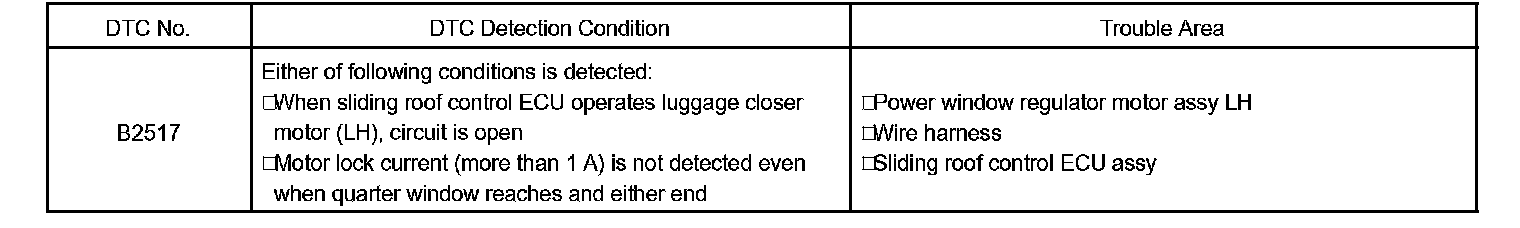

DTC Detection Condition:

By operating the quarter window motor, the quarter window can be lowered or raised.

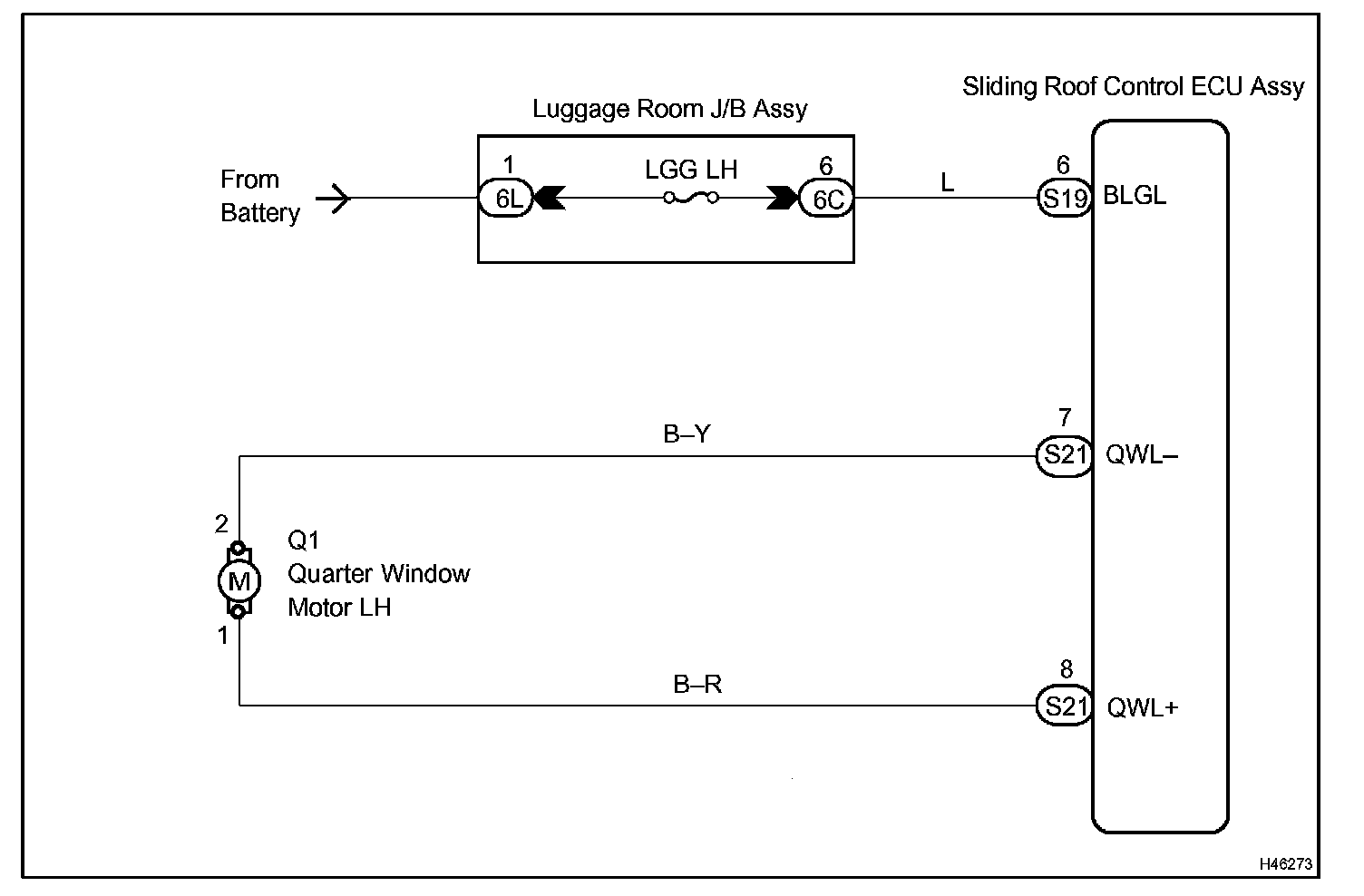

Wiring Diagram:

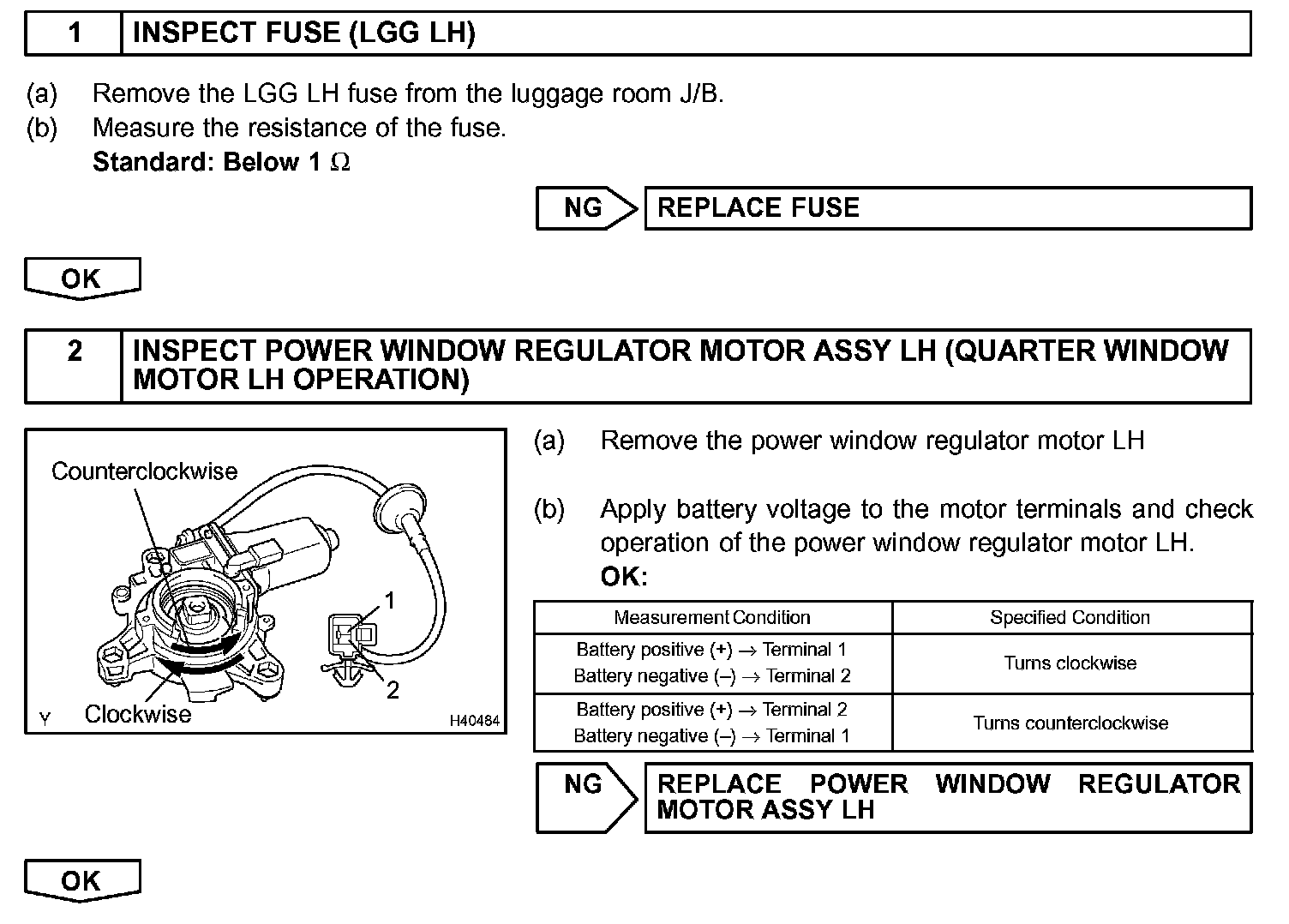

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.
