B2516

DTC B2516 OPEN IN QUARTER WINDOW MOTOR RH CIRCUIT

CIRCUIT DESCRIPTION

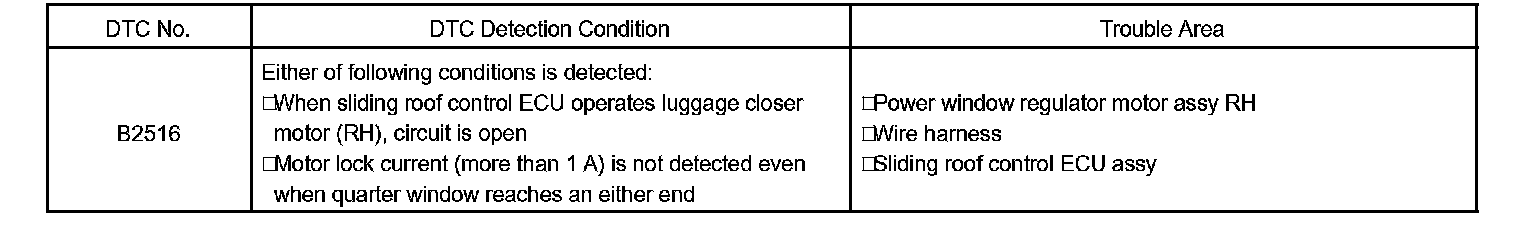

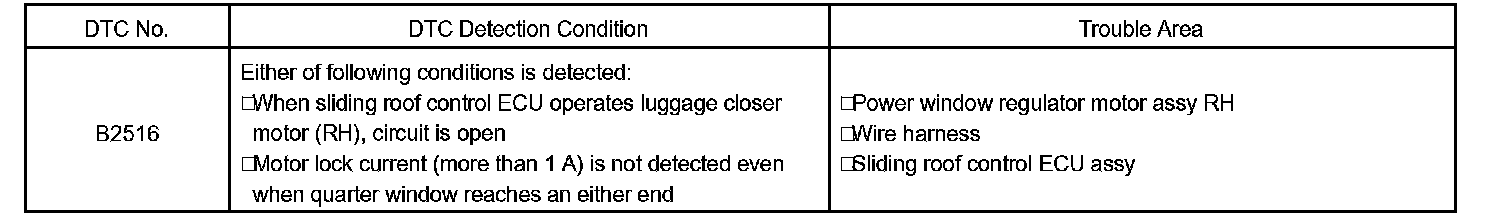

DTC Detection Condition:

By operating the quarter window motor, the quarter window can be lowered or raised.

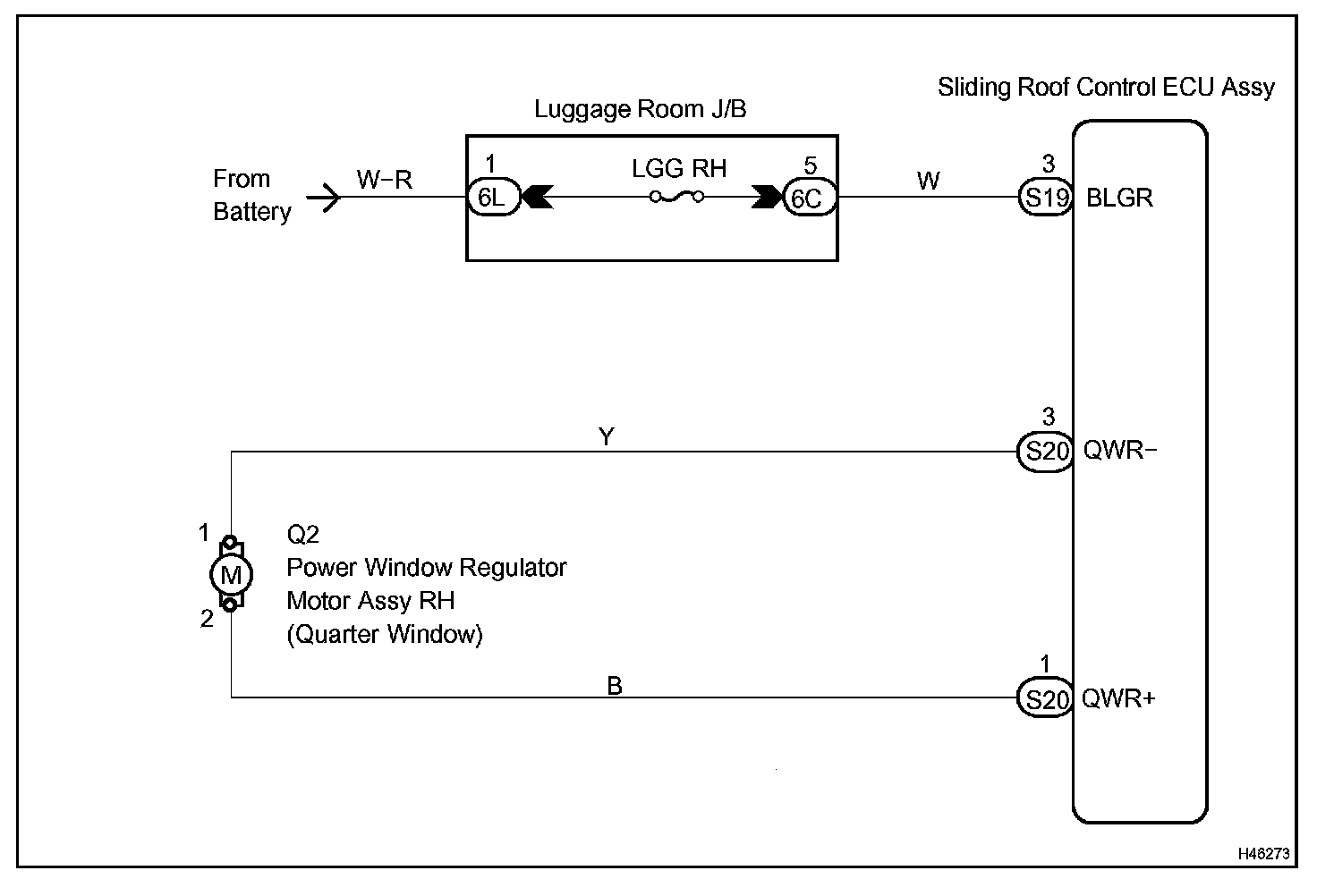

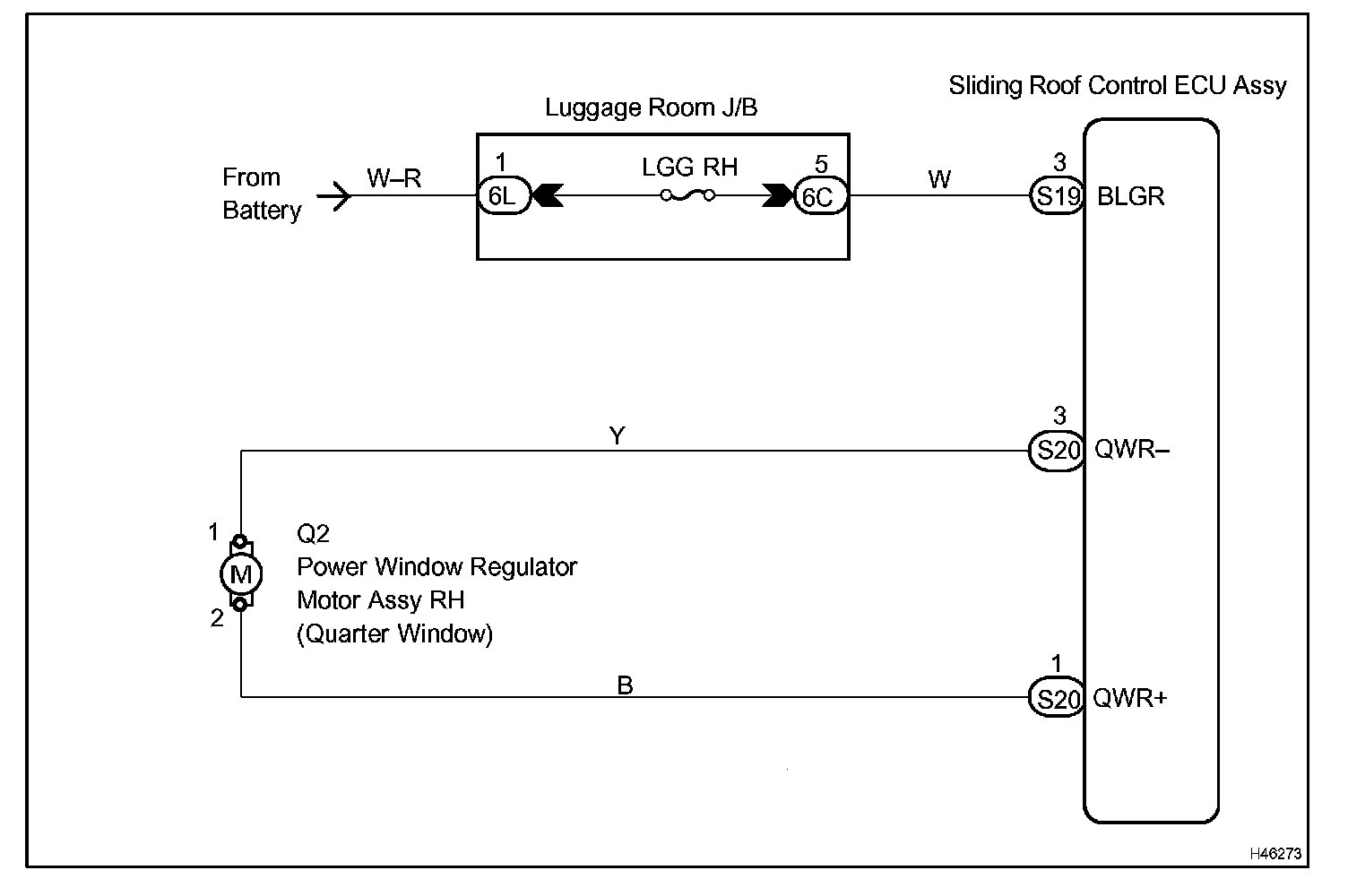

Wiring Diagram:

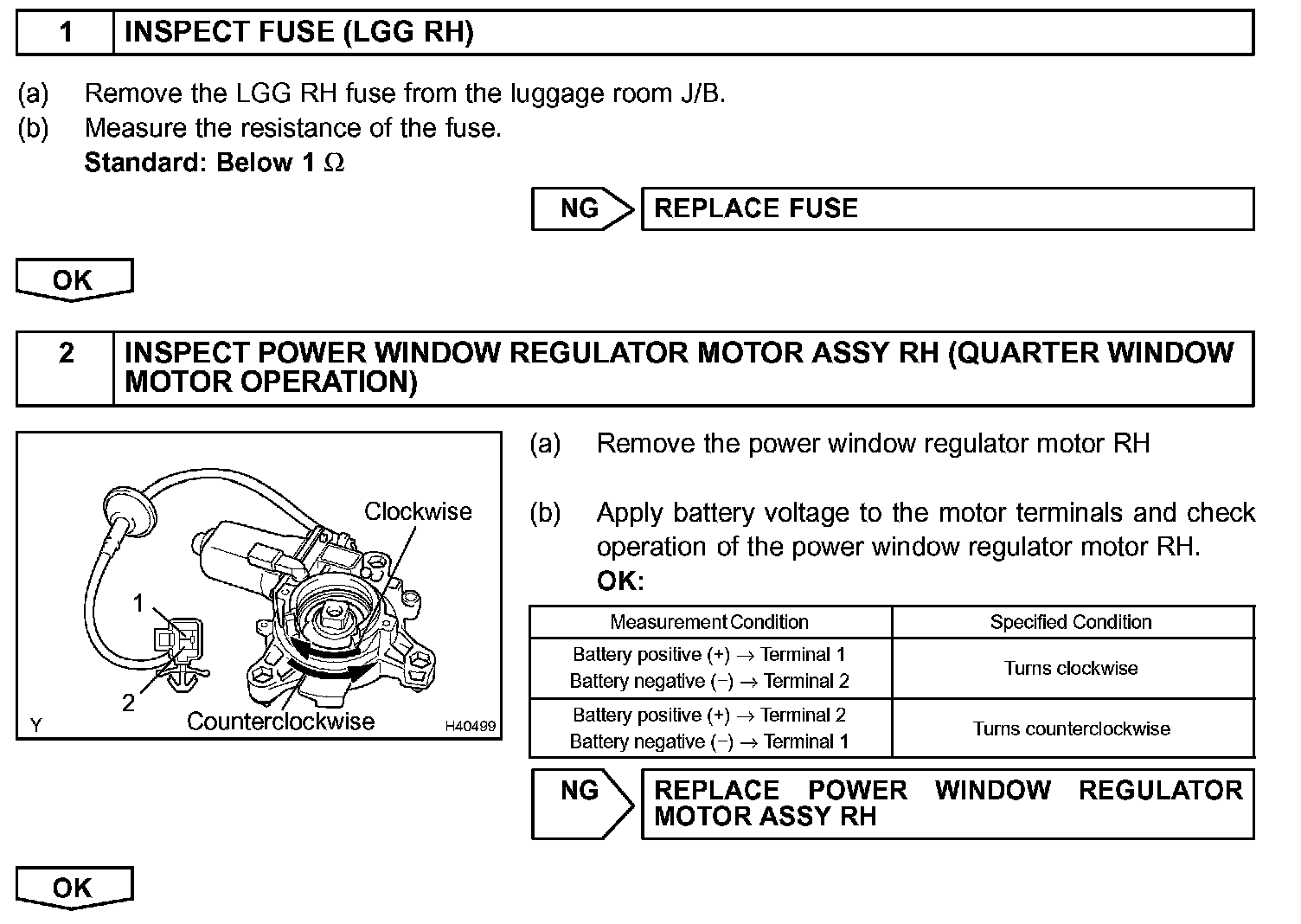

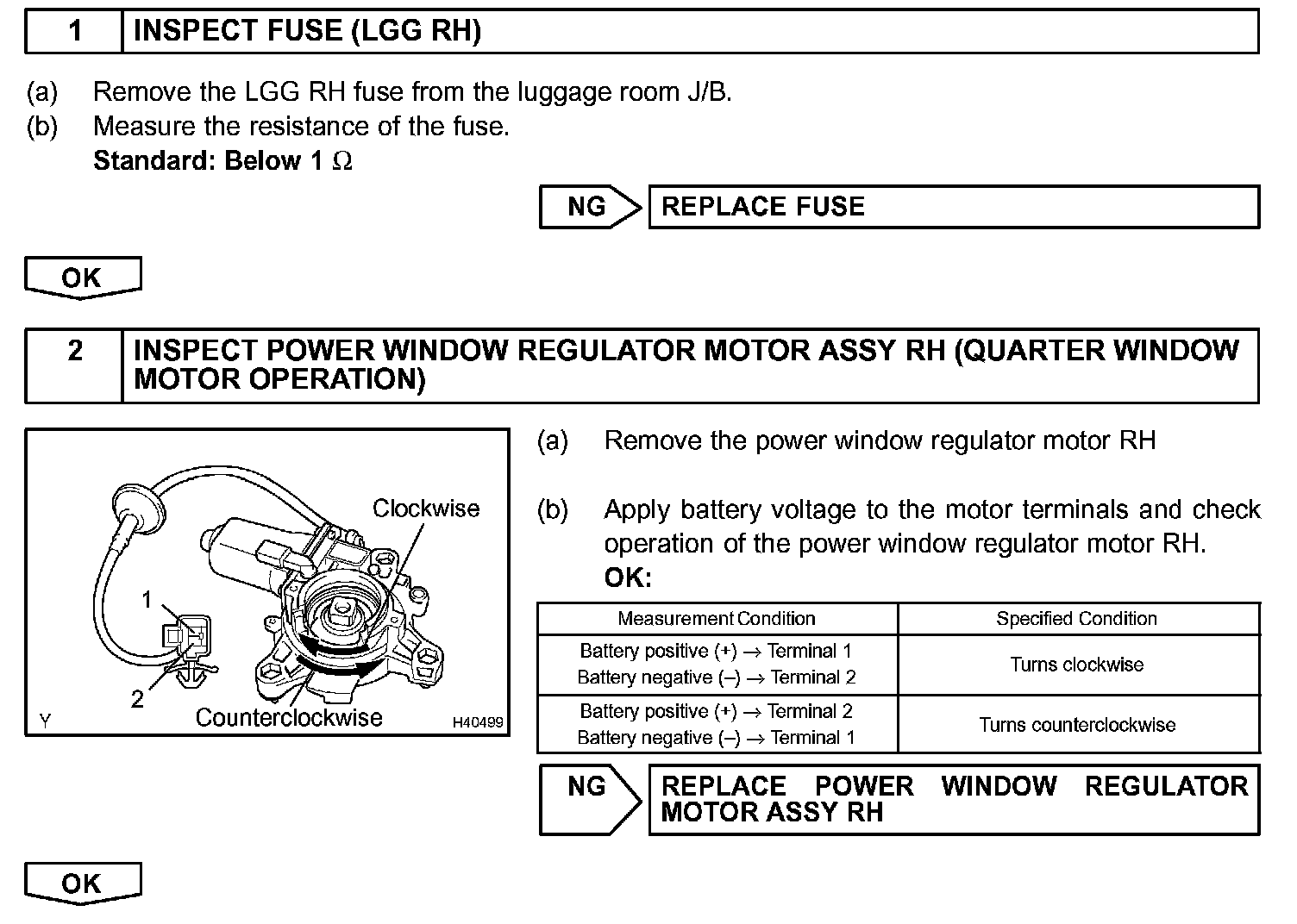

Step 1 - 2:

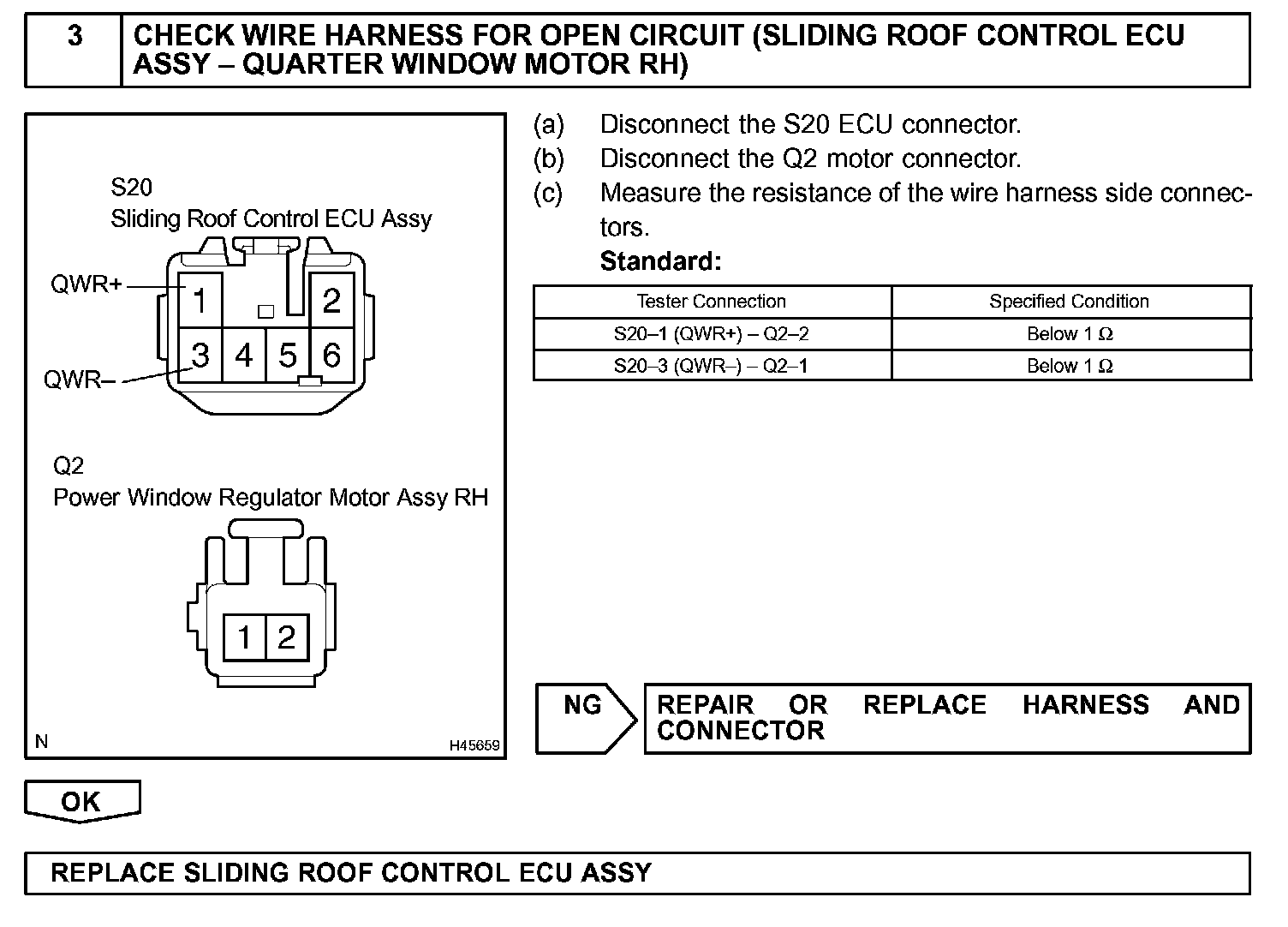

Step 3:

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.
