B2514

DTC B2514 SHORT IN LUGGAGE CLOSER MOTOR LH CIRCUIT

CIRCUIT DESCRIPTION

DTC Detection Condition:

By operating the luggage closer motor, the luggage lock function can be unlocked, and also the preparatory operation (neutral operation) is performed for locking the luggage door.

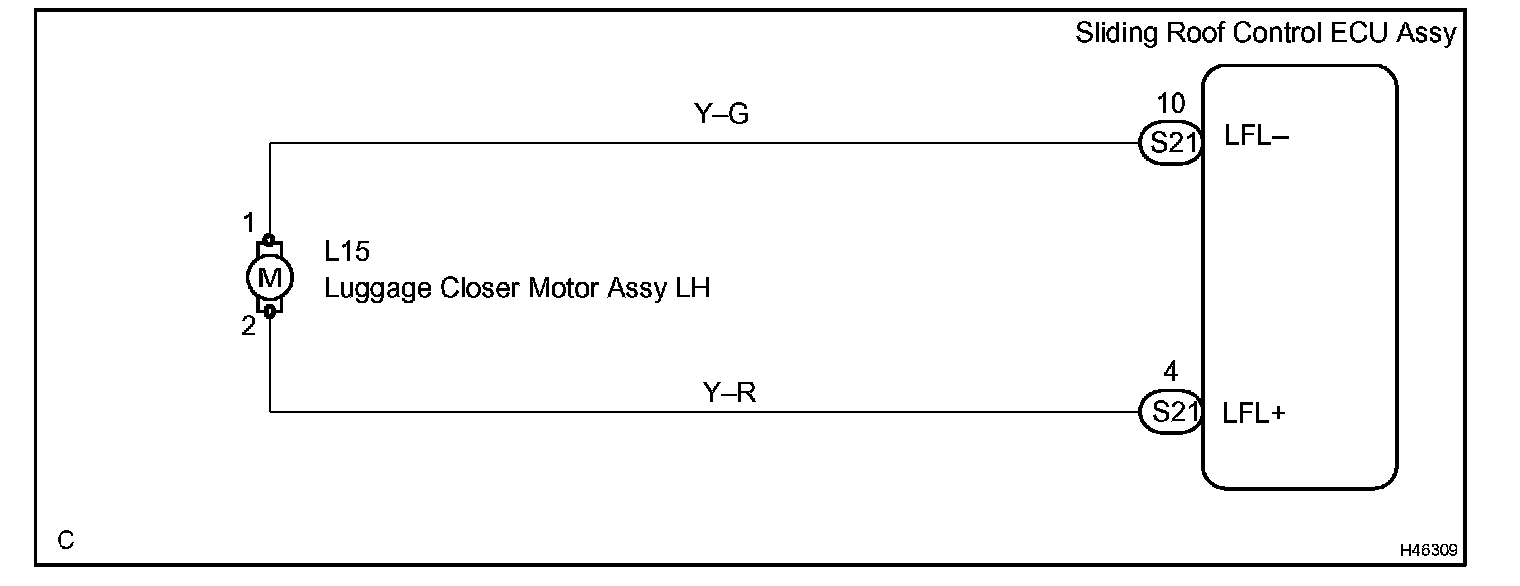

Wiring Diagram:

Step 1:

Step 2:

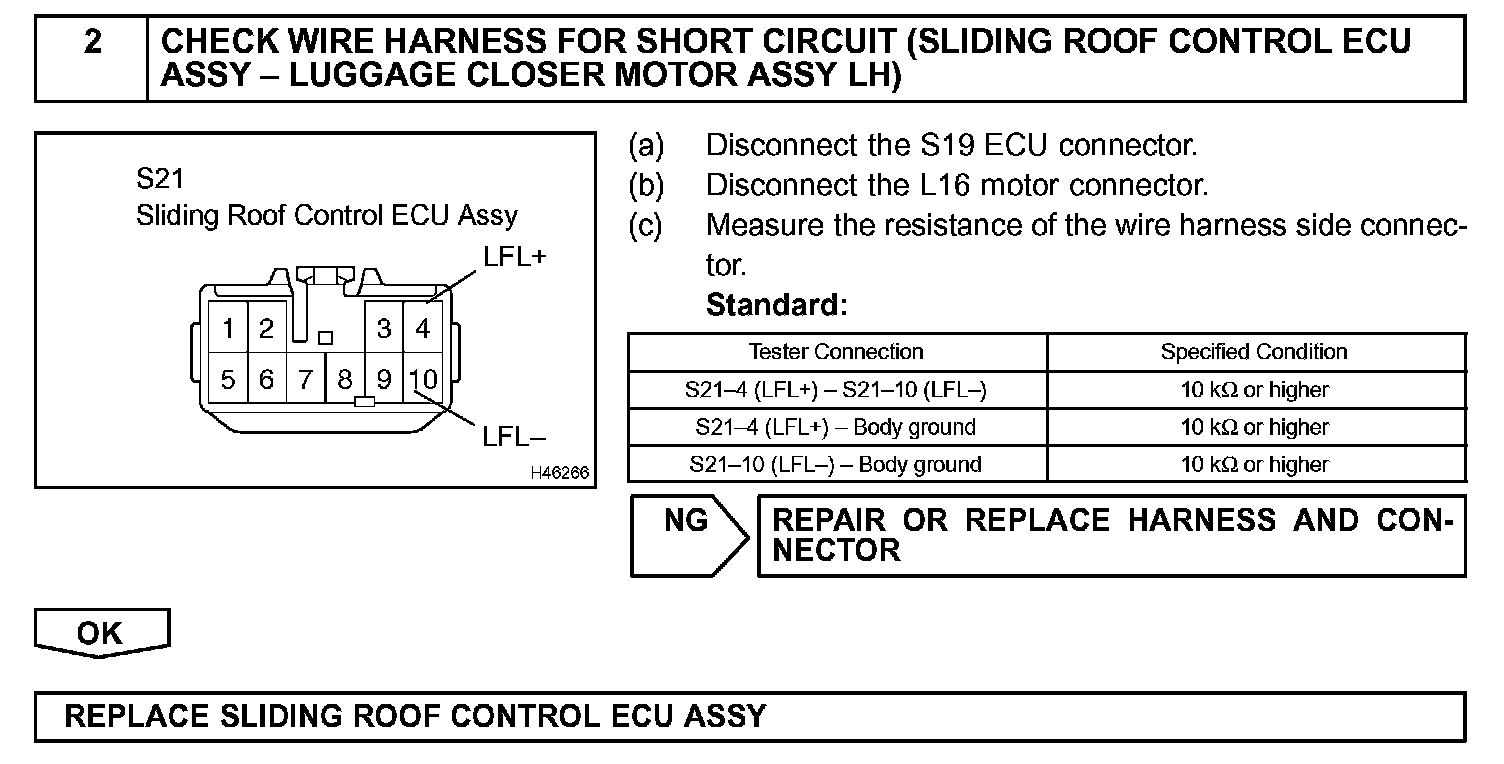

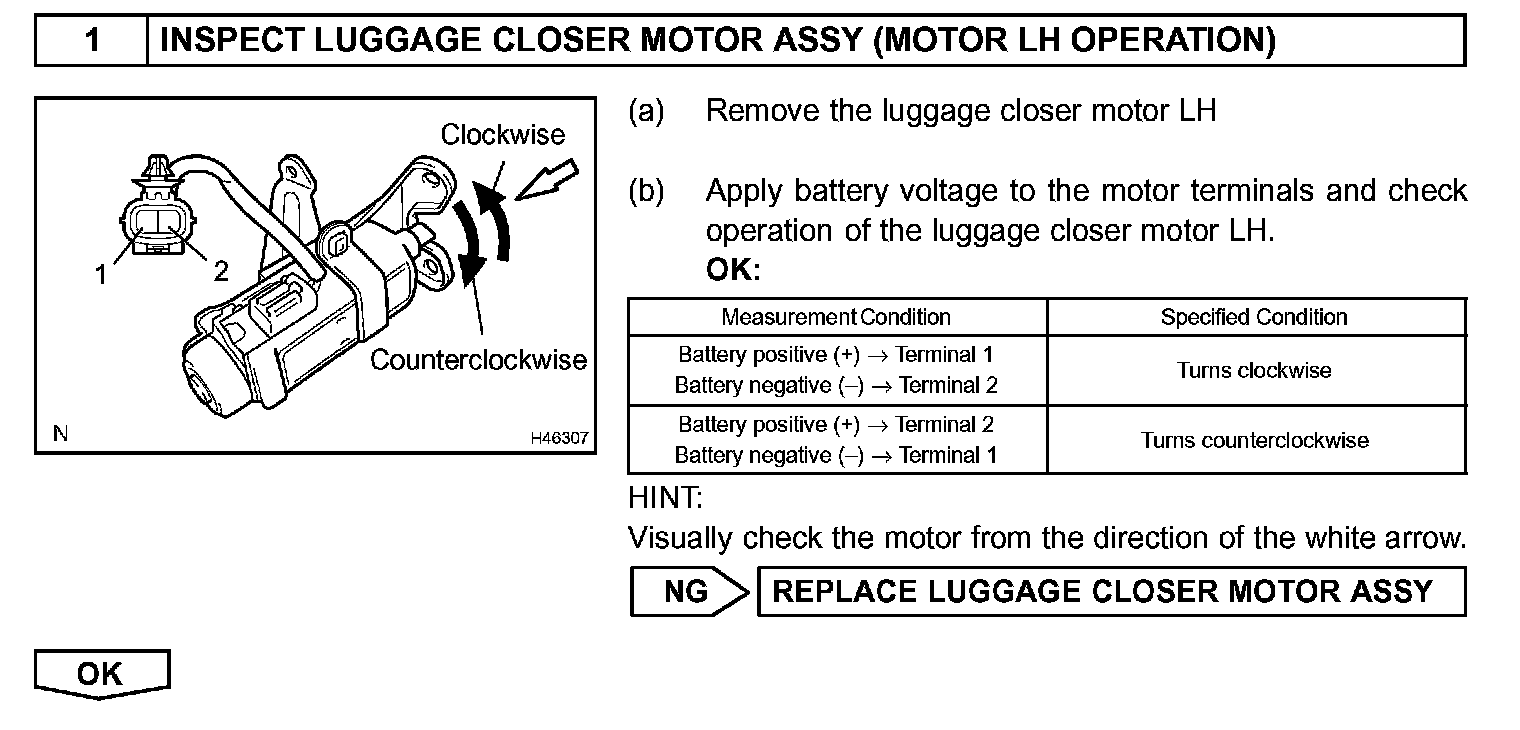

INSPECTION PROCEDURE
