B1441

DTC B1441 AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

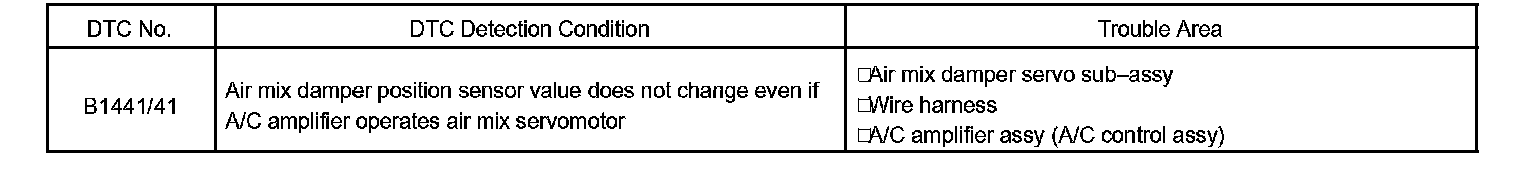

DTC Detection Condition:

This air mix damper servo is controlled by the A/C amplifier, and the A/C amplifier moves the air mix damper servo to the desired position.

Wiring Diagram:

Step 1:

Step 2:

Step 3:

Step 4:

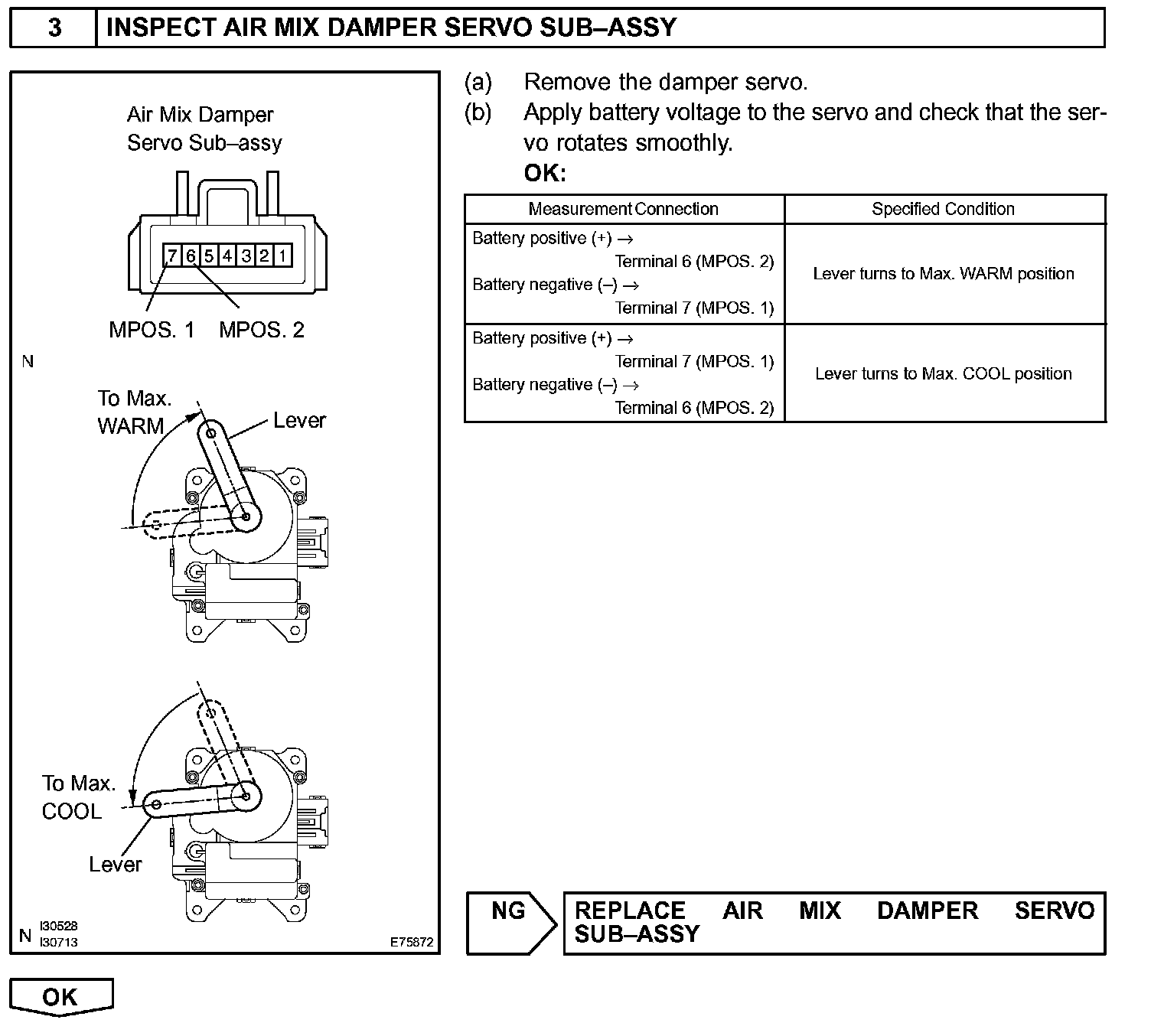

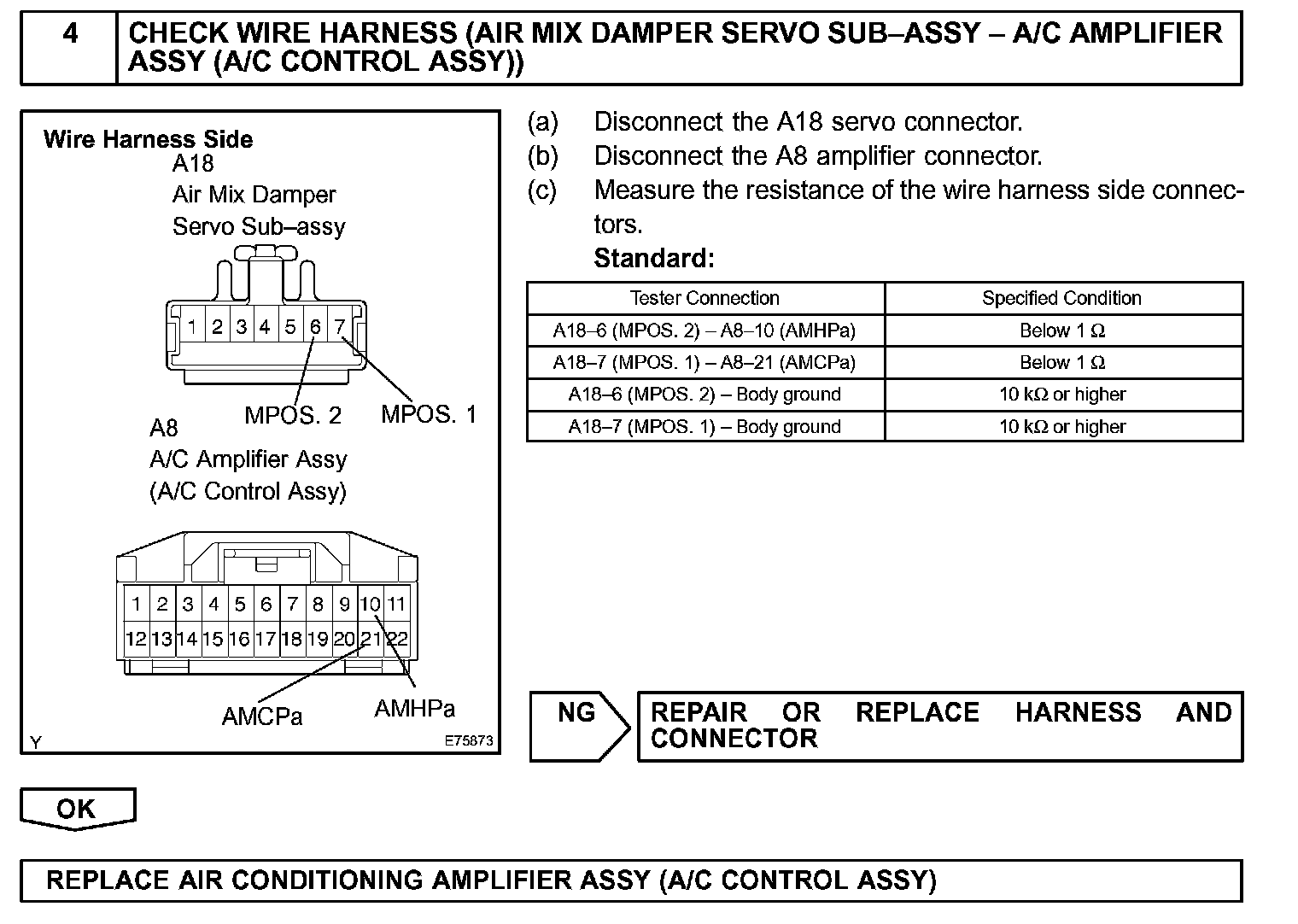

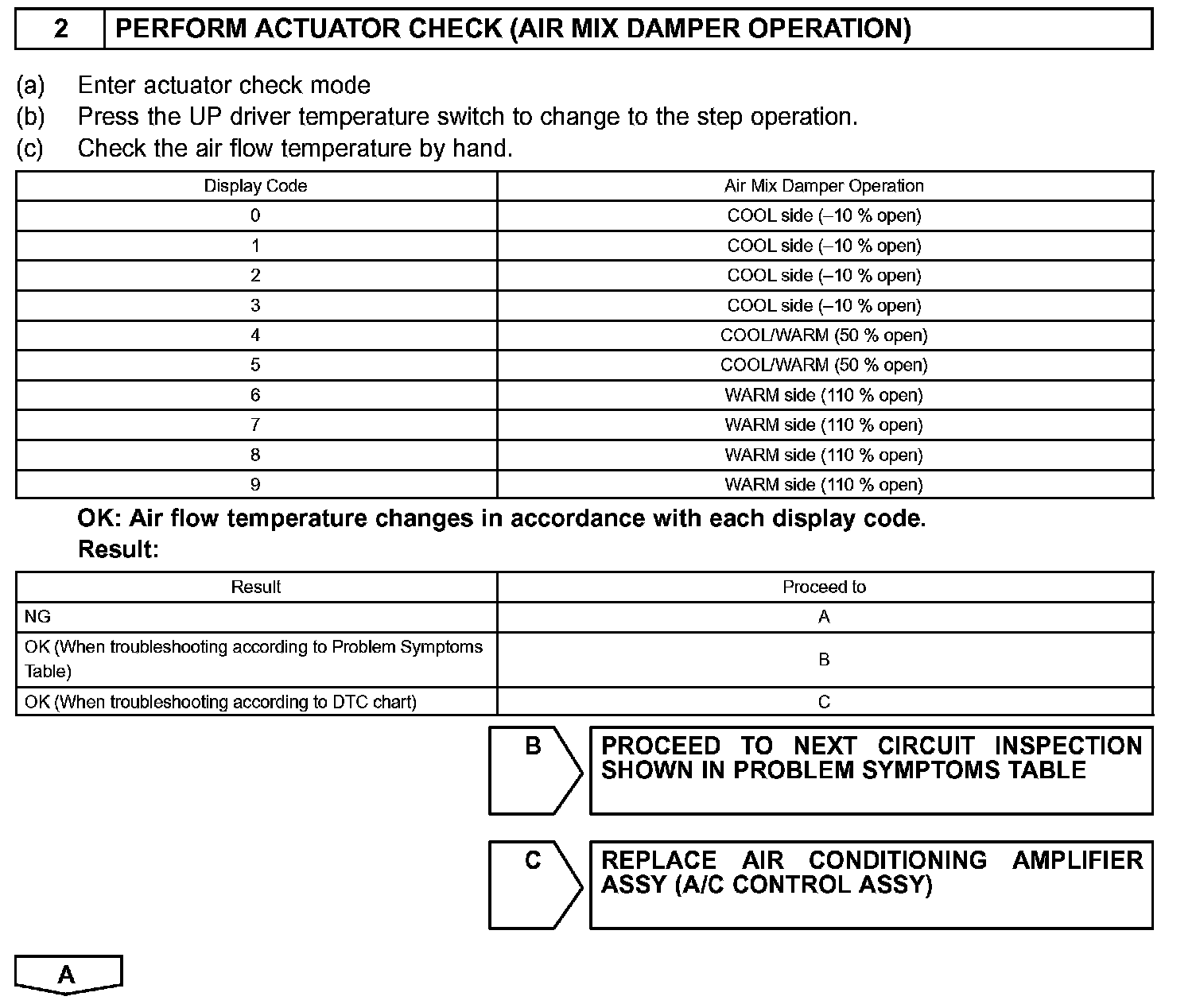

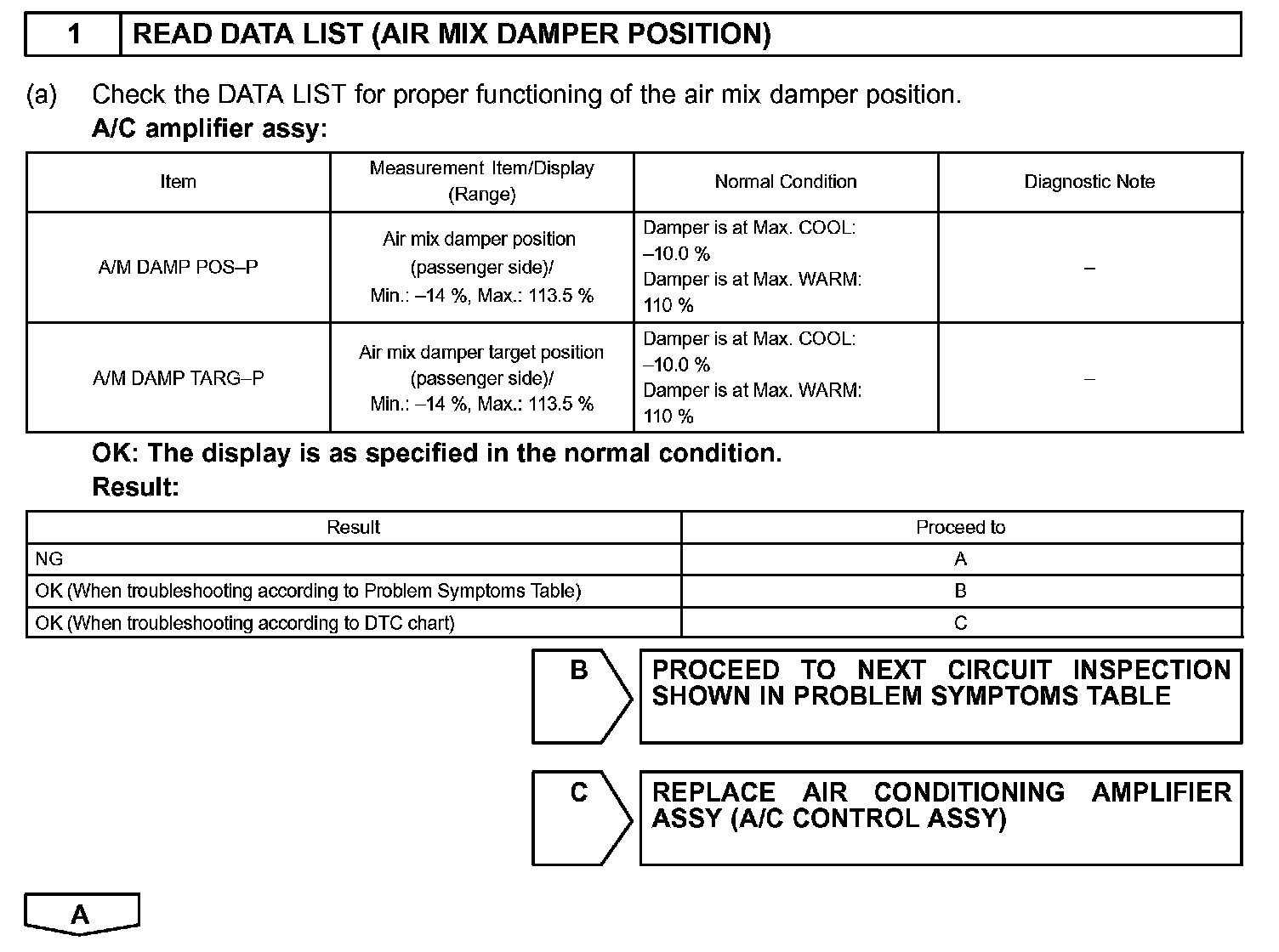

INSPECTION PROCEDURE
