B1285

DTC B1285 STEERING PAD SWITCH COMMUNICATION STOP

CIRCUIT DESCRIPTION

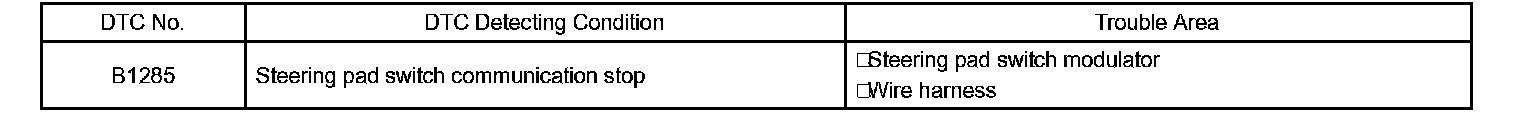

DTC Detecting Condition:

This DTC is detected when communication between the steering pad switch modulator and network gateway ECU stops for more than 10 seconds.

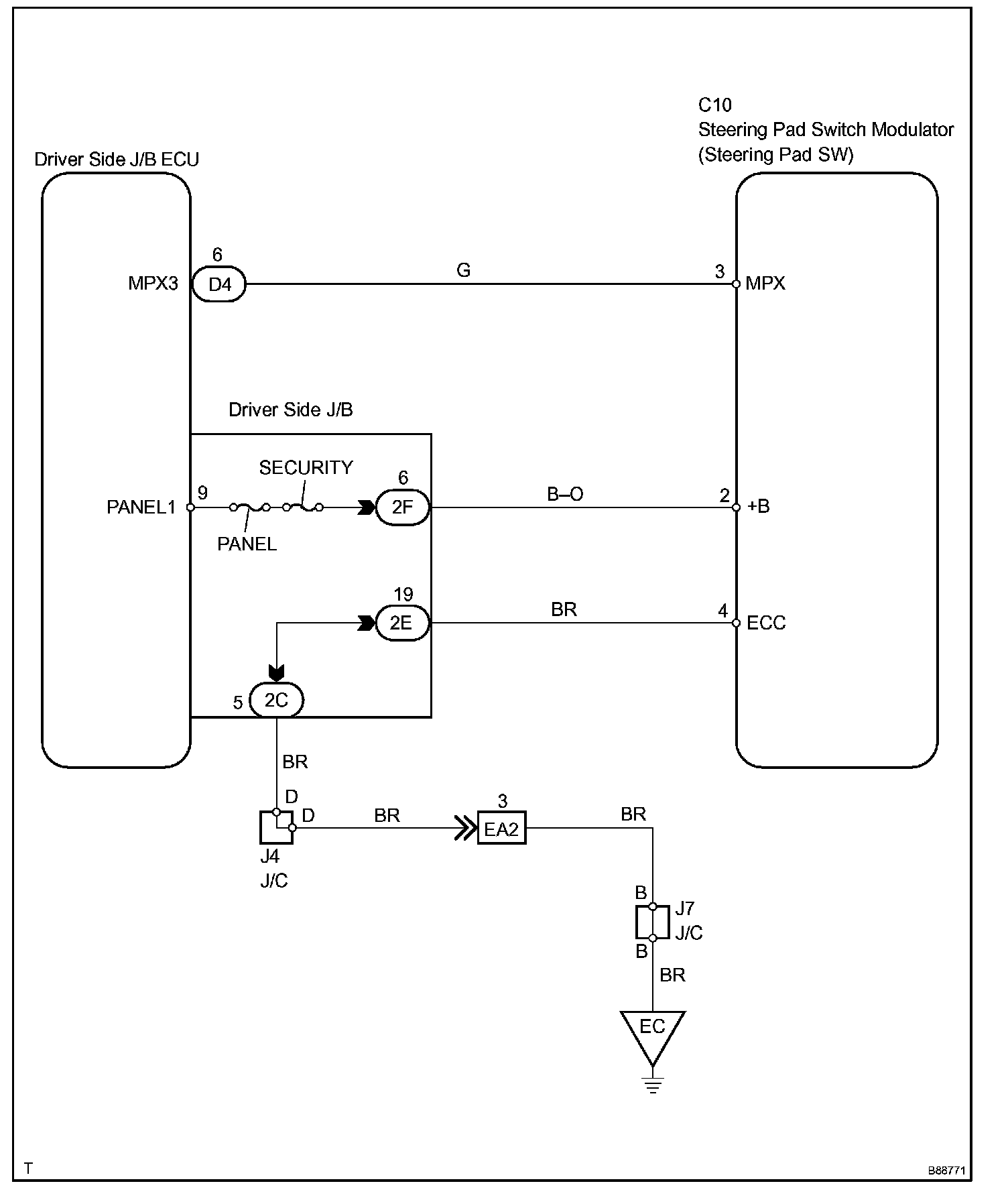

Wiring Diagram:

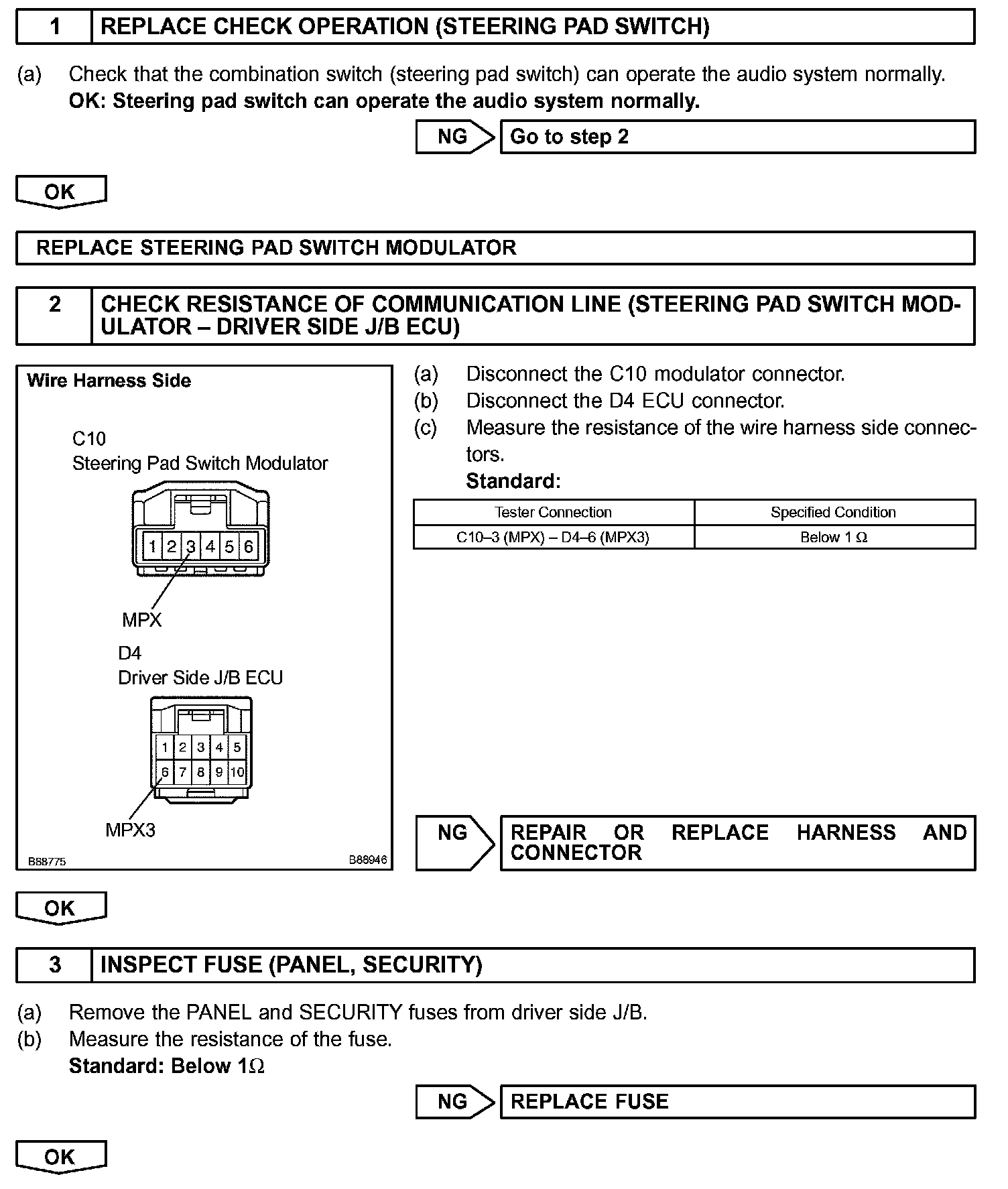

Step 1 - 3:

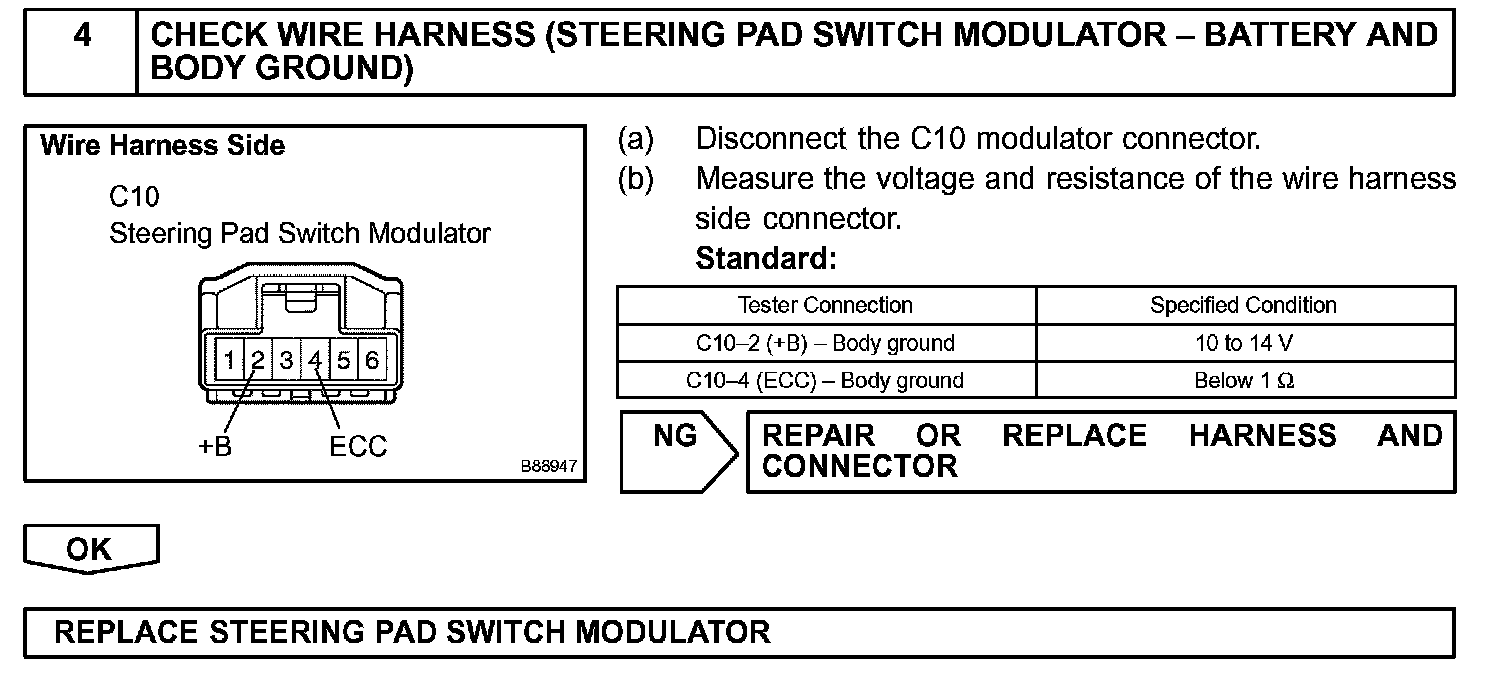

Step 4:

INSPECTION PROCEDURE
